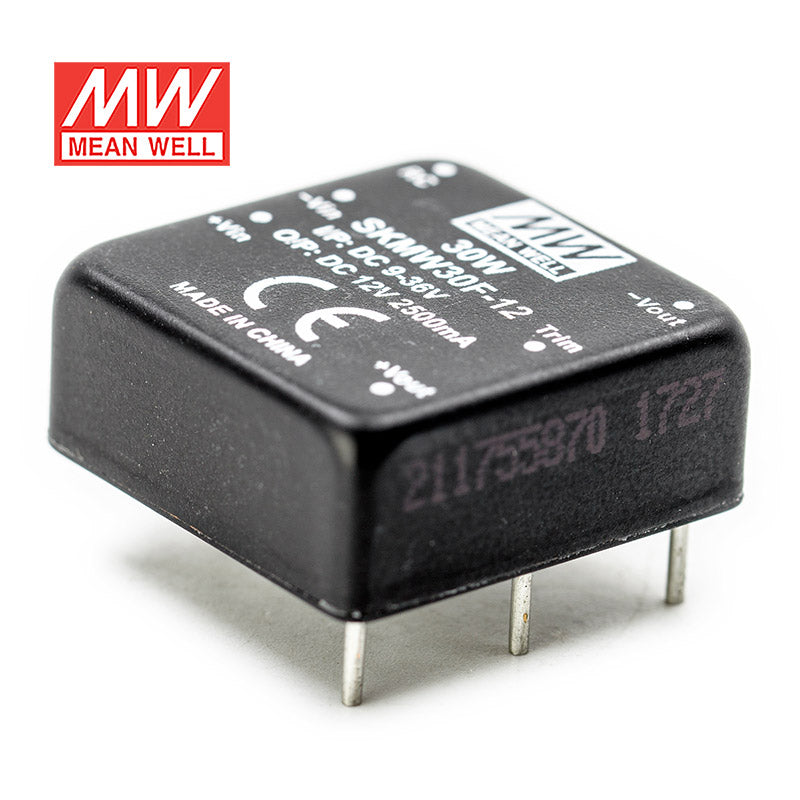

Mean Well SKMW30F-12 DC-DC Converter - 30W - 9~36V in 12V out
Please Login for Pricing
Description
Description
Remote ON/OFF control and trimming output (±10%)
3 years warranty
Key Features
- ✓DIP 1"x1" package with industry-standard pinout
- ✓Operating temperature range -40~+85°C
- ✓4:1 ultrawide input range
- ✓No minimum load required
- ✓Comply to BS EN/EN55032 radiated Class A without additional components
- ✓High efficiency up to 90%
- ✓Protection: Short circuit(continuous)/Overload/Over voltage/Input under voltage
- ✓1.5KVDC I/O isolation
- ✓Remote ON/OFF control and trimming output (±10%)
- ✓3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesSKMW Series
-
Power Rating30 Watt
-
Output Voltage12 Volt
-
Rated Current2.5 Ampere
-
Input Voltage9V~36V
-
Standards MetCE
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length2.54 cm
-
Width2.54 cm
-
Height1.02 cm
-
Weight0.02 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the SKMW30F-12 to run 12V industrial control or monitoring equipment?
Yes, this model provides constant 12V output and is rated for 30W with up to 2.5A output current. It fits 12V loads that need regulated output and remain within those limits.
Is the SKMW30F-12 appropriate for embedded or automation systems that need a regulated 12V rail?
It can be used in embedded or automation equipment because it supplies a fixed 12V output at up to 2.5A. The compact 25.4 × 25.4 × 10.2 mm package is also useful where internal space is limited.
Can this converter power 12V auxiliary devices in equipment with a 9-36VAC input range?
Yes, its specified input range is 9-36VAC and its output is 12V constant voltage. The available output is up to 2.5A, with a total power rating of 30W.
What is the difference between the SKMW30F-12 and the other SKMW30F models?
The SKMW30F-12 is a 30W converter with 12V output at 2.5A. Other listed siblings are the SKMW30F-03 at 3.3V and 7.5A, the SKMW30F-05 at 5V and 6A, and the SKMW30F-15 at 15V and 2A. All of them are 30W models in the same series.
Is the SKMW30F-12 suitable for outdoor equipment or unconditioned enclosures?
The temperature specification is -40°C to +85°C, which supports operation across a wide temperature range. However, no IP rating is listed, so the provided specs do not confirm suitability for direct outdoor exposure.
Other SKMW30 Models
9 other models| Model | Power | Voltage | Current | IP Rating | |
|---|---|---|---|---|---|
| Mean Well SKMW30W8-15 30W DC-DC Converter 15VDC | — | — | — | Indoor | View |
| Mean Well SKMW30W8-12 30W DC-DC Converter 12VDC | — | — | — | Indoor | View |
| Mean Well SKMW30G-15 DC-DC Converter - 30W - 18~75V in 15V out | 30W | 15V | 2A | Indoor | View |
| Mean Well SKMW30G-12 DC-DC Converter - 30W - 18~75V in 12V out | 30W | 12V | 2.5A | Indoor | View |
| Mean Well SKMW30G-05 DC-DC Converter - 30W - 18~75V in 5V out | 30W | 5V | 6A | Indoor | View |
| Mean Well SKMW30G-03 DC-DC Converter - 30W - 18~75V in 3.3V out | 30W | 3.3V | 7.5A | Indoor | View |
| Mean Well SKMW30F-15 DC-DC Converter - 30W - 9~36V in 15V out | 30W | 15V | 2A | Indoor | View |
| Mean Well SKMW30F-05 DC-DC Converter - 30W - 9~36V in 5V out | 30W | 5V | 6A | Indoor | View |
| Mean Well SKMW30F-03 DC-DC Converter - 30W - 9~36V in 3.3V out | 30W | 3.3V | 7.5A | Indoor | View |
