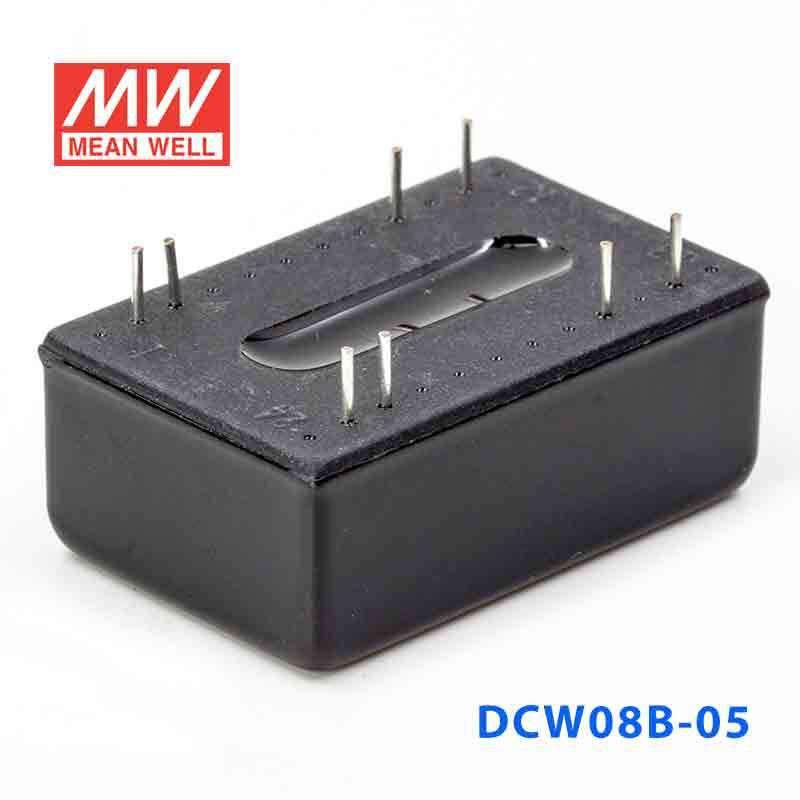

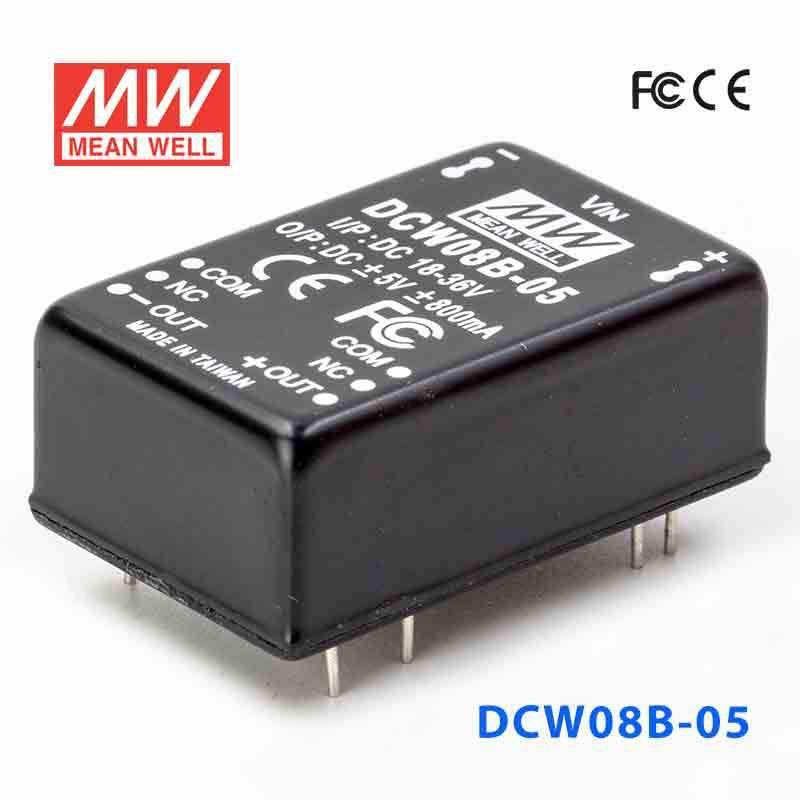

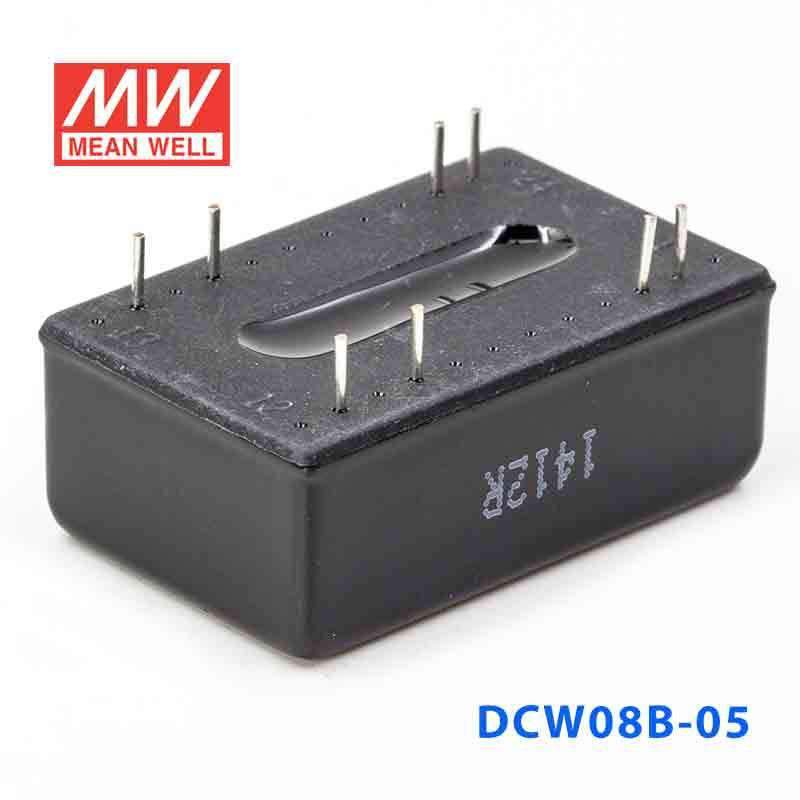

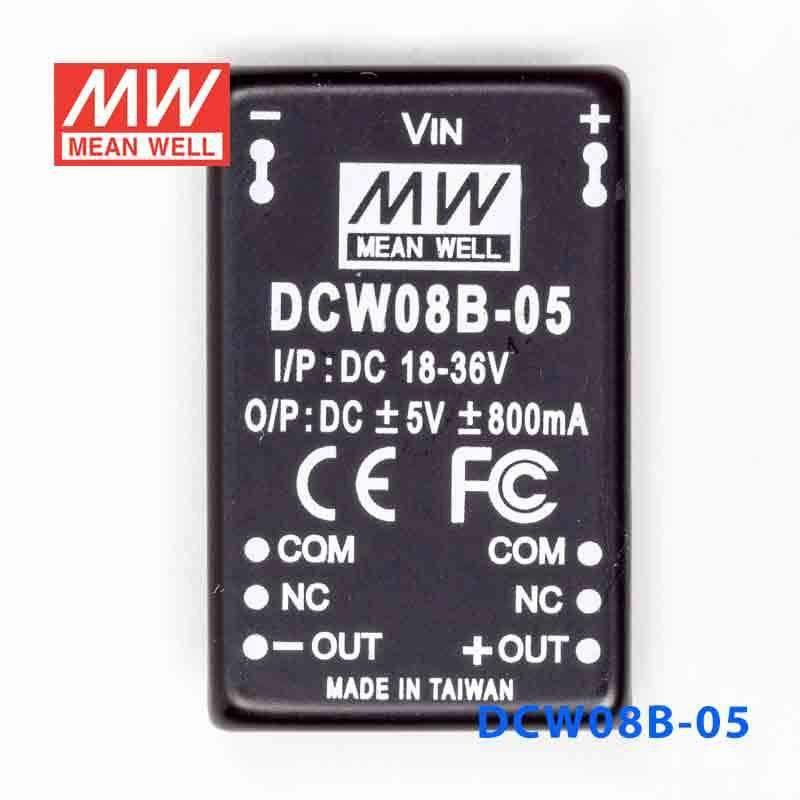

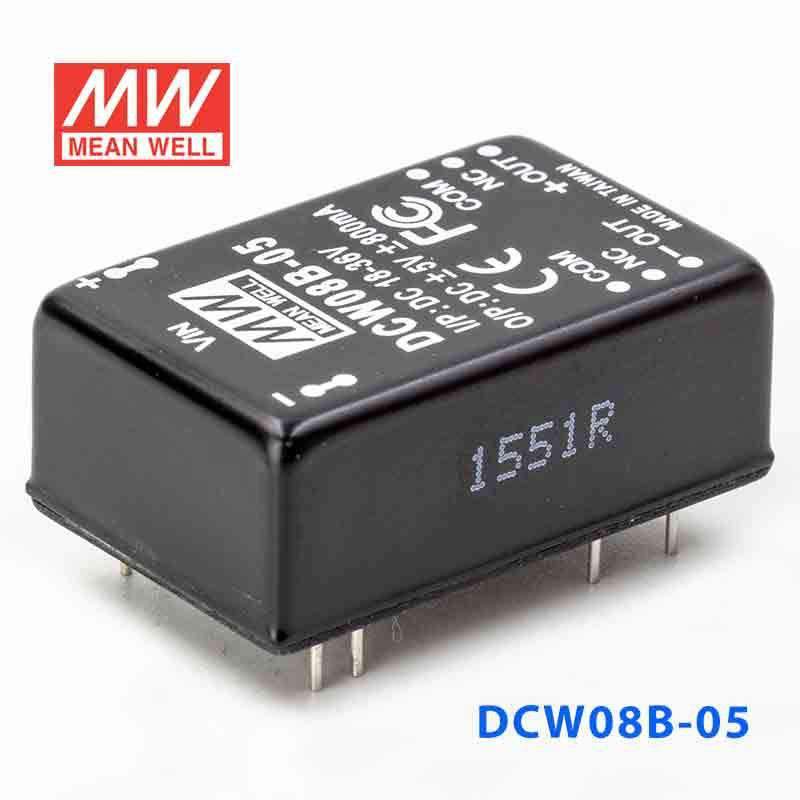

Mean Well DCW08B-05 DC-DC Converter - 8W - 18~36V in ±5V out 800mA
Log in to see priceOverview
DCW08B-05 is the ±5V output model of this series: rated power 8W, typical efficiency 78%.
Features
- 2:1 wide input range
- 1500VDC I/O isolation
- Built-in EMI filter
- Protections: Short circuit / Overload
- Cooling by free air convection
- Five-sided shield metal case
- 100% full load burn-in test
- Low cost / High reliability
- 2 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- ±5V
- CURRENT RANGE
- ±160 ~ ±800mA
- RATED POWER
- 8W
- RIPPLE & NOISE (max.)Note.2
- 50mVp-p
- LINE REGULATIONNote.3
- ±0.5%
- LOAD REGULATIONNote.4
- ±0.5%
- VOLTAGE ACCURACY
- ±2.0%
- SWITCHING FREQUENCY
- 50KHz min.
- EXTERNAL CAPACITANCE LOAD (max.)
- 670uF
INPUT
- VOLTAGE RANGE
- 18 ~ 36VDC
- EFFICIENCY (Typ.)
- 78%
- DC CURRENT Full load
- 426mA
- DC CURRENT No load
- 25mA
- FILTER
- Pi network
- PROTECTION
- Fuse recommended
PROTECTION
- OVERLOADNote.5
- 110 ~ 250% rated output load Protection type : Hiccup mode, recovers automatically after fault condition is removed
- SHORT CIRCUITNote.5
- All output equipped with over current protection Protection type : Hiccup mode, recovers automatically after fault condition is removed
ENVIRONMENT
- WORKING TEMP.
- -40 ~ +71℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20% ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +105℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03% / ℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- EAC TP TC 020/2011 approved
- WITHSTAND VOLTAGE
- I/P-O/P:1.5KVDC
- ISOLATION RESISTANCE
- I/P-O/P: 100M Ohms / 500VDC / 25℃/ 70% RH
- ISOLATION CAPACITANCE
- 250pF max.
- EMC EMISSION
- Compliance to BS EN/EN55032 Class B, FCC part 15 Class B, EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8, light industry level, criteria A, EAC TP TC 020
OTHERS
- MTBF
- 900khrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 31.8*20.3*12.2mm (L*W*H) or 1.25"*0.80"*0.48" inch (L*W*H)
- PACKING
- 17.5g ; 15pcs/per tube, 750pcs/50 tube/per carton
Test conditions and notes5
- 1.All parameters are specified at normal input, rated load, 25℃ 70% RH ambient.
- 2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1uf & 47uf capacitor.
- 3.Line regulation is measured from low line to high line at rated load.
- 4.Load regulation is measured from 20% to 100% rated load.
- 5.Please prevent the converter from operating in overload or short circuit condition for more than 30 seconds.
Technical drawings
Downloads
Datasheet1
Certificates3
FAQ
What are the main electrical ratings of the Mean Well DCW08B-05?
The DCW08B-05 is an 8W DC-DC converter with an 18 to 36V DC input range and a ±5V DC output. It is rated for 800mA output current and has a typical efficiency of 78%.
What kinds of applications is the DCW08B-05 suited for?
This model is suited for industrial and OEM applications that need compact 8W DC-DC conversion from a 24V-class DC input range. Its isolated design, built-in EMI filter, and shielded metal case make it a practical fit for embedded power systems and control equipment.
Can the DCW08B-05 be used in demanding temperature conditions?
Yes, the DCW08B-05 is rated for operation from -40°C to +71°C when used within its derating limits. Its storage temperature range is broader, from -40°C to +105°C, which supports use in harsh storage and transport environments.
What protection features does the DCW08B-05 include?
The unit includes short circuit protection and overload protection, both in hiccup mode with automatic recovery. Overload protection is specified at 110% to 250% of rated output load, helping protect the converter during abnormal load conditions.
How compact is the Mean Well DCW08B-05?
The DCW08B-05 measures 31.8 x 20.3 x 12.2mm, making it a very compact board-level power module. It also weighs about 17.5g and uses a five-sided shield metal case for a small but durable form factor.
What compliance and reliability details are listed for this model?
The DCW08B-05 is listed as compliant with EN55032 Class B, FCC Part 15 Class B, and several EN61000-4 immunity standards. It is also described as having 100% full load burn-in testing and comes with a 2-year warranty.
