Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

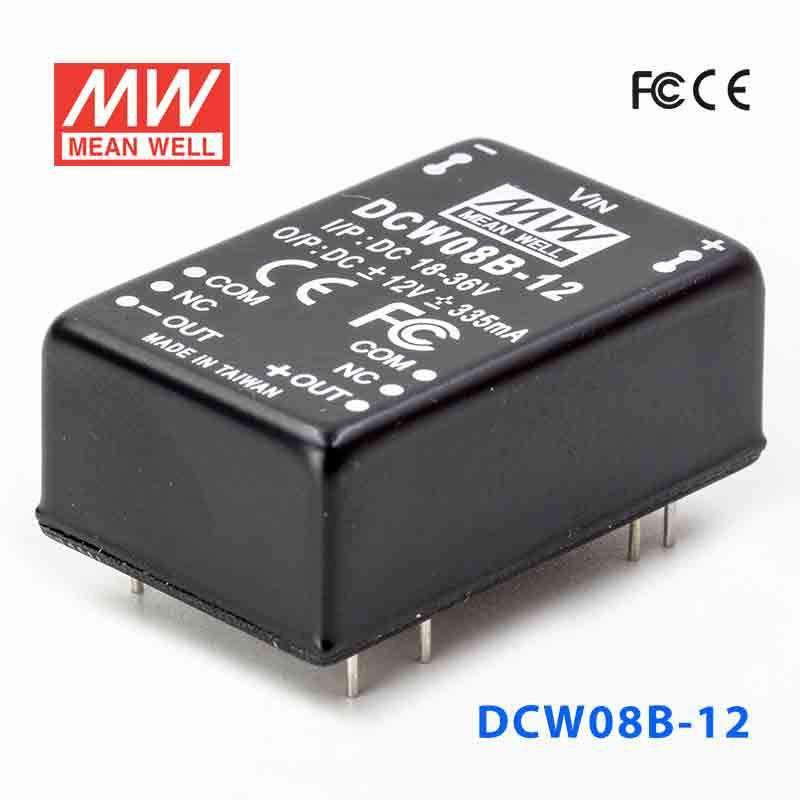

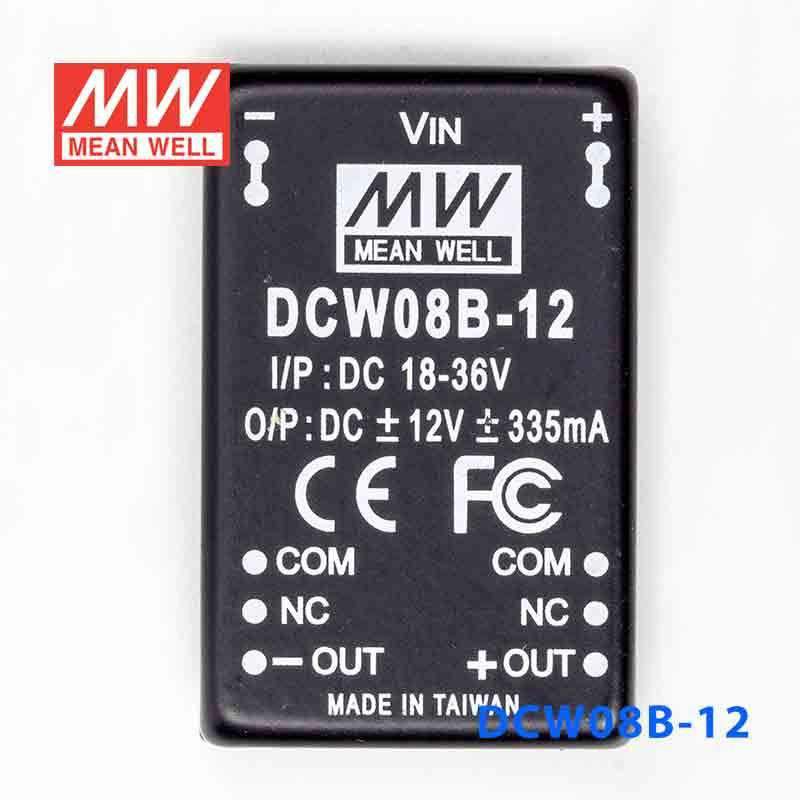

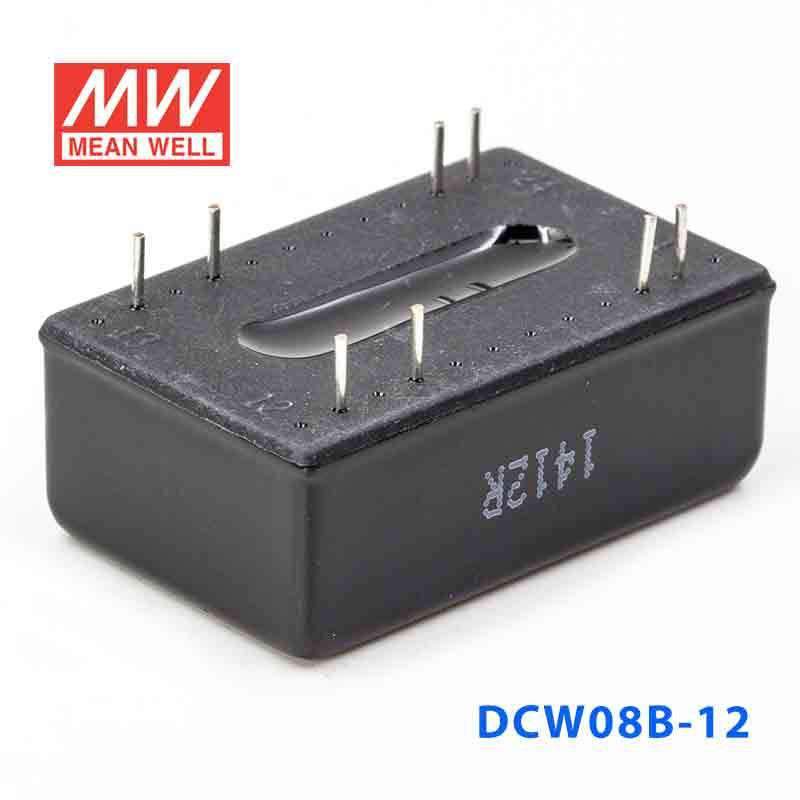

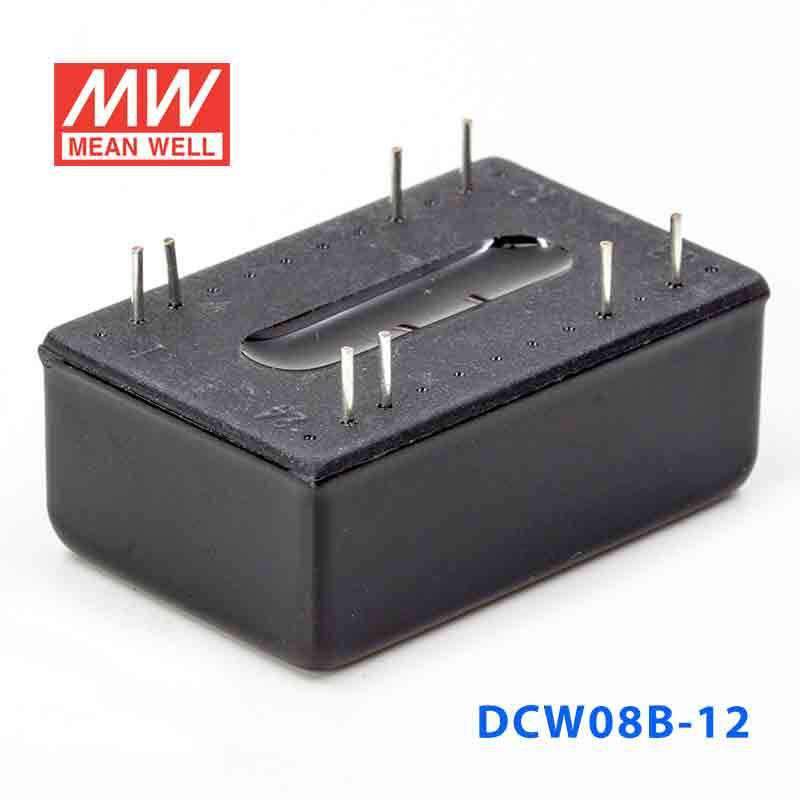

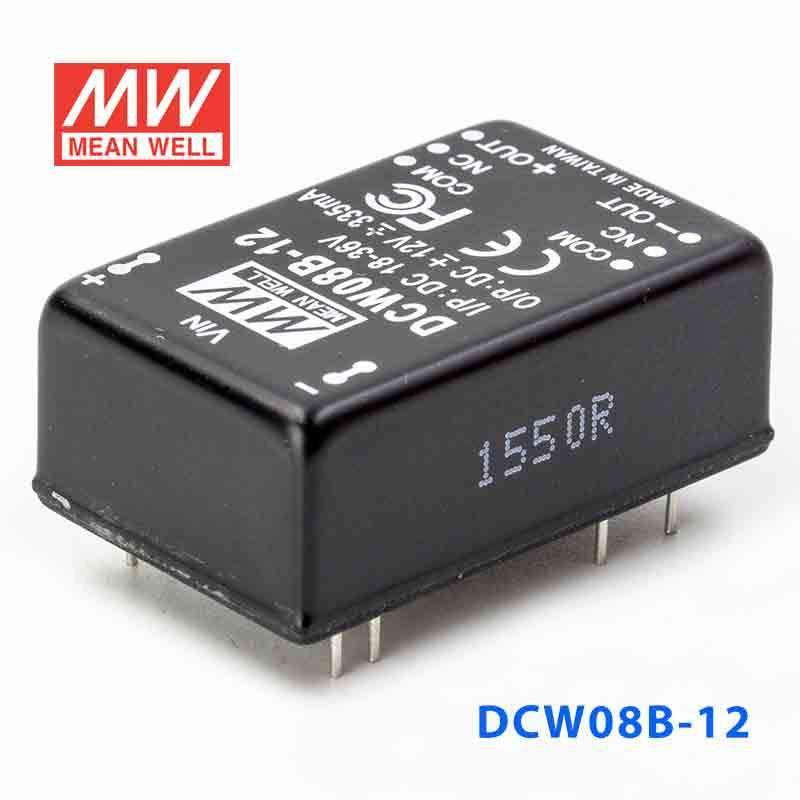

Mean Well DCW08B-12 DC-DC Converter - 8W - 18~36V in ±12V out 335mA

SKU:

DCW08B-12

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The DCW08B is a 8W Mean Well. power converter. operating from -40~+71℃.

Key Features

✓ 1KVDC reinforced I/O isolation
✓ Wide operating temperature: -40~+71℃
✓ Protections: Short circuit / Overload
✓ Safety approvals: EAC TP TC 004
✓ 3 years warranty

Frequently Asked Questions

What does the Mean Well DCW08B-12 do?

The DCW08B-12 is an 8W DC-DC converter designed to take an 18 to 36V DC input and provide a ±12V DC output. It is intended for applications that need compact, regulated DC conversion in a modular form factor.

What input and output ratings does this model have?

This model accepts a 2:1 input range of 18 to 36V DC. Its output is ±12V DC, with a rated current of 335 mA, and the unit is rated for 8W total output power.

What protection features are included on the DCW08B-12?

The product includes short circuit protection and overload protection with auto-recovery behavior. The overload protection is listed at 150% to 250%, helping protect the converter during abnormal load conditions.

Is the DCW08B-12 suitable for demanding industrial environments?

It is built for a wide operating temperature range of -40 to +71°C, with derating referenced at higher temperatures. The unit also includes a built-in EMI filter, a shielded metal case, and EMC compliance listed for EN55022 Class B, FCC Part 15 Class B, and several EN61000-4 immunity standards.

How compact is this DC-DC converter?

The DCW08B-12 has a compact metal case measuring 31.8 x 20.3 x 12.2 mm. Its listed weight is 0.015 kg, making it suitable for space-constrained equipment designs.

What kinds of applications is this model best suited for?

This model is a fit for equipment that needs regulated low-power DC conversion from a nominal 24V-class input range to ±12V output rails. Typical buyer interest would include embedded electronics, control systems, and other compact industrial or OEM power applications where isolation, small size, and convection cooling are useful.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well DCW08C-15 DC-DC Converter - 8W - 36~72V in ±15V out 267mA	8W	15V	0.26A	Indoor	View
Mean Well DCW08C-12 DC-DC Converter - 8W - 36~72V in ±12V out 335mA	8W	12V	0.33A	Indoor	View
Mean Well DCW08C-05 DC-DC Converter - 8W - 36~72V in ±5V out 800mA	8W	5V	0.8A	Indoor	View
Mean Well DCW08B-15 DC-DC Converter - 8W - 18~36V in ±15V out 267mA	8W	15V	0.26A	Indoor	View
Mean Well DCW08B-05 DC-DC Converter - 8W - 18~36V in ±5V out 800mA	8W	5V	0.8A	Indoor	View
Mean Well DCW08A-15 DC-DC Converter - 8W - 9~18V in ±15V out 267mA	8W	15V	0.26A	Indoor	View
Mean Well DCW08A-12 DC-DC Converter - 8W - 9~18V in ±12V out 335mA	8W	12V	0.33A	Indoor	View
Mean Well DCW08A-05 DC-DC Converter - 8W - 9~18V in ±5V out 800mA	8W	5V	0.8A	Indoor	View
