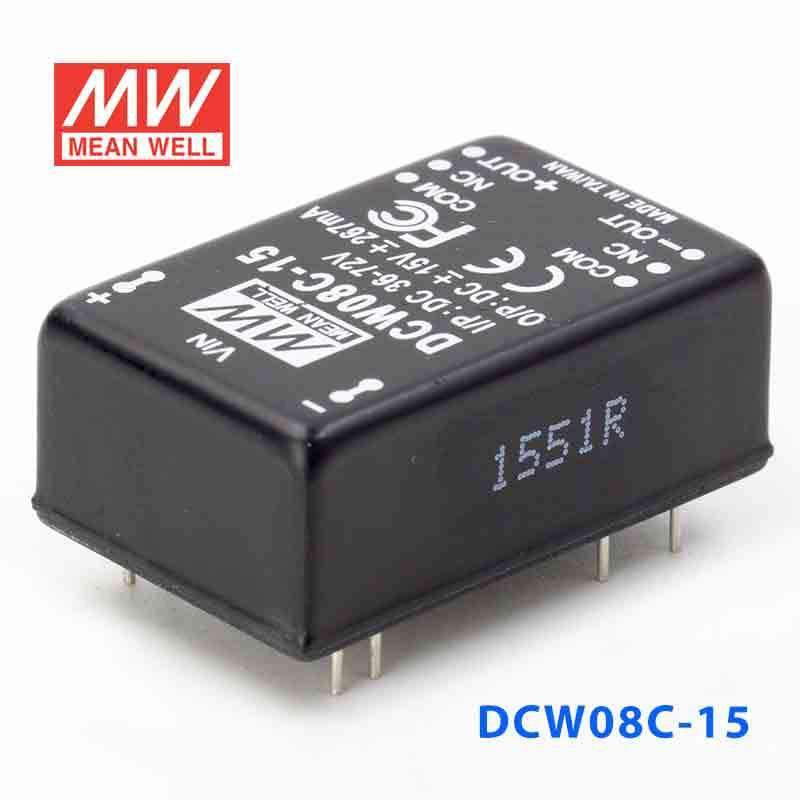

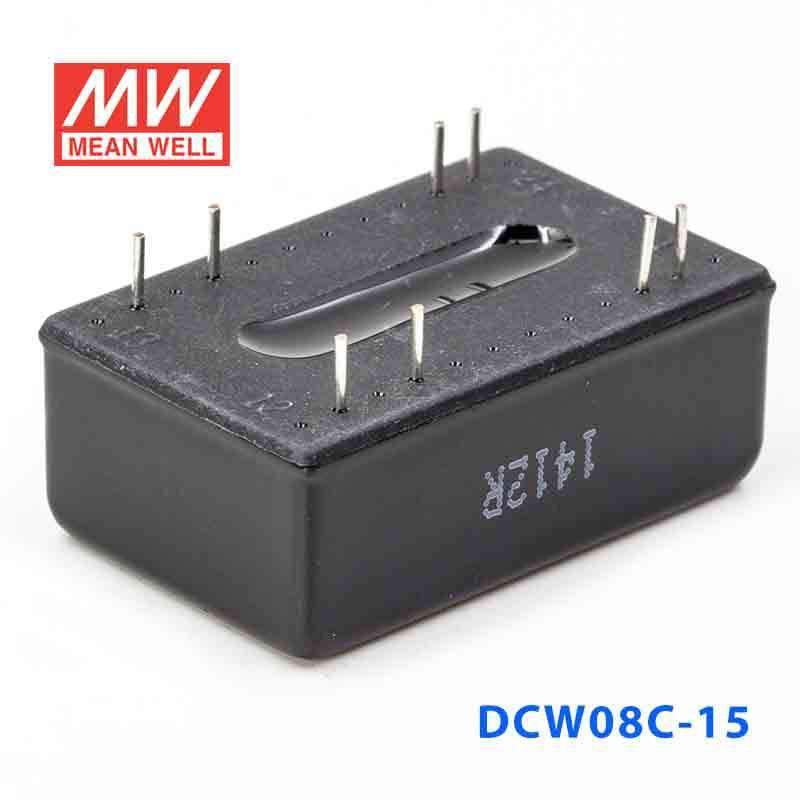

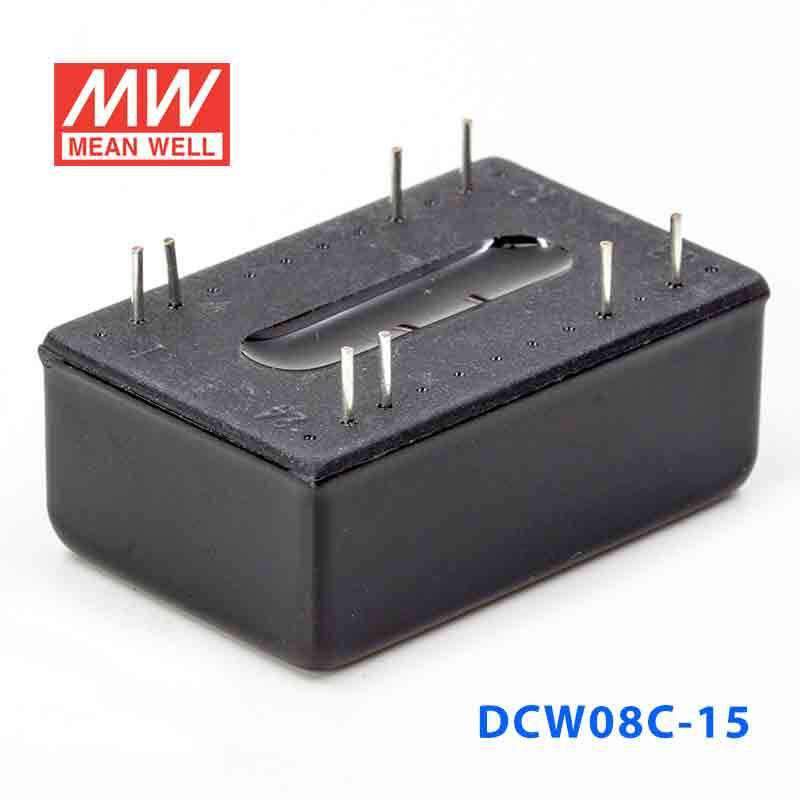

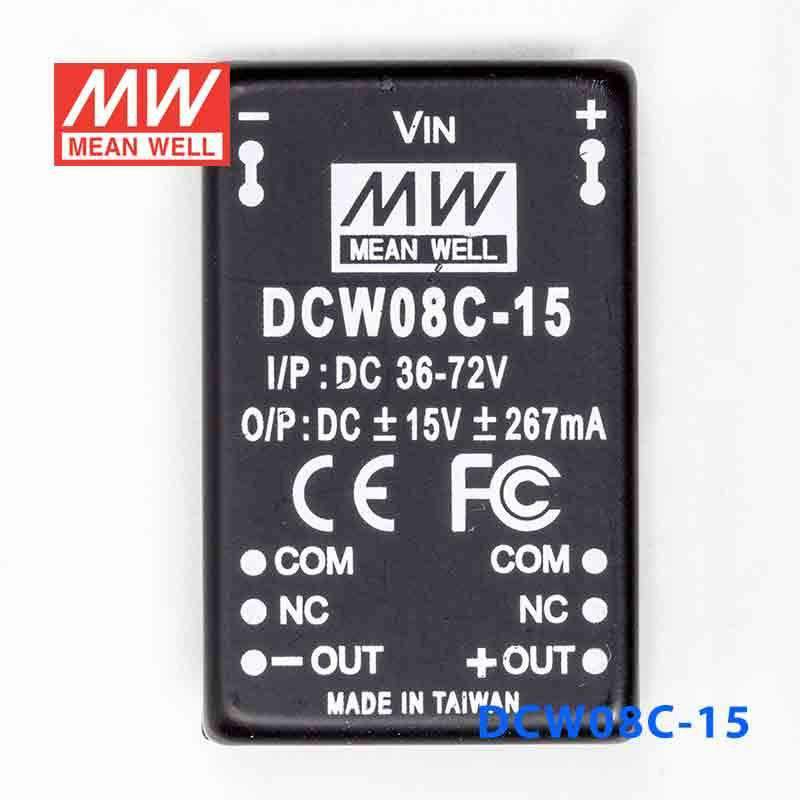

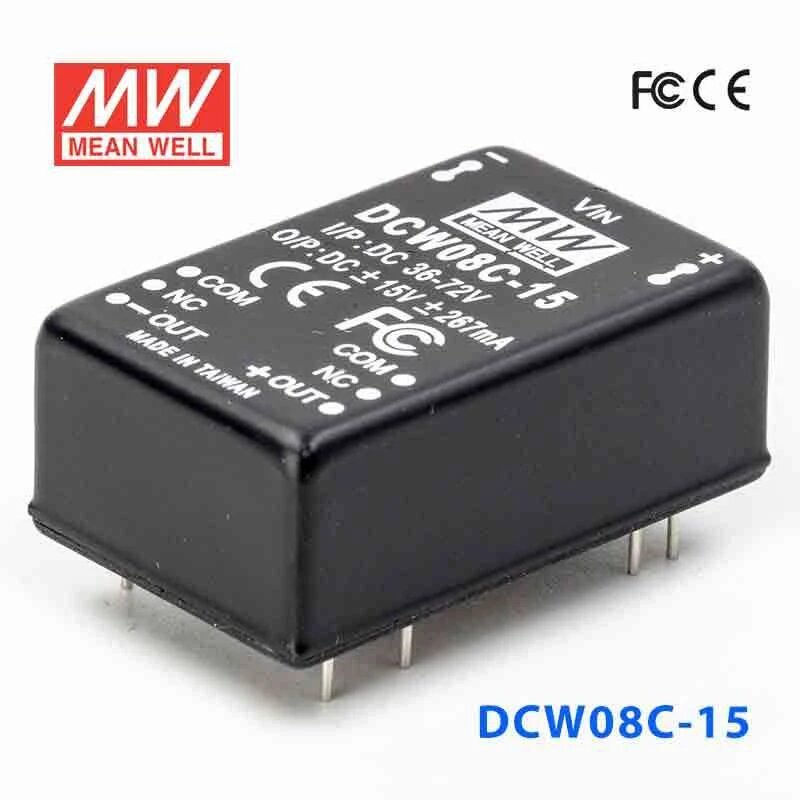

Mean Well DCW08C-15 DC-DC Converter - 8W - 36~72V in ±15V out 267mA

SKU:

DCW08C-15

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The DCW08C is a 8W Mean Well. power converter. operating from -40~+71℃.

Key Features

✓ 1KVDC reinforced I/O isolation
✓ Wide operating temperature: -40~+71℃
✓ Protections: Short circuit / Overload
✓ Safety approvals: EAC TP TC 004
✓ 3 years warranty

Frequently Asked Questions

What is the Mean Well DCW08C-15 used for?

The DCW08C-15 is an 8W isolated DC-DC converter for systems that need power conversion from a 36 to 72V DC input to a regulated ±15V DC output. It is suited to embedded, industrial, and control applications where compact size, isolation, and stable output matter.

What input and output range does the DCW08C-15 support?

This model accepts a wide 2:1 input range of 36 to 72V DC. It provides a ±15V DC output and is rated for 8W total output power with a rated current of 267mA.

Does the DCW08C-15 provide input-to-output isolation?

Yes, this converter is an isolated design. The product features 1500V DC input-to-output isolation in the feature list, and the general specification lists 1000V DC minimum isolation voltage.

How efficient is the Mean Well DCW08C-15?

The typical efficiency for the DCW08C-15 is 85%. That makes it a practical choice for compact DC-DC conversion where minimizing excess heat and maintaining reliable performance are important.

What protection features are included in the DCW08C-15?

This model includes short circuit protection and overload protection with auto-recovery behavior. The overload protection range is specified at 150% to 250%, helping protect the converter during abnormal load conditions.

Can the DCW08C-15 be used in harsh temperature environments?

The DCW08C-15 is rated for operation from -40°C to +71°C, with reference to the output derating curve. Its storage temperature range is -40°C to +105°C, which supports use in demanding industrial environments.

How compact is the Mean Well DCW08C-15?

This converter has a compact metal case measuring 31.8 x 20.3 x 12.2 mm. Its five-sided shield metal case and low 0.015 kg weight make it suitable for space-constrained equipment designs.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well DCW08C-12 DC-DC Converter - 8W - 36~72V in ±12V out 335mA	8W	12V	0.33A	Indoor	View
Mean Well DCW08C-05 DC-DC Converter - 8W - 36~72V in ±5V out 800mA	8W	5V	0.8A	Indoor	View
Mean Well DCW08B-15 DC-DC Converter - 8W - 18~36V in ±15V out 267mA	8W	15V	0.26A	Indoor	View
Mean Well DCW08B-12 DC-DC Converter - 8W - 18~36V in ±12V out 335mA	8W	12V	0.33A	Indoor	View
Mean Well DCW08B-05 DC-DC Converter - 8W - 18~36V in ±5V out 800mA	8W	5V	0.8A	Indoor	View
Mean Well DCW08A-15 DC-DC Converter - 8W - 9~18V in ±15V out 267mA	8W	15V	0.26A	Indoor	View
Mean Well DCW08A-12 DC-DC Converter - 8W - 9~18V in ±12V out 335mA	8W	12V	0.33A	Indoor	View
Mean Well DCW08A-05 DC-DC Converter - 8W - 9~18V in ±5V out 800mA	8W	5V	0.8A	Indoor	View
