Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

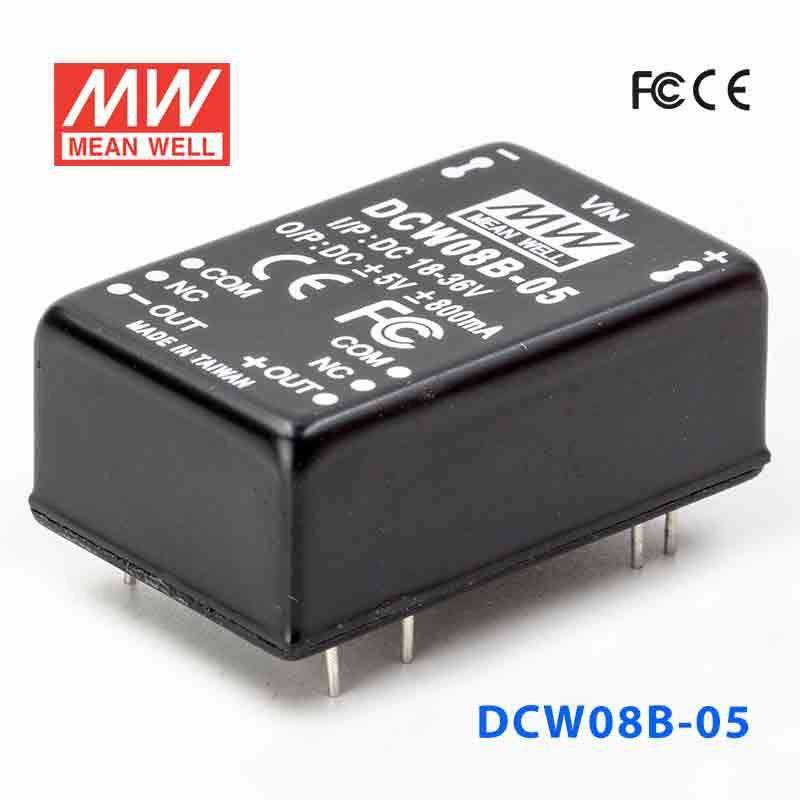

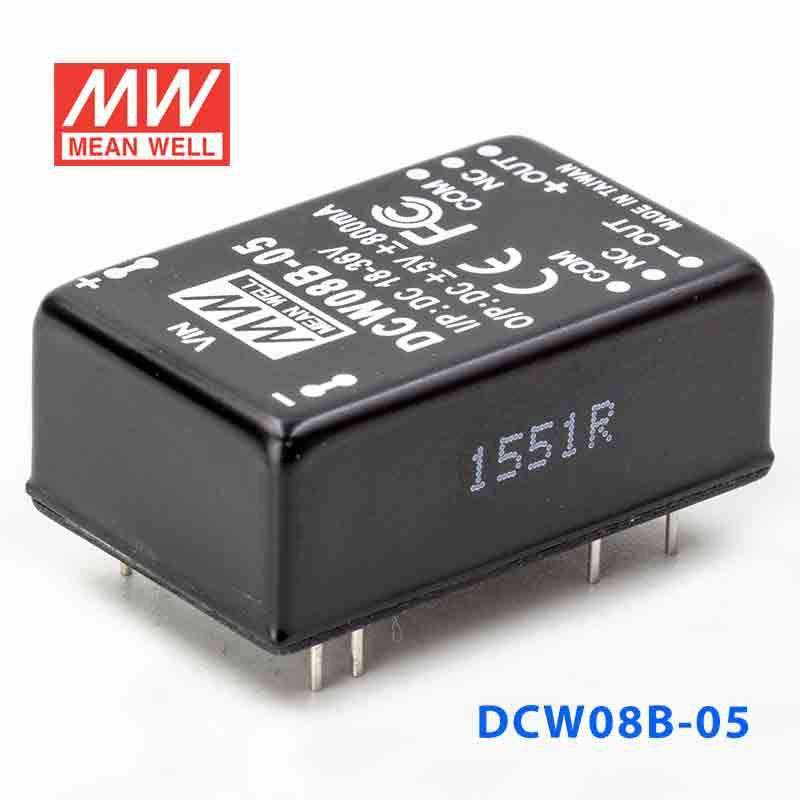

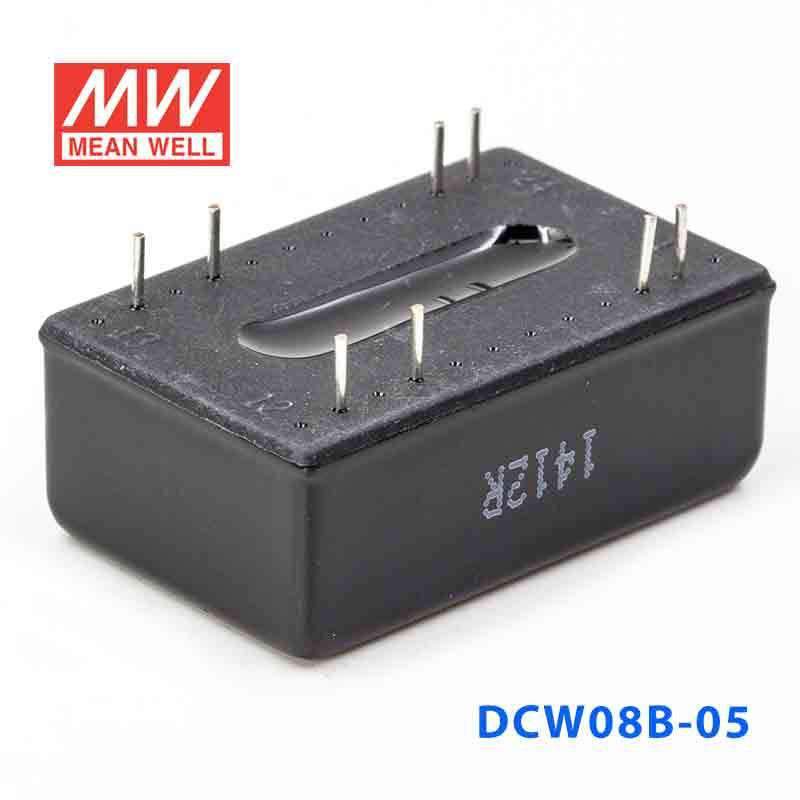

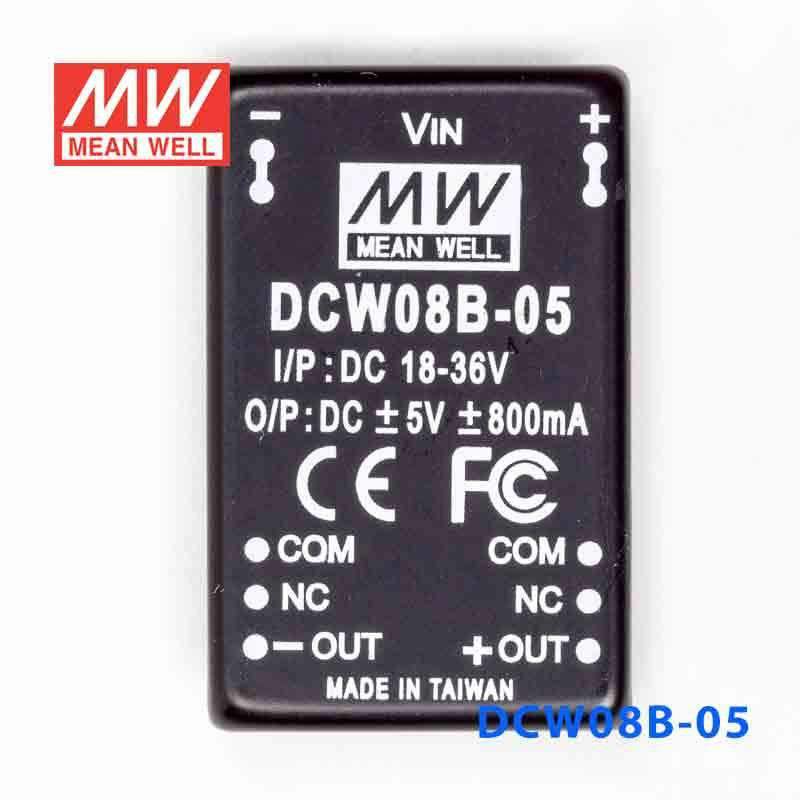

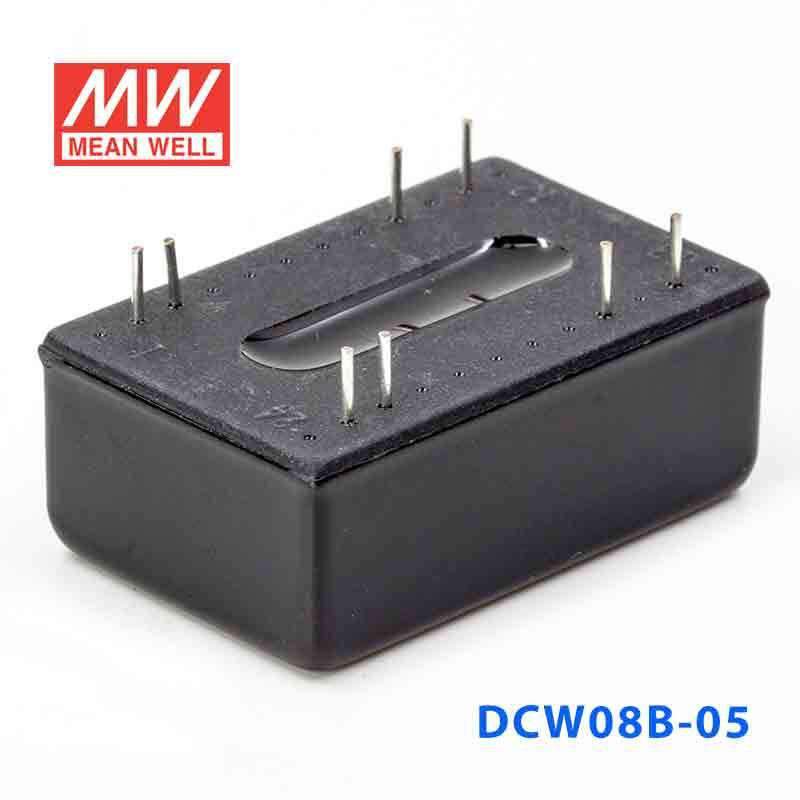

Mean Well DCW08B-05 DC-DC Converter - 8W - 18~36V in ±5V out 800mA

SKU:

DCW08B-05

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The DCW08B is a 8W Mean Well. power converter. operating from -40~+71℃.

Key Features

✓ 1KVDC reinforced I/O isolation
✓ Wide operating temperature: -40~+71℃
✓ Protections: Short circuit / Overload
✓ Safety approvals: EAC TP TC 004
✓ 3 years warranty

Frequently Asked Questions

What are the main electrical ratings of the Mean Well DCW08B-05?

The DCW08B-05 is an 8W DC-DC converter with an 18 to 36V DC input range and a ±5V DC output. It is rated for 800mA output current and has a typical efficiency of 85%.

What kinds of applications is the DCW08B-05 suited for?

This model is suited for industrial and OEM applications that need compact 8W DC-DC conversion from a 24V-class DC input range. Its isolated design, built-in EMI filter, and shielded metal case make it a practical fit for embedded power systems and control equipment.

Can the DCW08B-05 be used in demanding temperature conditions?

Yes, the DCW08B-05 is rated for operation from -40°C to +71°C when used within its derating limits. Its storage temperature range is broader, from -40°C to +105°C, which supports use in harsh storage and transport environments.

What protection features does the DCW08B-05 include?

The unit includes short circuit protection with continuous auto-recovery and overload protection with auto-recovery. Overload protection is specified at 150% to 250%, helping protect the converter during abnormal load conditions.

How compact is the Mean Well DCW08B-05?

The DCW08B-05 measures 31.8 x 20.3 x 12.2mm, making it a very compact board-level power module. It also weighs about 0.015kg and uses a five-sided shield metal case for a small but durable form factor.

What compliance and reliability details are listed for this model?

The DCW08B-05 is listed as compliant with EN55022 Class B, FCC Part 15 Class B, and several EN61000-4 immunity standards. It is also described as having 100% full load burn-in testing and comes with a 2-year warranty.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well DCW08C-15 DC-DC Converter - 8W - 36~72V in ±15V out 267mA	8W	15V	0.26A	Indoor	View
Mean Well DCW08C-12 DC-DC Converter - 8W - 36~72V in ±12V out 335mA	8W	12V	0.33A	Indoor	View
Mean Well DCW08C-05 DC-DC Converter - 8W - 36~72V in ±5V out 800mA	8W	5V	0.8A	Indoor	View
Mean Well DCW08B-15 DC-DC Converter - 8W - 18~36V in ±15V out 267mA	8W	15V	0.26A	Indoor	View
Mean Well DCW08B-12 DC-DC Converter - 8W - 18~36V in ±12V out 335mA	8W	12V	0.33A	Indoor	View
Mean Well DCW08A-15 DC-DC Converter - 8W - 9~18V in ±15V out 267mA	8W	15V	0.26A	Indoor	View
Mean Well DCW08A-12 DC-DC Converter - 8W - 9~18V in ±12V out 335mA	8W	12V	0.33A	Indoor	View
Mean Well DCW08A-05 DC-DC Converter - 8W - 9~18V in ±5V out 800mA	8W	5V	0.8A	Indoor	View
