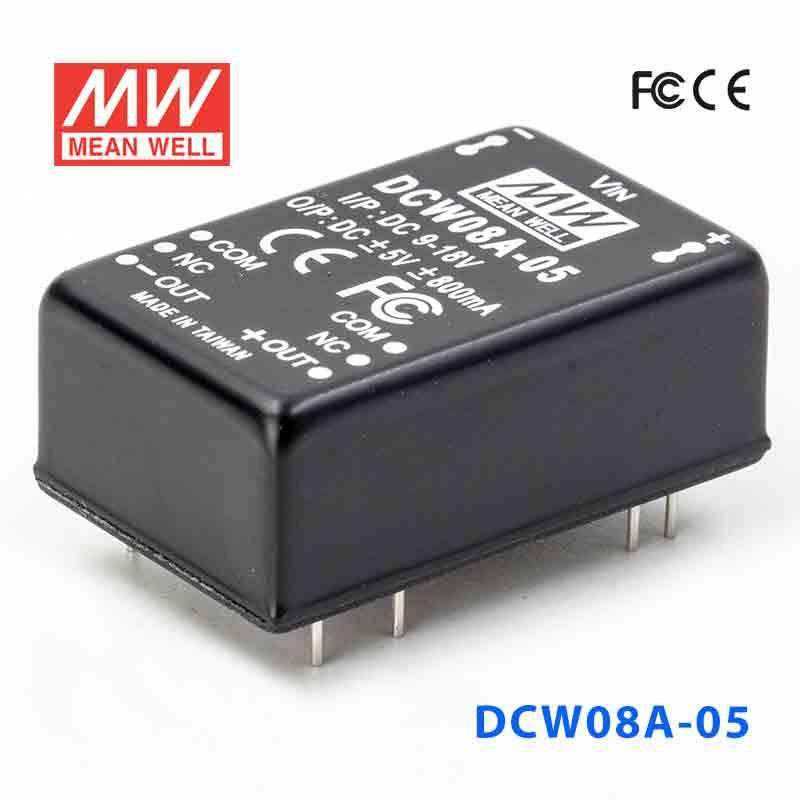

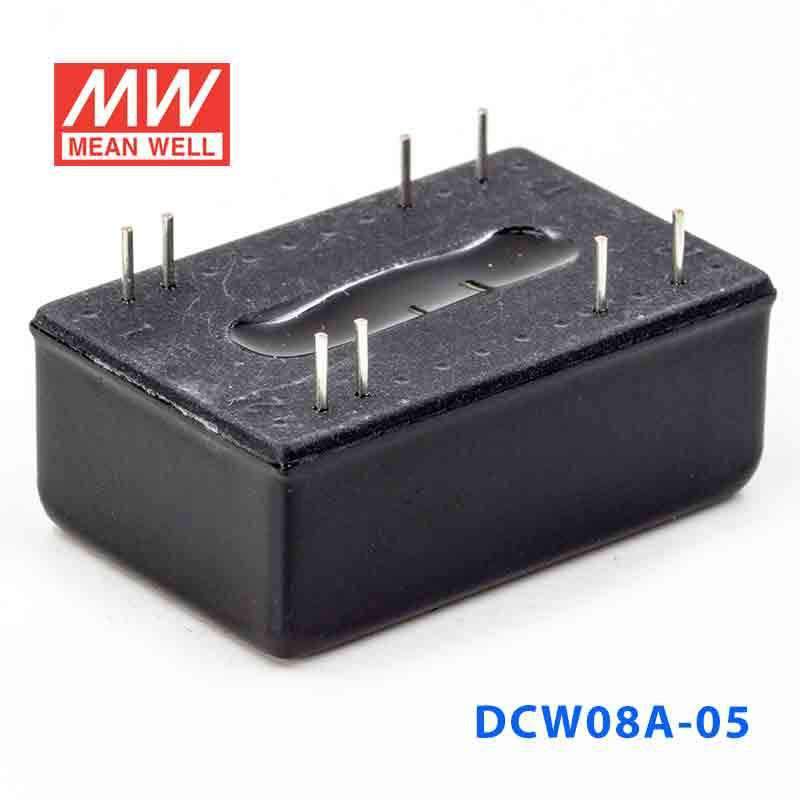

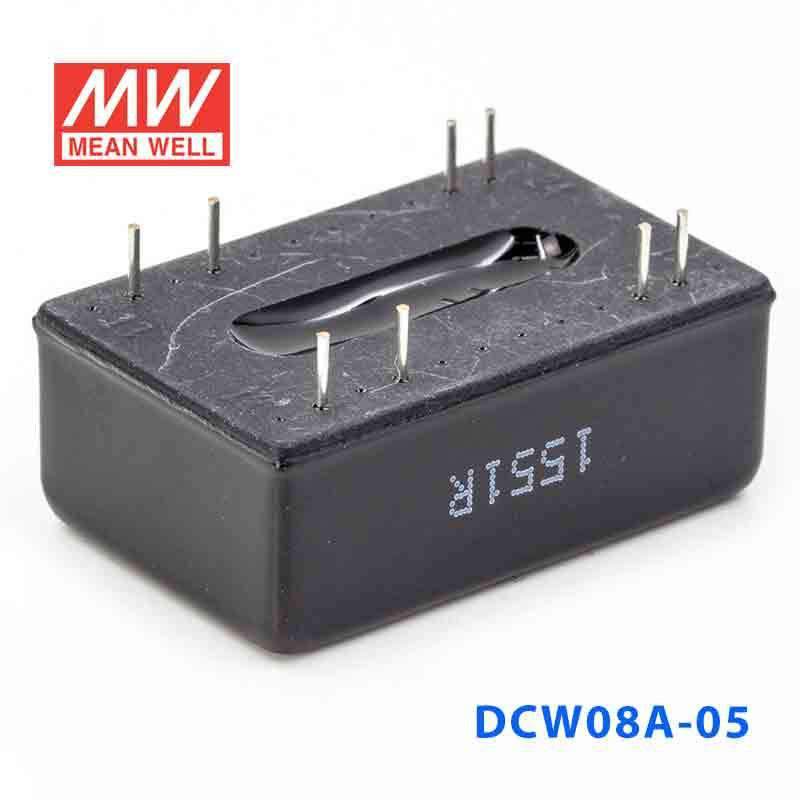

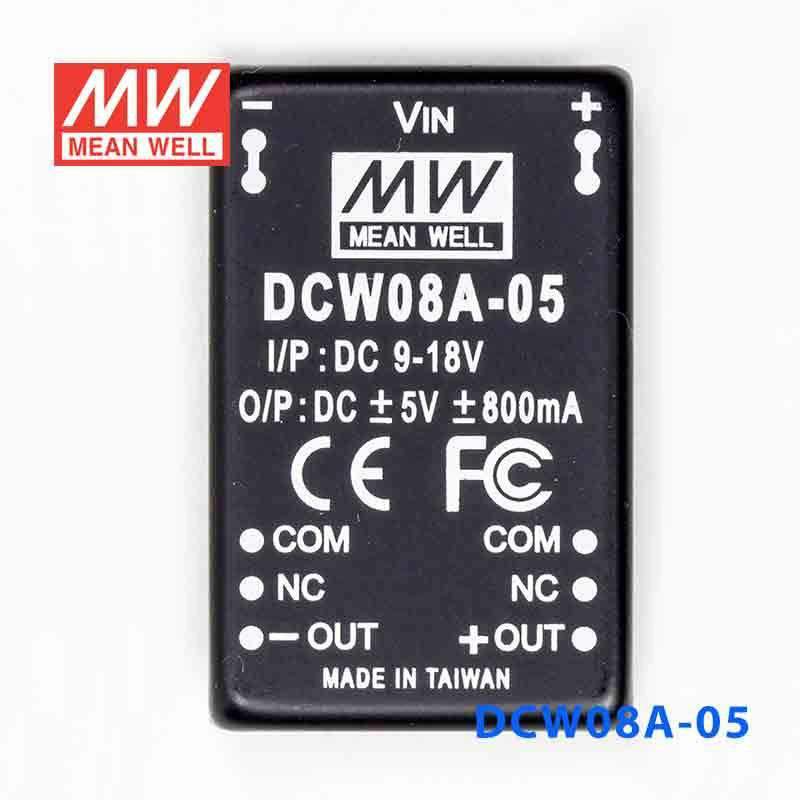

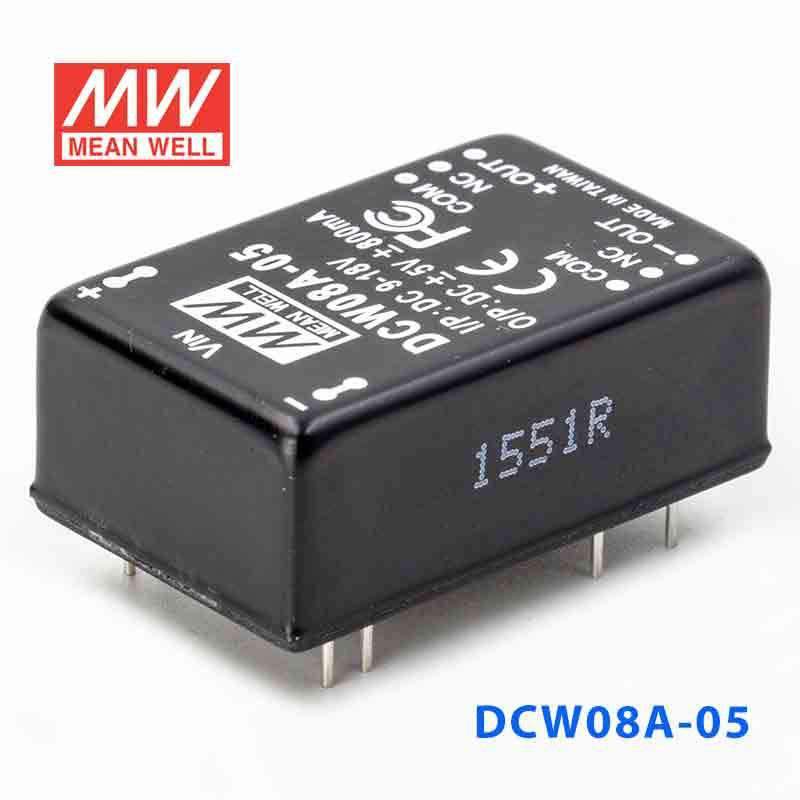

Mean Well DCW08A-05 DC-DC Converter - 8W - 9~18V in ±5V out 800mA

SKU DCW08A-05
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

DCW08A-05 is the ±5V output model of this series: rated power 8W, typical efficiency 75%.

Features

  • 2:1 wide input range
  • 1500VDC I/O isolation
  • Built-in EMI filter
  • Protections: Short circuit / Overload
  • Cooling by free air convection
  • Five-sided shield metal case
  • 100% full load burn-in test
  • Low cost / High reliability
  • 2 years warranty

Specifications

DCW08A-05Specifications from the official datasheet (2024-08-02 edition)

OUTPUT

DC VOLTAGE
±5V
CURRENT RANGE
±160 ~ ±800mA
RATED POWER
8W
RIPPLE & NOISE (max.)Note.2
50mVp-p
LINE REGULATIONNote.3
±0.5%
LOAD REGULATIONNote.4
±0.5%
VOLTAGE ACCURACY
±2.0%
SWITCHING FREQUENCY
50KHz min.
EXTERNAL CAPACITANCE LOAD (max.)
670uF

INPUT

VOLTAGE RANGE
9 ~ 18VDC
EFFICIENCY (Typ.)
75%
DC CURRENT Full load
888mA
DC CURRENT No load
50mA
FILTER
Pi network
PROTECTION
Fuse recommended

PROTECTION

OVERLOADNote.5
110 ~ 250% rated output load Protection type : Hiccup mode, recovers automatically after fault condition is removed
SHORT CIRCUITNote.5
All output equipped with over current protection Protection type : Hiccup mode, recovers automatically after fault condition is removed

ENVIRONMENT

WORKING TEMP.
-40 ~ +71℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +105℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03% / ℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
EAC TP TC 020/2011 approved
WITHSTAND VOLTAGE
I/P-O/P:1.5KVDC
ISOLATION RESISTANCE
I/P-O/P: 100M Ohms / 500VDC / 25℃/ 70% RH
ISOLATION CAPACITANCE
250pF max.
EMC EMISSION
Compliance to BS EN/EN55032 Class B, FCC part 15 Class B, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8, light industry level, criteria A, EAC TP TC 020

OTHERS

MTBF
900khrs min. MIL-HDBK-217F (25℃)
DIMENSION
31.8*20.3*12.2mm (L*W*H) or 1.25"*0.80"*0.48" inch (L*W*H)
PACKING
17.5g ; 15pcs/per tube, 750pcs/50 tube/per carton
Test conditions and notes5
  1. 1.All parameters are specified at normal input, rated load, 25℃ 70% RH ambient.
  2. 2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1uf & 47uf capacitor.
  3. 3.Line regulation is measured from low line to high line at rated load.
  4. 4.Load regulation is measured from 20% to 100% rated load.
  5. 5.Please prevent the converter from operating in overload or short circuit condition for more than 30 seconds.

Technical drawings

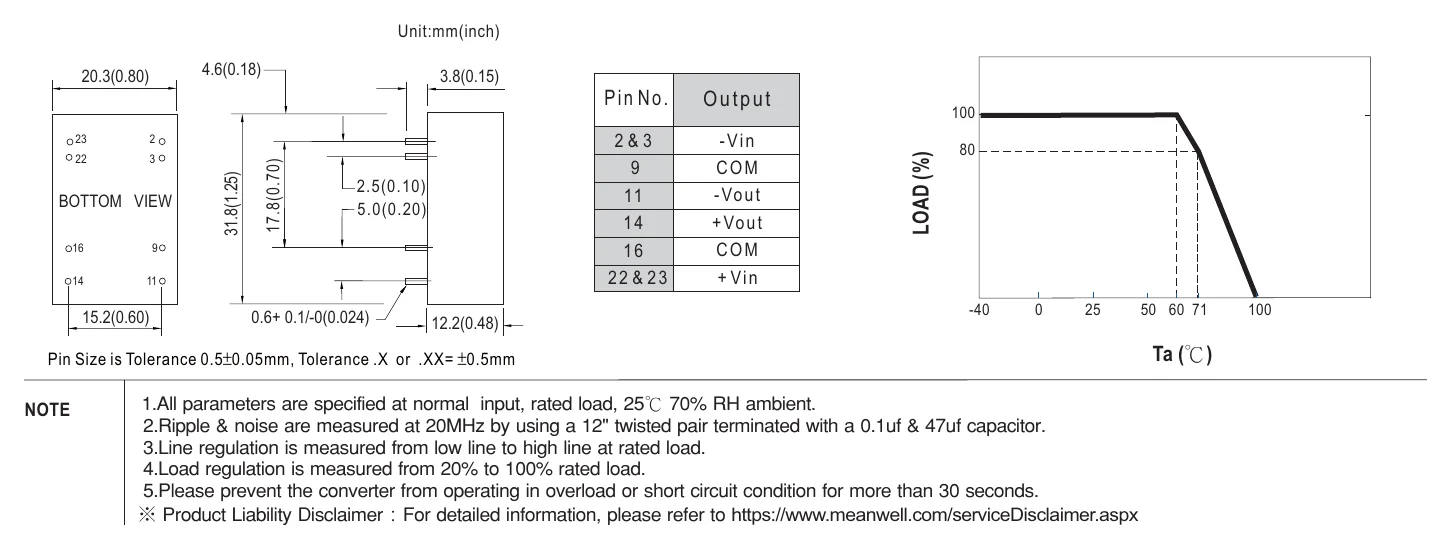

DCW08A-05 Mechanical Specification
Mechanical Specification

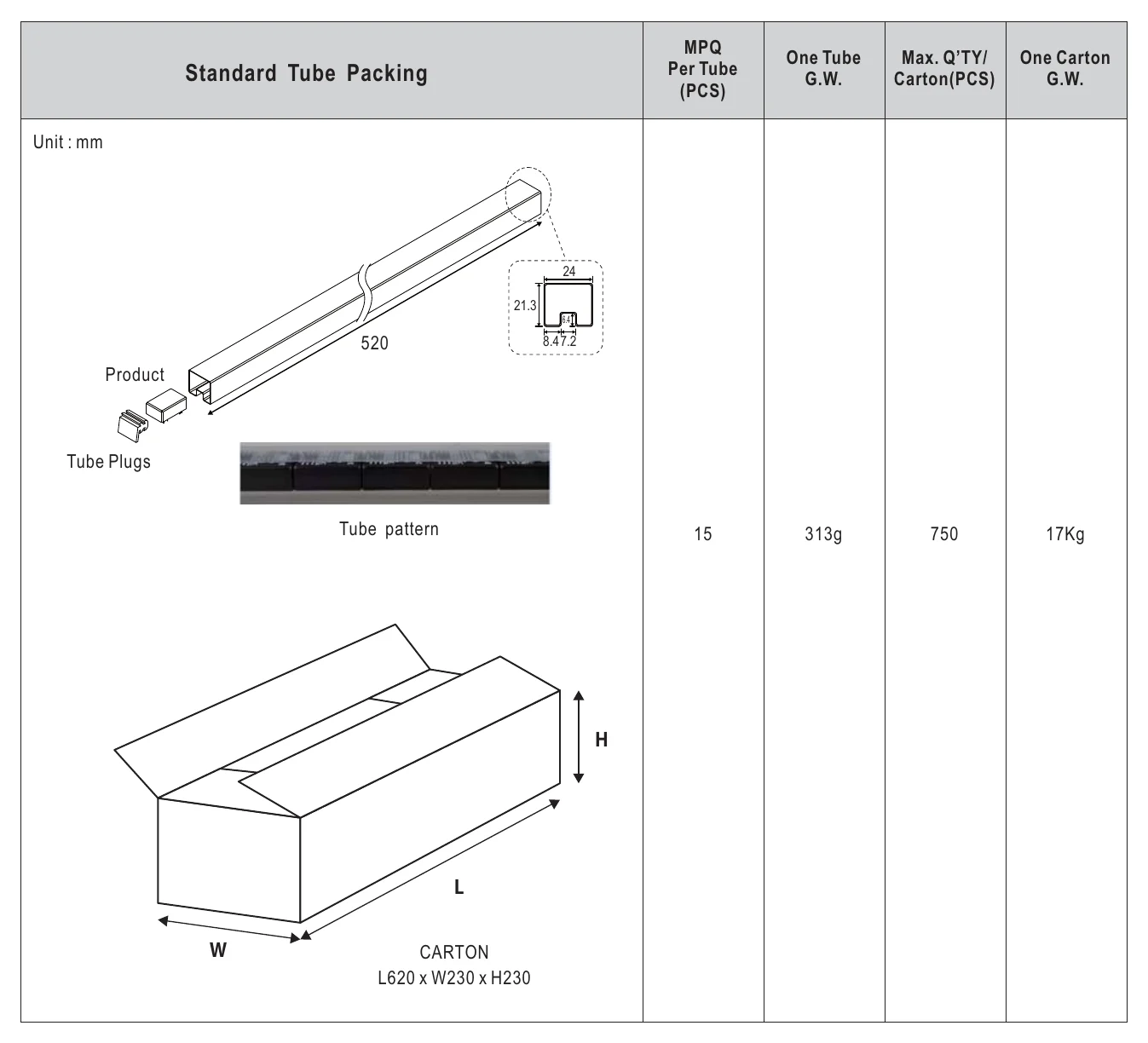

DCW08A-05 Packing
Packing

Downloads

FAQ

What are the main electrical ratings of the Mean Well DCW08A-05?

The DCW08A-05 is an 8W DC-DC converter with a 9 to 18V DC input range and dual ±5V DC output. Its rated output current is 800mA. This model is designed for regulated low-power DC conversion in compact equipment.

Is the DCW08A-05 a good fit for systems that use a 12V DC input bus?

Yes. Its 9 to 18V DC input range makes it suitable for applications built around a nominal 12V DC supply. That 2:1 input range gives added tolerance for normal input variation within that voltage window.

What kind of protection features does the DCW08A-05 include?

This model includes short circuit protection and overload protection, both in hiccup mode with automatic recovery once the fault is removed. The overload protection is specified at 110% to 250% of rated output load. These protections help support reliable operation in demanding industrial and OEM environments.

Can the Mean Well DCW08A-05 be used in harsh temperature environments?

It is rated for operation from -40°C to +71°C, subject to the output derating curve. Storage temperature is specified from -40°C to +105°C. That makes it suitable for a wide range of industrial environments where compact isolated DC conversion is needed.

What makes the DCW08A-05 suitable for space-constrained equipment?

The converter has a compact metal case measuring 31.8 x 20.3 x 12.2mm and weighs about 17.5g. Its five-sided shield metal case and free-air convection cooling support use in dense electronic assemblies. This combination is useful where board space and enclosure room are limited.

What types of applications is the DCW08A-05 commonly suited for?

This model is typically suited for low-power OEM and industrial electronics that need isolated DC conversion from a 9 to 18V source to dual ±5V outputs. Its compact size, built-in EMI filter, and typical 75% efficiency make it a practical option for embedded power designs. Buyers often consider it when they need a small modular converter for control, interface, or signal-related circuitry.
