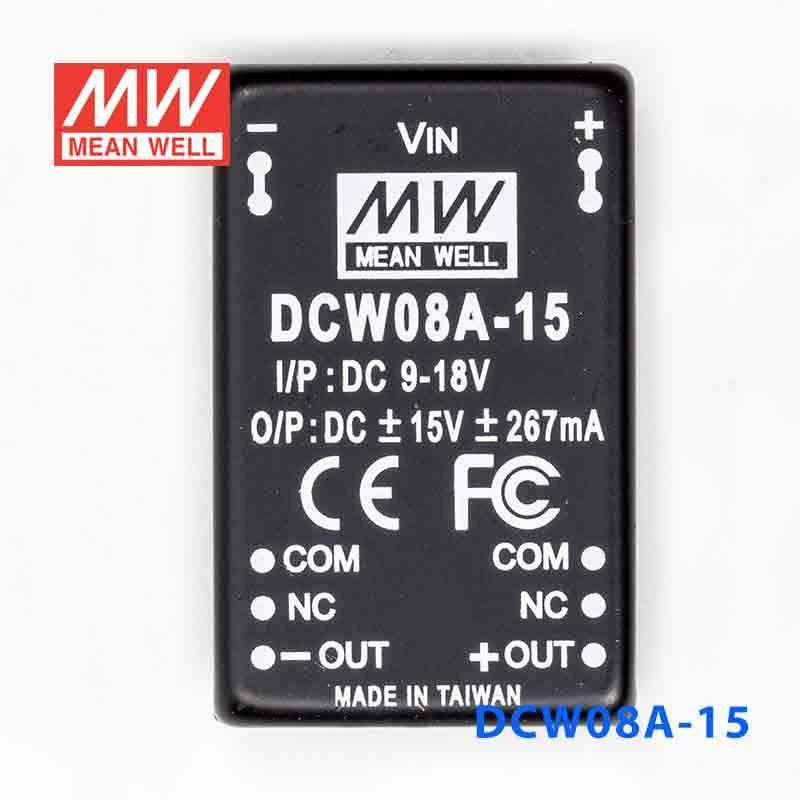

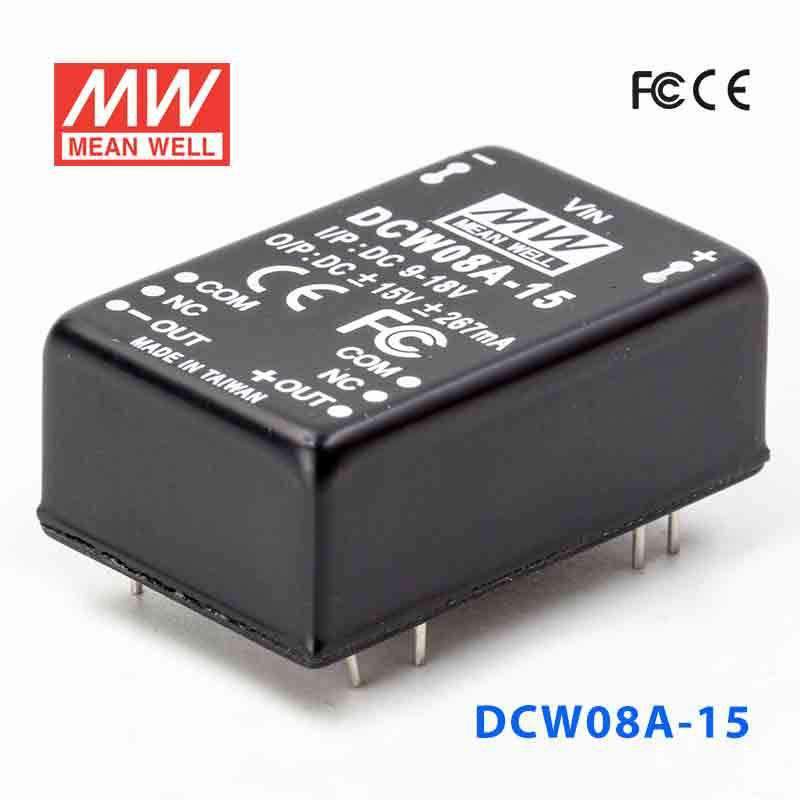

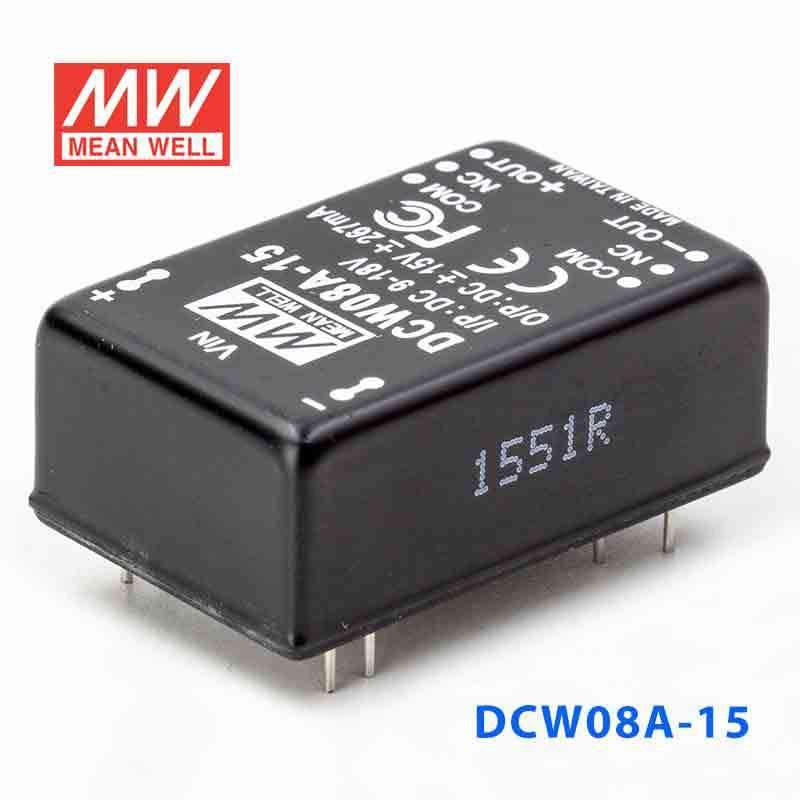

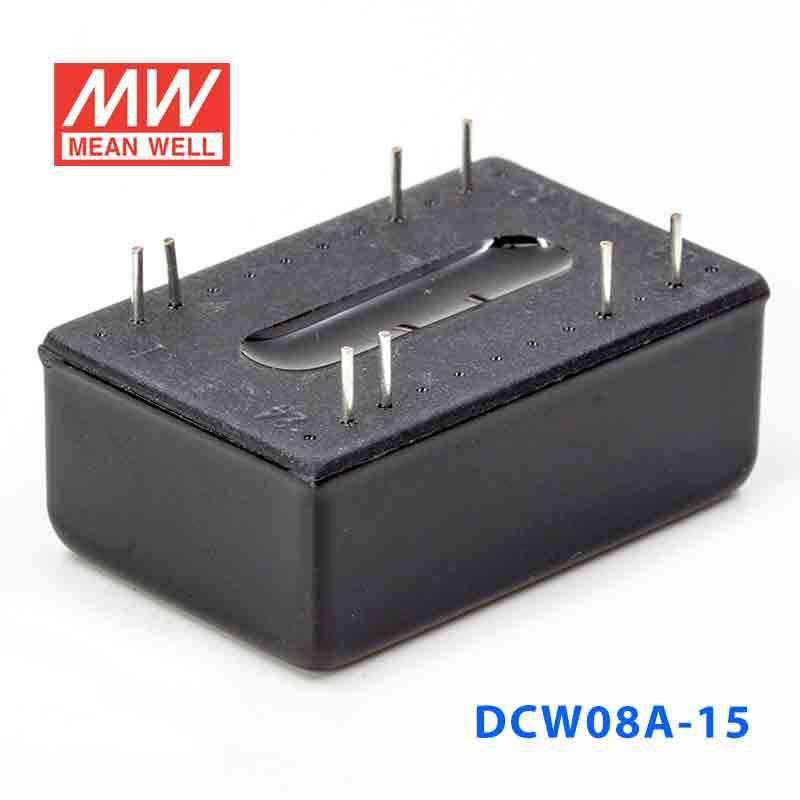

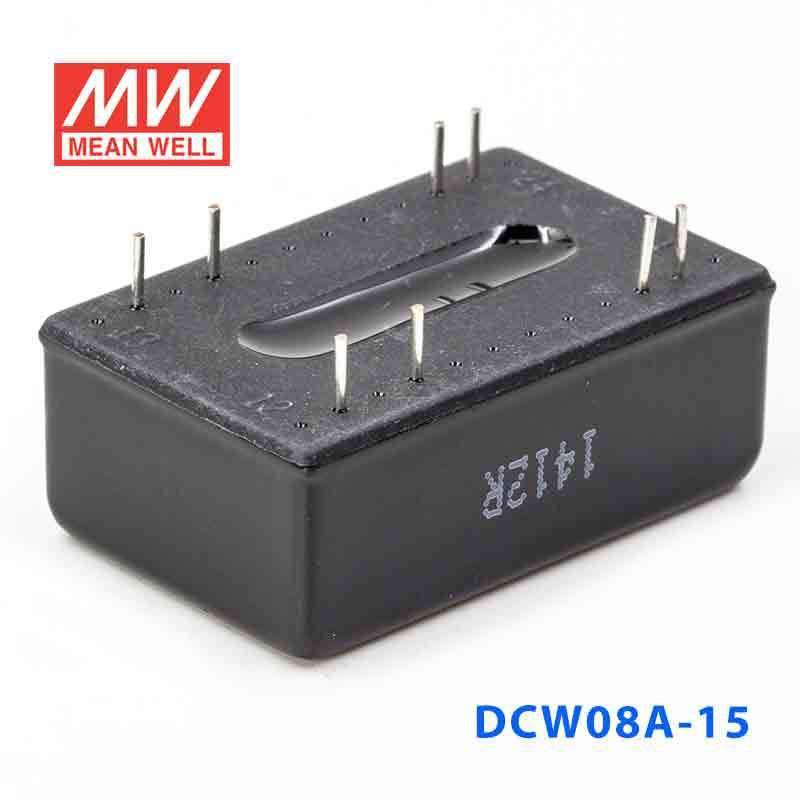

Mean Well DCW08A-15 DC-DC Converter - 8W - 9~18V in ±15V out 267mA

SKU:

DCW08A-15

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The DCW08A is a 8W Mean Well. power converter. operating from -40~+71℃.

Key Features

✓ 1KVDC reinforced I/O isolation
✓ Wide operating temperature: -40~+71℃
✓ Protections: Short circuit / Overload
✓ Safety approvals: EAC TP TC 004
✓ 3 years warranty

Frequently Asked Questions

What are the key electrical specs of the Mean Well DCW08A-15?

The DCW08A-15 is an 8W DC-DC converter with a 9 to 18V DC input range and dual ±15V DC output. It is rated for 267mA output current and has a typical efficiency of 85%. Voltage set point accuracy is specified at ±2% maximum.

Is the DCW08A-15 an isolated DC-DC converter?

Yes, this model is an isolated DC-DC converter designed with input-to-output isolation. The product features call out 1500VDC I/O isolation, and the general specification lists 1000VDC minimum isolation voltage. It also uses a five-sided shield metal case and built-in EMI filter for improved electrical performance.

What kinds of applications is the DCW08A-15 suited for?

This converter is suited for low-power DC-DC applications that need dual ±15V outputs from a 9 to 18V DC source. Its compact size, isolated design, and built-in EMI filtering make it relevant for embedded electronics, industrial assemblies, and other space-constrained OEM designs. Buyers looking for a modular 8W converter with wide 2:1 input range often consider this type of unit.

How does the DCW08A-15 handle overload and short circuit conditions?

The DCW08A-15 includes both overload and short circuit protection with auto-recovery behavior. Overload protection is specified at 150% to 250%, and short circuit protection is continuous. These protections help the unit recover automatically after the fault condition is removed.

What operating temperature range is supported by the DCW08A-15?

This model is rated for operation from -40°C to +71°C, with reference to the output derating curve. Storage temperature is specified from -40°C to +105°C. Cooling is by free air convection, with no fan required.

How compact is the Mean Well DCW08A-15?

The DCW08A-15 measures 31.8 x 20.3 x 12.2 mm, which is approximately 1.25 x 0.80 x 0.48 inches. Its listed weight is 0.015 kg. That small modular form factor makes it useful where board or enclosure space is limited.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well DCW08C-15 DC-DC Converter - 8W - 36~72V in ±15V out 267mA	8W	15V	0.26A	Indoor	View
Mean Well DCW08C-12 DC-DC Converter - 8W - 36~72V in ±12V out 335mA	8W	12V	0.33A	Indoor	View
Mean Well DCW08C-05 DC-DC Converter - 8W - 36~72V in ±5V out 800mA	8W	5V	0.8A	Indoor	View
Mean Well DCW08B-15 DC-DC Converter - 8W - 18~36V in ±15V out 267mA	8W	15V	0.26A	Indoor	View
Mean Well DCW08B-12 DC-DC Converter - 8W - 18~36V in ±12V out 335mA	8W	12V	0.33A	Indoor	View
Mean Well DCW08B-05 DC-DC Converter - 8W - 18~36V in ±5V out 800mA	8W	5V	0.8A	Indoor	View
Mean Well DCW08A-12 DC-DC Converter - 8W - 9~18V in ±12V out 335mA	8W	12V	0.33A	Indoor	View
Mean Well DCW08A-05 DC-DC Converter - 8W - 9~18V in ±5V out 800mA	8W	5V	0.8A	Indoor	View
