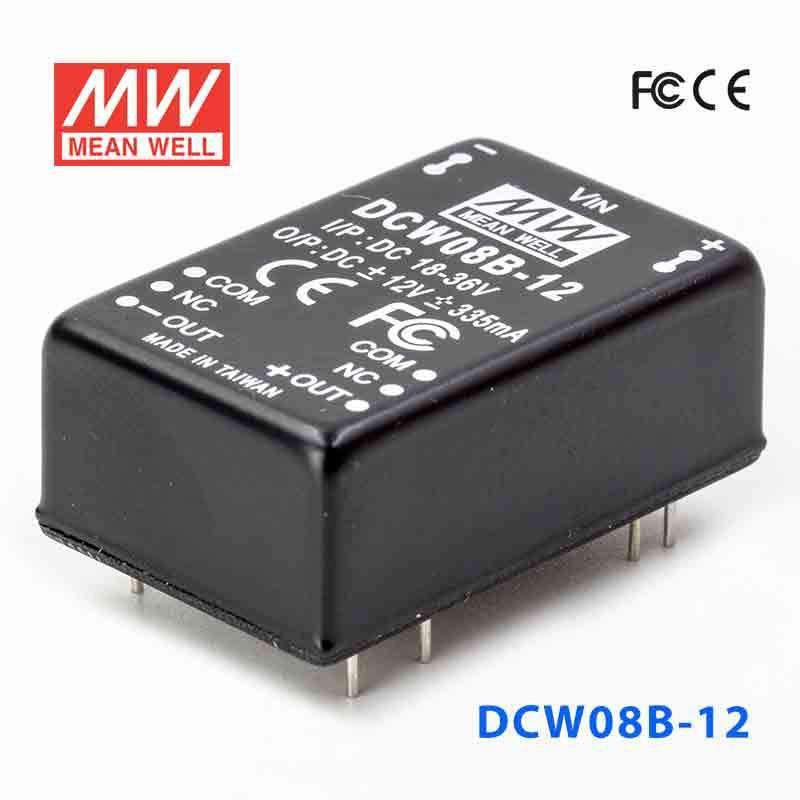

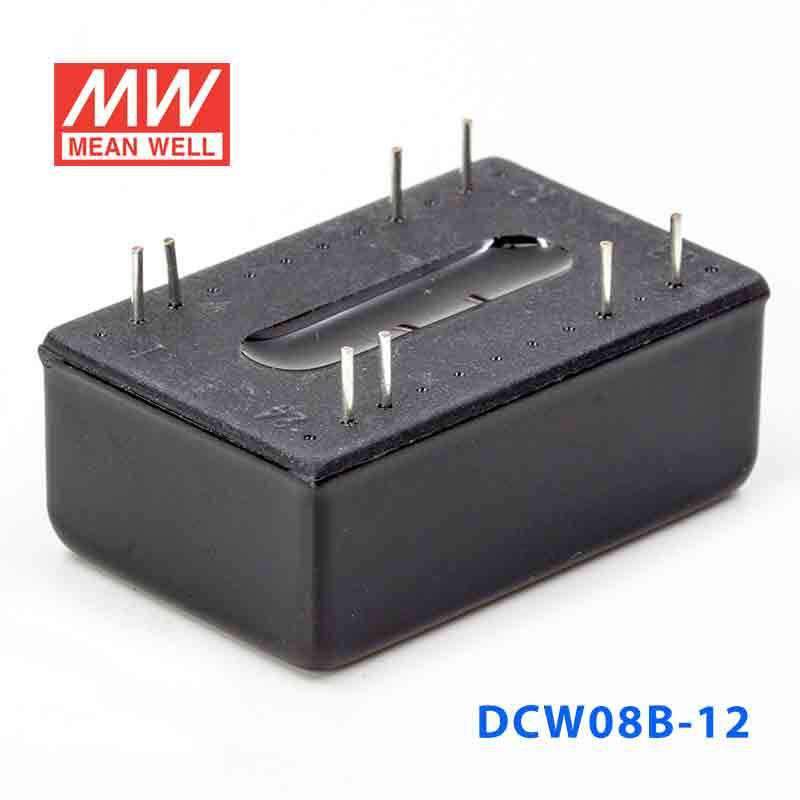

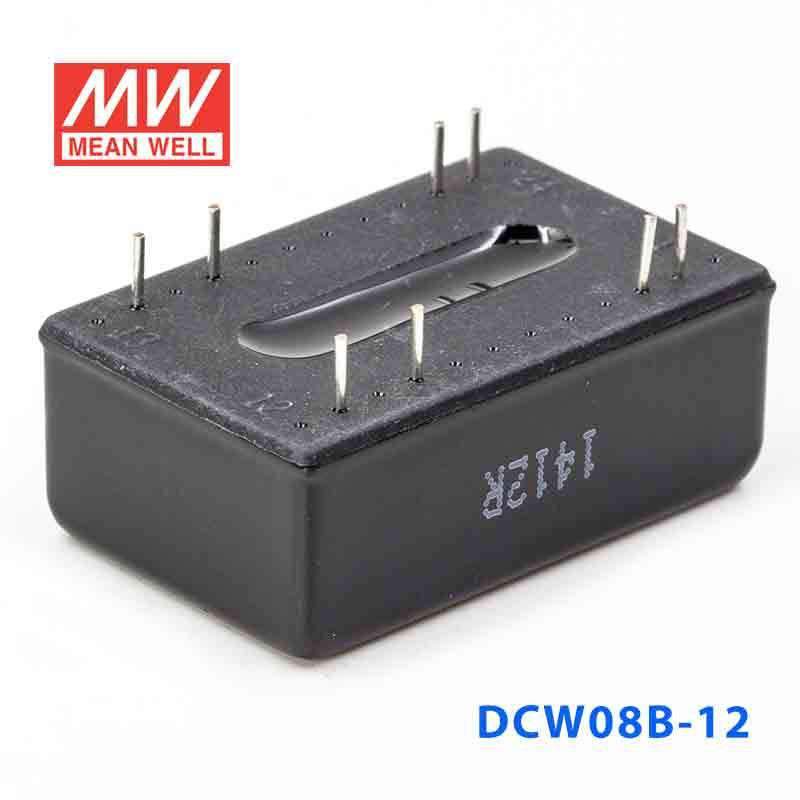

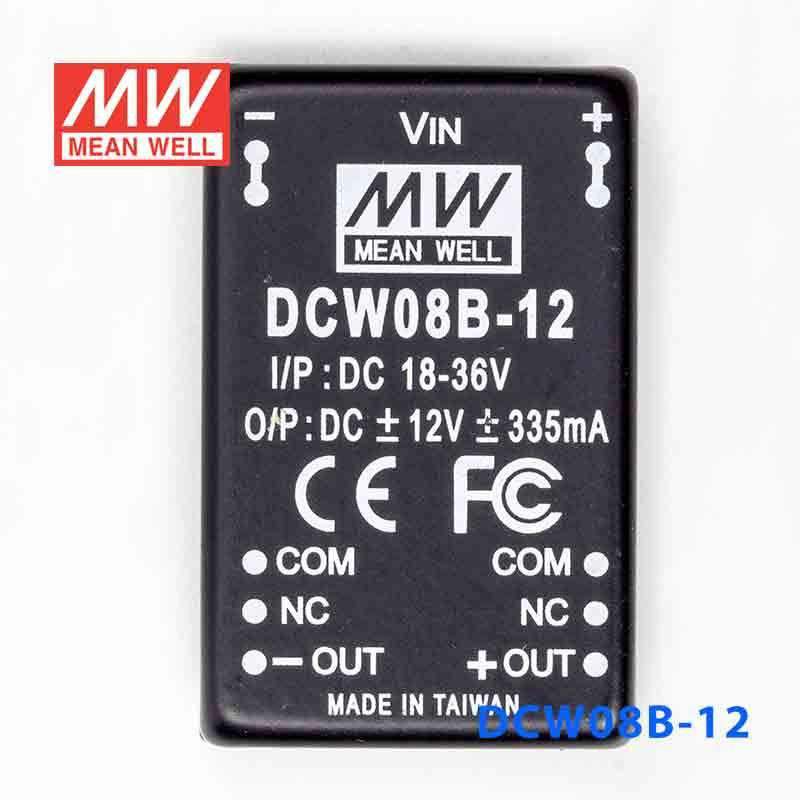

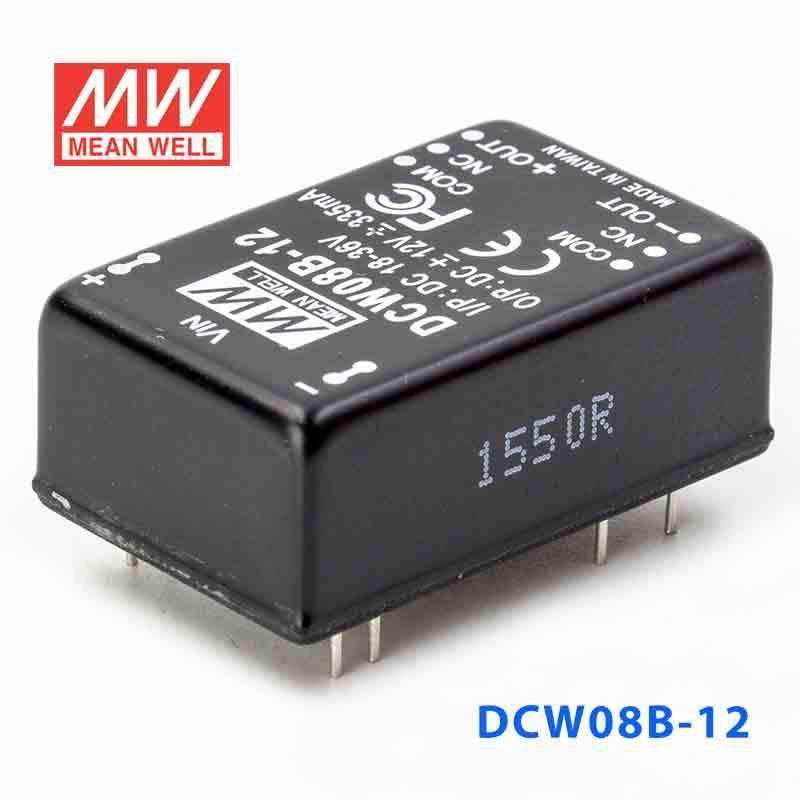

Mean Well DCW08B-12 DC-DC Converter - 8W - 18~36V in ±12V out 335mA
Log in to see priceOverview
DCW08B-12 is the ±12V output model of this series: rated power 8W, typical efficiency 80%.
Features
- 2:1 wide input range
- 1500VDC I/O isolation
- Built-in EMI filter
- Protections: Short circuit / Overload
- Cooling by free air convection
- Five-sided shield metal case
- 100% full load burn-in test
- Low cost / High reliability
- 2 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- ±12V
- CURRENT RANGE
- ±66 ~ ±335mA
- RATED POWER
- 8W
- RIPPLE & NOISE (max.)Note.2
- 60mVp-p
- LINE REGULATIONNote.3
- ±0.5%
- LOAD REGULATIONNote.4
- ±0.5%
- VOLTAGE ACCURACY
- ±2.0%
- SWITCHING FREQUENCY
- 50KHz min.
- EXTERNAL CAPACITANCE LOAD (max.)
- 100uF
INPUT
- VOLTAGE RANGE
- 18 ~ 36VDC
- EFFICIENCY (Typ.)
- 80%
- DC CURRENT Full load
- 426mA
- DC CURRENT No load
- 25mA
- FILTER
- Pi network
- PROTECTION
- Fuse recommended
PROTECTION
- OVERLOADNote.5
- 110 ~ 250% rated output load Protection type : Hiccup mode, recovers automatically after fault condition is removed
- SHORT CIRCUITNote.5
- All output equipped with over current protection Protection type : Hiccup mode, recovers automatically after fault condition is removed
ENVIRONMENT
- WORKING TEMP.
- -40 ~ +71℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20% ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +105℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03% / ℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- EAC TP TC 020/2011 approved
- WITHSTAND VOLTAGE
- I/P-O/P:1.5KVDC
- ISOLATION RESISTANCE
- I/P-O/P: 100M Ohms / 500VDC / 25℃/ 70% RH
- ISOLATION CAPACITANCE
- 250pF max.
- EMC EMISSION
- Compliance to BS EN/EN55032 Class B, FCC part 15 Class B, EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8, light industry level, criteria A, EAC TP TC 020
OTHERS
- MTBF
- 900khrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 31.8*20.3*12.2mm (L*W*H) or 1.25"*0.80"*0.48" inch (L*W*H)
- PACKING
- 17.5g ; 15pcs/per tube, 750pcs/50 tube/per carton
Test conditions and notes5
- 1.All parameters are specified at normal input, rated load, 25℃ 70% RH ambient.
- 2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1uf & 47uf capacitor.
- 3.Line regulation is measured from low line to high line at rated load.
- 4.Load regulation is measured from 20% to 100% rated load.
- 5.Please prevent the converter from operating in overload or short circuit condition for more than 30 seconds.
Technical drawings
Downloads
FAQ
What does the Mean Well DCW08B-12 do?
The DCW08B-12 is an 8W DC-DC converter designed to take an 18 to 36V DC input and provide a ±12V DC output. It is intended for applications that need compact, regulated DC conversion in a modular form factor.
What input and output ratings does this model have?
This model accepts a 2:1 input range of 18 to 36V DC. Its output is ±12V DC, with a rated current of 335 mA, and the unit is rated for 8W total output power.
What protection features are included on the DCW08B-12?
The product includes short circuit protection and overload protection with auto-recovery in hiccup mode. The overload protection is listed at 110% to 250% of rated output load, helping protect the converter during abnormal load conditions.
Is the DCW08B-12 suitable for demanding industrial environments?
It is built for a wide operating temperature range of -40 to +71°C, with derating referenced at higher temperatures. The unit also includes a built-in EMI filter, a shielded metal case, and EMC compliance listed for EN55032 Class B, FCC Part 15 Class B, and several EN61000-4 immunity standards.
How compact is this DC-DC converter?
The DCW08B-12 has a compact metal case measuring 31.8 x 20.3 x 12.2 mm. Its listed weight is 17.5g, making it suitable for space-constrained equipment designs.
What kinds of applications is this model best suited for?
This model is a fit for equipment that needs regulated low-power DC conversion from a nominal 24V-class input range to ±12V output rails. Typical buyer interest would include embedded electronics, control systems, and other compact industrial or OEM power applications where isolation, small size, and convection cooling are useful.
