Lifud LF-GIF009YS0180H LED Driver 25-42V 180mA

flicker freecompact sizehigh PFsuitable for Class II light fixtures

SKU LF-GIF009YS0180H

Log in to see price Trade pricing & online ordering for account holders

In stock

Overview

LF-GIF009YS0180H is the 25-42Vdc output model of this series.

LF-GIF009YS is a 9W isolated flicker-free LED driver. Its rated input voltage ranges from 220 to 240Vac and its output current is adjustable from 100 to 250mA via DIP switch with every 50mA as a step.

Features

Flicker free
Compact size, high PF, external driver
IP20
Suitable for Class II light fixtures
5-year warranty (please refer to the warranty condition)

Specifications

LF-GIF009YS0180HSpecifications from the official datasheetDownload datasheet PDF

Output

Output Voltage: 25-42Vdc
Output Current: Adjustable via DIP swtitch
Ripple Current (100Hz): <5%
Flicker: Complies with IEEE 1789-2015 standard.
CIE SVM: ≤0.4
IEC-Pst: ≤1.0
Current Tolerance: ±12% / ±8% / ±7%
Temperature Drift: ±10%
Startup Time: <0.5S

Input

Rated AC Input Voltage: 220-240Vac
Input Voltage Range: 198-264Vac
DC Input Voltage^①: 180-264Vdc
Input Frequency: 0/50/60Hz
Input Current: 0.07A max.
PF^②: ≥0.95
THD: <20%
Efficiency^③: ≥84%
Inrush Current^④: ≤20A
Loading Quantities of Circuit Breaker: Parameter

Model B10 C10 B16 C16
Quantity (pcs) 47 55 75 88
Leakage Current: ≤0.7mA
Standby Power Consumption: ≤0.5W

Parameter
Model	B10	C10	B16	C16
Quantity (pcs)	47	55	75	88

Protections

Open Circuit: ≤55Vdc
Short Circuit: Hiccup mode (auto-recovery)
Overload: If the maximum load is exceeded by a defined internal limit, the LED Driver turns off the LED output. The driver will recover automatically once the overload is eliminated.

Environment Descriptions

Operating Temperature: -30℃ - +50℃
Operating Humidity: 10-95%RH (no condensation)
Storage Temperature/Humidity: -30℃ - 85℃ (6 months in Class I environment); 0-95%RH (no condensation)
Atmospheric Pressure: 86-106kPa

Others

Warranty: 5 years⑨
Weight: 0.051±5%kg/pc
EMI: CE-EMC/RCM:EN55015，EN61000-3-2，EN61000-3-3 UKCA-EMC：EN IEC 55015:2019/A11:2020，EN 61547:2009，EN IEC 61000-3-2:2019/A1:2021 ，EN 61000-3-3:2013/A2:2021 CCC:GB/T17743，GB17625.1，GB17625.2

Certifications & ratings

Certifications: ENEC, CE, CB, UKCA, RCM, CCC
Safety Standards: ENEC: EN61347-1:2015，EN 61347-2-13:2014/A1:2017，EN 62384：2016/A1:2009 CE-LVD: EN 61347-2-13:2014/A1:2017，EN 61347-1:2015，EN 62493:2015 CB:IEC 61347-1:2015，IEC61347-2-3:2014，IEC 61347-2-13:2014/AMD1:2016 UKCA-LVD：EN 61347-1:2015/A1:2021，EN 61347-2-13:2014/A1:2017，EN 62493:2015 RCM:AS 61347.2-13:2018 CCC:GB19510.1-2009，GB19510.14-2009

Technical drawings

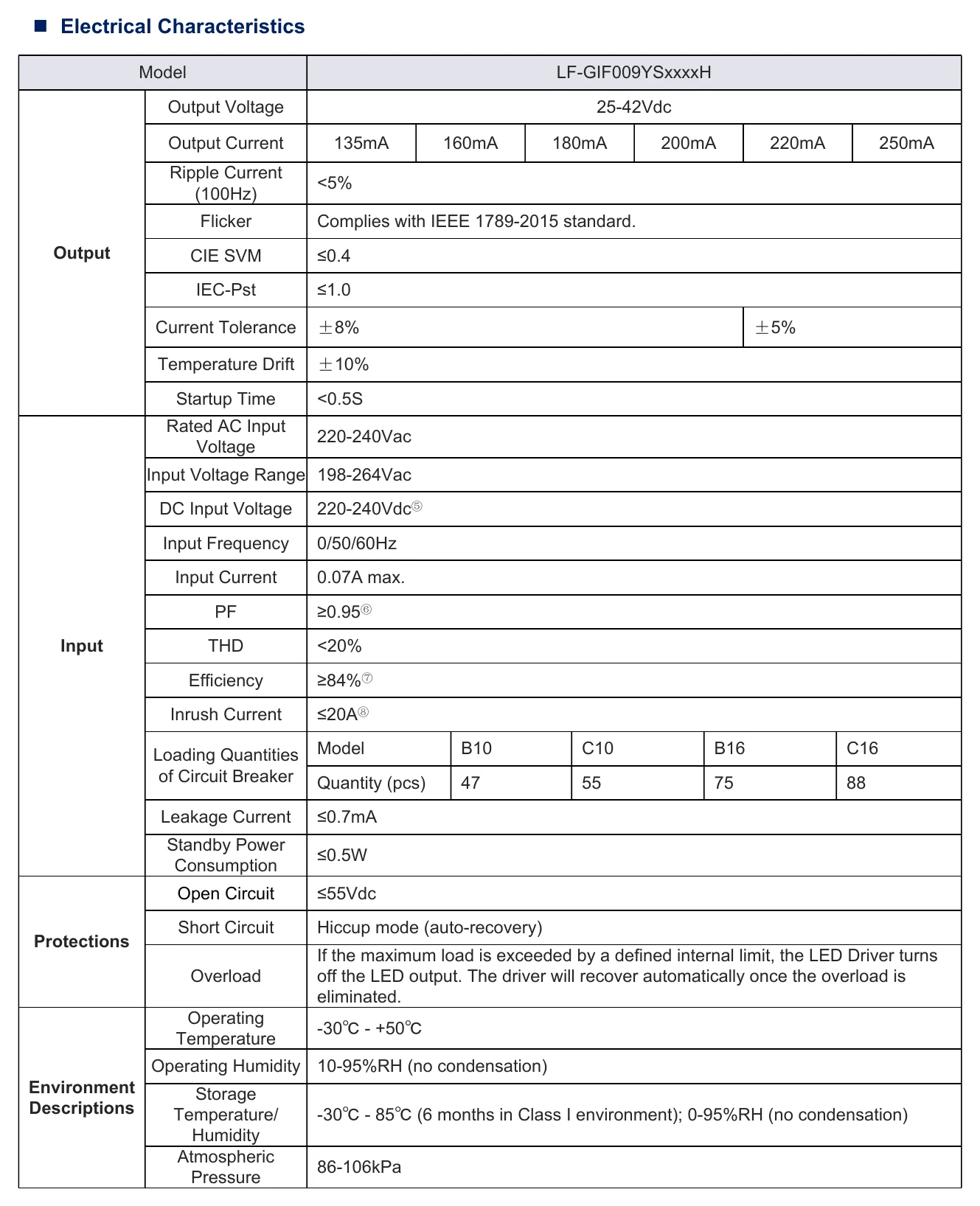

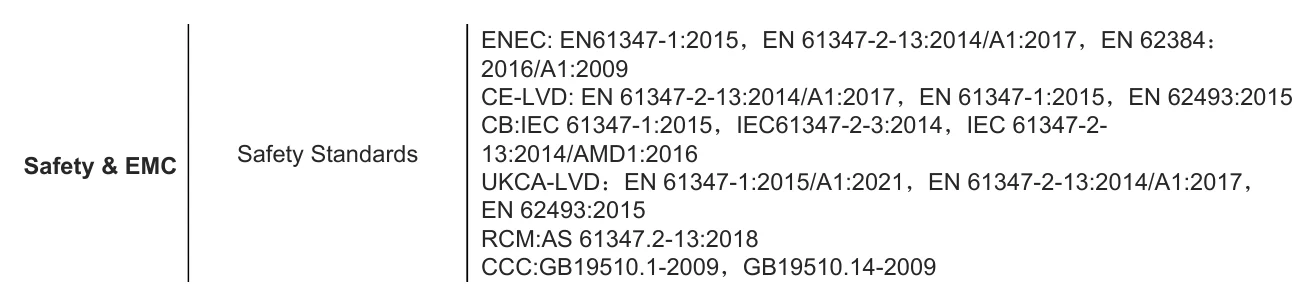

LF-GIF009YS0180H Electrical Characteristics — Electrical Characteristics

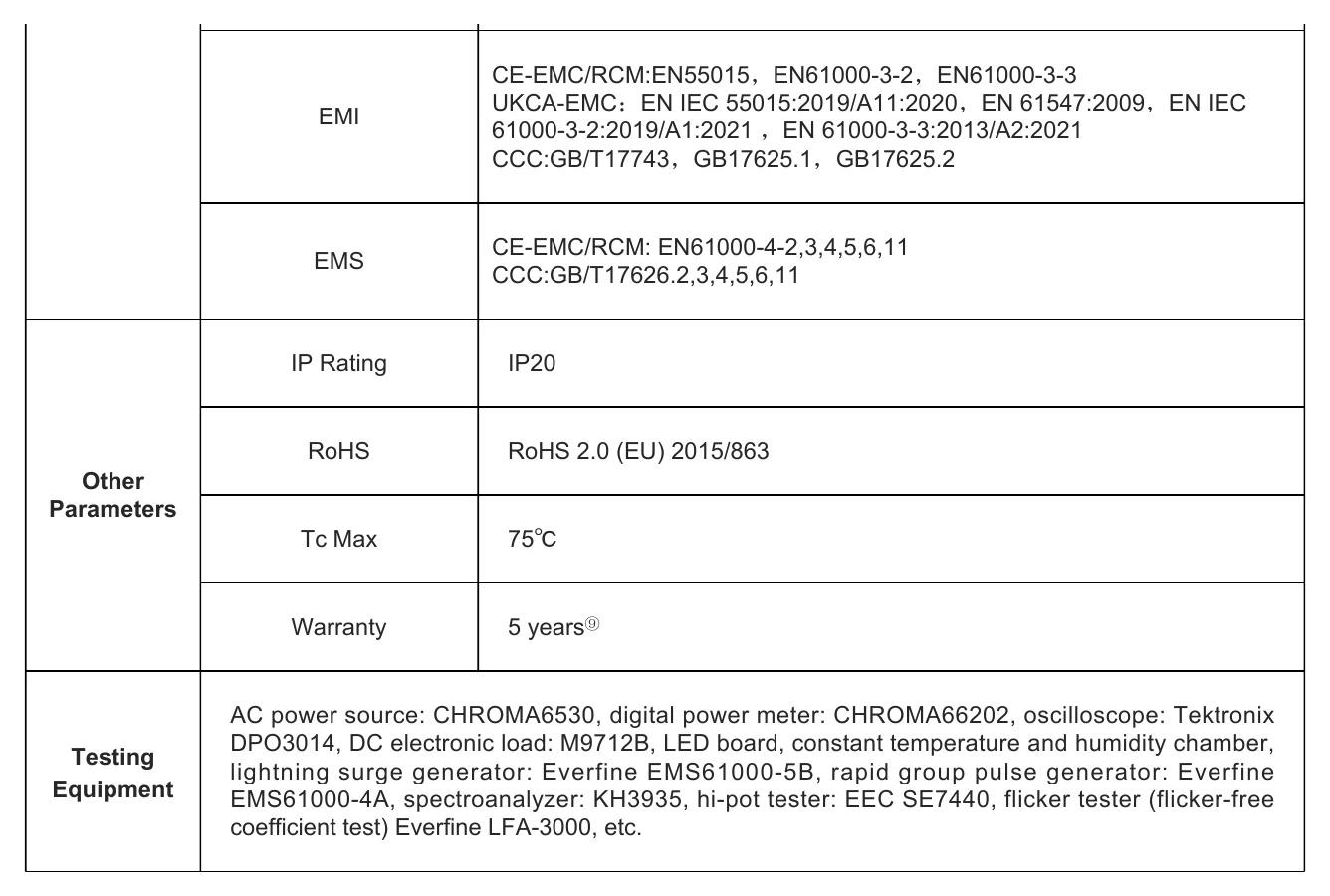

LF-GIF009YS0180H Electrical Characteristics (2) — Electrical Characteristics (2)

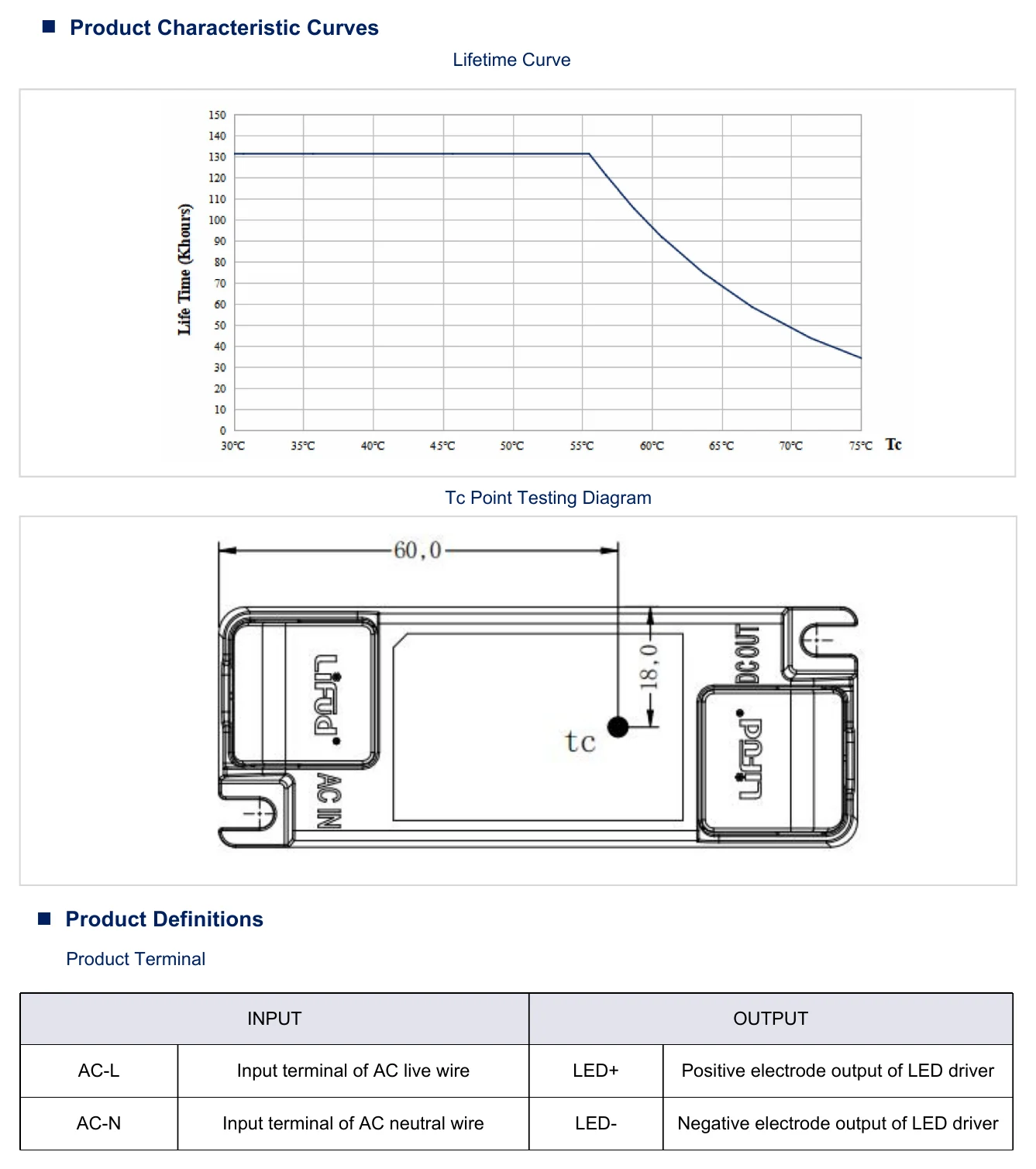

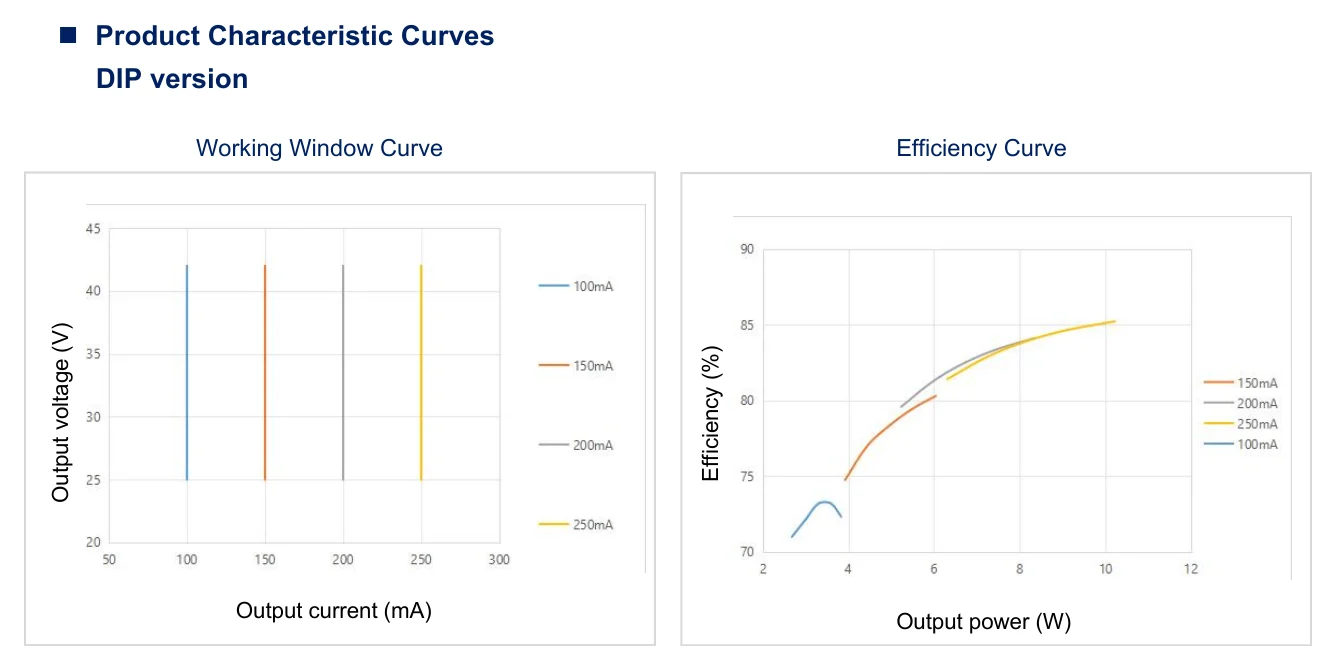

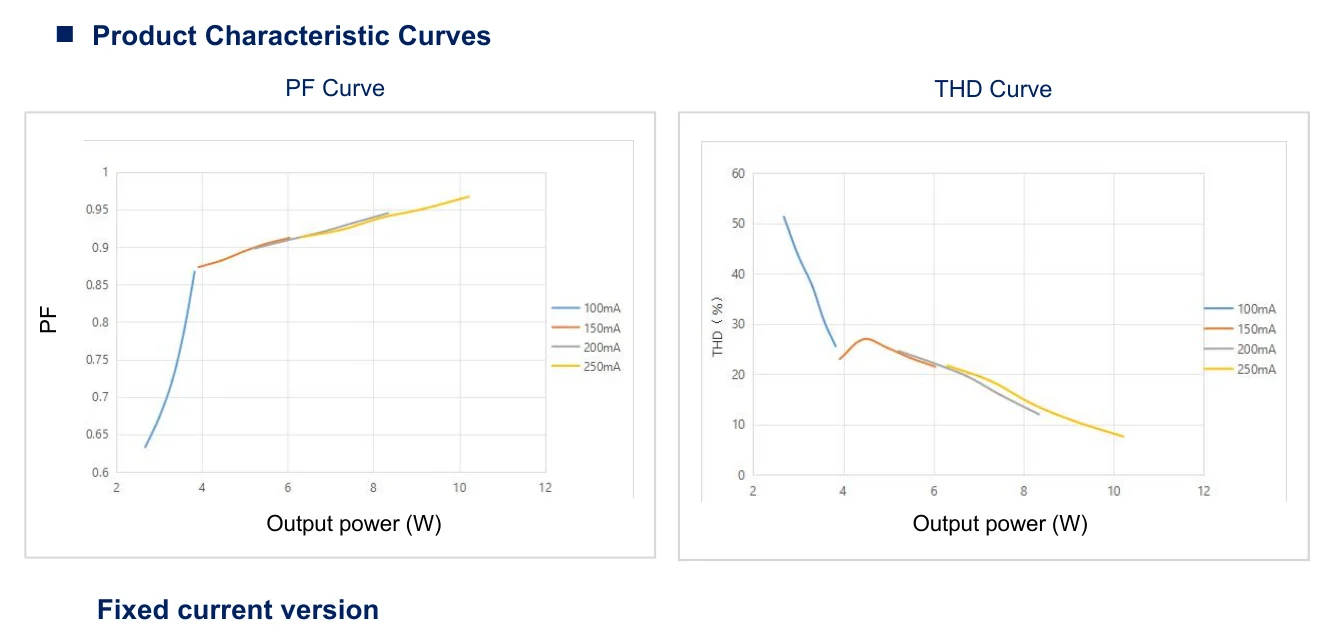

LF-GIF009YS0180H Product Characteristic Curves — Product Characteristic Curves

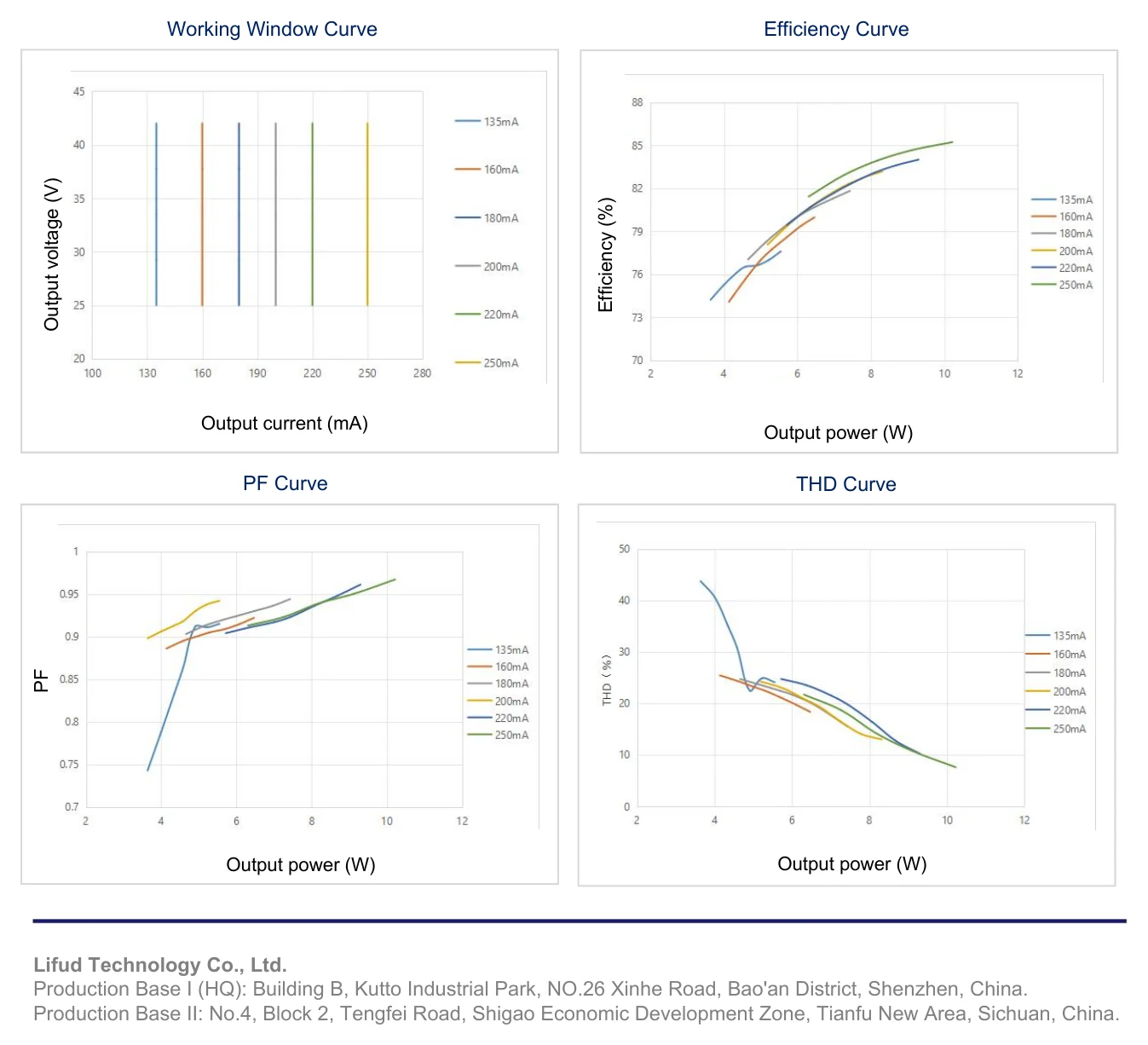

LF-GIF009YS0180H Outputvoltage(V) — Outputvoltage(V)

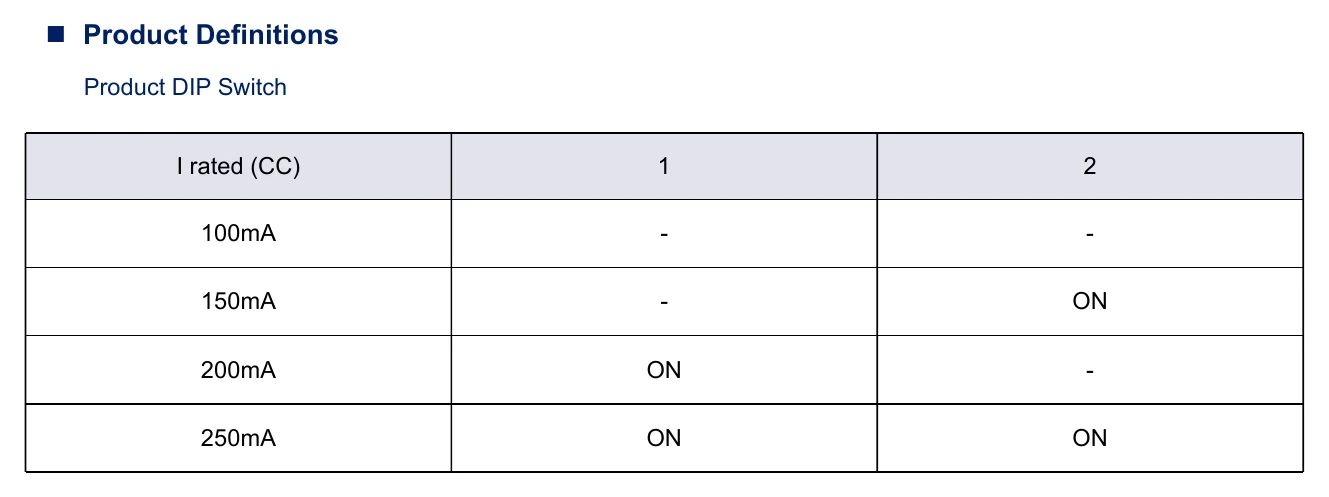

LF-GIF009YS0180H Product Definitions — Product Definitions

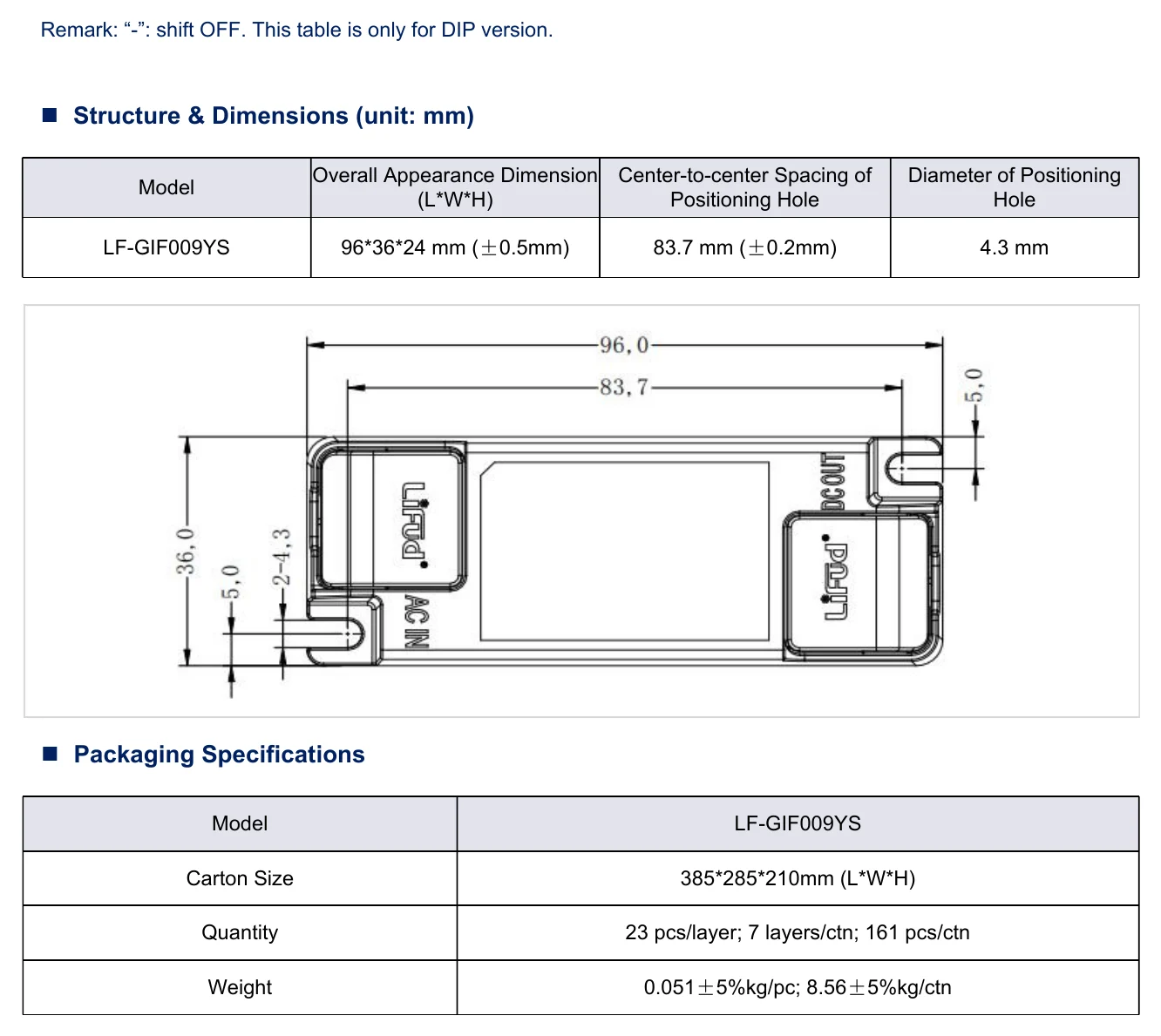

LF-GIF009YS0180H Structure & Dimensions (unit: mm) — Structure & Dimensions (unit: mm)

Typical applications

Indoor office lighting
decorative lighting
residential lighting

Downloads

Datasheet1

LF-GIF009YS0180H datasheetLF_GIF009YS_Specification_V1.2.pdf PDF Download

FAQ

What type of applications is the Lifud LF-GIF009YS0180H designed for?

The LF-GIF009YS0180H is a constant-current LED driver intended for LED lighting applications that require 180mA output. It is described as an external driver and is suitable for Class II light fixtures. Its compact size also makes it practical for space-constrained luminaire designs.

Is the Lifud LF-GIF009YS0180H dimmable?

No, this model is non-dimmable. It is intended for applications where a fixed-output LED driver is needed rather than systems requiring dimming control. Buyers needing adjustable light levels should compare it against dimmable driver options.

What are the key electrical specifications of the LF-GIF009YS0180H?

This LED driver is rated at 9W with a rated current of 180mA and an output voltage range of 25-42Vdc. The open-circuit protection threshold is specified as 55Vdc or below. It accepts a 220-240Vac input supply.

Is this LED driver suitable for demanding temperature conditions?

The LF-GIF009YS0180H has an operating temperature range of -30°C to +50°C. That makes it suitable for many indoor commercial and architectural lighting environments where low ambient temperatures or moderate heat may be present.

What protection features does the Lifud LF-GIF009YS0180H include?

This model includes short-circuit protection with auto-recovery in hiccup mode and overload protection that shuts off LED output if the internal load limit is exceeded. It also recovers automatically once the overload condition is removed. Open-circuit protection is specified at 55Vdc or below.

Is the LF-GIF009YS0180H appropriate for indoor use only?

This model is designed for indoor applications. It should be selected for dry environments and used within fixtures or products designed around that rating. For harsher environments, buyers should compare it with higher-IP alternatives.

What certifications and compliance standards are listed for this model?

The LF-GIF009YS0180H lists compliance across several standards and markets, including ENEC, CE-LVD, UKCA-LVD, RCM, and CCC. The safety standards referenced include EN 61347 series and related IEC and regional standards. This makes it relevant for buyers who need a driver aligned with recognized lighting safety frameworks.

How compact is the Lifud LF-GIF009YS0180H?

This driver weighs 0.051 kg. Its compact footprint can help in fixture designs where space is limited. That makes it a practical option for OEMs and commercial buyers evaluating enclosure and luminaire fit.
