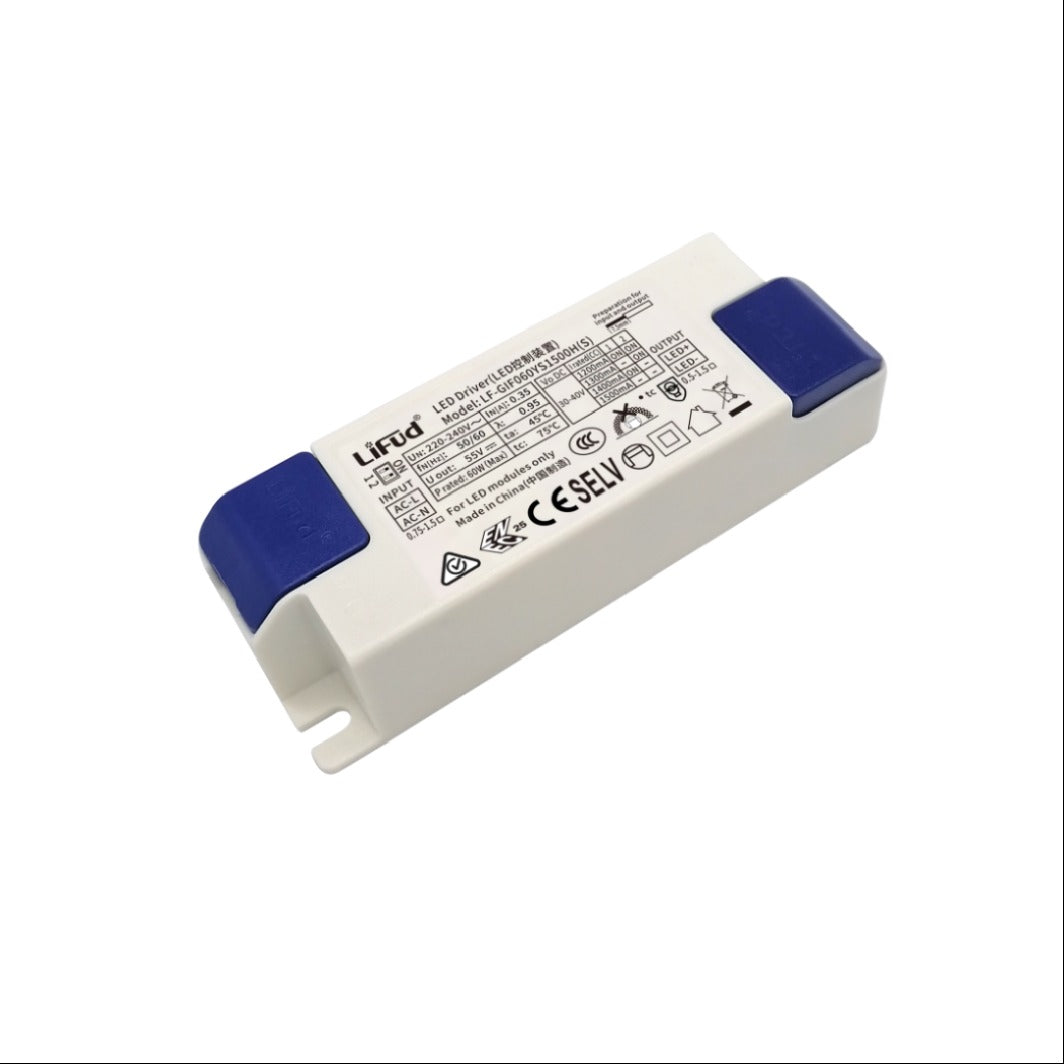

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Lifud LF-GIF060YS1500H(S) CC LED Driver 60W Current Selectable

1200, 1300, 1400, 1500mA(default), flicker-free, SELV output

SKU:

LF-GIF060YS1500H(S)

Please for Pricing

Notify me when it's back in stock

Description

Features:

Flicker-free
High performance
IP20
Output adjustable via Dip Switch
5-year warranty (please refer to the warranty condition)

General Specification

Rated AC Input Voltage

220-240Vac (voltage limit: 198-264Vac)

Inrush Current

≤32A&@230Vac

Open Circuit Protection

<55V

Short Circuit Protection

Hiccup mode (auto-recovery)

Withstanding Voltage

I/P-O/P: 3.75kV&5mA&60S

Insulation Resistance

I/P-O/P: >100MΩ@500Vdc

Operating Temperature

-30℃ - +45℃

Safety standards

GB 19510.1-2009, GB 19510.14-2009, GB 7000.1-2015

IEC/EN 61347-2-13, IEC/EN 61347-1, IEC/EN 62493

IEC/EN 62384

AS 61347.1, AS 61347.2.13

Dimension (LxWxH)

115x41x28 mm

Specifications

Brand

Lifud
Series

GIF Series
Power Rating

60 Watt
Output Voltage

40 Volt
Rated Current

1.5 Ampere
Input Voltage

198V~264V
Standards Met

CB,CCC,CE,RCM
Operation Mode

Constant Current
Operating Temperature

-30°C~45°C
Warranty

5 Year
Length

11.5 cm
Width

4.1 cm
Height

2.8 cm
Weight

90 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What type of LED driver is the Lifud LF-GIF060YS1500H(S)?

The Lifud LF-GIF060YS1500H(S) is a 60W constant current LED driver with selectable output current. It is a non-dimmable model designed for LED applications that require a constant current supply rather than constant voltage.

What are the key electrical specifications of this model?

This driver is rated at 60W with a rated current of 1500 mA and an output voltage of 40 V. Its rated AC input voltage is 220-240Vac, with a stated voltage limit of 198-264Vac.

Is the output current fixed or adjustable on this LED driver?

This model is described as current selectable, with output adjustable via DIP switch. That makes it suitable for applications where a fixed-output driver may not offer enough flexibility within the product's supported settings.

Can this LED driver be used in dimming applications?

No, this specific model is non-dimmable. It is intended for applications where stable constant-current output is needed without dimming control.

Is the LF-GIF060YS1500H(S) suitable for demanding operating environments?

It has an operating temperature range of -30°C to +45°C, which supports use across a wide range of indoor operating conditions. The housing is rated IP20, so buyers should treat it as an indoor-use product where higher ingress protection is not required.

What protection features does this LED driver include?

The driver includes open circuit protection below 55V and short circuit protection with hiccup mode and auto-recovery. These protections help support reliable operation in commercial LED power supply applications.

What warranty and compliance information is available for this model?

The LF-GIF060YS1500H(S) includes a 5-year warranty, subject to the stated warranty conditions. It is also listed with multiple safety and performance standards, including IEC/EN 61347-2-13, IEC/EN 61347-1, IEC/EN 62493, IEC/EN 62384, AS 61347.1, and AS 61347.2.13.
