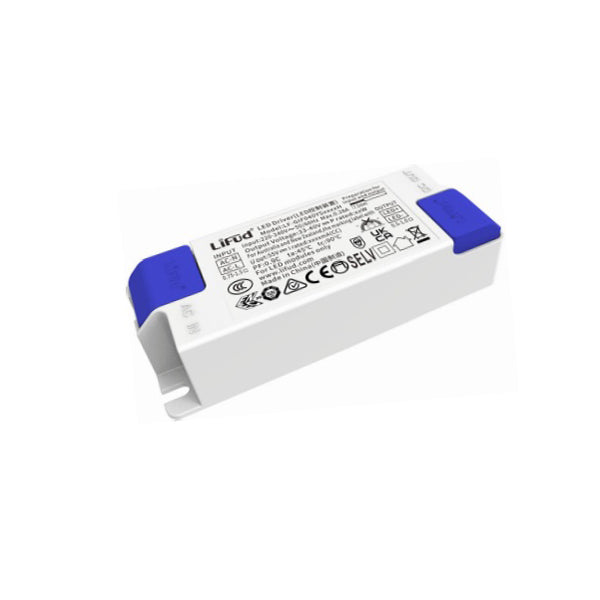

Lifud LF-GIF040YS1050H LED Driver 33-40V 1050mA

flicker free, high performance

SKU:

LF-GIF040YS1050H

Please for Pricing

Notify me when it's back in stock

Description

Features:

Flicker-free
High performance
IP20
5-year warranty (please refer to the warranty condition)

General Specification

Rated AC Input Voltage

220-240Vac (voltage limit: 198-264Vac)

Inrush Current

≤27A&154uS

Open Circuit Protection

<55V

Short Circuit Protection

Hiccup mode (auto-recovery)

Withstanding Voltage

I/P-O/P: 3.75kV&5mA&60S

Insulation Resistance

I/P-O/P: >100MΩ@500Vdc

Operating Temperature

-30℃ - +45℃

Safety standards

ENEC: EN61347-1:2015，EN 61347-2-13:2014/A1:2017，EN623842016/A1:2009

CE-LVD: EN 61347-2-13:2014/A1:2017，EN 61347-1:2015，EN62493:2015

CB:IEC 61347-1:2015，IEC61347-2-3:2014，IEC 61347-2- 13:2014/AMD1:2016

UKCA-LVD：EN 61347-1:2015/A1:2021，EN 61347-2- 13:2014/A1:2017，EN 62493:2015

CCC:GB19510.1-2009，GB19510.14-2009FCC：PART 15BSAA:AS 61347.2-13:2018

Dimension (LxWxH)

115x41x28 mm

Specifications

Brand

Lifud
Series

GIF Series
Power Rating

40 Watt
Output Voltage

33 Volt
Rated Current

1.05 Ampere
Input Voltage

220V~240V
Standards Met

CB,CCC,CE,ENEC,ROHS,TUV
Operation Mode

Constant Current
Operating Temperature

-30°C~45°C
Warranty

5 Year
Length

11.5 cm
Width

2.8 cm
Height

4.1 cm
Weight

0.1 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What type of LED application is the Lifud LF-GIF040YS1050H designed for?

The LF-GIF040YS1050H is a constant-current LED driver intended for LED applications that require 1050mA output. Its rated output range is 33-40V, so it suits fixtures or modules designed to operate within that constant-current window. It is a non-dimmable model for applications where simple on/off operation is required.

Is the Lifud LF-GIF040YS1050H dimmable?

No, this model is non-dimmable. It is intended for installations where dimming control is not needed and stable constant-current output is the priority. Buyers needing dimming should compare it against a dimmable driver rather than this specific model.

What are the main electrical specifications of the LF-GIF040YS1050H?

This LED driver is rated at 40W with a constant output current of 1050mA. Its output voltage is listed as 33-40V, and the rated AC input voltage is 220-240Vac with a voltage limit of 198-264Vac. These figures make it important to match the driver to LED loads designed for that current and voltage range.

Can the LF-GIF040YS1050H be used in demanding temperature conditions?

This model has an operating temperature range of -30°C to +45°C. That makes it suitable for environments that may experience cold conditions, provided the overall application remains within the stated limits. Buyers should still confirm the full fixture and enclosure also support the same temperature range.

What protection features does the Lifud LF-GIF040YS1050H include?

The LF-GIF040YS1050H includes open-circuit protection below 55V and short-circuit protection with hiccup mode and auto-recovery. These features help protect the driver during fault conditions. It also specifies an inrush current of no more than 27A at 154uS.

Is the LF-GIF040YS1050H suitable for indoor use?

This driver is rated IP20, which generally aligns with indoor use in protected environments. IP20 does not indicate protection against water exposure, so it should be selected for applications where that rating is appropriate. Its compact dimensions of 115 x 41 x 28 mm can also help where internal space is limited.

What certifications or compliance standards are listed for this LED driver?

The product description lists multiple standards and approvals, including ENEC, CE-LVD, CB, UKCA-LVD, CCC, FCC, and SAA references. These indicate the model has been specified against a broad set of safety and compliance frameworks. For regulated projects, buyers should verify the exact approval relevance against their market and application requirements.

What warranty is offered for the Lifud LF-GIF040YS1050H?

This model is listed with a 5-year warranty. The description notes that warranty coverage is subject to the warranty condition. For project purchasing, it is worth confirming the applicable warranty terms before ordering.
