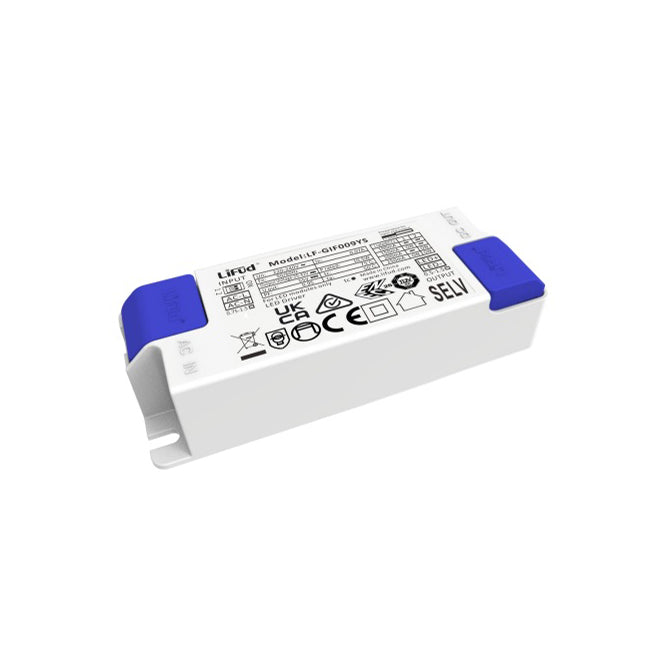

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Lifud LF-GIF009YS0180H LED Driver 25-42V 180mA

flicker free, compact size, high PF, suitable for Class II light fixtures

SKU:

LF-GIF009YS0180H

Please for Pricing

Notify me when it's back in stock

Description

Features:

Flicker-free
Compact size, high PF, external driver
IP20
Suitable for Class II light fixtures
5-year warranty (please refer to the warranty condition)

General Specification

Rated AC Input Voltage

220-240Vac

Inrush Current

≤20A

Open Circuit Protection

≤55Vdc

Short Circuit Protection

Hiccup mode (auto-recovery)

Overload Protection

If the maximum load is exceeded by a defined internal limit, the LED driver

turns off the LED output. The driver will recover automatically once the overload is eliminated.

Withstanding Voltage

I/P-O/P：3.75kV&5mA&60S

Insulation Resistance

I/P-O/P：＞100MΩ@500Vdc

Operating Temperature

-30℃ - +50℃

Safety standards

ENEC: EN61347-1:2015，EN 61347-2-13:2014/A1:2017，EN62384：2016/A1:2009

CE-LVD: EN 61347-2-13:2014/A1:2017，EN 61347-1:2015，EN62493:2015CB:IEC 61347-1:2015，IEC61347-2-3:2014，IEC 61347-2- 13:2014/AMD1:2016

UKCA-LVD：EN 61347-1:2015/A1:2021，EN 61347-2-13:2014/A1:2017，EN 62493:2015

RCM:AS 61347.2-13:2018

CCC:GB19510.1-2009，GB19510.14-2009

Dimension (LxWxH)

96x36x24 mm

Specifications

Brand

Lifud
Series

GIF Series
Power Rating

9 Watt
Output Voltage

25 Volt
Rated Current

0.18 Ampere
Input Voltage

198V~264V
Standards Met

CB,CCC,CE,ENEC,ROHS,TUV
Operation Mode

Constant Current
Operating Temperature

-30°C~50°C
Warranty

5 Year
Length

9.6 cm
Width

2.4 cm
Height

3.6 cm
Weight

0.05 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What type of applications is the Lifud LF-GIF009YS0180H designed for?

The LF-GIF009YS0180H is a constant-current LED driver intended for LED lighting applications that require 180mA output. It is described as an external driver and is suitable for Class II light fixtures. Its compact size also makes it practical for space-constrained luminaire designs.

Is the Lifud LF-GIF009YS0180H dimmable?

No, this model is non-dimmable. It is intended for applications where a fixed-output LED driver is needed rather than systems requiring dimming control. Buyers needing adjustable light levels should compare it against dimmable driver options.

What are the key electrical specifications of the LF-GIF009YS0180H?

This LED driver is rated at 9W with a rated current of 180mA and an output voltage listed at 25V. The product name indicates a 25-42V operating range, and the open-circuit protection threshold is specified as 55Vdc or below. It accepts a 220-240Vac input supply.

Is this LED driver suitable for demanding temperature conditions?

The LF-GIF009YS0180H has an operating temperature range of -30°C to +50°C. That makes it suitable for many indoor commercial and architectural lighting environments where low ambient temperatures or moderate heat may be present. Buyers should still confirm the final fixture operates within that temperature window.

What protection features does the Lifud LF-GIF009YS0180H include?

This model includes short-circuit protection with auto-recovery in hiccup mode and overload protection that shuts off LED output if the internal load limit is exceeded. It also recovers automatically once the overload condition is removed. Open-circuit protection is specified at 55Vdc or below.

Is the LF-GIF009YS0180H appropriate for indoor use only?

Yes, this model carries an IP20 rating, which is generally associated with indoor applications where protection against water exposure is not required. It should be selected for dry environments and used within fixtures or products designed around that rating. For harsher environments, buyers should compare it with higher-IP alternatives.

What certifications and compliance standards are listed for this model?

The LF-GIF009YS0180H lists compliance across several standards and markets, including ENEC, CE-LVD, UKCA-LVD, RCM, and CCC. The safety standards referenced include EN 61347 series and related IEC and regional standards. This makes it relevant for buyers who need a driver aligned with recognized lighting safety frameworks.

How compact is the Lifud LF-GIF009YS0180H?

This driver measures 96 x 36 x 24 mm and weighs 0.051 kg. Its compact footprint can help in fixture designs where space is limited. That makes it a practical option for OEMs and commercial buyers evaluating enclosure and luminaire fit.
