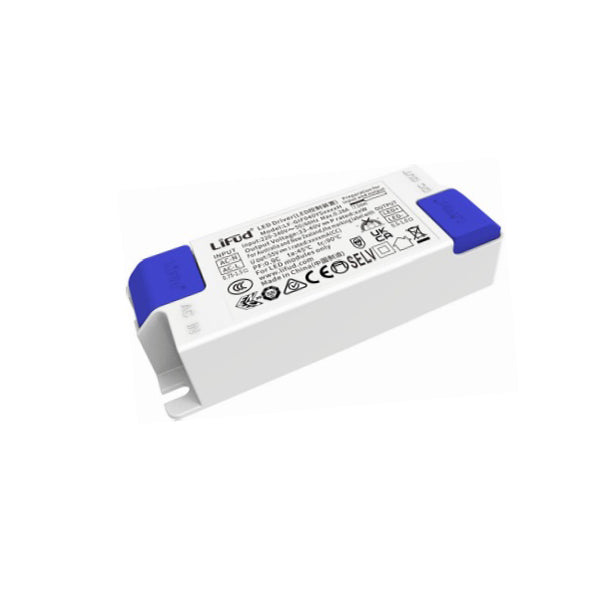

Lifud LF-GIF040YS0900H LED Driver 33-40V 900mA

flicker free, high performance

SKU:

LF-GIF040YS0900H

Please for Pricing

Notify me when it's back in stock

Description

Features:

Flicker-free
High performance
IP20
5-year warranty (please refer to the warranty condition)

General Specification

Rated AC Input Voltage

220-240Vac (voltage limit: 198-264Vac)

Inrush Current

≤27A&154uS

Open Circuit Protection

<55V

Short Circuit Protection

Hiccup mode (auto-recovery)

Withstanding Voltage

I/P-O/P: 3.75kV&5mA&60S

Insulation Resistance

I/P-O/P: >100MΩ@500Vdc

Operating Temperature

-30℃ - +45℃

Safety standards

ENEC: EN61347-1:2015，EN 61347-2-13:2014/A1:2017，EN623842016/A1:2009

CE-LVD: EN 61347-2-13:2014/A1:2017，EN 61347-1:2015，EN62493:2015

CB:IEC 61347-1:2015，IEC61347-2-3:2014，IEC 61347-2- 13:2014/AMD1:2016

UKCA-LVD：EN 61347-1:2015/A1:2021，EN 61347-2- 13:2014/A1:2017，EN 62493:2015

CCC:GB19510.1-2009，GB19510.14-2009FCC：PART 15BSAA:AS 61347.2-13:2018

Dimension (LxWxH)

115x41x28 mm

Specifications

Brand

Lifud
Series

GIF Series
Power Rating

40 Watt
Output Voltage

33 Volt
Rated Current

0.9 Ampere
Input Voltage

220V~240V
Standards Met

CB,CCC,CE,ENEC,ROHS,TUV
Operation Mode

Constant Current
Operating Temperature

-30°C~45°C
Warranty

5 Year
Length

11.5 cm
Width

2.8 cm
Height

4.1 cm
Weight

0.1 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What type of LED application is the Lifud LF-GIF040YS0900H designed for?

The LF-GIF040YS0900H is a constant-current LED driver rated at 900mA with a 33-40V output range. That makes it suitable for LED fittings or modules that require a 900mA constant-current driver within that voltage window, especially in indoor commercial or architectural lighting applications.

Is the Lifud LF-GIF040YS0900H dimmable?

No. This model is specified as non-dimmable, so it is intended for installations where a fixed light output is required rather than adjustable dimming control.

Can this LED driver be used in exposed or harsh environments?

This driver has an IP20 rating, so it is intended for indoor use in dry, protected environments. It also has an operating temperature range of -30°C to +45°C, which supports use in a wide range of indoor ambient conditions.

What LED load is compatible with the LF-GIF040YS0900H?

This model is built for LED loads that require a constant 900mA output current and operate within a 33-40V output range. Buyers should match both the current requirement and the voltage window of the LED fitting to this driver model.

What are the key specifications of the Lifud LF-GIF040YS0900H?

The LF-GIF040YS0900H is a 40W LED driver with 220-240Vac rated input, 900mA rated output current, and 33-40V output. It is flicker-free, measures 115 x 41 x 28 mm, weighs 0.099 kg, and includes a 5-year warranty subject to the stated warranty conditions.
