Lifud LF-GIF060YS1500H(S) CC LED Driver 60W Current Selectable

1200130014001500mA(default)flicker-freeSELV output

SKU LF-GIF060YS1500H(S)

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

Features

Low THD≤10% @full load
Rated input range: 220–240Vac
Ta range: -30 - +45 °C
Ripple current＜5%
5 years guarantee
Output current adjustable via DIP switch in 4 shifts
High efficiency
Flicker free
Long lifetime and high reliability
SELV output

Specifications

LF-GIF060YS1500H(S)Specifications from the official datasheet (2025-02-14 edition)Download datasheet PDF

Input data

Rated input voltage: 220 ... 240 V
Input voltage AC: 198 ... 264 V
Mains frequency: 0/50/60 Hz
Input voltage DC¹⁾: 180 ... 264V
Power factor: ≥0.95
THD: ≤10%
Efficiency²⁾: ≥93%
Input current: 0.35A Max
Inrush current³⁾: 32A
Loading number on circuit breaker 10 A (B): 13
Loading number on circuit breaker 10 A (C): 22
Loading number on circuit breaker 16 A (B): 22
Loading number on circuit breaker 16 A (C): 36
Leakage current: ≤0.7mA

Output data

Nominal output voltage: 30 ... 40V
Nominal output current: 1200/1300/1400/1500mA
Default output current: 1500mA

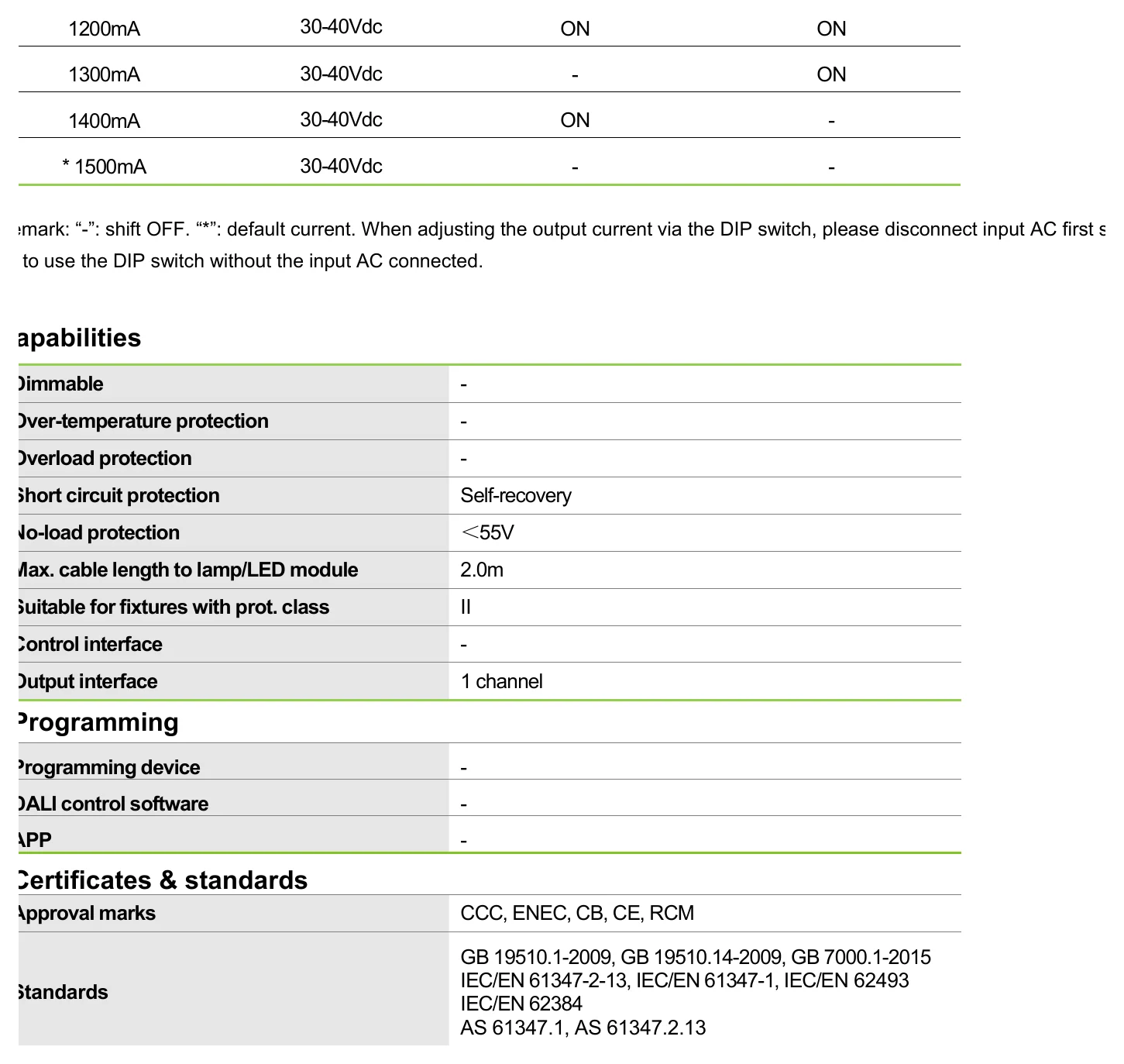

Current setting: DIP switch (For the corresponding output current, see the DIP switch definition)
Maximum output power: 60W
Nominal output power: 36 ... 60W
Output ripple current (100 Hz): ＜5 %
Flicker: According to IEEE Std 1789-2015
CIE SVM: ≤0.4
IEC-Pst: ≤1
Output current tolerance: ±5%
Temperature tolerance: ±10%
Start-up time: ＜0.5S

Safety

Withstanding voltage: I/P-O/P: 3.75kV&5mA&60S
Surge capability (L-N): 1 kV
Surge capability (L/N-Ground): N/A
Insulation resistance: I/P-O/P: ＞100MΩ@500Vdc
Guarantee⁴⁾: 5 years

Protection

Short circuit protection: Self-recovery
No-load protection: ＜55V

Environment

Humidity range at storage: 10-90%RH (no condensation)
Humidity during operation: 20-90%RH
Type of protection: IP20

Others

Product weight: 90g±5%
Length: 115.0mm±0.25mm
Width: 41.0mm±0.25mm
Height: 28.0mm±0.15mm
DALI control software: -
EMC: GB 17625.1-2022, GB/T 17743-2021 EN 55015, EN 61547, EN 61000-3-2,3
Mounting hole spacing, length: 102.7mm±0.25mm
Cable cross-section, input side: 0.75 ... 1.5 mm²
Cable cross-section, output side: 0.5 ... 1.5 mm²
Wire outside diameter, input side: Max: 7.0mm Min: 3.0mm
Wire outside diameter, output side: Max: 7.0mm Min: 3.0mm
Wire preparation length, input side: 7 ... 8mm
Wire preparation length, output side: 7 ... 8mm

Certifications & ratings

Certification marks: CCC, ENEC, CB, CE, RCM
Standards: GB 19510.1-2009, GB 19510.14-2009, GB 7000.1-2015 IEC/EN 61347-2-13, IEC/EN 61347-1, IEC/EN 62493 IEC/EN 62384 AS 61347.1, AS 61347.2.13

Test conditions and notes4

1. DC input is only for emergency with the maximum using time of 90 mins
2. @full load
3. t =200 µs
4. 5 years@Tc≤75℃

Technical drawings

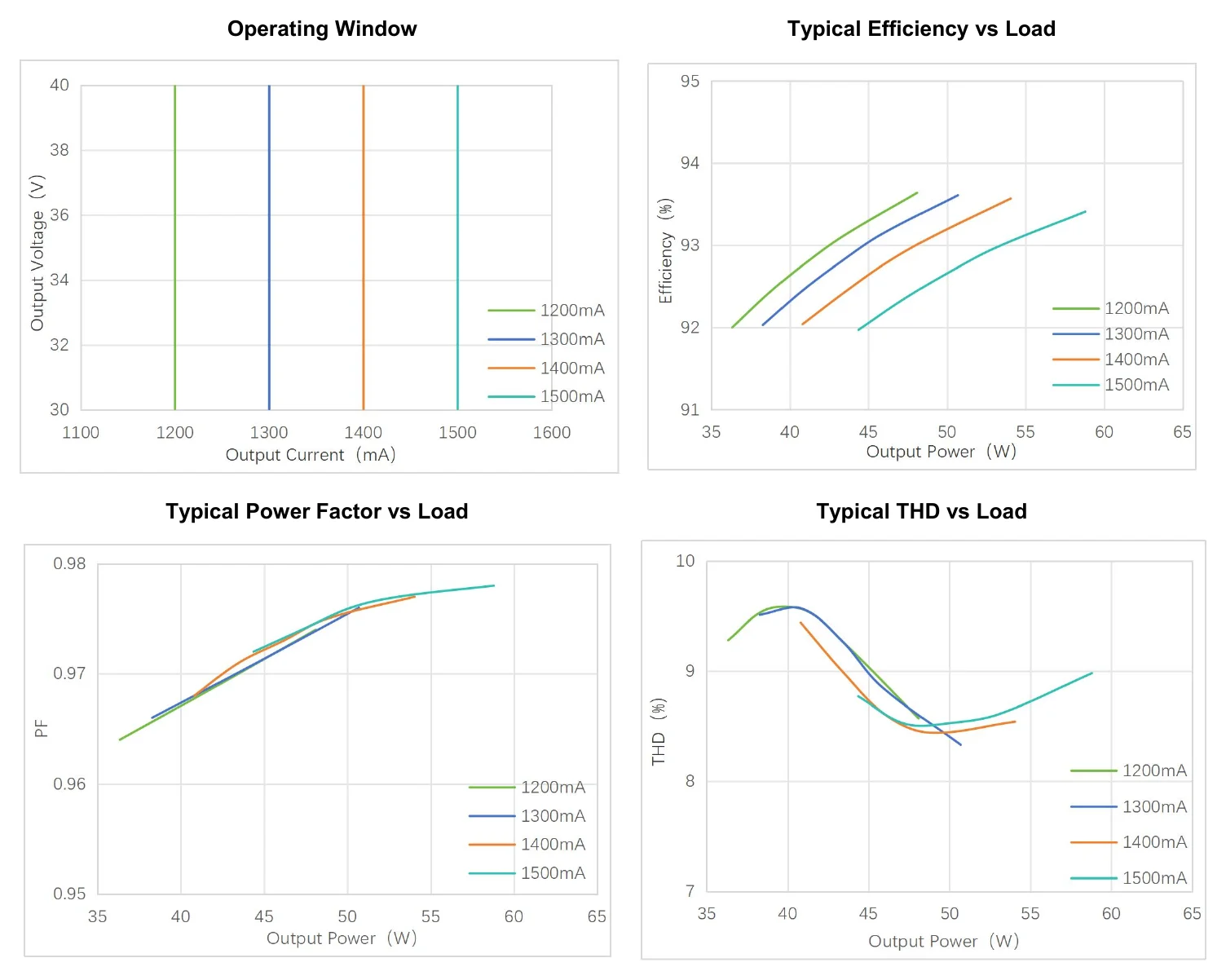

LF-GIF060YS1500H(S) Operating Window — Operating Window

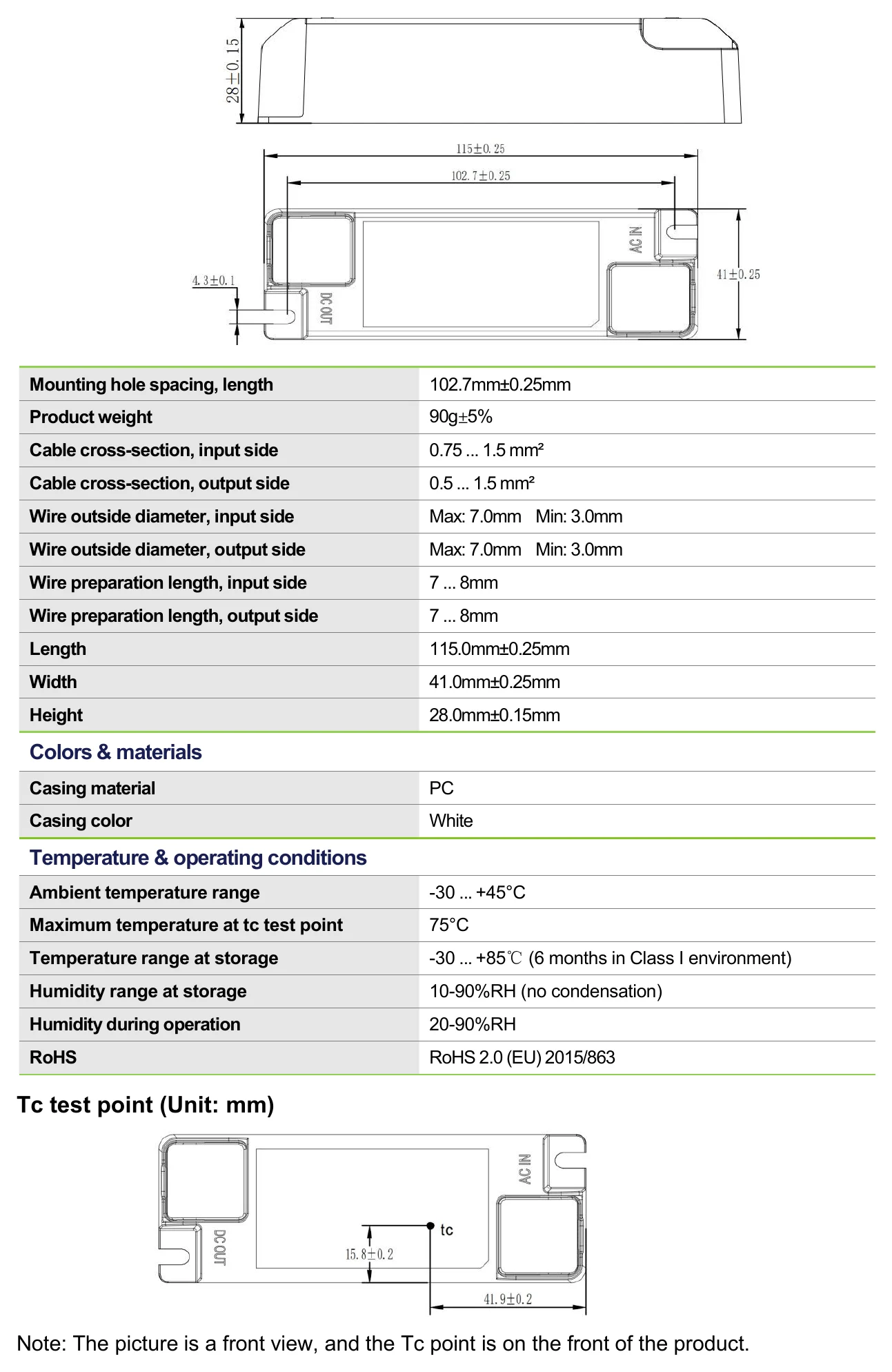

LF-GIF060YS1500H(S) Colors & materials — Colors & materials

LF-GIF060YS1500H(S) Output current Output voltage — Output current Output voltage

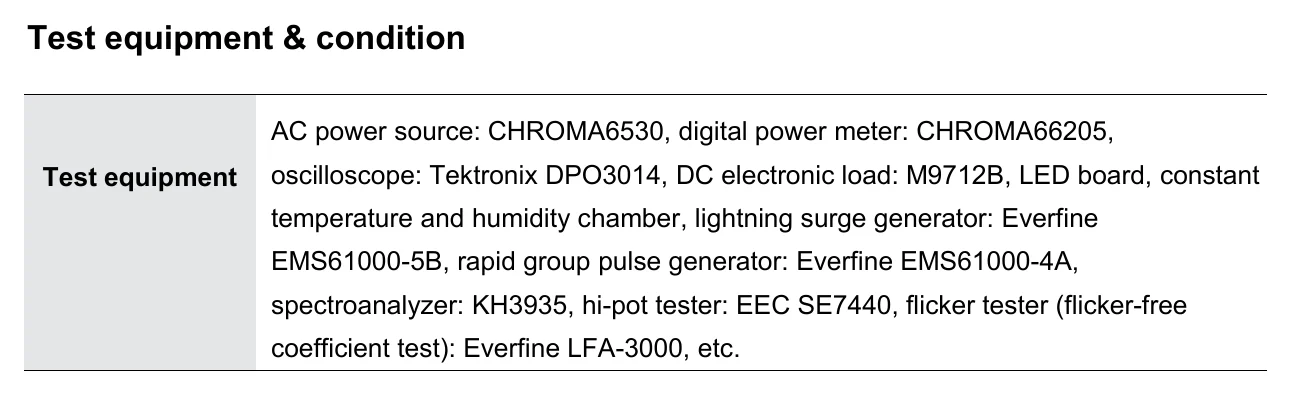

LF-GIF060YS1500H(S) Test equipment & condition — Test equipment & condition

Typical applications

For panel light
For office, commercial, and decorative lighting

Downloads

Datasheet1

LF-GIF060YS1500H(S) datasheetLF_GIF060YS1500H_S__Specification_V1.0.pdf · 2025-02-14 edition PDF Download

FAQ

What type of LED driver is the Lifud LF-GIF060YS1500H(S)?

The Lifud LF-GIF060YS1500H(S) is a 60W constant current LED driver with selectable output current. It is a non-dimmable model designed for LED applications that require a constant current supply rather than constant voltage.

What are the key electrical specifications of this model?

This driver is rated at 60W with a rated current of 1500 mA and an output voltage of 40 V. Its rated AC input voltage is 220-240Vac, with a stated voltage limit of 198-264Vac.

Is the output current fixed or adjustable on this LED driver?

This model is described as current selectable, with output adjustable via DIP switch. That makes it suitable for applications where a fixed-output driver may not offer enough flexibility within the product's supported settings.

Can this LED driver be used in dimming applications?

No, this specific model is non-dimmable. It is intended for applications where stable constant-current output is needed without dimming control.

Is the LF-GIF060YS1500H(S) suitable for demanding operating environments?

The housing is rated IP20, so buyers should treat it as an indoor-use product where higher ingress protection is not required. It operates within a humidity range of 20-90% RH (no condensation).

What protection features does this LED driver include?

The driver includes no-load protection below 55V and short circuit protection with self-recovery. These protections help support reliable operation in commercial LED power supply applications.

What warranty and compliance information is available for this model?

The LF-GIF060YS1500H(S) includes a 5-year warranty, subject to the stated warranty conditions. It is also listed with multiple safety and performance standards, including IEC/EN 61347-2-13, IEC/EN 61347-1, IEC/EN 62493, IEC/EN 62384, AS 61347.1, and AS 61347.2.13.
