Lifud LF-GIF060YS1550H LED Driver 30-40V 1550mA - Flicker Free

flicker freehigh performance

SKU LF-GIF060YS1550H

Log in to see price Trade pricing & online ordering for account holders

In stock

Overview

LF-GIF060YS1550H is the 30-40V output model of this series.

LF-GIF060YSxxxxH is a 60W (max.) isolated flicker-free LED driver. Its rated input voltage ranges from 220 to 240Vac and output voltage ranges from 30 to 40Vdc. It is suitable for Class II light fixtures, including panel light, down light, spot light, etc.

Features

Flicker free
High PF
IP20
Suitable for Class II light fixtures
5-year warranty (please refer to the warranty condition)

Specifications

LF-GIF060YS1550HSpecifications from the official datasheetDownload datasheet PDF

Output

Output Voltage: 30-40V
Output Current: 1350 / 1400 / 1450 / 1500 / 1550 mA
Flicker: Complies with IEEE 1789 standard.
CIE SVM: ≤0.4
IEC-Pst: ≤1.0
Current Tolerance: ±5%
Temperature Drift: ±10%
Startup Time: <0.5S

Input

Input Voltage: 220-240Vac (voltage limit: 200-264Vac)
Input Frequency: 47Hz-63Hz
Input Current: 0.5A max.
PF: ≥0.95@230Vac
THD: ≤20%@230Vac
Efficiency: ≥89%@230Vac
Inrush Current: ≤40A&150uS@230Vac
Loading Quantities of Circuit Breaker: Parameter

Model B10 C10 B16 C16
Quantity (pcs) 16 26 27 43
Leakage Current: ≤0.7mA
Standby Power Consumption: ≤0.5W

Parameter
Model	B10	C10	B16	C16
Quantity (pcs)	16	26	27	43

Protections

Open Circuit: <55V
Short Circuit: Hiccup mode (auto-recovery)

Environment Descriptions

Operating Temperature: -30℃ - +45℃
Operating Humidity: 0-95%RH (no condensation)
Storage Temperature/Humidity: -30℃ - 80℃ (6 months in Class I environment); 0-95%RH (no condensation)
Atmospheric Pressure: 86-106kPa

Others

EMI: CE-EMC/RCM: EN55015, EN61000-3-2, EN61000-3-3 CCC: GB/T17743, GB17625.1, GB17625.2
EMS: CE-EMC/RCM: EN61000-4-2, 3, 4, 5 (lightning strike 1kV), 6, 11 CCC: GB/T17626.2, 3, 4, 5 (lightning strike 1kV), 6, 11
Overall Appearance Dimension (L*W*H): 139.5*43*29 mm
Weight: 0.14 kg/pc
Warranty: 5 years (Tc ≤88℃)

Certifications & ratings

Certifications: ENEC, CE, CB, RCM, CCC
Safety Standards: ENEC: EN61347-1: 2015, EN61347-2-13: 2014/A1: 2017, EN62384 2016/A1: 2009 CE-LVD: EN61347-2-13: 2014/A1: 2017, EN61347-1: 2015, EN62493: 2015 CB: IEC61347-1: 2015, IEC61347-2-3: 2014, IEC 61347-2-13: 2014/AMD1: 2016 CCC: GB19510.1-2009, GB19510.14-2009 FCC: PART 15B

Technical drawings

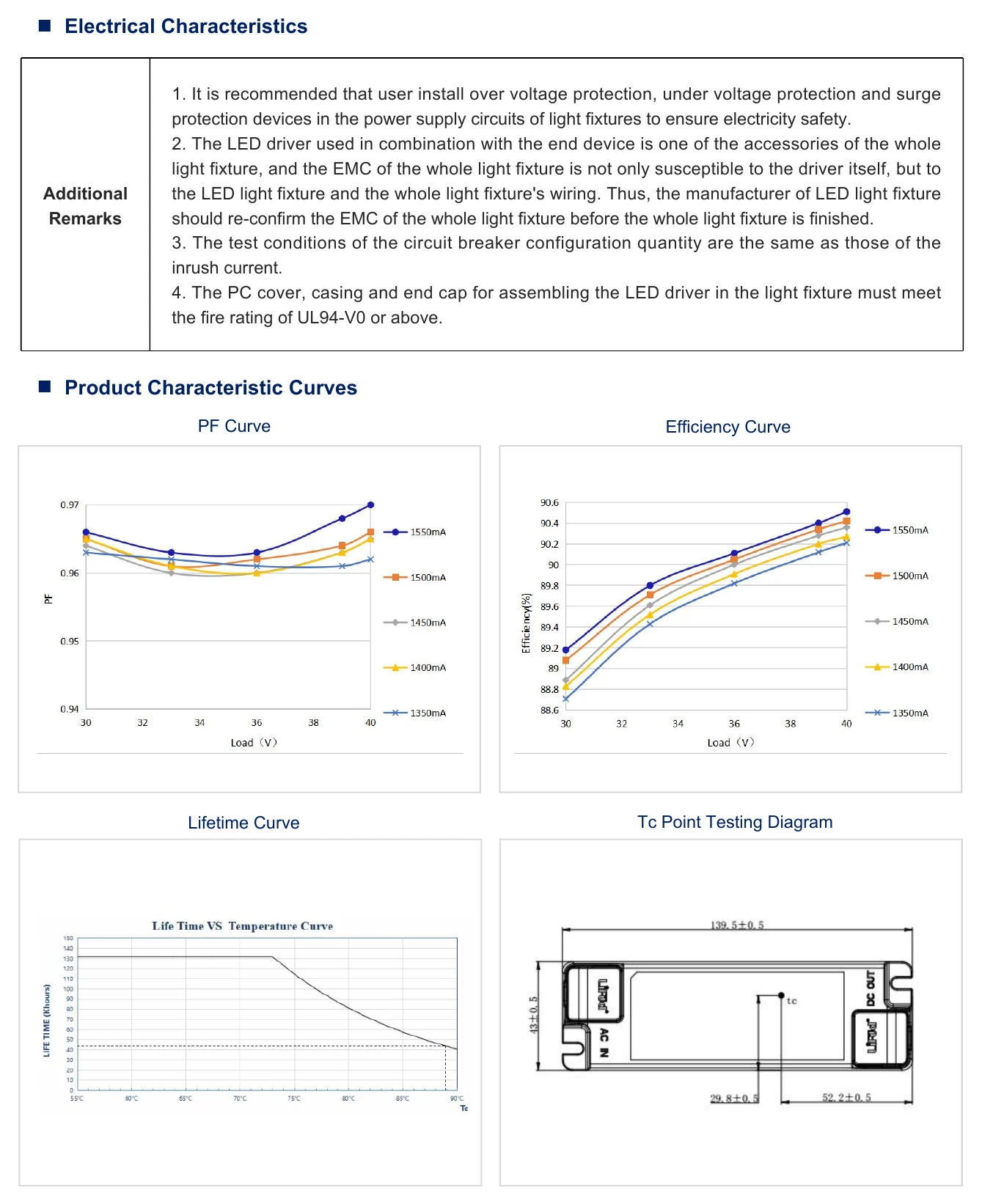

LF-GIF060YS1550H Electrical Characteristics — Electrical Characteristics

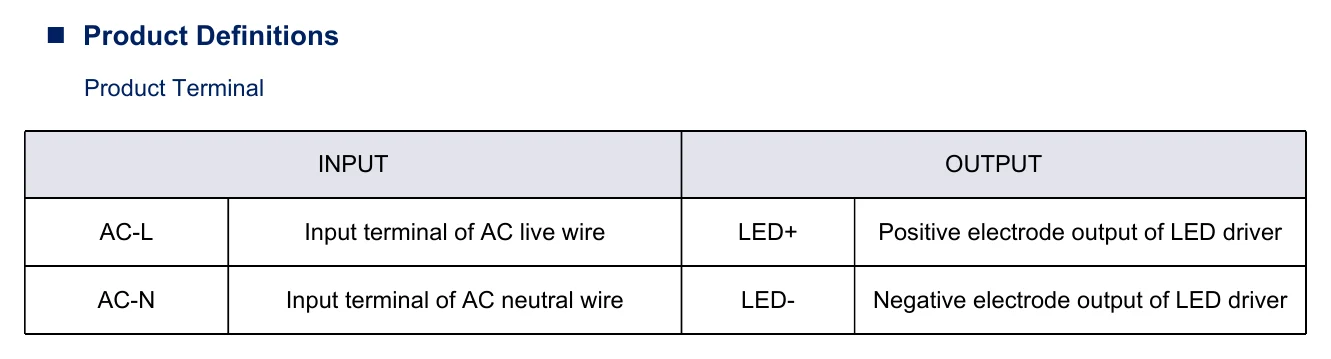

LF-GIF060YS1550H Product Definitions — Product Definitions

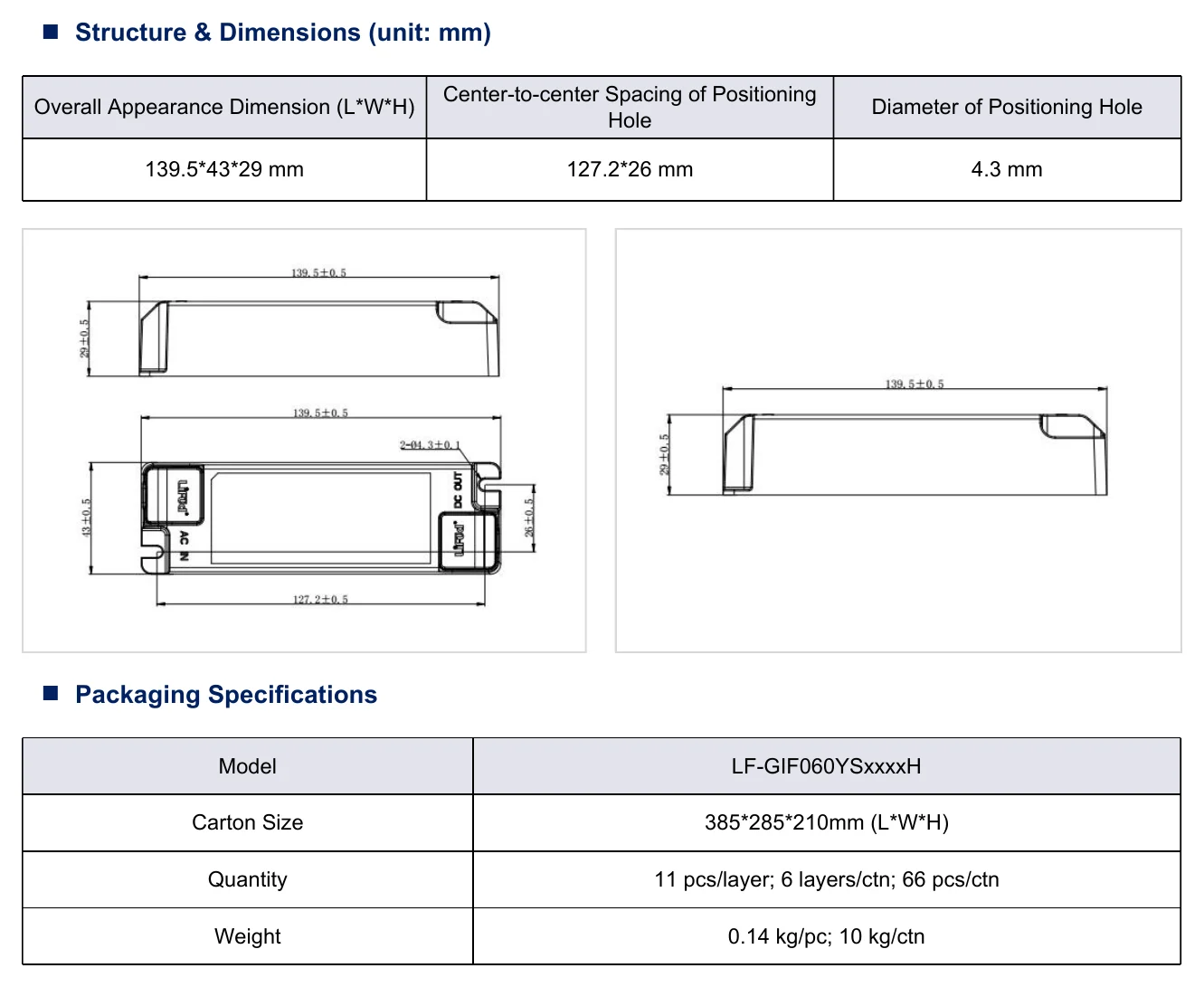

LF-GIF060YS1550H Structure & Dimensions (unit: mm) — Structure & Dimensions (unit: mm)

Typical applications

Commercial lighting
indoor office lighting
decorative lighting
residential lighting

Downloads

Datasheet1

LF-GIF060YS1550H datasheetLF_GIF060YSxxxxH_Specification_V1.2.pdf PDF Download

FAQ

What type of LED application is the Lifud LF-GIF060YS1550H designed for?

The LF-GIF060YS1550H is a constant current LED driver for lighting applications that require 1550mA output. It is suited to LED loads operating in the 30-40V range. This model is a 60W driver for professional lighting use where stable current output matters.

Is the Lifud LF-GIF060YS1550H dimmable?

No, this model is non-dimmable. It is intended for applications where full-output operation is required rather than dimming control. Buyers needing dimming should compare it with a driver that explicitly lists a supported dimming protocol.

What are the main electrical specifications of this LED driver?

This Lifud driver is rated at 60W with a constant output current of 1550mA. It accepts 220-240Vac nominal input, with an input voltage limit of 200-264Vac. The product name specifies a 30-40V output range for the connected LED load.

What protection features does the LF-GIF060YS1550H include?

The LF-GIF060YS1550H includes open circuit protection below 55V and short circuit protection with hiccup mode auto-recovery. These protections help the driver respond safely to abnormal output conditions.

Is this LED driver suitable for demanding temperature conditions?

This model has an operating temperature range of -30°C to +45°C. That makes it suitable for applications exposed to cold conditions, provided the surrounding environment stays within its rated limits.

How can I tell if this driver is compatible with my fixture?

Compatibility depends on whether the fixture requires a constant current LED driver rated at 1550mA and operating in the 30-40V range. If your fixture requires dimming or a different output current, this driver would not be the right match.

What certifications and warranty does the Lifud LF-GIF060YS1550H have?

The product lists compliance with ENEC, CE, CB, RCM, and CCC standards. These references indicate it is built for regulated commercial lighting markets.
