Mean Well

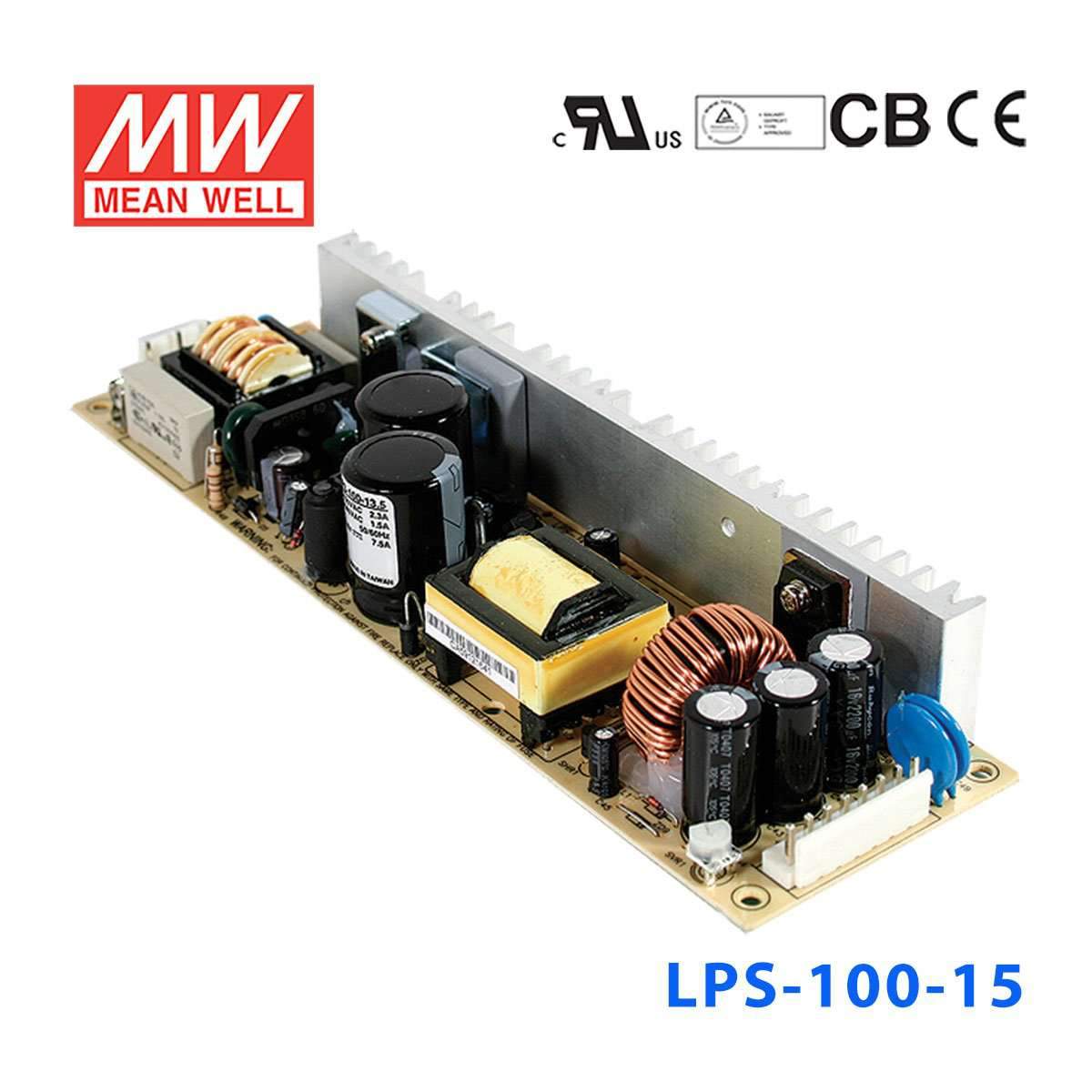

Mean Well LPS-100-15 Power Supply 100W 15V 6.7A

small and compactlow profile23mm thicknessbuilt-in remote ON-OFF control
SKU LPS-100-15
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

LPS-100-15 is the 15V output model of this series: rated current 6.7A, rated power 100.5W, typical efficiency 80%.

Features

  • Universal AC input / Full range
  • Protections: Short circuit / Overload / Over voltage
  • Cooling by free air convection
  • 100% full load burn-in test
  • Fix switching frequency at 134KHz
  • 2 years warranty

Specifications

LPS-100-15Specifications from the official datasheet (2024-10-30 edition)

OUTPUT

DC VOLTAGE
15V
RATED CURRENT
6.7A
CURRENT RANGE
0 ~ 6.7A
RATED POWER
100.5W
RIPPLE & NOISE (max.)Note.2
100mVp-p
VOLTAGE ADJ. RANGE
13.5 ~ 18V
VOLTAGE TOLERANCENote.3
±2.0%
LINE REGULATION
±0.5%
LOAD REGULATION
±1.5%
SETUP, RISE TIME
800ms, 50ms/230VAC 1200ms, 50ms/115VAC at full load
HOLD UP TIME (Typ.)
20ms/230VAC 20ms/115VAC at full load

INPUT

VOLTAGE RANGE
88 ~ 132VAC / 176 ~ 264VAC auto switch 248 ~ 370VDC [DC input operation possible by connecting AC/N(-), AC/L(+)]
FREQUENCY RANGE
47 ~ 63Hz
EFFICIENCY(Typ.)
80%
AC CURRENT (Typ.)
2.3A/115VAC 1.5A/230VAC
INRUSH CURRENT (Typ.)
COLD START 30A/115VAC 60A/230VAC
LEAKAGE CURRENT
<1mA / 240VAC

PROTECTION

OVERLOAD
105 ~ 140% (+24V: above 6.5A) rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
18 ~ 21V Protection type : Hiccup mode, recovers automatically after fault condition is removed

ENVIRONMENT

WORKING TEMP.
-10 ~ +60℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-20 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.05%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE
I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2(Note.7),-3, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,11, BS EN/EN55035, light industry level, EAC TP TC 020

OTHERS

MTBF
2983.9K hrs min. Telcordia SR-332 (Bellcore) ; 342.6K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
222*62*32mm (L*W*H)
PACKING
0.45Kg; 24pcs/12.5Kg/1.63CUFT
Test conditions and notes8
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
  5. 5. If the input range 85V-89V, the output load is changed from 0A-rated load, There will be reduced 20V for 1second (LPS-100-24).
  6. 6. Mounting holes M1 and M2 should be grounded for EMI purposes.
  7. 7. Testing harmonic current at 90% load.
  8. 8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

LPS-100-15 Mechanical Specification
Mechanical Specification
LPS-100-15 Block Diagram
Block Diagram
LPS-100-15 Derating Curve
Derating Curve

Downloads

FAQ

Can I use the LPS-100-15 for a 15V industrial controller or test fixture?

Yes, if the device requires a 15V constant voltage input and draws no more than 6.7A. This unit provides 100.5W total output capacity, which fits many 15V bench, control, and fixture loads.

Is the LPS-100-15 suitable for 15V automation sensors and auxiliary devices?

It can be suitable for grouped 15V auxiliary loads when the combined demand stays within 6.7A at 15V. Because it is a constant voltage model, it is intended for equipment that expects a fixed 15V supply.

Can this model power a 15V embedded or industrial computing assembly?

Yes, provided the assembly is specified for 15V input and remains under the 100.5W output limit. The compact 222.0 x 62.0 x 32.0 mm form factor can be useful in space-constrained electronics housings.

Is the LPS-100-15 a good option for 15V lab or instrumentation loads?

It is a fit for instrumentation or electronics that specifically call for a 15V constant voltage source up to 6.7A. Its universal AC input (88-132VAC / 176-264VAC, auto switch) can also simplify use across different AC input standards.

Is this power supply intended for indoor or outdoor conditions?

The published operating temperature range is -10°C to +60°C, which defines the thermal range in the provided specs. Since no IP rating is listed, the available data supports use in protected indoor environments rather than exposed outdoor locations.
