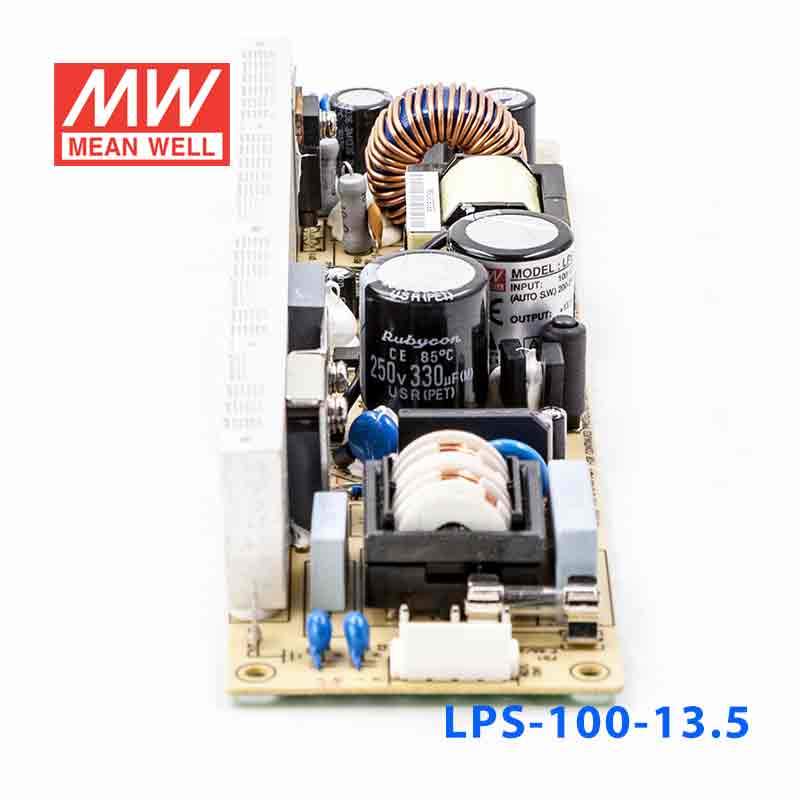

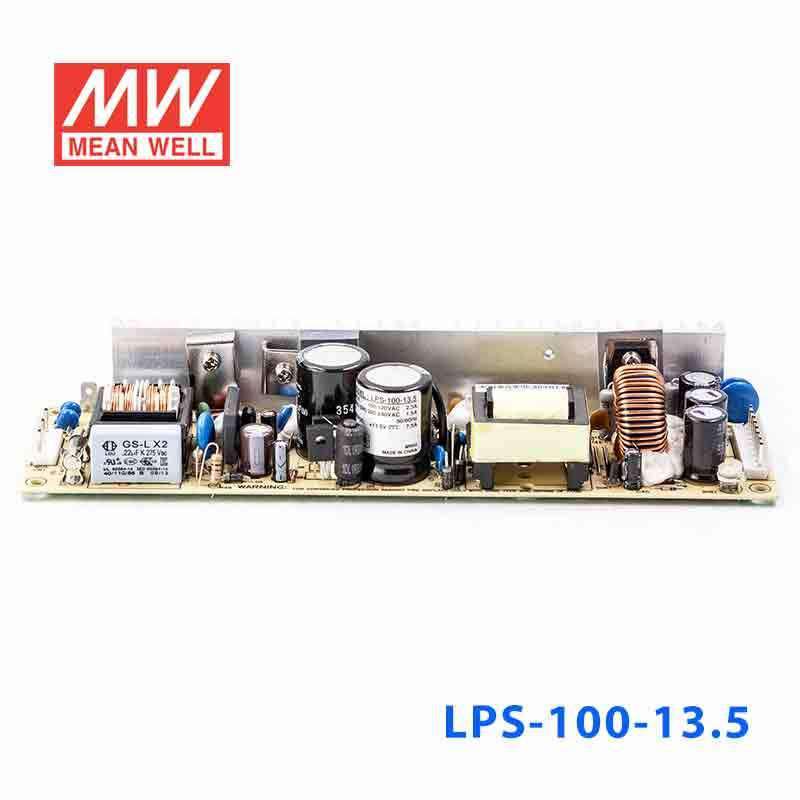

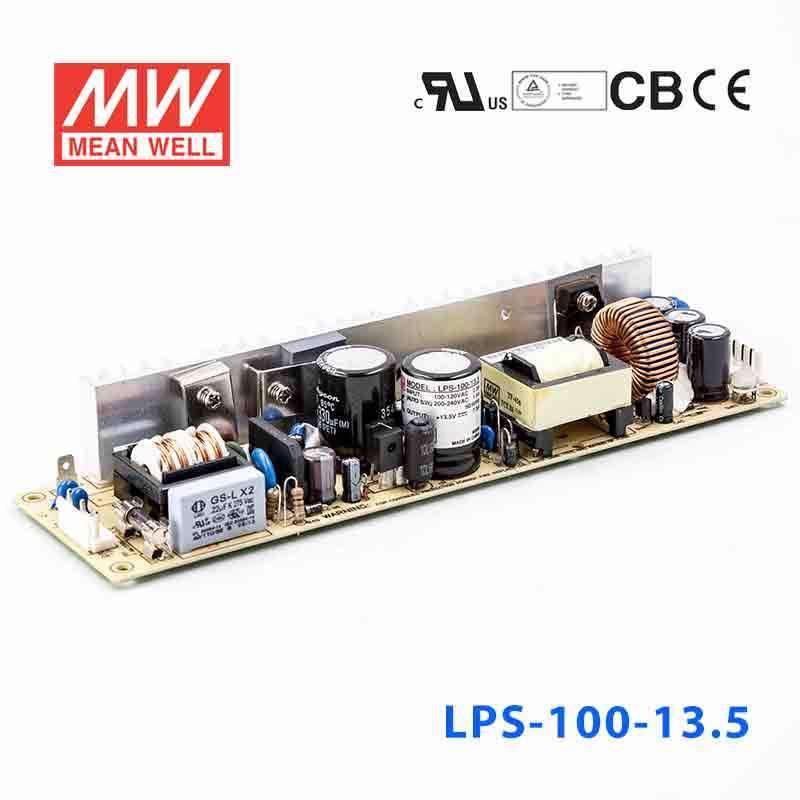

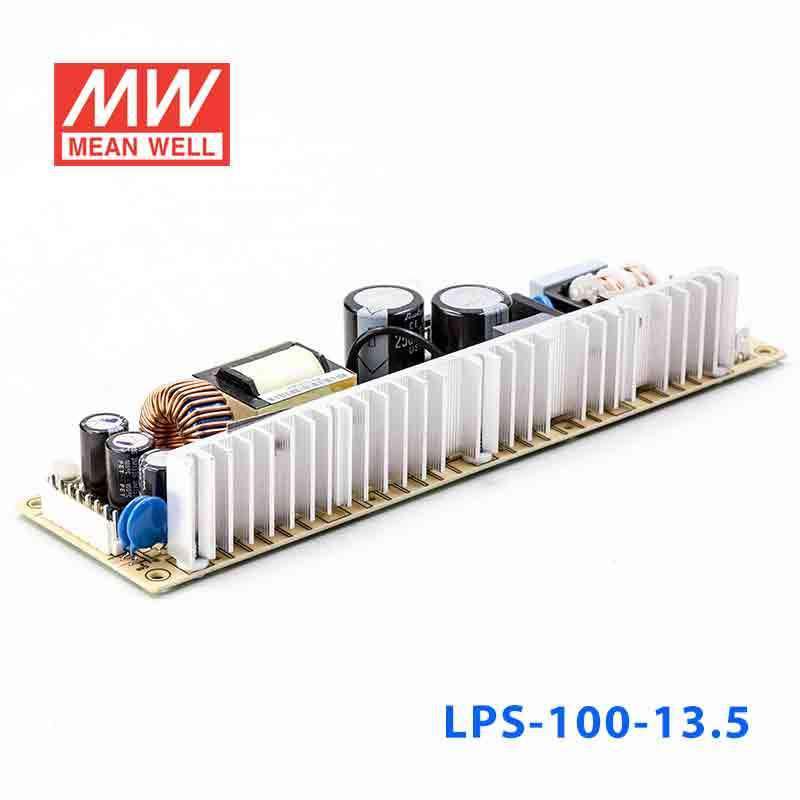

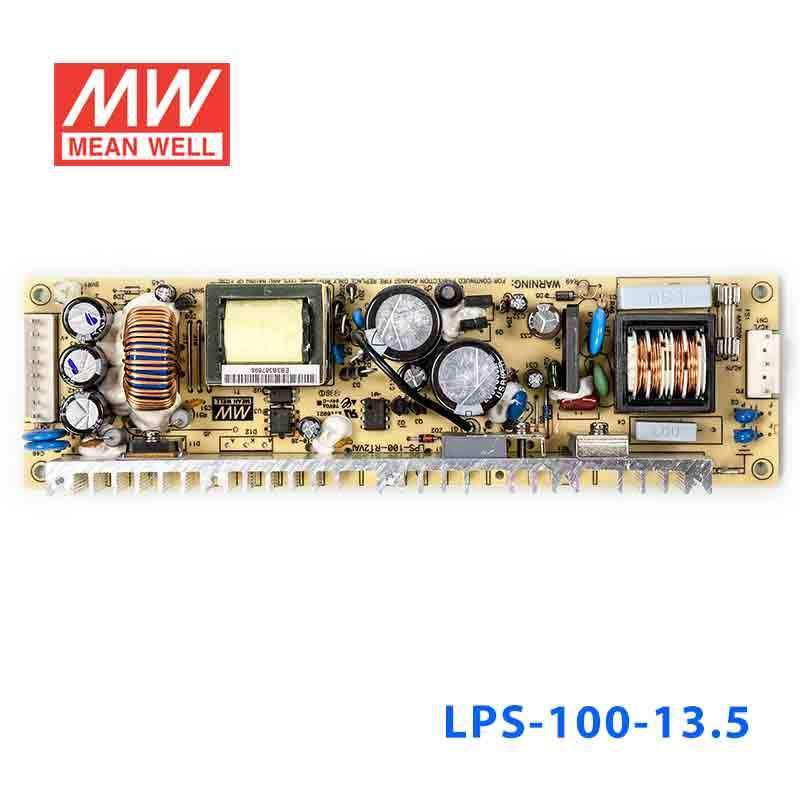

Mean Well LPS-100-13.5 Power Supply 101W 13.5V
Please Login for Pricing
Description
Description
The LPS-100 is a 100W Mean Well power converter (input range: 88~132VAC).
Key Features
- ✓ Input voltage range: 88~132VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL60950-1, TUV EN60950-1
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesLPS Series
-
Power Rating101.25 Watt
-
Output Voltage13.5 Volt
-
Rated Current7.5 Ampere
-
Input Voltage88V~264V
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~60°C
-
Warranty2 Year
-
Length22.2 cm
-
Width6.2 cm
-
Height3.2 cm
-
Weight0.45 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the LPS-100-13.5 for a 13.5V industrial control panel?
Yes, this model is a constant voltage power supply with a 13.5V output and 7.5A maximum output current. That makes it suitable for 13.5V control hardware, relays, interface boards, or panel accessories that stay within its 101.25W output rating.
Is this power supply a fit for 13.5V communications or radio equipment?
It can be a fit when the equipment is designed for a 13.5V constant voltage input and the total load stays within 7.5A. The wide 88-264VAC input also helps in facilities that may standardize on different AC mains ranges.
Can the LPS-100-13.5 power embedded systems that need a regulated 13.5V rail?
Yes, if the embedded system is designed for a 13.5V constant voltage source and its demand remains under 101.25W. The low-profile format and 222.0 x 62.0 x 32.0 mm size can also help where internal space is limited.
Is this suitable for 13.5V automation equipment in a compact enclosure?
It is intended for constant voltage applications and provides 13.5V at up to 7.5A, which suits many compact automation loads in that voltage class. Its 0.45 kg weight and 32.0 mm overall height support use where a slim power supply is preferred.
Can the LPS-100-13.5 be used in outdoor or exposed environments?
The listed operating temperature range is -10°C to +60°C, but the provided specs do not include an IP rating. Based on the listed data, it is better matched to protected indoor equipment spaces rather than outdoor or washdown exposure.
Other LPS-100 Models
8 other models| Model | Power | Voltage | Current | |
|---|---|---|---|---|
| Mean Well LPS-100-24 Power Supply 100W 24V | 100.8W | 24V | 4.2A | View |
| Mean Well LPS-100-7.5 Power Supply 100W 7.5V | 99.75W | 7.5V | 13.3A | View |
| Mean Well LPS-100-5 Power Supply 100W 5V | 100W | 5V | 20A | View |
| Mean Well LPS-100-48 Power Supply 100W 48V | 100.8W | 48V | 2.1A | View |
| Mean Well LPS-100-3.3 Power Supply 66W 3.3V | 66W | 3.3V | 20A | View |
| Mean Well LPS-100-27 Power Supply 102W 27V | 102.6W | 27V | 3.8A | View |
| Mean Well LPS-100-15 Power Supply 100W 15V | 100.5W | 15V | 6.7A | View |
| Mean Well LPS-100-12 Power Supply 100W 12V | 100.8W | 12V | 8.4A | View |
