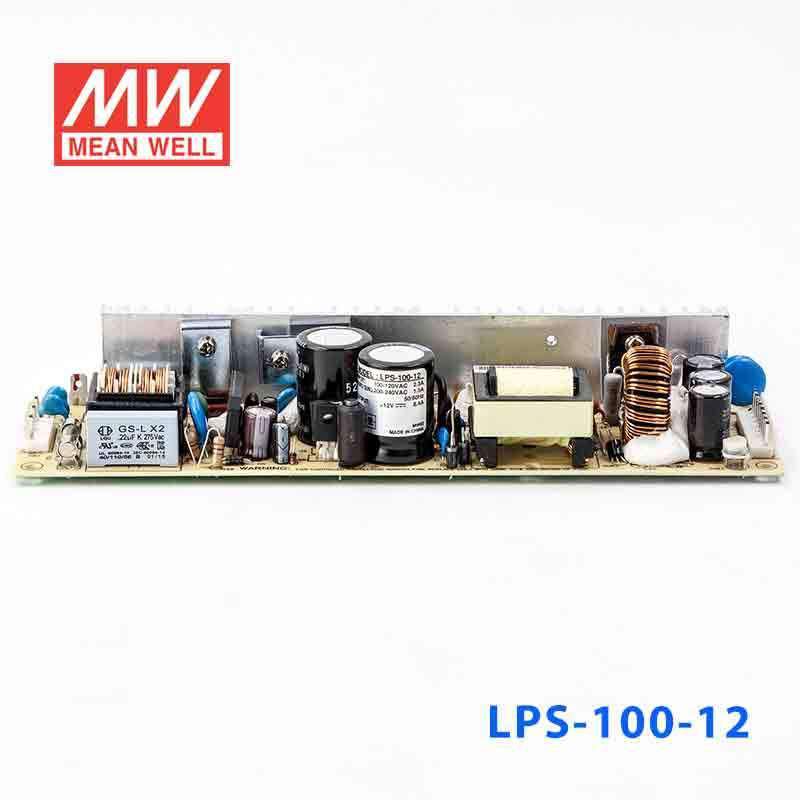

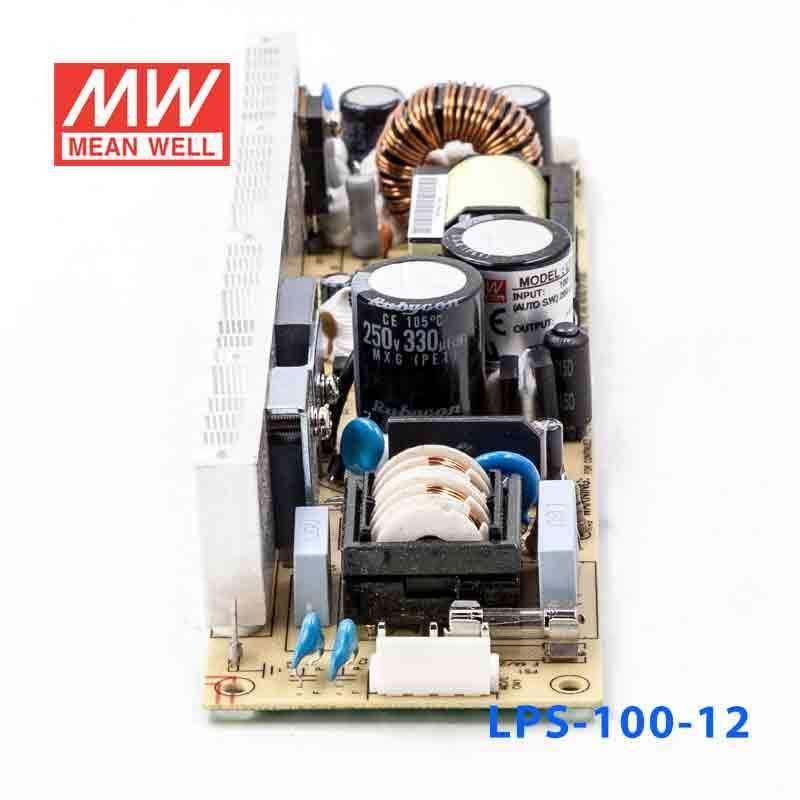

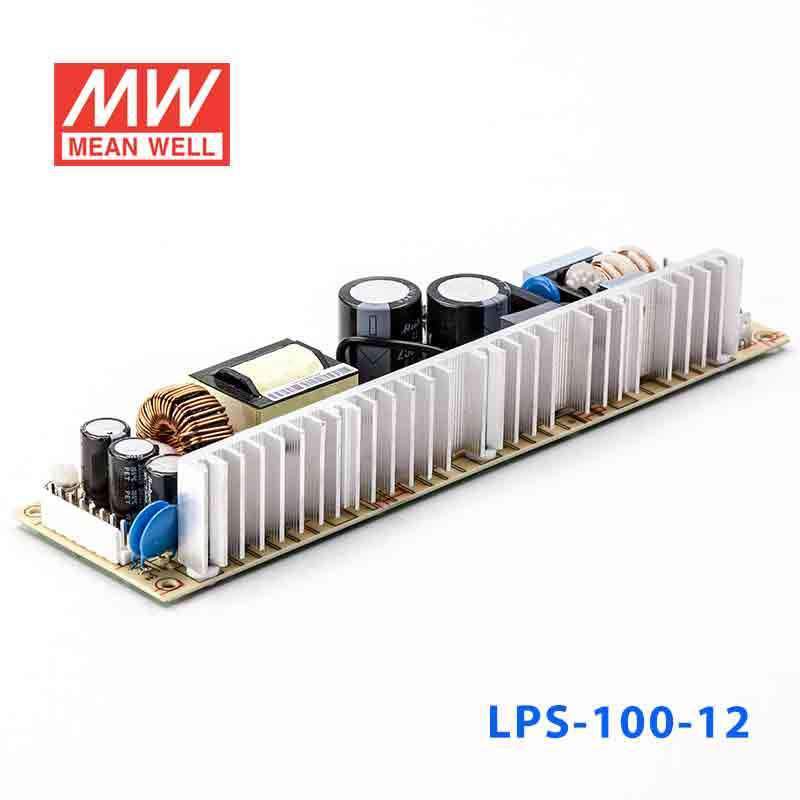

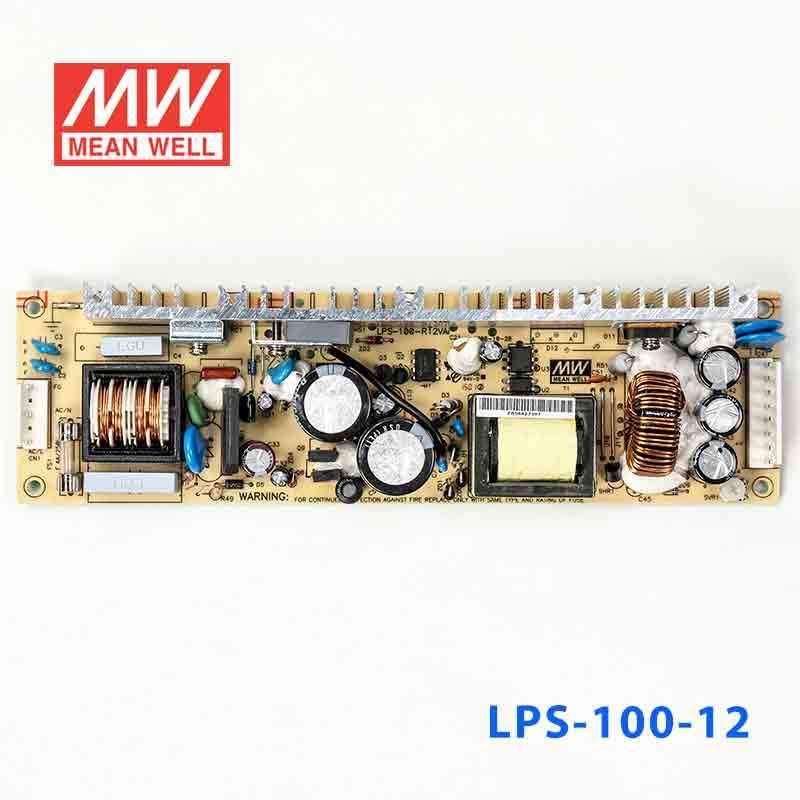

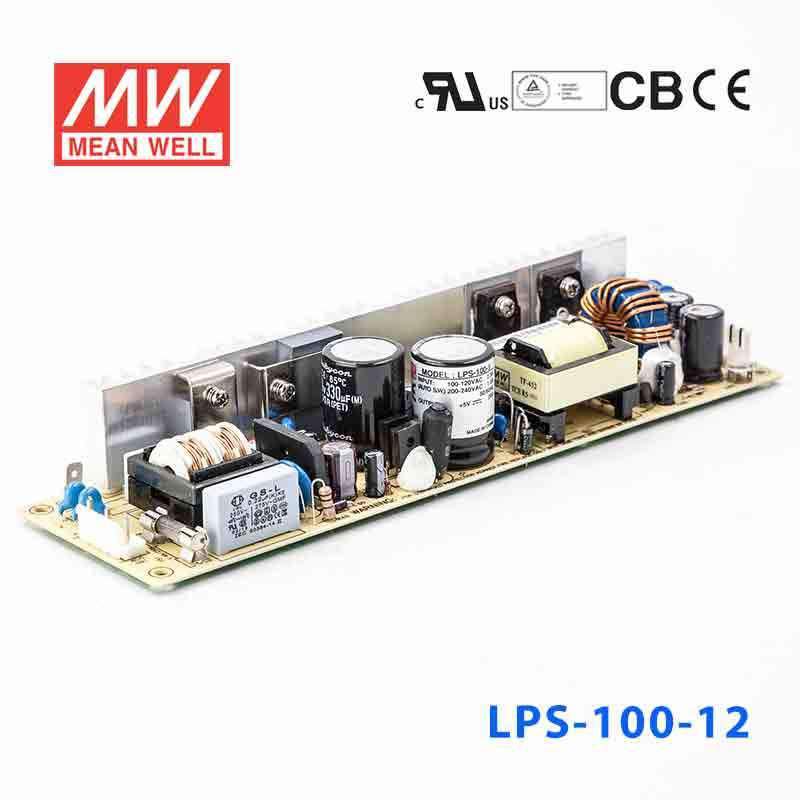

Mean Well LPS-100-12 Power Supply 100W 12V

small and compact, low profile, 23mm thickness, built-in remote ON-OFF control
SKU:
LPS-100-12

|

Description

Features

Universal AC input / Full range
Cooling by free air convection
Protections: Short circuit / Overload / Over voltage
Built-in remote ON/OFF control
100% full load burn-in test
2 years warranty for LPS series

General Specification

AC input voltage range 90~264VAC
AC inrush current(230VAC) 36A
DC adjustment range ±10% rated output voltage
Overload protection Range 115%~150%
Overload protection Type Hiccup mode, auto recovery
Over voltage protection Range 110%~135% of rated output voltage
Over voltage protection Type Hiccup mode, auto recovery
Withstand voltage I/P-O/P: 3kVAC, I/P-FG:1.5kVAC, O/P-FG: 0.5kVAC, 1 minute
Working temperature -20~+70°C (refer to output derating curve)
Safety standards UL60950-1, TUV EN60950-1 approved
EMC standards EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 heavy industry
Connection JST B5P / B6P-VH
Dimension (LxWxH) 222x55x30
Packing 48pcs / 15.6kg

Specifications

  • Brand
    Mean Well
  • Series
    LPS Series
  • Power Rating
    100.8 Watt
  • Output Voltage
    12 Volt
  • Rated Current
    8.4 Ampere
  • Input Voltage
    88V~264V
  • Standards Met
    CB,CE,EAC,TUV,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -10°C~60°C
  • Warranty
    2 Year
  • Length
    22.2 cm
  • Width
    6.2 cm
  • Height
    3.2 cm
  • Weight
    0.45 kg
