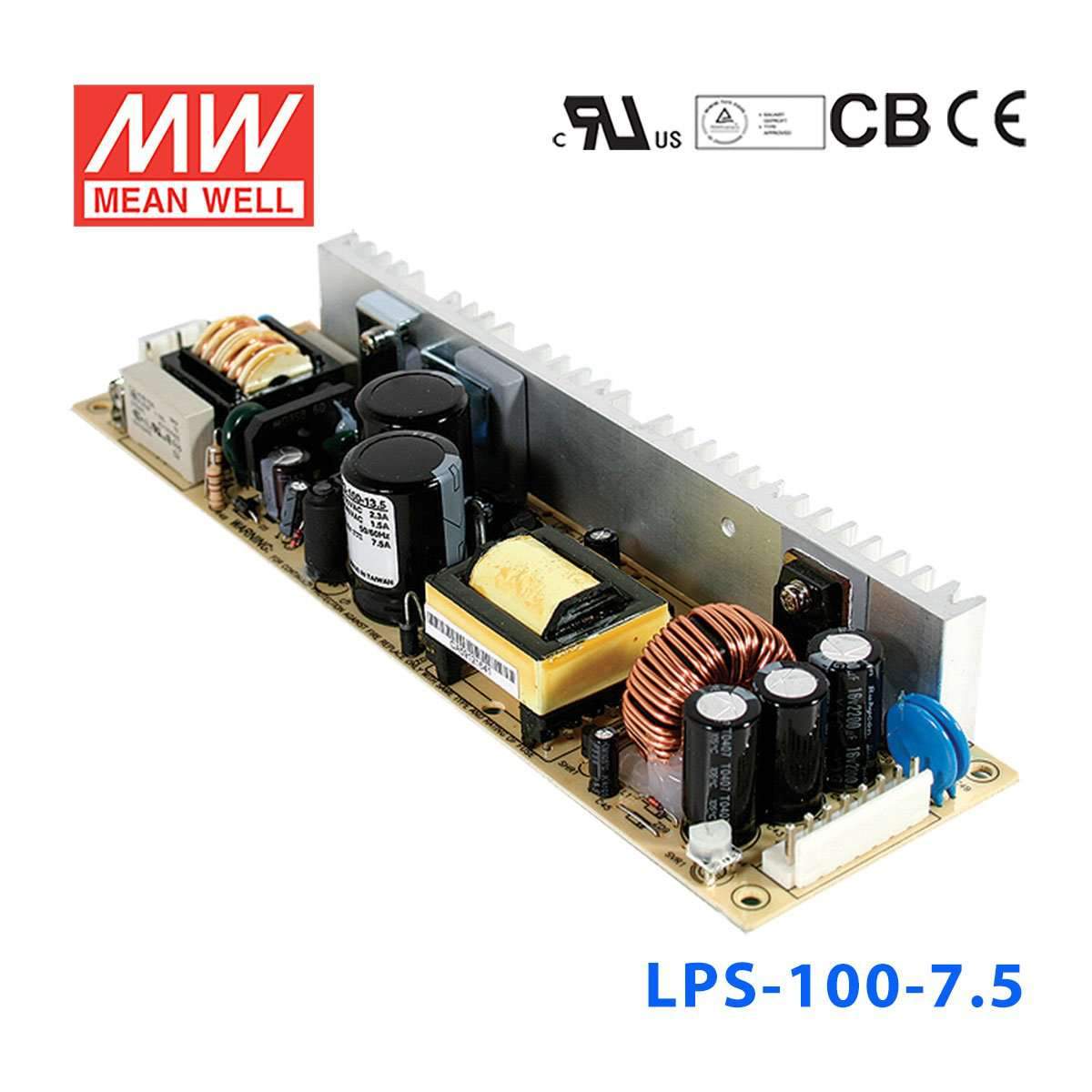

Mean Well LPS-100-7.5 Power Supply 100W 7.5V
Please Login for Pricing
Description
Description
The LPS-100 is a 100W Mean Well power converter (input range: 88~132VAC).
Key Features
- ✓ Input voltage range: 88~132VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL60950-1, TUV EN60950-1
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesLPS Series
-
Power Rating99.75 Watt
-
Output Voltage7.5 Volt
-
Rated Current13.3 Ampere
-
Input Voltage88V~264V
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~60°C
-
Warranty2 Year
-
Length22.2 cm
-
Width6.2 cm
-
Height3.2 cm
-
Weight0.45 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the LPS-100-7.5 for a 7.5V embedded or industrial device?
Yes, if the equipment is designed for a 7.5V constant-voltage input and does not exceed 99.75W or 13.3A. That makes it relevant for embedded or industrial gear built around a native 7.5V DC rail.
Is this power supply suitable for legacy 7.5V electronics in an OEM system?
It can be a fit for OEM systems using legacy or specialized 7.5V electronics, provided the load remains within 13.3A. The unit is a constant-voltage model, so it is meant for loads that call for a fixed 7.5V supply.
Can the LPS-100-7.5 work in a compact automation or instrumentation enclosure?
It is positioned for compact assemblies because the housing measures 222.0 x 62.0 x 32.0 mm and the feature set describes it as small, compact, and low profile. For instrumentation or automation designs needing 7.5V, it can fit where space is limited and up to 99.75W is required.
Can I use this model in outdoor equipment cabinets?
The listed operating temperature range is -10°C to +60°C, but the provided specs do not include an IP rating. That means temperature capability is stated, while outdoor exposure suitability is not confirmed by the supplied information.
How does the LPS-100-7.5 compare with nearby LPS voltage options?
In the listed sibling set, LPS-100-7.5 is the 7.5V option at 99.75W and 13.3A. The same group also includes 3.3V at 33W, 49.5W, and 66W; 5V at 50W, 75W, and 100W; 12V at 50.4W, 74.4W, and 100.8W; 13.5V at 101.25W; 15V at 51W, 75W, and 100.5W; 24V at 50.4W, 76.8W, and 100.8W; 27V at 102.6W; and 48V at 52.8W, 75W, and 100.8W.
Other LPS-100 Models
8 other models| Model | Power | Voltage | Current | |
|---|---|---|---|---|
| Mean Well LPS-100-24 Power Supply 100W 24V | 100.8W | 24V | 4.2A | View |
| Mean Well LPS-100-5 Power Supply 100W 5V | 100W | 5V | 20A | View |
| Mean Well LPS-100-48 Power Supply 100W 48V | 100.8W | 48V | 2.1A | View |
| Mean Well LPS-100-3.3 Power Supply 66W 3.3V | 66W | 3.3V | 20A | View |
| Mean Well LPS-100-27 Power Supply 102W 27V | 102.6W | 27V | 3.8A | View |
| Mean Well LPS-100-15 Power Supply 100W 15V | 100.5W | 15V | 6.7A | View |
| Mean Well LPS-100-13.5 Power Supply 101W 13.5V | 101.25W | 13.5V | 7.5A | View |
| Mean Well LPS-100-12 Power Supply 100W 12V | 100.8W | 12V | 8.4A | View |
