Can I use the MSP-300-15 for a 15V industrial control system?

Yes, this model is a constant voltage 15V supply rated for 330W and 22A. It fits 15V industrial control loads that need a regulated DC output within that power and current range.

Is the MSP-300-15 suitable for 15V medical or laboratory equipment?

It can be a fit for 15V equipment where a 330W, 22A constant voltage source is required. The unit is medical safety approved and carries CB, CE, EAC, and UL certifications.

Can this power supply run a 15V embedded or test bench system with multiple DC loads?

Yes, if the system needs a regulated 15V rail and the total load stays within 330W and 22A. Its 85-264VAC input also supports use across a wide AC input range.

Is the MSP-300-15 meant for indoor or outdoor environments?

The provided specs list an operating temperature range of -40°C to +70°C, but no IP rating is provided. That means temperature capability is broad, while outdoor or washdown suitability should not be assumed from these specs alone.

How does the MSP-300-15 compare with the other MSP-300 models?

Within the MSP-300 group, the available outputs are MSP-300-3.3 at 198W, 3.3V, 60A; MSP-300-5 at 300W, 5V, 60A; MSP-300-7.5 at 300W, 7.5V, 40A; MSP-300-12 at 324W, 12V, 27A; MSP-300-15 at 330W, 15V, 22A; MSP-300-24 at 336W, 24V, 14A; MSP-300-36 at 324W, 36V, 9A; and MSP-300-48 at 336W, 48V, 7A. The main selection difference is the required output voltage and the corresponding current available at that model's power rating.

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

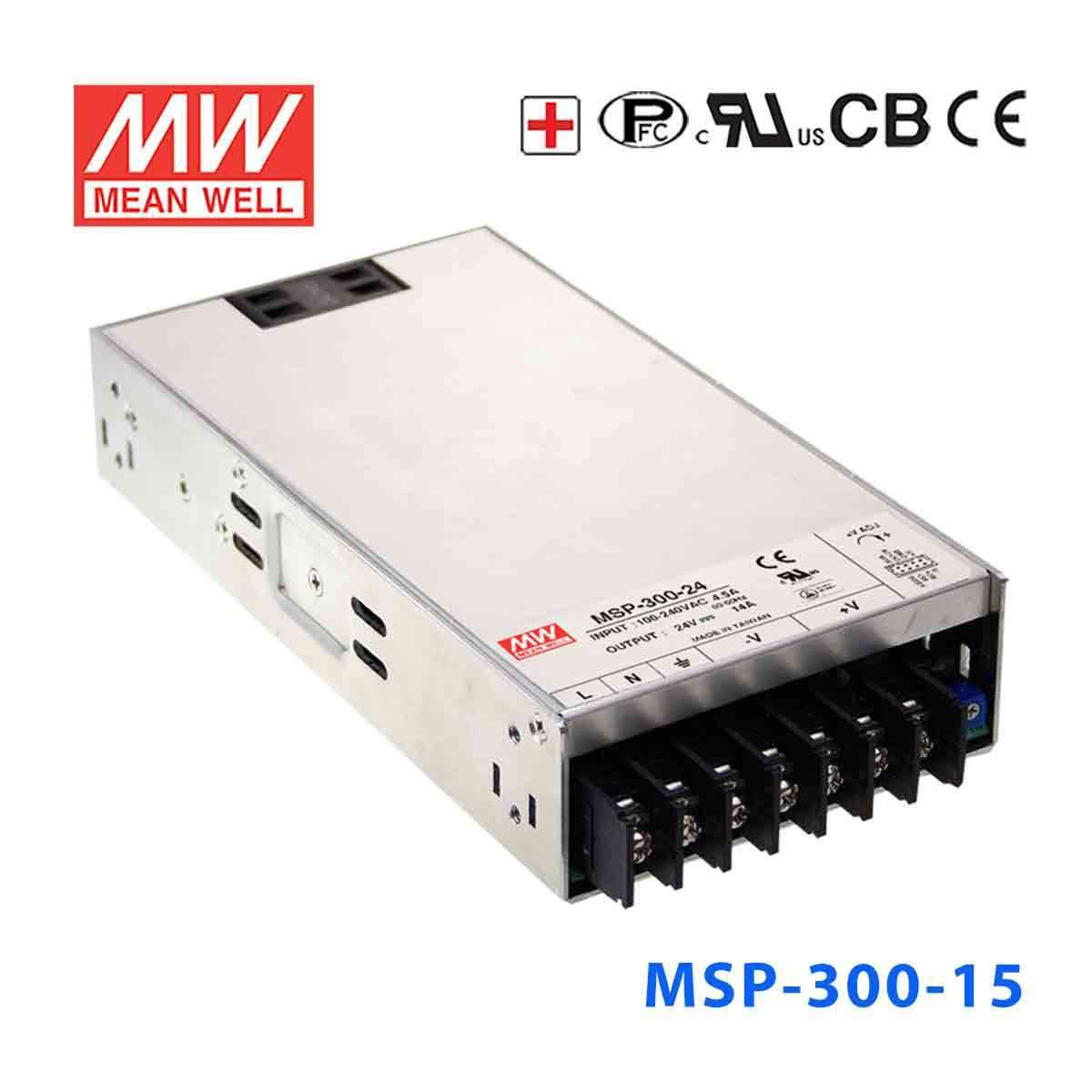

Mean Well MSP-300-15 Power Supply 330W 15V 22A

built-in active PFCmedical safety approvedhigh efficiencyno load power consumption < 0.5~0.8W

SKU:

MSP-300-15

Log in to see price Trade pricing & online ordering for account holders

Select model — 6 in this family

MSP-300-15

MSP-100-15 100W 15V Backorder

MSP-1000-15 1000W 15V Backorder

MSP-200-15 200W 15V Backorder

MSP-300-15 300W 15V Backorder

MSP-450-15 450W 15V Backorder

MSP-600-15 600W 15V Backorder

Product variants

Notify me when it's back in stock

The MSP-300 is a 300W Mean Well power converter (input range: 85~264VAC).

Key Features

✓ Input voltage range: 85~264VAC
✓ DC output voltage adjustable ±10%
✓ 4KVAC reinforced I/O isolation
✓ Protections: Overload / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ DC OK relay contact output
✓ Remote ON/OFF control
✓ Safety approvals: ISOLATION LEVEL
✓ 3 years warranty

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current
Mean Well MSP-300-7.5 Power Supply 300W 7.5V 40A	300W	7.5V	40A	View
Mean Well MSP-300-5 Power Supply 300W 5V 60A	300W	5V	60A	View
Mean Well MSP-300-48 Power Supply 336W 48V 7A	336W	48V	7A	View
Mean Well MSP-300-36 Power Supply 324W 36V 9A	324W	36V	9A	View
Mean Well MSP-300-3.3 Power Supply 198W 3.3V 60A	198W	3.3V	60A	View
Mean Well MSP-300-24 Power Supply 336W 24V 14A	336W	24V	14A	View
Mean Well MSP-300-12 Power Supply 324W 12V 27A	324W	12V	27A	View

Please log in to write a review.

{ "id":8343906877739, "variants" :[{ "context":"default", "variant_id": 45321123397931, "sku":"MSP-300-15", "inventory_qty" : 0, "customer" :false, "custom_html" :"\u003ca class=\"text-current logged-out-price logged-out\" href=\"https:\/\/wellforces.co.nz\/customer_authentication\/redirect?locale=en\u0026region_country=NZ\"\u003e\n \u003cspan \u003ePlease \u003c\/span\u003e \u003cspan class=\"login-text\"\u003eLogin\u003c\/span\u003e \u003cspan\u003e for Pricing\u003c\/span\u003e\n \u003c\/a\u003e", "volume_html" :"\u003cvolume-pricing class=\"parent-display inside_product_form\" id=\"volume-pricing-main\" \u003e\u003c\/volume-pricing\u003e" } ] }

Key Features

✓ Input voltage range: 85~264VAC

✓ DC output voltage adjustable ±10%

✓ 4KVAC reinforced I/O isolation

✓ Protections: Overload / Over voltage / Over temperature

✓ Active PFC — meets international energy efficiency regulations

✓ DC OK relay contact output

✓ Remote ON/OFF control

✓ Safety approvals: ISOLATION LEVEL

✓ 3 years warranty
