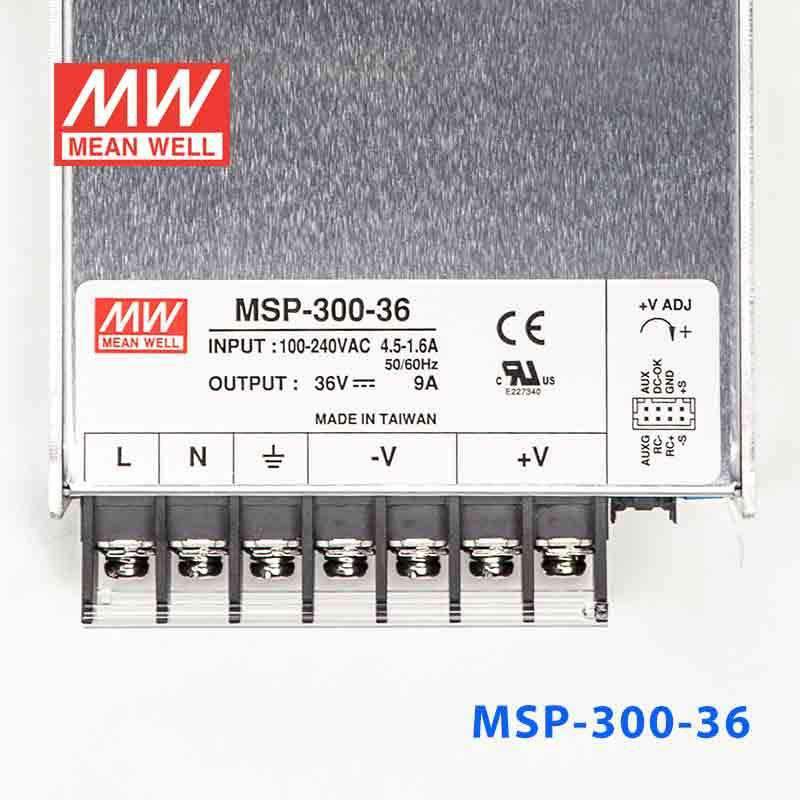

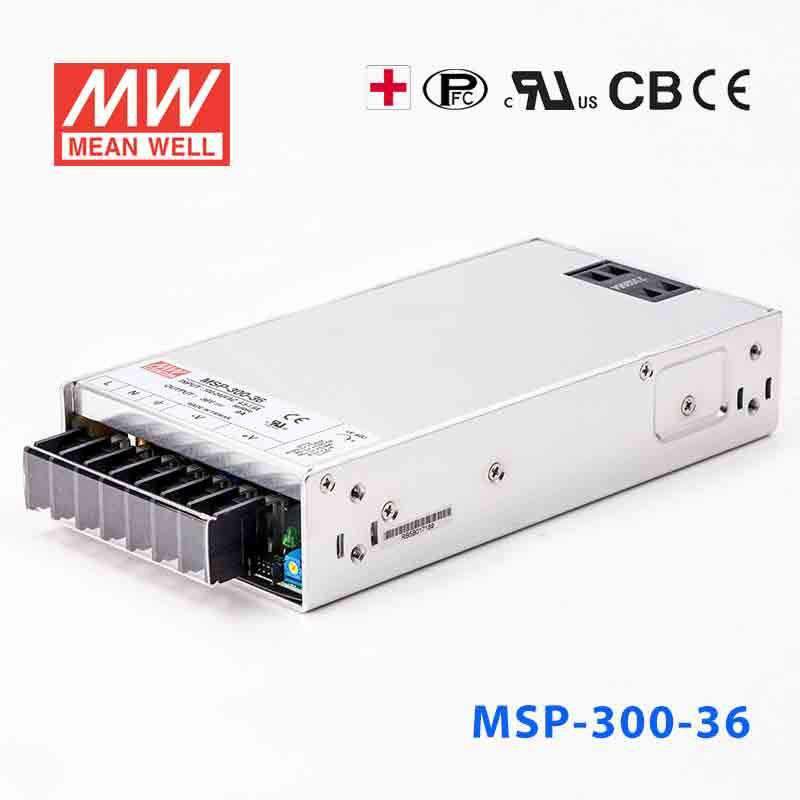

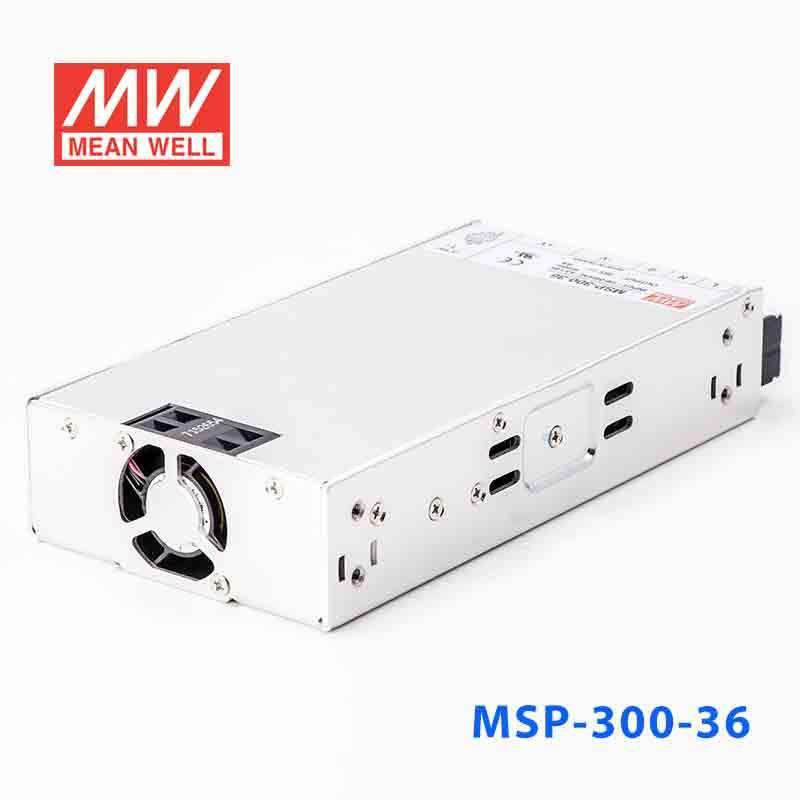

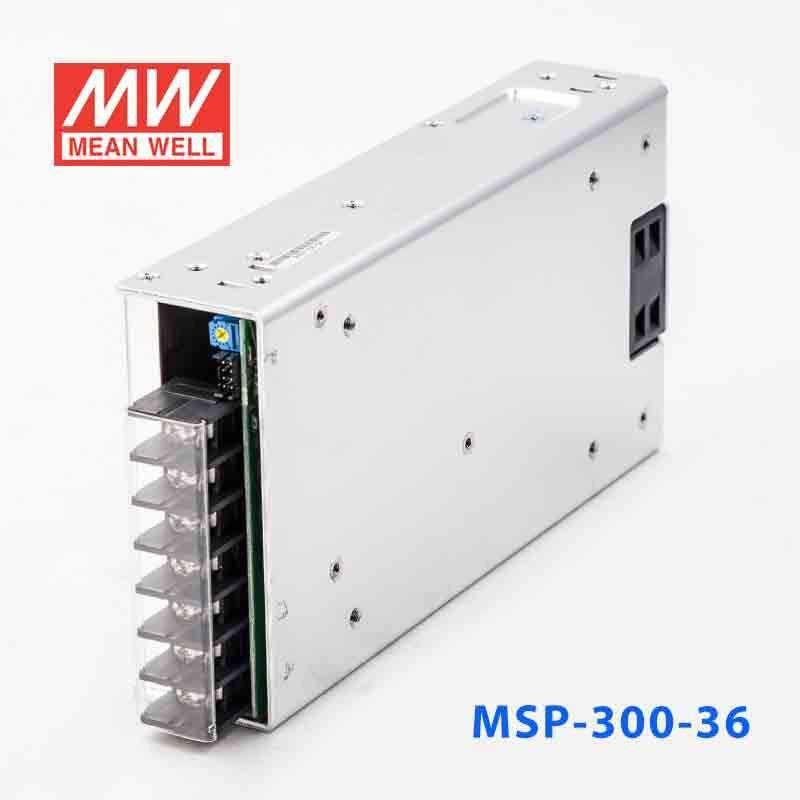

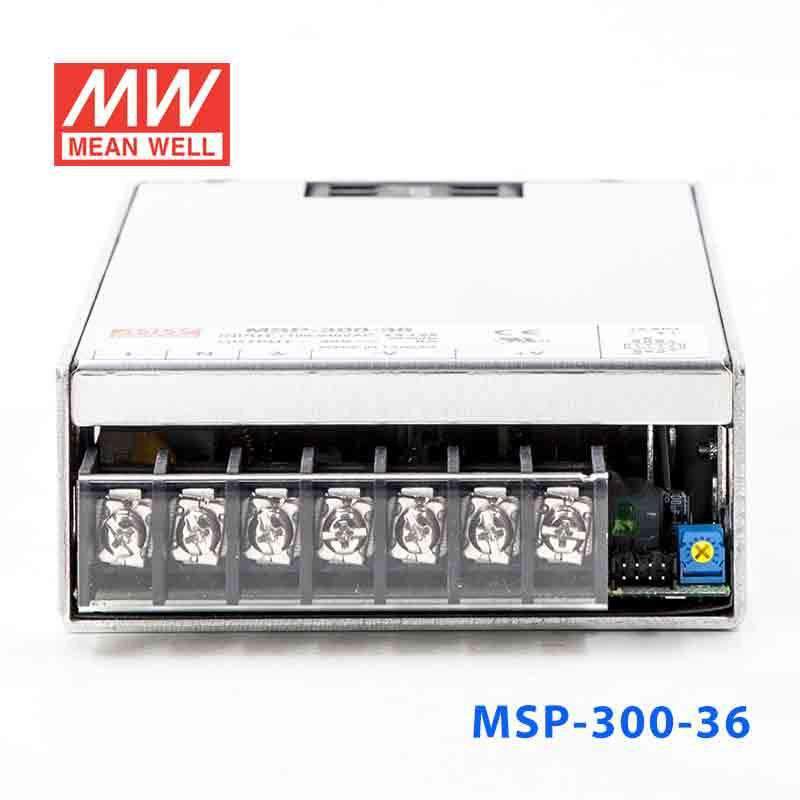

Mean Well MSP-300-36 Power Supply 324W 36V

Q: Can I use the MSP-300-36 for 36V industrial automation equipment?

Yes, this model delivers constant voltage 36V output rated for 324W and 9A. It is intended for 36V DC equipment that needs a regulated supply within those electrical limits.

Q: Is the MSP-300-36 a fit for 36V motion or control subsystems?

It can be used for 36V DC subsystems when the required load stays at or below 324W and 9A. The key requirement is that the equipment be designed for constant voltage 36V input.

Q: Can this power supply support a 36V embedded platform or industrial instrument?

Yes, if the platform expects regulated 36V DC and the total demand does not exceed 324W and 9A. The 85-264VAC input range also supports use in locations with different AC input standards.

Q: Is the MSP-300-36 suitable for cold or hot operating areas?

The rated operating temperature range is -40°C to +70°C, so it is specified for a broad temperature span. No IP rating is provided in the listed specs, so exposure to water or dust is not defined here.

Q: What should I know when comparing the MSP-300-36 with other MSP-300 models?

The MSP-300 series includes MSP-300-3.3 at 198W, 3.3V, 60A; MSP-300-5 at 300W, 5V, 60A; MSP-300-7.5 at 300W, 7.5V, 40A; MSP-300-12 at 324W, 12V, 27A; MSP-300-15 at 330W, 15V, 22A; MSP-300-24 at 336W, 24V, 14A; MSP-300-36 at 324W, 36V, 9A; and MSP-300-48 at 336W, 48V, 7A. The 36V version trades higher voltage for lower output current relative to the lower-voltage models.

built-in active PFC, medical safety approved, high efficiency, no load power consumption < 0.5~0.8W

SKU:

MSP-300-36

Mpdel

100W 36V 200W 36V 300W 36V 450W 36V 600W 36V

Product variants

Please for Pricing

Notify me when it's back in stock

Description

The MSP-300 is a 300W Mean Well power converter (input range: 85~264VAC).

Key Features

✓ Input voltage range: 85~264VAC
✓ DC output voltage adjustable ±10%
✓ 4KVAC reinforced I/O isolation
✓ Protections: Overload / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ DC OK relay contact output
✓ Remote ON/OFF control
✓ Safety approvals: ISOLATION LEVEL
✓ 3 years warranty

Specifications

Brand

Mean Well
Series

MSP Series
Power Rating

324 Watt
Output Voltage

36 Volt
Rated Current

9 Ampere
Input Voltage

85V~264V
Standards Met

CB,CE,EAC,UL
Operation Mode

Constant Voltage
Operating Temperature

-40°C~70°C
Warranty

5 Year
Length

19.9 cm
Width

10.5 cm
Height

4.1 cm
Weight

0.95 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the MSP-300-36 for 36V industrial automation equipment?

Yes, this model delivers constant voltage 36V output rated for 324W and 9A. It is intended for 36V DC equipment that needs a regulated supply within those electrical limits.

Is the MSP-300-36 a fit for 36V motion or control subsystems?

It can be used for 36V DC subsystems when the required load stays at or below 324W and 9A. The key requirement is that the equipment be designed for constant voltage 36V input.

Can this power supply support a 36V embedded platform or industrial instrument?

Yes, if the platform expects regulated 36V DC and the total demand does not exceed 324W and 9A. The 85-264VAC input range also supports use in locations with different AC input standards.

Is the MSP-300-36 suitable for cold or hot operating areas?

The rated operating temperature range is -40°C to +70°C, so it is specified for a broad temperature span. No IP rating is provided in the listed specs, so exposure to water or dust is not defined here.

What should I know when comparing the MSP-300-36 with other MSP-300 models?

The MSP-300 series includes MSP-300-3.3 at 198W, 3.3V, 60A; MSP-300-5 at 300W, 5V, 60A; MSP-300-7.5 at 300W, 7.5V, 40A; MSP-300-12 at 324W, 12V, 27A; MSP-300-15 at 330W, 15V, 22A; MSP-300-24 at 336W, 24V, 14A; MSP-300-36 at 324W, 36V, 9A; and MSP-300-48 at 336W, 48V, 7A. The 36V version trades higher voltage for lower output current relative to the lower-voltage models.

Model	Power	Voltage	Current
Mean Well MSP-300-7.5 Power Supply 300W 7.5V	300W	7.5V	40A	View
Mean Well MSP-300-5 Power Supply 300W 5V	300W	5V	60A	View
Mean Well MSP-300-48 Power Supply 336W 48V	336W	48V	7A	View
Mean Well MSP-300-3.3 Power Supply 198W 3.3V	198W	3.3V	60A	View
Mean Well MSP-300-24 Power Supply 336W 24V	336W	24V	14A	View
Mean Well MSP-300-15 Power Supply 330W 15V	330W	15V	22A	View
Mean Well MSP-300-12 Power Supply 324W 12V	324W	12V	27A	View
