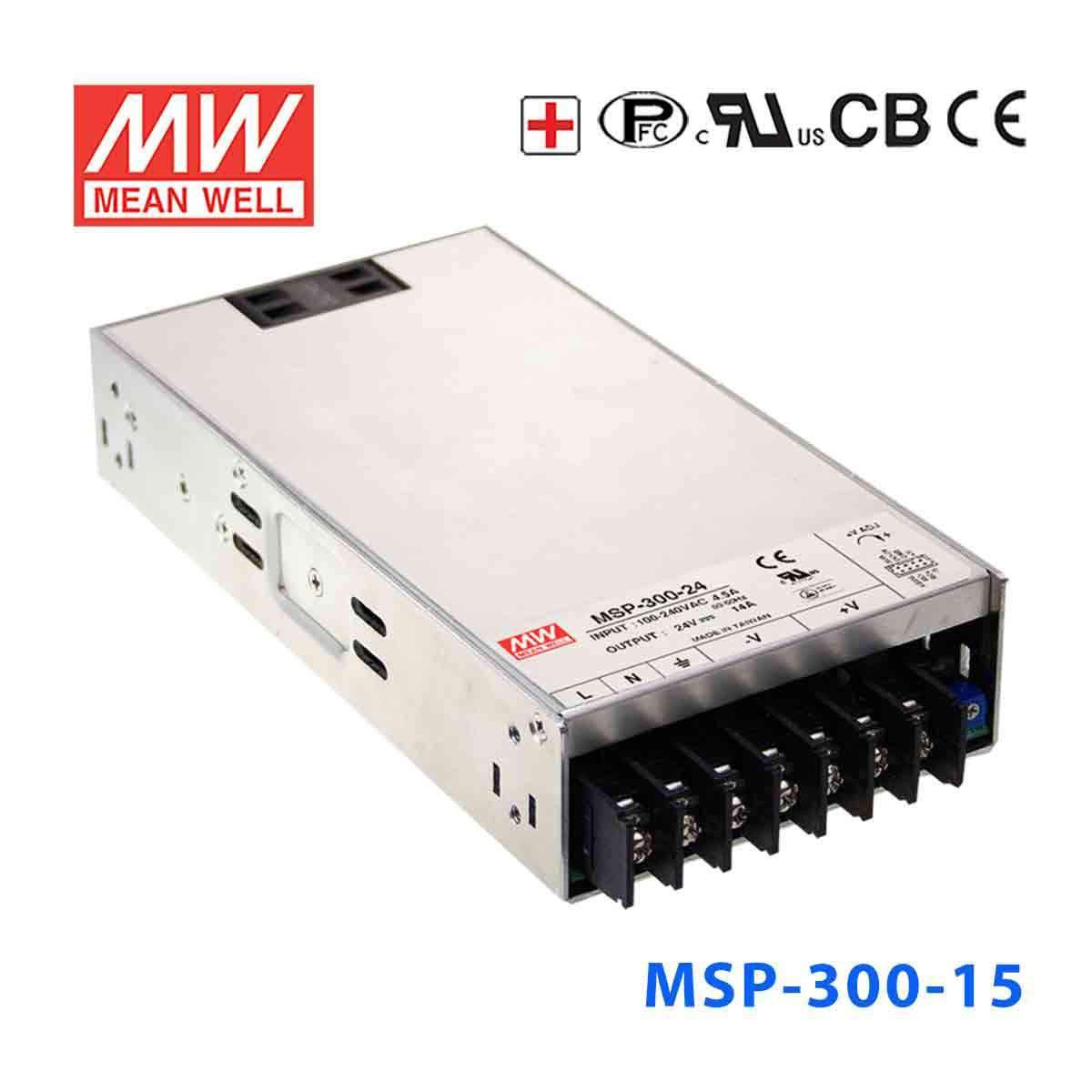

Mean Well MSP-300-15 Power Supply 330W 15V

built-in active PFC, medical safety approved, high efficiency, no load power consumption < 0.5~0.8W

|

Description

Features

Universal AC input / Full range
Built-in active PFC function, PF>0.95
High efficiency up to 89%
Withstand 300VAC surge input for 5 seconds
Protections: Short circuit / Overload / Over voltage / Over temperature
Built-in constant current limiting circuit
Cooling by free air convection
1U low profile 41mm
Medical safety approved (MOOP level)
Built-in remote ON-OFF control
No load power consumption<0.5W
Standby 5V@0.3A
Built-in remote sense function
5 years warranty

General Specification

AC input voltage range 85~264VAC ; 120~370VDC
AC inrush current (max.) 35A/115VAC 70A/230VAC
Over current protection 105% ~135% rated output power;Protection type : Constant current limiting for Vo=50 ~ 100% of rated voltage, recovers automatically after fault condition is removed
Over voltage protection 110%~140% Protection type : Shut down o/p voltage, re-power on to recover
Withstand voltage I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
Working temperature -40~+70ºC (refer to output derating curve)
Safety standards ANSI/AAMI ES60601-1, IEC60601-1 approved
EMC standards Compliance to EN55011 (CISPR11) Class B, EN61000-3-2,-3
Dimension (LxWxH)(mm) 199x 105x 41 mm

Specifications

  • Brand
    Mean Well
  • Series
    MSP Series
  • Power Rating
    330 Watt
  • Output Voltage
    15 Volt
  • Rated Current
    22 Ampere
  • Input Voltage
    85V~264V
  • Standards Met
    CB,CE,EAC,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -40°C~70°C
  • Warranty
    5 Year
  • Length
    19.9 cm
  • Width
    10.5 cm
  • Height
    4.1 cm
  • Weight
    0.95 kg
