Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

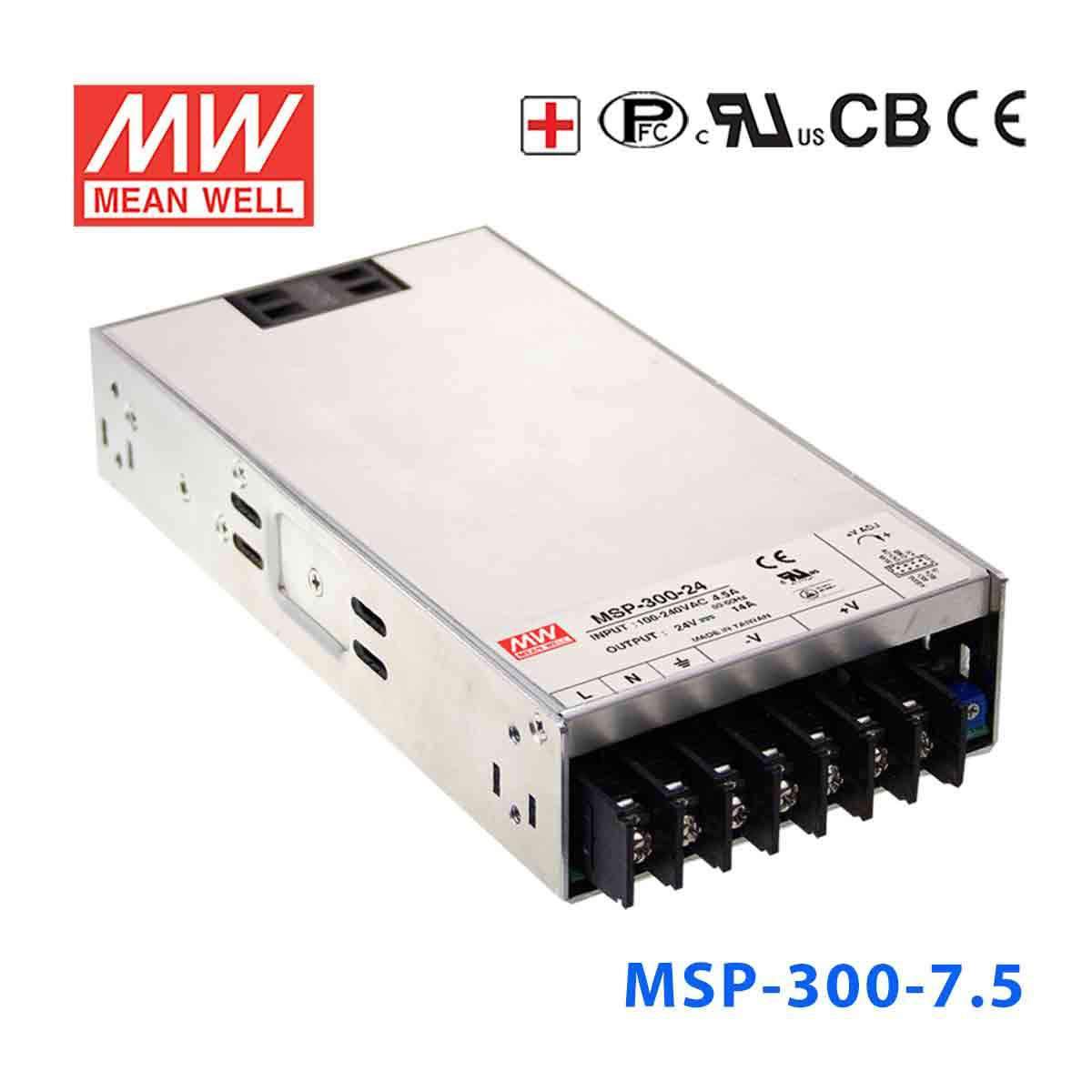

Mean Well MSP-300-7.5 Power Supply 300W 7.5V

Q: Can I use the MSP-300-7.5 for a 7.5V industrial controller or legacy electronics load?

Yes, when the equipment specifically requires a constant voltage 7.5V DC source, this model provides up to 300W and 40A. It is best suited to industrial or embedded systems that are built around a 7.5V power rail rather than 5V, 12V, or 24V.

Q: Is the MSP-300-7.5 a good fit for 7.5V test benches or lab fixtures in production environments?

It can be used where the fixture or device under test needs a stable 7.5V constant voltage input and the total load stays within 300W and 40A. That makes it relevant for production or service environments built around equipment with a defined 7.5V requirement.

Q: Can the MSP-300-7.5 support 7.5V automation or embedded assemblies with higher current demand?

Yes, this unit is intended for loads that need 7.5V at higher current, with a rated output of 40A and 300W. It is a better match for 7.5V assemblies with substantial current demand than lower-capacity siblings in the same voltage.

Q: Is the MSP-300-7.5 suitable for outdoor or washdown locations?

The operating temperature range is -40°C to +70°C, so the thermal range is broad for industrial use. However, no IP rating is listed in the provided specs, so it should be treated as a power supply for protected environments rather than exposed outdoor or washdown areas.

Q: What are the differences between the 7.5V MSP models?

For 7.5V output, the sibling models are MSP-100-7.5 at 101.3W and 13.5A, MSP-200-7.5 at 200.3W and 26.7A, MSP-300-7.5 at 300W and 40A, MSP-450-7.5 at 450W and 60A, and MSP-600-7.5 at 600W and 80A. This model is the mid-range 7.5V option at 300W and 40A.

built-in active PFC, medical safety approved, high efficiency, no load power consumption < 0.5~0.8W

SKU:

MSP-300-7.5

Model

100W 7.5V

SKU: MSP-100-7.5

200W 7.5V

SKU: MSP-200-7.5

300W 7.5V

SKU: MSP-300-7.5

450W 7.5V

SKU: MSP-450-7.5

600W 7.5V

SKU: MSP-600-7.5

Product variants

Please for Pricing

Notify me when it's back in stock

Description

The MSP-300 is a 300W Mean Well power converter (input range: 85~264VAC).

Key Features

✓ Input voltage range: 85~264VAC
✓ DC output voltage adjustable ±10%
✓ 4KVAC reinforced I/O isolation
✓ Protections: Overload / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ DC OK relay contact output
✓ Remote ON/OFF control
✓ Safety approvals: ISOLATION LEVEL
✓ 3 years warranty

Specifications

Brand

Mean Well
Series

MSP Series
Power Rating

300 Watt
Output Voltage

7.5 Volt
Rated Current

40 Ampere
Input Voltage

85V~264V
Standards Met

CB,CE,EAC,UL
Operation Mode

Constant Voltage
Operating Temperature

-40°C~70°C
Warranty

5 Year
Length

19.9 cm
Width

10.5 cm
Height

4.1 cm
Weight

0.95 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the MSP-300-7.5 for a 7.5V industrial controller or legacy electronics load?

Yes, when the equipment specifically requires a constant voltage 7.5V DC source, this model provides up to 300W and 40A. It is best suited to industrial or embedded systems that are built around a 7.5V power rail rather than 5V, 12V, or 24V.

Is the MSP-300-7.5 a good fit for 7.5V test benches or lab fixtures in production environments?

It can be used where the fixture or device under test needs a stable 7.5V constant voltage input and the total load stays within 300W and 40A. That makes it relevant for production or service environments built around equipment with a defined 7.5V requirement.

Can the MSP-300-7.5 support 7.5V automation or embedded assemblies with higher current demand?

Yes, this unit is intended for loads that need 7.5V at higher current, with a rated output of 40A and 300W. It is a better match for 7.5V assemblies with substantial current demand than lower-capacity siblings in the same voltage.

Is the MSP-300-7.5 suitable for outdoor or washdown locations?

The operating temperature range is -40°C to +70°C, so the thermal range is broad for industrial use. However, no IP rating is listed in the provided specs, so it should be treated as a power supply for protected environments rather than exposed outdoor or washdown areas.

What are the differences between the 7.5V MSP models?

For 7.5V output, the sibling models are MSP-100-7.5 at 101.3W and 13.5A, MSP-200-7.5 at 200.3W and 26.7A, MSP-300-7.5 at 300W and 40A, MSP-450-7.5 at 450W and 60A, and MSP-600-7.5 at 600W and 80A. This model is the mid-range 7.5V option at 300W and 40A.

Model	Power	Voltage	Current
Mean Well MSP-300-5 Power Supply 300W 5V	300W	5V	60A	View
Mean Well MSP-300-48 Power Supply 336W 48V	336W	48V	7A	View
Mean Well MSP-300-36 Power Supply 324W 36V	324W	36V	9A	View
Mean Well MSP-300-3.3 Power Supply 198W 3.3V	198W	3.3V	60A	View
Mean Well MSP-300-24 Power Supply 336W 24V	336W	24V	14A	View
Mean Well MSP-300-15 Power Supply 330W 15V	330W	15V	22A	View
Mean Well MSP-300-12 Power Supply 324W 12V	324W	12V	27A	View
