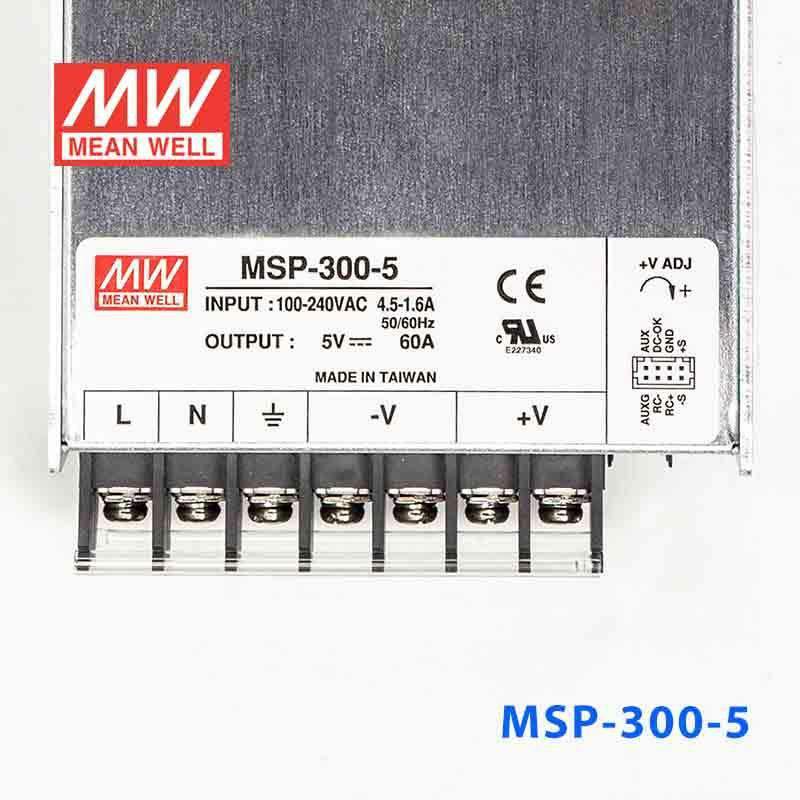

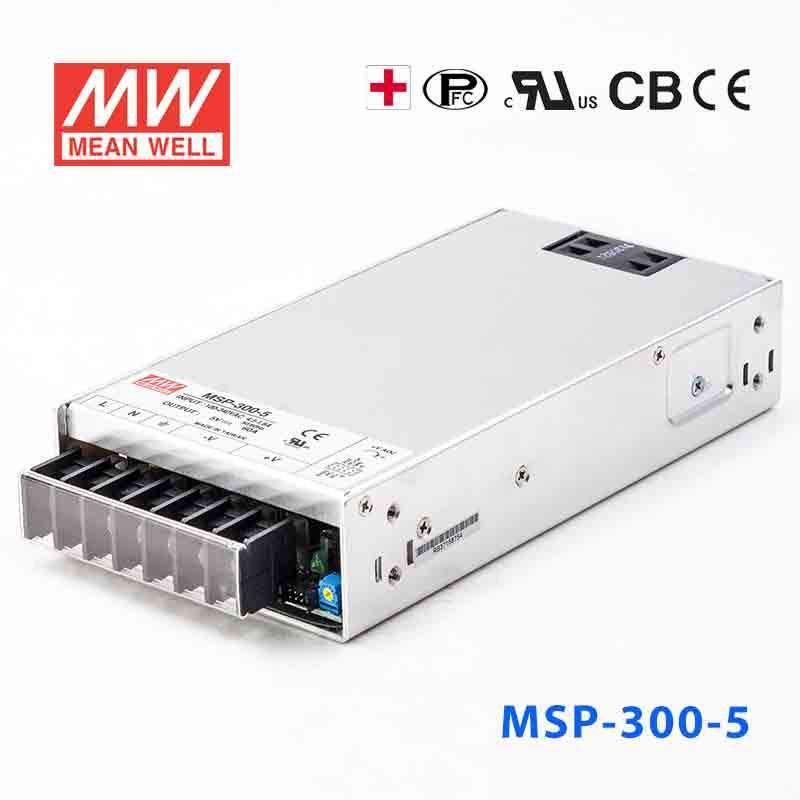

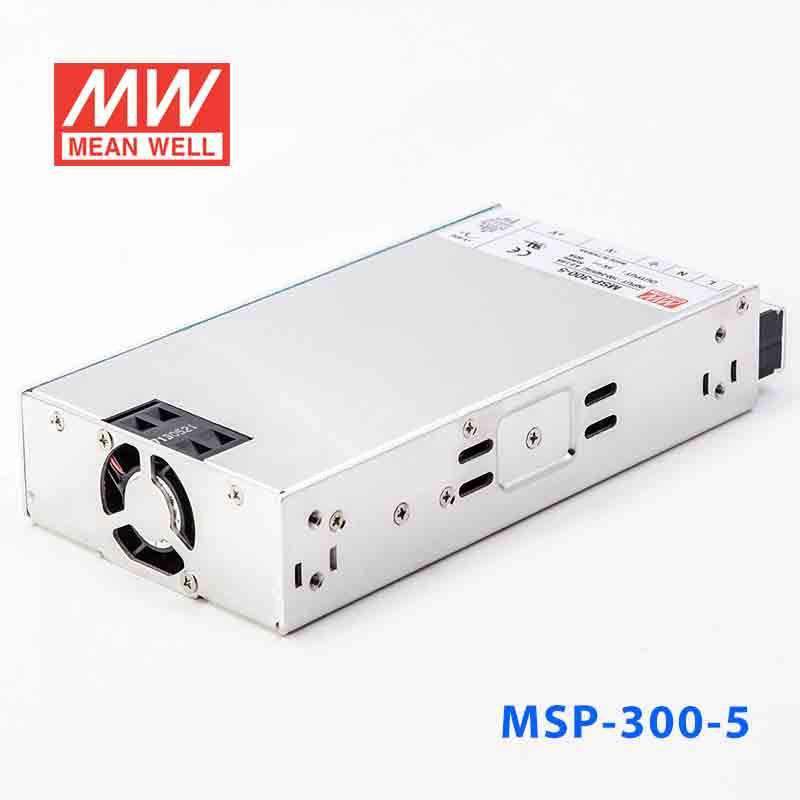

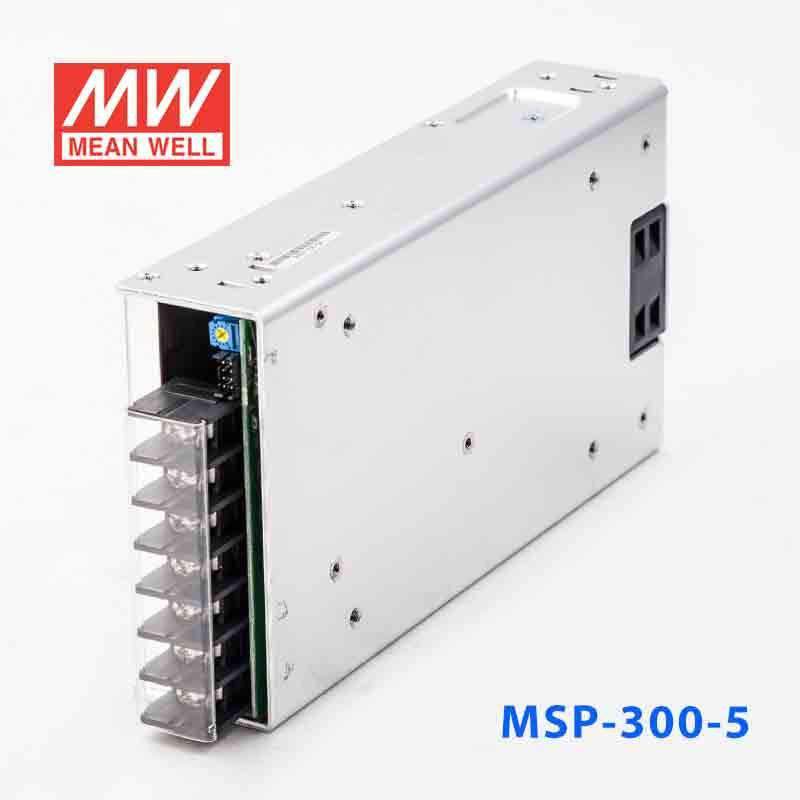

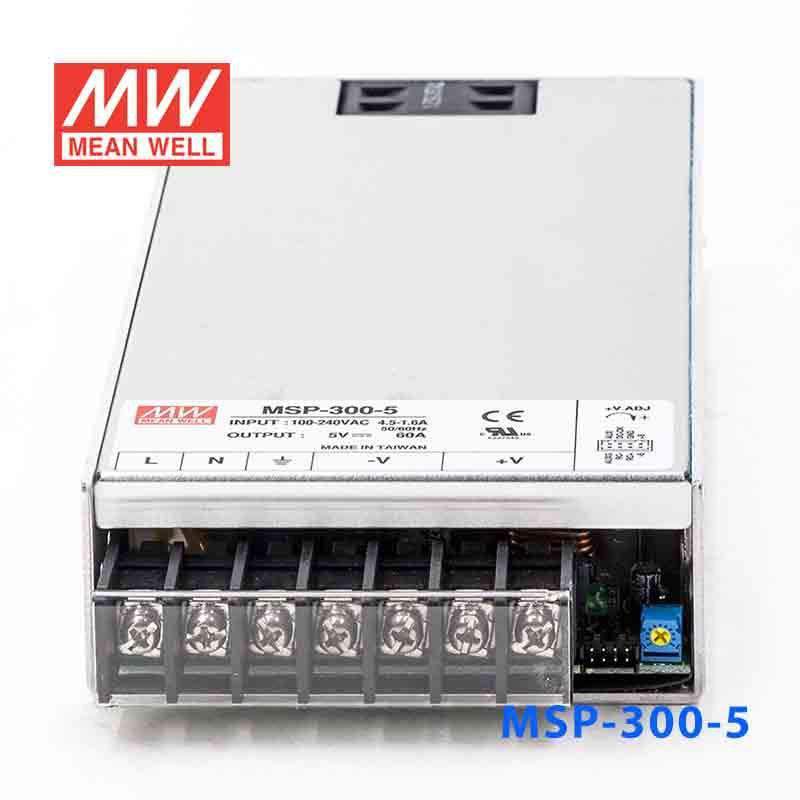

Mean Well MSP-300-5 Power Supply 300W 5V

Q: Can I use the MSP-300-5 for a high-current 5V industrial control system?

Yes, this model is a constant voltage 5V supply rated for 300W and 60A. That makes it suitable for industrial or automation equipment that specifically requires a regulated 5V DC bus with relatively high current demand.

Q: Is the MSP-300-5 suitable for 5V embedded computing or SBC clusters?

It can be a fit for embedded or computing loads that require a 5V constant voltage source and need up to 60A total output current. Buyers should match the combined load to the 300W, 5V, and 60A ratings rather than treating it as a general-purpose multi-voltage supply.

Q: Can the MSP-300-5 be used for 5V automation I/O or logic-heavy equipment?

Yes, if the equipment is designed for a 5V constant voltage input, this supply provides up to 300W and 60A. That profile fits applications where a large number of 5V control or logic loads are powered from one DC source.

Q: Is the MSP-300-5 appropriate for indoor panels in hot or cold industrial environments?

Its operating temperature range is -40°C to +70°C, which supports use across a wide range of indoor industrial conditions. The provided specs do not list an IP rating, so the environment decision should be based on protected indoor use rather than exposed outdoor placement.

Q: How does the MSP-300-5 compare with the other 5V MSP series models?

Within the 5V MSP range, the sibling models are MSP-100-5 at 85W and 17A, MSP-200-5 at 175W and 35A, MSP-300-5 at 300W and 60A, MSP-450-5 at 450W and 90A, and MSP-600-5 at 600W and 120A. The main selection difference is output capacity, while this unit sits in the middle of the 5V range at 300W and 60A.

built-in active PFC, medical safety approved, high efficiency, no load power consumption < 0.5~0.8W

SKU:

MSP-300-5

Please for Pricing

Notify me when it's back in stock

Description

The MSP-300 is a 300W Mean Well power converter (input range: 85~264VAC).

Key Features

✓ Input voltage range: 85~264VAC
✓ DC output voltage adjustable ±10%
✓ 4KVAC reinforced I/O isolation
✓ Protections: Overload / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ DC OK relay contact output
✓ Remote ON/OFF control
✓ Safety approvals: ISOLATION LEVEL
✓ 3 years warranty

Specifications

Brand

Mean Well
Series

MSP Series
Power Rating

300 Watt
Output Voltage

5 Volt
Rated Current

60 Ampere
Input Voltage

85V~264V
Standards Met

CB,CE,EAC,UL
Operation Mode

Constant Voltage
Operating Temperature

-40°C~70°C
Warranty

5 Year
Length

19.9 cm
Width

10.5 cm
Height

4.1 cm
Weight

0.95 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the MSP-300-5 for a high-current 5V industrial control system?

Yes, this model is a constant voltage 5V supply rated for 300W and 60A. That makes it suitable for industrial or automation equipment that specifically requires a regulated 5V DC bus with relatively high current demand.

Is the MSP-300-5 suitable for 5V embedded computing or SBC clusters?

It can be a fit for embedded or computing loads that require a 5V constant voltage source and need up to 60A total output current. Buyers should match the combined load to the 300W, 5V, and 60A ratings rather than treating it as a general-purpose multi-voltage supply.

Can the MSP-300-5 be used for 5V automation I/O or logic-heavy equipment?

Yes, if the equipment is designed for a 5V constant voltage input, this supply provides up to 300W and 60A. That profile fits applications where a large number of 5V control or logic loads are powered from one DC source.

Is the MSP-300-5 appropriate for indoor panels in hot or cold industrial environments?

Its operating temperature range is -40°C to +70°C, which supports use across a wide range of indoor industrial conditions. The provided specs do not list an IP rating, so the environment decision should be based on protected indoor use rather than exposed outdoor placement.

How does the MSP-300-5 compare with the other 5V MSP series models?

Within the 5V MSP range, the sibling models are MSP-100-5 at 85W and 17A, MSP-200-5 at 175W and 35A, MSP-300-5 at 300W and 60A, MSP-450-5 at 450W and 90A, and MSP-600-5 at 600W and 120A. The main selection difference is output capacity, while this unit sits in the middle of the 5V range at 300W and 60A.

Model	Power	Voltage	Current
Mean Well MSP-300-7.5 Power Supply 300W 7.5V	300W	7.5V	40A	View
Mean Well MSP-300-48 Power Supply 336W 48V	336W	48V	7A	View
Mean Well MSP-300-36 Power Supply 324W 36V	324W	36V	9A	View
Mean Well MSP-300-3.3 Power Supply 198W 3.3V	198W	3.3V	60A	View
Mean Well MSP-300-24 Power Supply 336W 24V	336W	24V	14A	View
Mean Well MSP-300-15 Power Supply 330W 15V	330W	15V	22A	View
Mean Well MSP-300-12 Power Supply 324W 12V	324W	12V	27A	View
