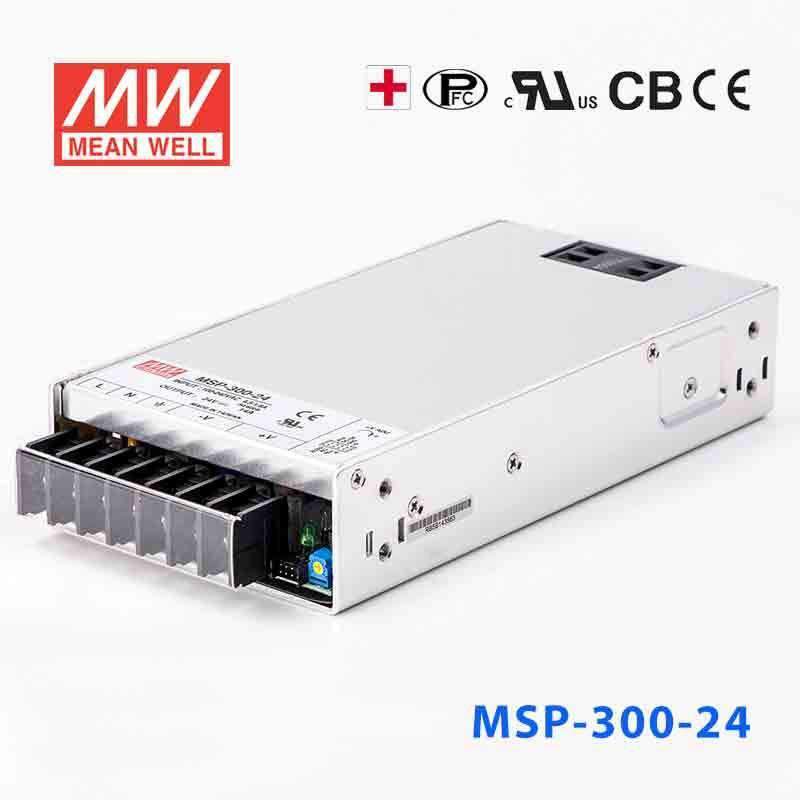

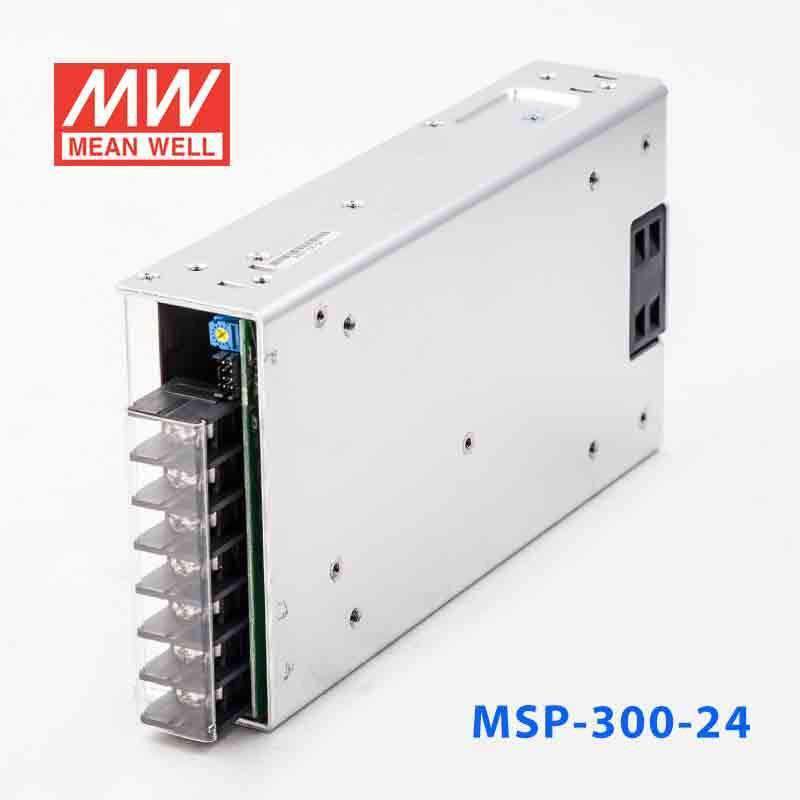

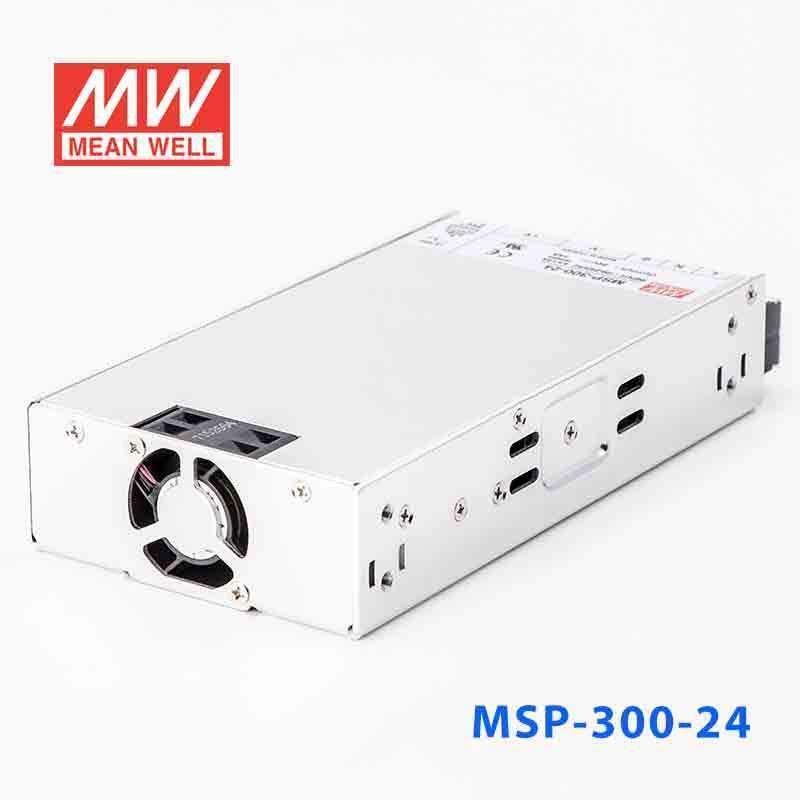

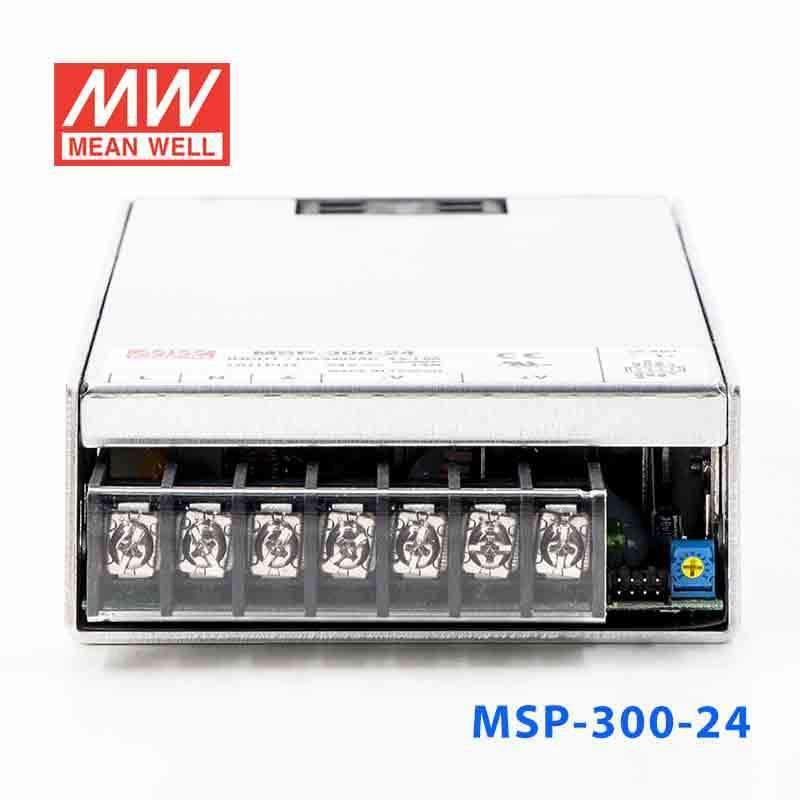

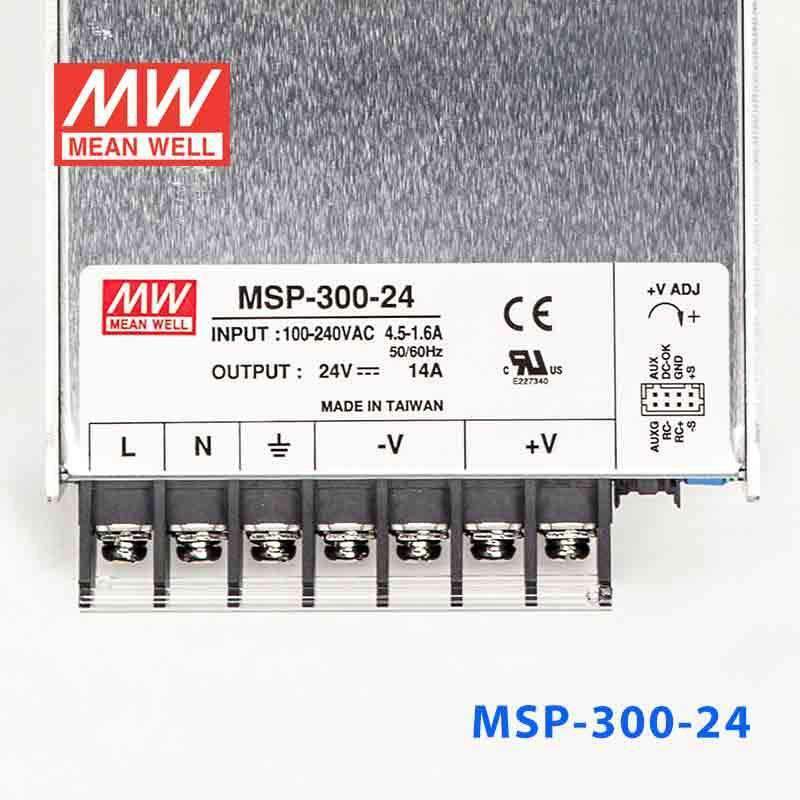

Mean Well MSP-300-24 Power Supply 336W 24V

Q: Can I use the MSP-300-24 for a 24V PLC or automation cabinet?

Yes, this is a constant voltage 24V power supply rated for 336W and 14A. It is suited to 24V automation loads that need a regulated DC source within those limits.

Q: Is the MSP-300-24 appropriate for 24V industrial sensors, relays, and control accessories on one DC bus?

It can support grouped 24V control loads as long as the combined demand stays within 336W and 14A. The constant voltage design is intended for equipment that expects a regulated 24V output.

Q: Can this model power a 24V embedded system or industrial PC setup?

Yes, if the platform requires 24V DC and the total draw remains at or below 336W and 14A. Its 85-264VAC input is also useful where the available AC source may vary by site.

Q: Is the MSP-300-24 suitable for harsh temperature environments?

The specified operating range is -40°C to +70°C, which supports use across a wide temperature span. No IP rating is listed in the provided specs, so enclosure protection for outdoor or wet areas is not defined here.

Q: What are the key differences between the MSP-300-24 and the other MSP-300 versions?

The MSP-300 family includes MSP-300-3.3 at 198W, 3.3V, 60A; MSP-300-5 at 300W, 5V, 60A; MSP-300-7.5 at 300W, 7.5V, 40A; MSP-300-12 at 324W, 12V, 27A; MSP-300-15 at 330W, 15V, 22A; MSP-300-24 at 336W, 24V, 14A; MSP-300-36 at 324W, 36V, 9A; and MSP-300-48 at 336W, 48V, 7A. This model sits at 24V with 14A output, so it should be chosen when the load specifically requires regulated 24V DC.

built-in active PFC, medical safety approved, high efficiency, no load power consumption < 0.5~0.8W

SKU:

MSP-300-24

Model

100W 24V

SKU: MSP-100-24

1000W 24V

SKU: MSP-1000-24

200W 24V

SKU: MSP-200-24

300W 24V

SKU: MSP-300-24

450W 24V

SKU: MSP-450-24

600W 24V

SKU: MSP-600-24

Product variants

Please for Pricing

Notify me when it's back in stock

Description

The MSP-300 is a 300W Mean Well power converter (input range: 85~264VAC).

Key Features

✓ Input voltage range: 85~264VAC
✓ DC output voltage adjustable ±10%
✓ 4KVAC reinforced I/O isolation
✓ Protections: Overload / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ DC OK relay contact output
✓ Remote ON/OFF control
✓ Safety approvals: ISOLATION LEVEL
✓ 3 years warranty

Specifications

Brand

Mean Well
Series

MSP Series
Power Rating

336 Watt
Output Voltage

24 Volt
Rated Current

14 Ampere
Input Voltage

85V~264V
Standards Met

CB,CE,EAC,UL
Operation Mode

Constant Voltage
Operating Temperature

-40°C~70°C
Warranty

5 Year
Length

19.9 cm
Width

10.5 cm
Height

4.1 cm
Weight

0.95 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the MSP-300-24 for a 24V PLC or automation cabinet?

Yes, this is a constant voltage 24V power supply rated for 336W and 14A. It is suited to 24V automation loads that need a regulated DC source within those limits.

Is the MSP-300-24 appropriate for 24V industrial sensors, relays, and control accessories on one DC bus?

It can support grouped 24V control loads as long as the combined demand stays within 336W and 14A. The constant voltage design is intended for equipment that expects a regulated 24V output.

Can this model power a 24V embedded system or industrial PC setup?

Yes, if the platform requires 24V DC and the total draw remains at or below 336W and 14A. Its 85-264VAC input is also useful where the available AC source may vary by site.

Is the MSP-300-24 suitable for harsh temperature environments?

The specified operating range is -40°C to +70°C, which supports use across a wide temperature span. No IP rating is listed in the provided specs, so enclosure protection for outdoor or wet areas is not defined here.

What are the key differences between the MSP-300-24 and the other MSP-300 versions?

The MSP-300 family includes MSP-300-3.3 at 198W, 3.3V, 60A; MSP-300-5 at 300W, 5V, 60A; MSP-300-7.5 at 300W, 7.5V, 40A; MSP-300-12 at 324W, 12V, 27A; MSP-300-15 at 330W, 15V, 22A; MSP-300-24 at 336W, 24V, 14A; MSP-300-36 at 324W, 36V, 9A; and MSP-300-48 at 336W, 48V, 7A. This model sits at 24V with 14A output, so it should be chosen when the load specifically requires regulated 24V DC.

Model	Power	Voltage	Current
Mean Well MSP-300-7.5 Power Supply 300W 7.5V	300W	7.5V	40A	View
Mean Well MSP-300-5 Power Supply 300W 5V	300W	5V	60A	View
Mean Well MSP-300-48 Power Supply 336W 48V	336W	48V	7A	View
Mean Well MSP-300-36 Power Supply 324W 36V	324W	36V	9A	View
Mean Well MSP-300-3.3 Power Supply 198W 3.3V	198W	3.3V	60A	View
Mean Well MSP-300-15 Power Supply 330W 15V	330W	15V	22A	View
Mean Well MSP-300-12 Power Supply 324W 12V	324W	12V	27A	View
