Mean Well

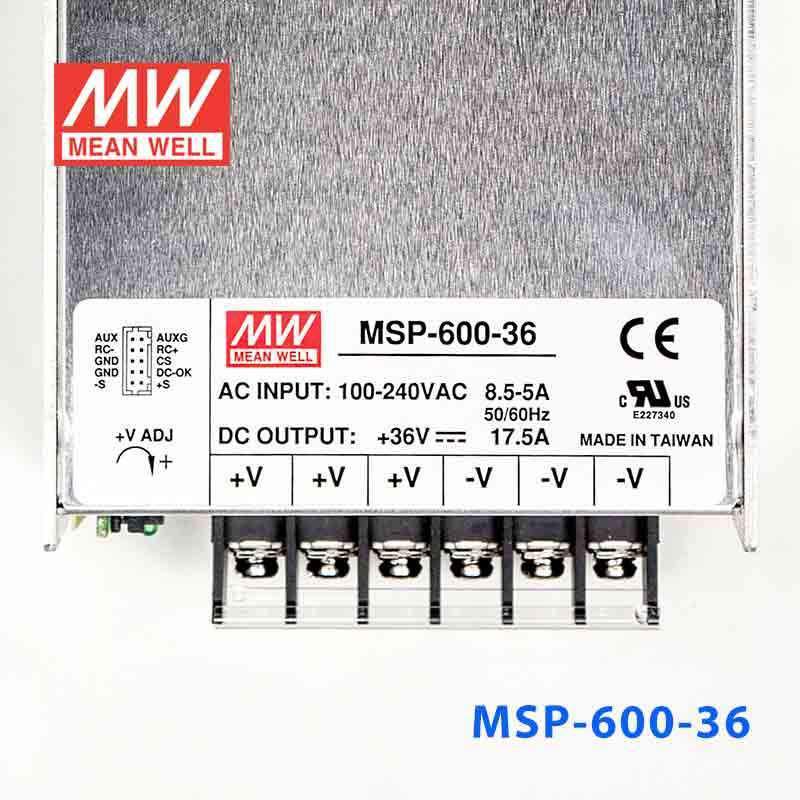

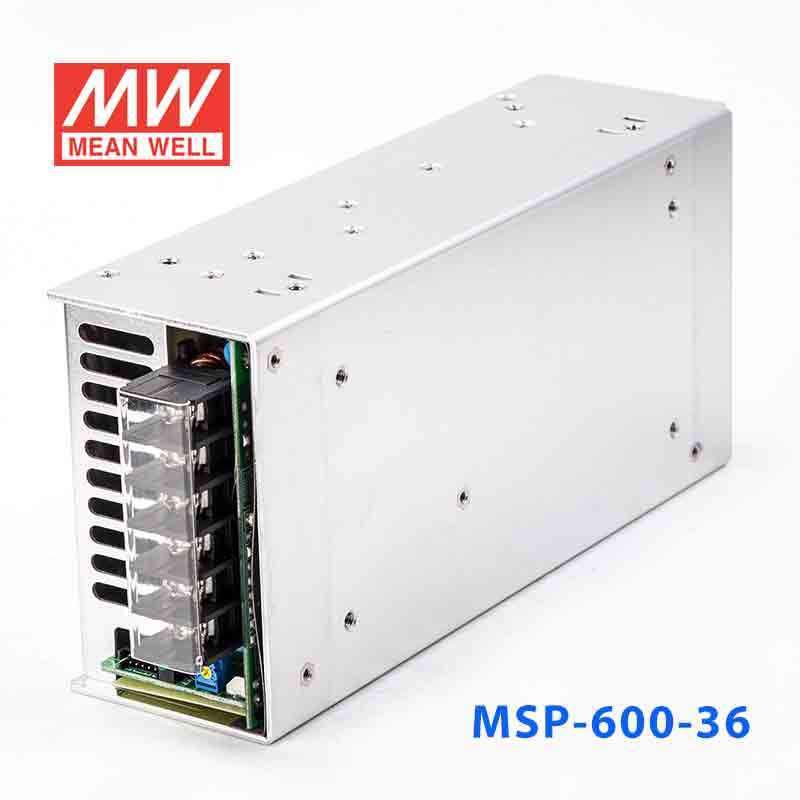

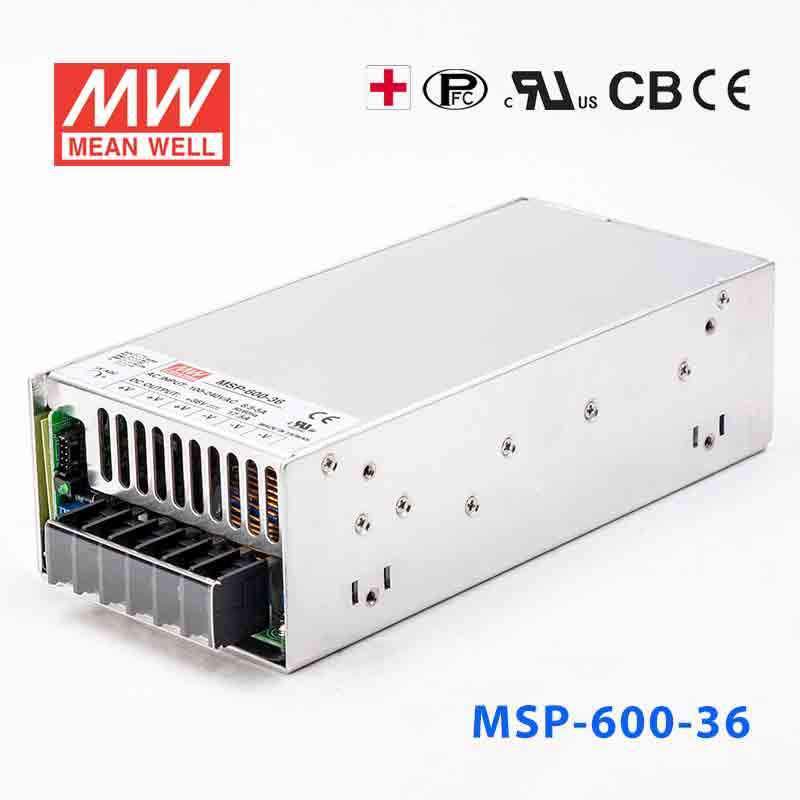

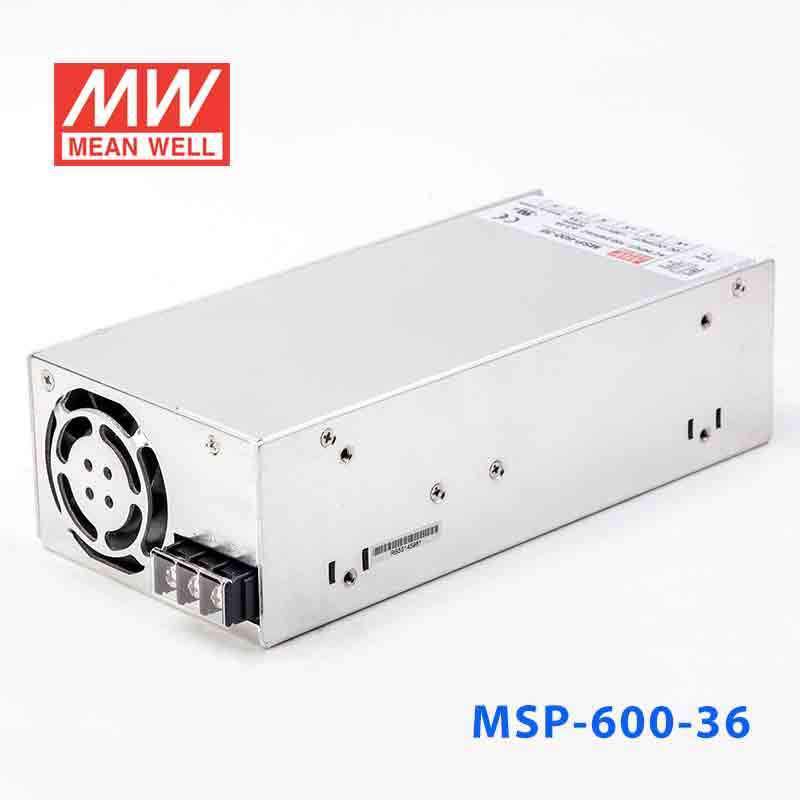

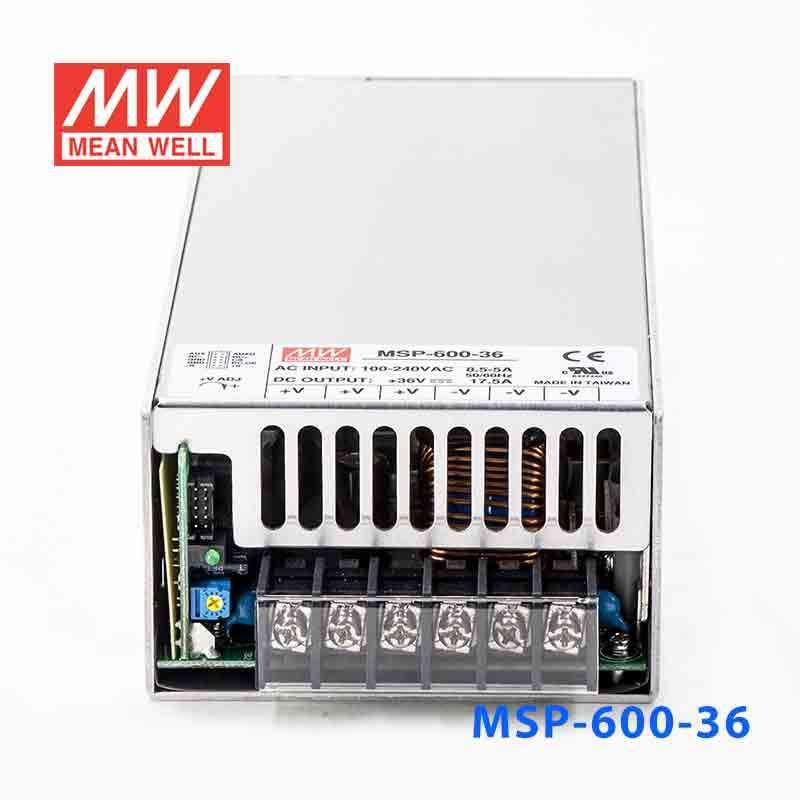

Mean Well MSP-600-36 Power Supply 630W 36V 17.5A

built-in active PFCmedical safety approvedhigh efficiencyno load power consumption < 0.5~0.8W
SKU MSP-600-36
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

MSP-600-36 is the 36V output model of this series: rated current 17.5A, rated power 630W, typical efficiency 89%.

Features

  • Universal AC input / Full range
  • Built-in active PFC function, PF>0.94
  • High efficiency up to 89%
  • Withstand 300VAC surge input for 5 seconds
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Medical safety approved (MOOP level)
  • Built-in cooling fan ON-OFF control
  • Built-in DC OK signal
  • Built-in remote ON-OFF control
  • Standby 5V@0.3A
  • Built-in remote sense function
  • No load power consumption<0.8W (Note.7)
  • Current sharing up to 2400W (3+1) (24V,36V,48V)
  • 5 years warranty

Specifications

MSP-600-36Specifications from the official datasheet (2024-10-30 edition)

OUTPUT

DC VOLTAGE
36V
RATED CURRENT
17.5A
CURRENT RANGE
0 ~ 17.5A
RATED POWER
630W
RIPPLE & NOISE (max.)Note.2
200mVp-p
VOLTAGE ADJ. RANGE
28.8 ~ 39.6V
VOLTAGE TOLERANCENote.3
±1.0%
LINE REGULATION
±0.2%
LOAD REGULATION
±0.5%
SETUP, RISE TIME
1000ms, 50ms/230VAC 2500ms, 50ms/115VAC at full load
HOLD UP TIME (Typ.)
16ms/230VAC 16ms/115VAC at full load

INPUT

VOLTAGE RANGENote.5
85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF>0.93/230VAC PF>0.99/115VAC at full load
EFFICIENCY (Typ.)
89%
AC CURRENT (Typ.)
8.5A/115VAC 5A/230VAC
INRUSH CURRENT (Typ.)
35A/115VAC 80A/230VAC
LEAKAGE CURRENT
Earth leakage current < 300μA/264VAC , Touch leakage current < 100μA/264VAC

PROTECTION

OVERLOAD
105 ~ 135% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE
41.4 ~ 48.6V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE
Shut down o/p voltage, recovers automatically after temperature goes down

FUNCTION

5V STANDBY
5VSB : 5V@0.3A ; tolerance±5%, ripple : 50mVp-p(max.)
DC OK SIGNAL
PSU turn on : 3.3 ~ 5.6V ; PSU turn off : 0 ~ 1V
REMOTE CONTROL
RC+ / RC-: 4 ~ 10V or open = power on ; 0 ~ 0.8V or short = power off
FAN CONTROL (Typ.)
Load 35±15% or RTH2≧50℃ Fan on

ENVIRONMENT

WORKING TEMP.
-40 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC (Note 4)

SAFETY STANDARDS
IEC 60601-1:2005+A1+A2, ANSI/AAMI ES60601-1:2005+A2, CAN/CSA C22.2 No. 60601-1:2014+A2 EAC TP TC 004 approved; Design refer to BS EN/EN60335-1, BS EN/EN 62368-1(by request)
ISOLATION LEVEL
Primary-Secondary: 2×MOOP, Primary-Earth: 1×MOOP, Secondary-Earth: 1×MOOP
WITHSTAND VOLTAGE
I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55011 (CISPR11) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/ EN61000-4-2,3,4,5,6,8,11, BS EN/ EN60601-1-2 , EAC TP TC 020

OTHERS

MTBF
138.7K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
218*105*63.5mm (L*W*H)
PACKING
1.57Kg;8pcs/13.6Kg/1.34CUFT
Test conditions and notes9
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to "EMI testing of component power supplies." (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
  5. 5. Derating may be needed under low input voltages. Please check the derating curve for more details.
  6. 6. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
  7. 7. No load power consumption<0.8W when RC+ & RC- (CN100 pin3,4) 0 ~ 0.8V or short.
  8. 8. When the input voltage is less than 40VAC, the SPS may exhibit degradation of performance. The final product manufacturers must re-confirm this deviation that does not affect basic safety or essential performance.
  9. 9. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

MSP-600-36 Mechanical Specification
Mechanical Specification
MSP-600-36 Block Diagram
Block Diagram
MSP-600-36 Derating Curve
Derating Curve
MSP-600-36 Function Manual
Function Manual
MSP-600-36 M S P - 6 0 0 series
M S P - 6 0 0 series

Downloads

FAQ

Can I use the MSP-600-36 for a 36V industrial control or automation system?

Yes, if the equipment requires constant 36V DC and total demand stays within 630W and 17.5A. That makes it a fit for 36V industrial control or automation systems that need more power than smaller 36V supplies.

Is the MSP-600-36 suitable for 36V embedded equipment or machine subsystems?

It can be used for embedded or machine-level electronics built around a 36V constant-voltage bus. The available output is 17.5A at 36V, so it supports higher-load 36V assemblies within that published limit.

Can this model be used in medical or laboratory equipment that runs on 36V DC?

This series is medical safety approved, so it can be considered where a medical or lab device requires a constant 36V input. The equipment still needs to match the 36V output and stay within the 630W and 17.5A ratings.

How much 36V capacity does the MSP-600-36 provide?

The output rating is 630W total, with 17.5A available at 36V. For sizing, both numbers matter: the connected 36V load must stay within 17.5A and within 630W.

Can the MSP-600-36 be used outdoors or in wide-temperature environments?

The specified operating temperature range is -40°C to +70°C, with output derating required at higher ambient temperatures (see the derating curve). However, no IP rating is listed in the specs, so the published data does not present it as an outdoor-exposed power supply.

How does the MSP-600-36 compare with other 36V models in the MSP series?

This sheet covers only the MSP-600 series, in which the MSP-600-36 is the 36V model at 630W and 17.5A; ratings of 36V models in other MSP wattage classes are not given here. For more 36V capacity, up to 4 units can run in parallel with active current sharing, at rated current x units x 0.9.
