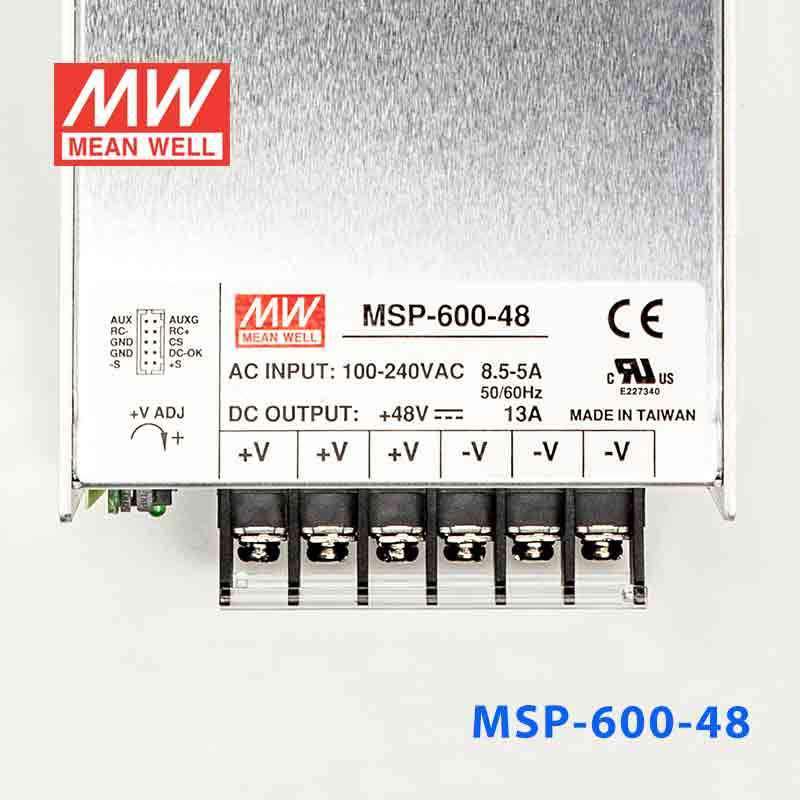

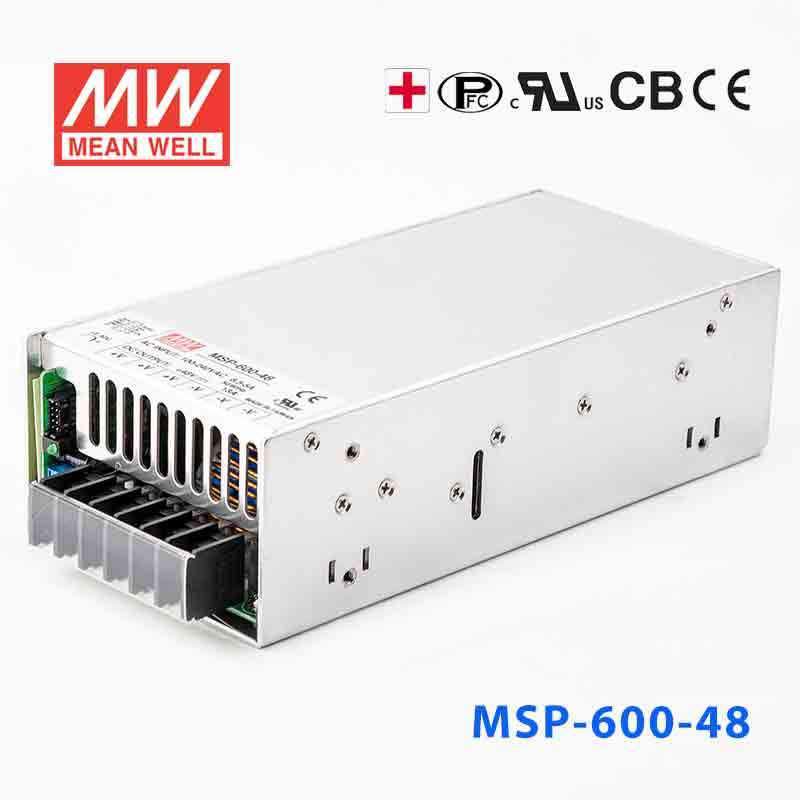

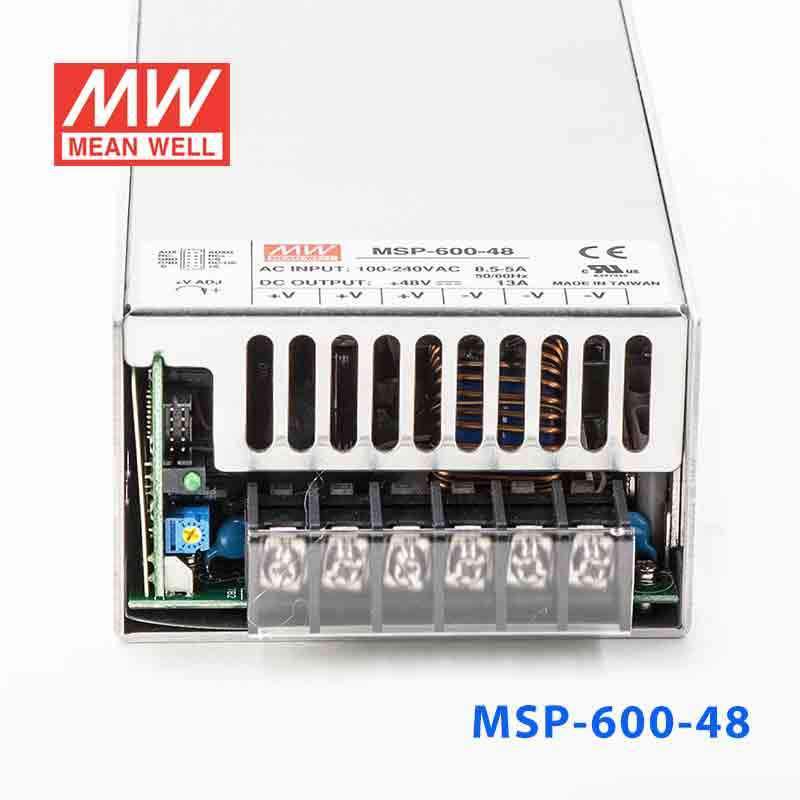

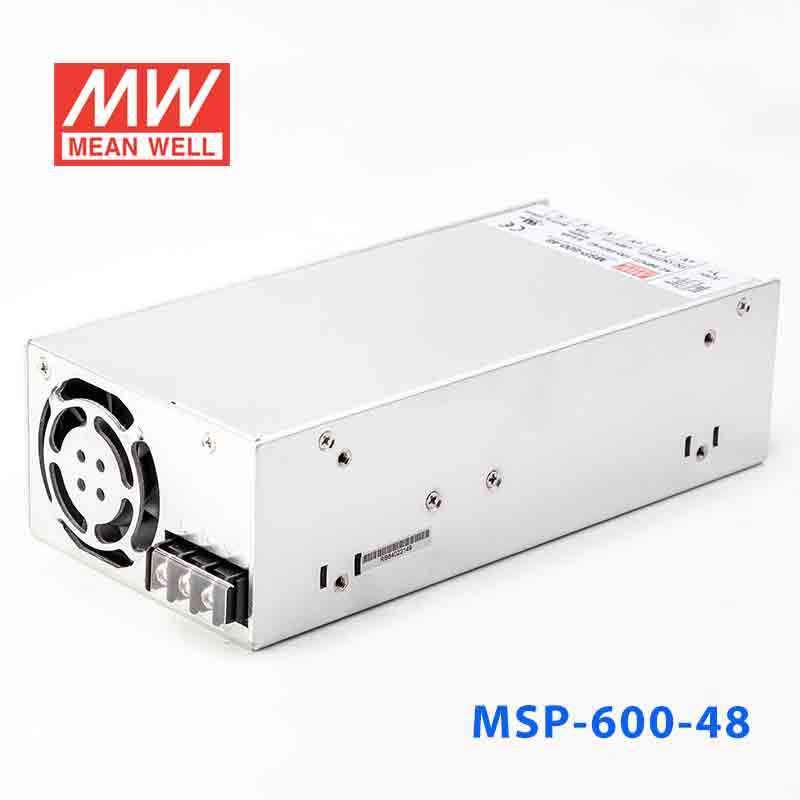

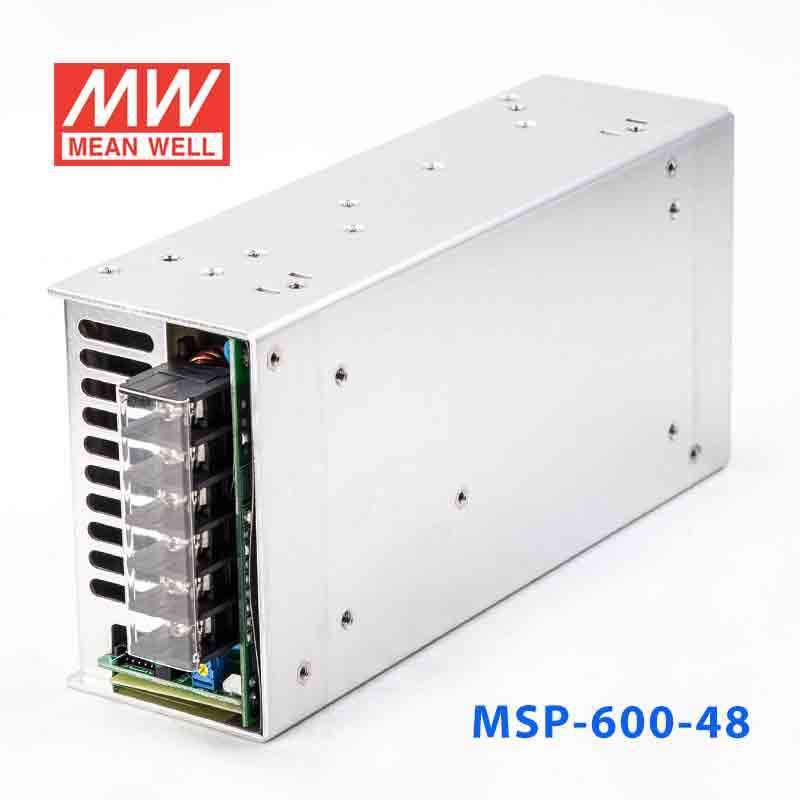

Mean Well MSP-600-48 Power Supply 624W 48V

It is built for constant-voltage 48V output and can supply up to 13A with 624W total power. That makes it a fit for 48V industrial control, automation, or embedded equipment that needs a stable 48V DC bus within those limits.

This model provides a constant 48V output with 624W available, so it suits 48V communications or network equipment that needs more power than lower-output 48V models. Buyers should match the load to the unit's 13A maximum output current and 624W power rating.

Yes, if the equipment requires constant 48V DC and stays within 13A and 624W. The wide 85-264VAC input also helps in lab, factory, or OEM environments where AC input conditions can vary.

It sits above the 48V models rated at 105.6W, 206.4W, 336W, and 456W, and below the 1008W and 1608W versions in the same series. That makes it useful for 48V systems that have outgrown mid-range power supplies but do not need the highest-output MSP models.

Within the MSP-600 group, the series includes MSP-600-3.3 at 396W and 120A, MSP-600-5 at 600W and 120A, MSP-600-7.5 at 600W and 80A, MSP-600-12 at 636W and 53A, MSP-600-15 at 645W and 43A, MSP-600-24 at 648W and 27A, MSP-600-36 at 630W and 17.5A, and MSP-600-48 at 624W and 13A. The main difference is the output voltage and corresponding current rating for each model.

The specified operating temperature range is -40°C to +70°C, so the temperature rating covers demanding industrial conditions. No IP rating is listed in the provided specs, so exposed outdoor or washdown use should not be assumed from this data alone.
