Mean Well

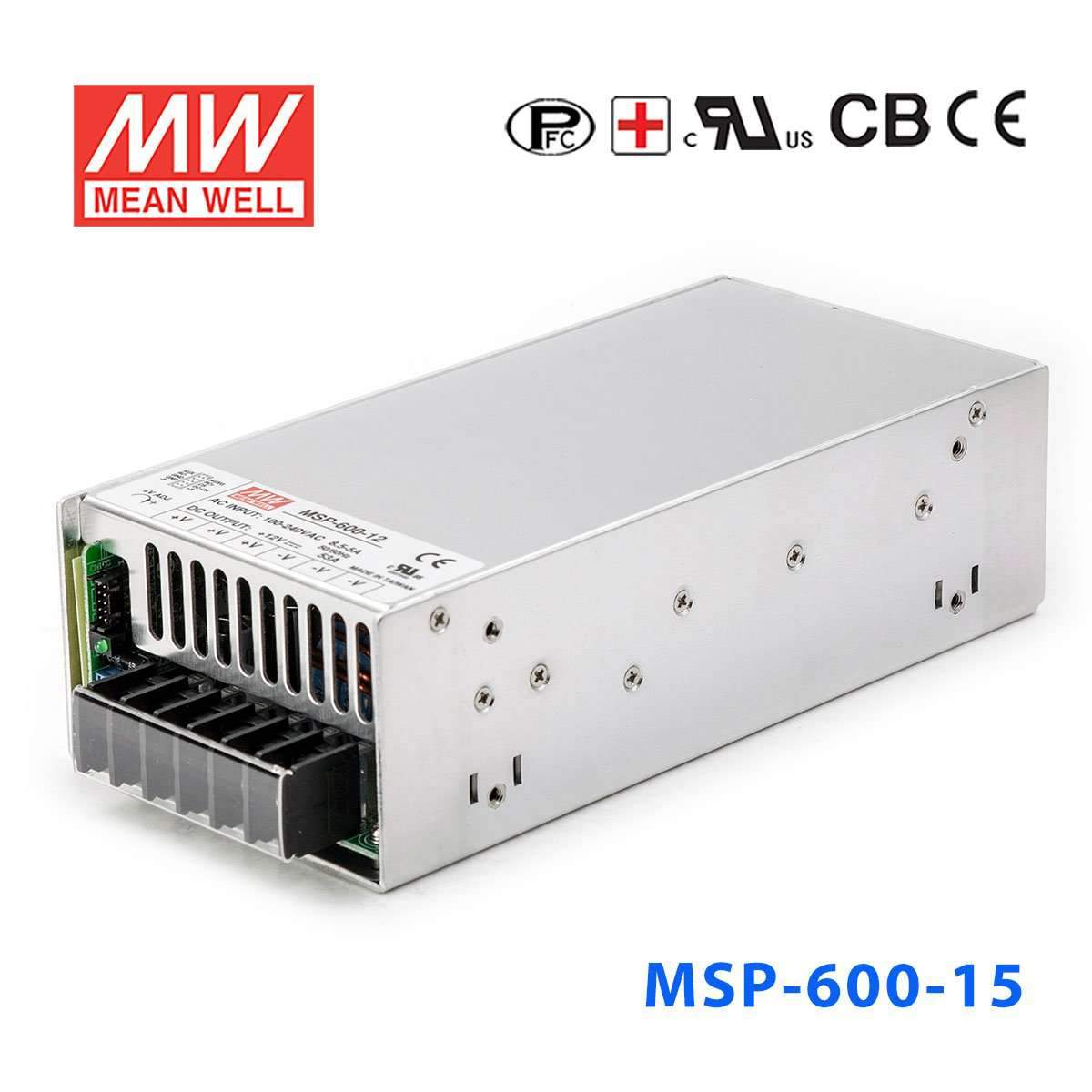

Mean Well MSP-600-15 Power Supply 645W 15V 43A

built-in active PFCmedical safety approvedhigh efficiencyno load power consumption < 0.5~0.8W
SKU MSP-600-15
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Select model — 6 in this family

MSP-600-15
Available to order
|

Overview

MSP-600-15 is the 15V output model of this series: rated current 43A, rated power 645W, typical efficiency 88%.

Features

  • Universal AC input / Full range
  • Built-in active PFC function, PF>0.94
  • High efficiency up to 89%
  • Withstand 300VAC surge input for 5 seconds
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Medical safety approved (MOOP level)
  • Built-in cooling fan ON-OFF control
  • Built-in DC OK signal
  • Built-in remote ON-OFF control
  • Standby 5V@0.3A
  • Built-in remote sense function
  • No load power consumption<0.8W (Note.7)
  • Current sharing up to 2400W (3+1) (24V,36V,48V)
  • 5 years warranty

Specifications

MSP-600-15Specifications from the official datasheet (2024-10-30 edition)

OUTPUT

DC VOLTAGE
15V
RATED CURRENT
43A
CURRENT RANGE
0 ~ 43A
RATED POWER
645W
RIPPLE & NOISE (max.)Note.2
150mVp-p
VOLTAGE ADJ. RANGE
13.5 ~ 18V
VOLTAGE TOLERANCENote.3
±1.0%
LINE REGULATION
±0.3%
LOAD REGULATION
±0.5%
SETUP, RISE TIME
1000ms, 50ms/230VAC 2500ms, 50ms/115VAC at full load
HOLD UP TIME (Typ.)
16ms/230VAC 16ms/115VAC at full load

INPUT

VOLTAGE RANGENote.5
85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF>0.93/230VAC PF>0.99/115VAC at full load
EFFICIENCY (Typ.)
88%
AC CURRENT (Typ.)
8.5A/115VAC 5A/230VAC
INRUSH CURRENT (Typ.)
35A/115VAC 80A/230VAC
LEAKAGE CURRENT
Earth leakage current < 300μA/264VAC , Touch leakage current < 100μA/264VAC

PROTECTION

OVERLOAD
105 ~ 135% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE
18.8 ~ 21.8V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE
Shut down o/p voltage, recovers automatically after temperature goes down

FUNCTION

5V STANDBY
5VSB : 5V@0.3A ; tolerance±5%, ripple : 50mVp-p(max.)
DC OK SIGNAL
PSU turn on : 3.3 ~ 5.6V ; PSU turn off : 0 ~ 1V
REMOTE CONTROL
RC+ / RC-: 4 ~ 10V or open = power on ; 0 ~ 0.8V or short = power off
FAN CONTROL (Typ.)
Load 35±15% or RTH2≧50℃ Fan on

ENVIRONMENT

WORKING TEMP.
-40 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC (Note 4)

SAFETY STANDARDS
IEC 60601-1:2005+A1+A2, ANSI/AAMI ES60601-1:2005+A2, CAN/CSA C22.2 No. 60601-1:2014+A2 EAC TP TC 004 approved; Design refer to BS EN/EN60335-1, BS EN/EN 62368-1(by request)
ISOLATION LEVEL
Primary-Secondary: 2×MOOP, Primary-Earth: 1×MOOP, Secondary-Earth: 1×MOOP
WITHSTAND VOLTAGE
I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55011 (CISPR11) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/ EN61000-4-2,3,4,5,6,8,11, BS EN/ EN60601-1-2 , EAC TP TC 020

OTHERS

MTBF
138.7K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
218*105*63.5mm (L*W*H)
PACKING
1.57Kg;8pcs/13.6Kg/1.34CUFT
Test conditions and notes9
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to "EMI testing of component power supplies." (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
  5. 5. Derating may be needed under low input voltages. Please check the derating curve for more details.
  6. 6. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
  7. 7. No load power consumption<0.8W when RC+ & RC- (CN100 pin3,4) 0 ~ 0.8V or short.
  8. 8. When the input voltage is less than 40VAC, the SPS may exhibit degradation of performance. The final product manufacturers must re-confirm this deviation that does not affect basic safety or essential performance.
  9. 9. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

MSP-600-15 Mechanical Specification
Mechanical Specification
MSP-600-15 Block Diagram
Block Diagram
MSP-600-15 Derating Curve
Derating Curve
MSP-600-15 Function Manual
Function Manual
MSP-600-15 M S P - 6 0 0 series
M S P - 6 0 0 series

Downloads

FAQ

Can I use the MSP-600-15 for a 15V automation or control system?

Yes, if the system requires a constant 15V DC source and the total load stays within 645W and 43A. That rating suits higher-power 15V automation, industrial electronics, or control assemblies better than smaller 15V supplies.

Is the MSP-600-15 suitable for 15V embedded electronics racks or validation fixtures?

It can be used where a 15V constant-voltage rail is needed for embedded hardware racks, production fixtures, or lab validation setups. The unit delivers up to 43A at 15V, which is useful when multiple 15V devices share the same power source.

Can this model power 15V medical equipment that needs a regulated DC output?

This series is medical safety approved, so it can be considered for medical equipment that specifies a 15V constant-voltage input. The key checks are that the equipment actually requires 15V and that the total draw remains within 645W and 43A.

How can I tell whether the MSP-600-15 has enough capacity for my 15V load?

Use the nameplate ratings: this unit is rated for 645W total and 43A at 15V. If the combined demand of your 15V loads exceeds either 43A or 645W, this model is undersized.

Is the MSP-600-15 meant for indoor or outdoor use?

The specified operating temperature range is -40°C to +70°C, with output derating required at higher temperatures (see the derating curve). But the specs do not list an IP rating, so the published product data does not define it as an outdoor or washdown-rated unit.

What are the main differences between the MSP-600-15 and the other MSP-600 voltage options?

In the MSP-600 group, the listed outputs are 3.3V at 396W and 120A, 5V at 600W and 120A, 7.5V at 600W and 80A, 12V at 636W and 53A, 15V at 645W and 43A, 24V at 648W and 27A, 36V at 630W and 17.5A, and 48V at 624W and 13A. The MSP-600-15 keeps the same form factor family but uses a 15V output with 43A maximum current.
