Mean Well

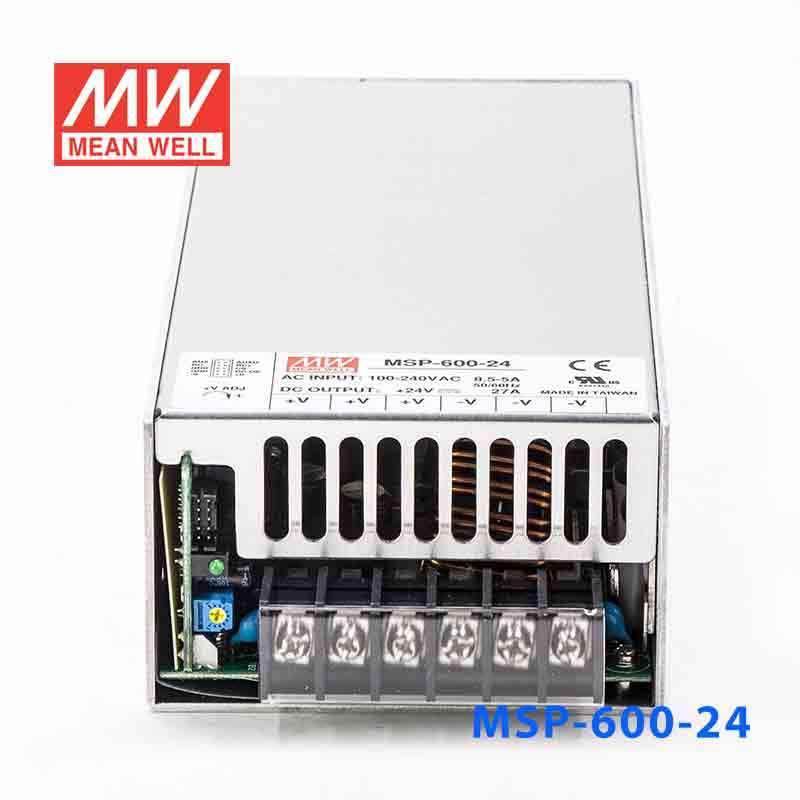

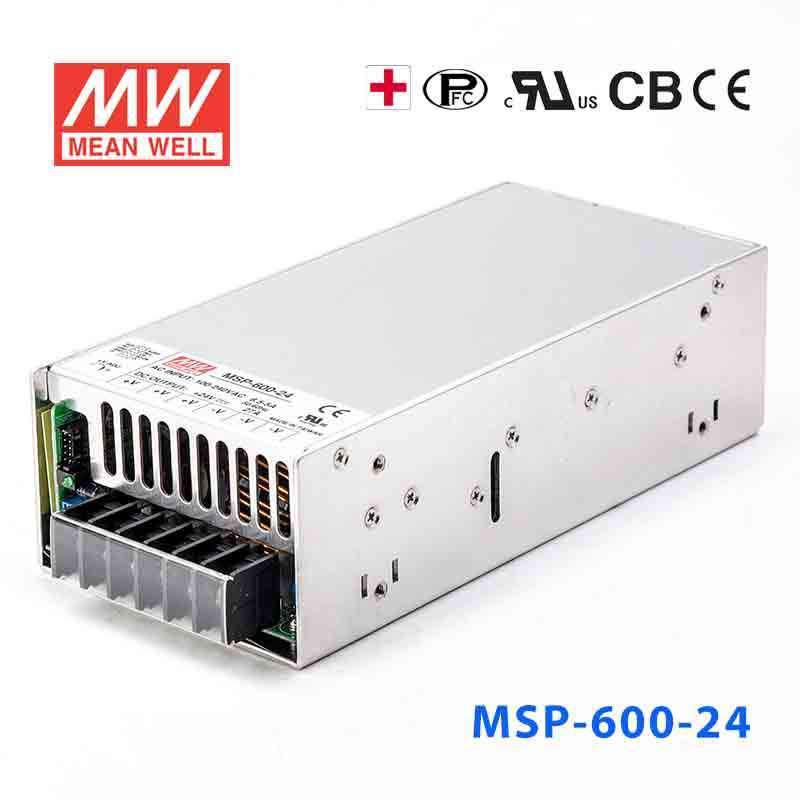

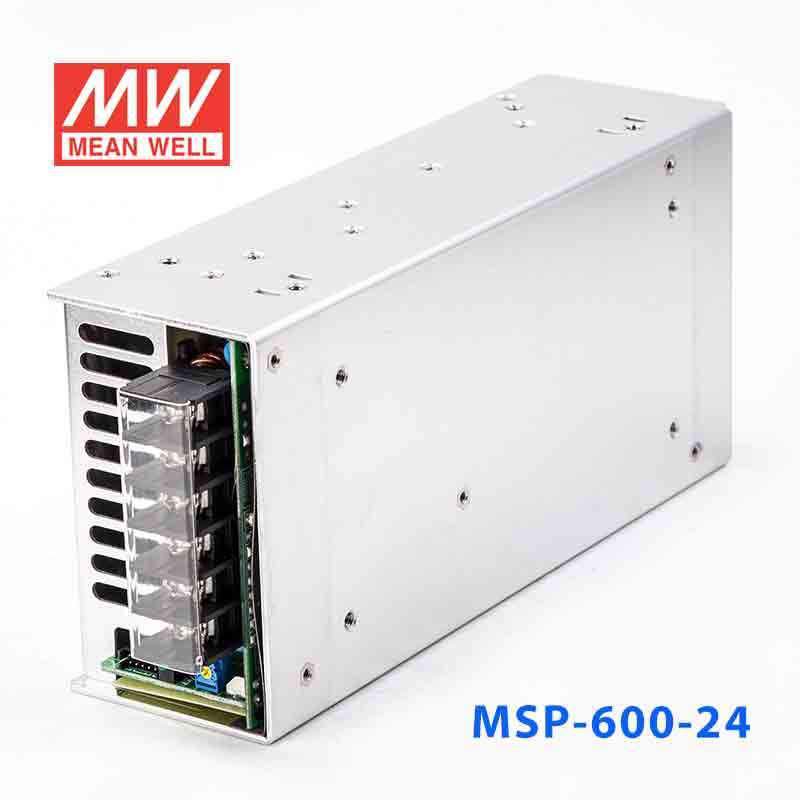

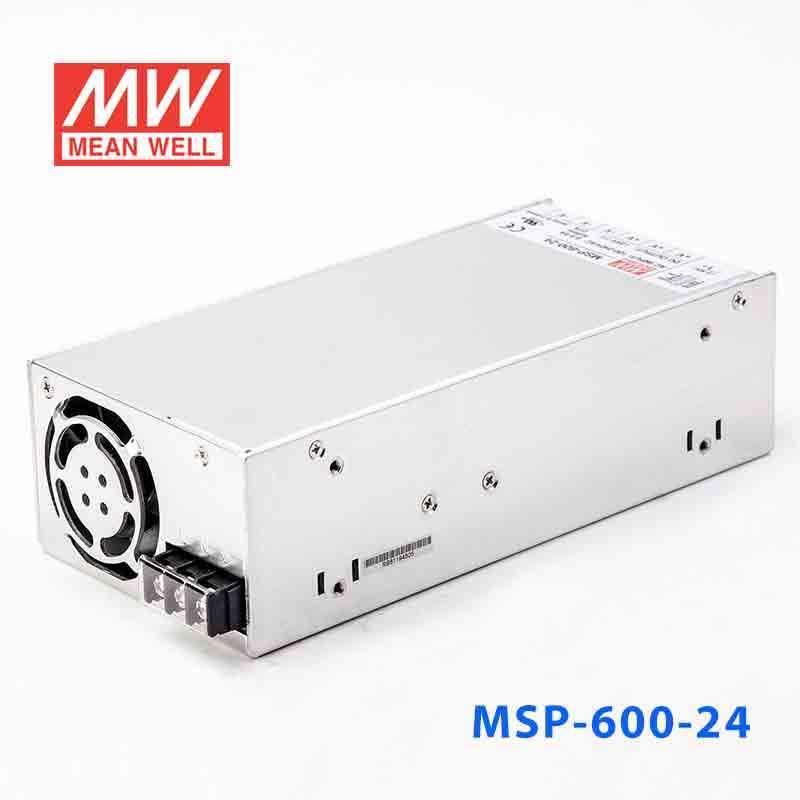

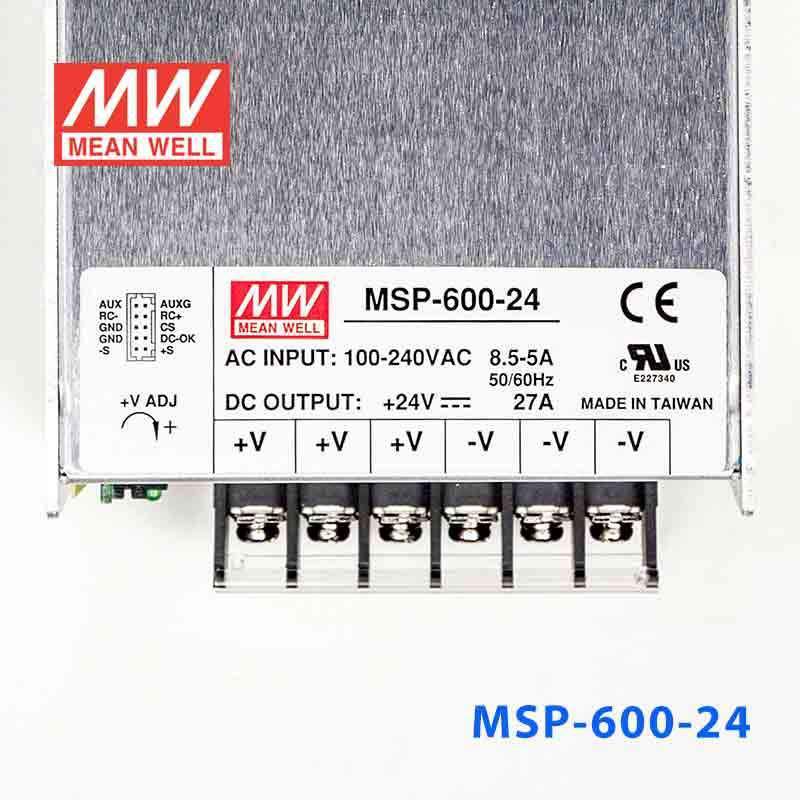

Mean Well MSP-600-24 Power Supply 648W 24V

built-in active PFC, medical safety approved, high efficiency, no load power consumption < 0.5~0.8W
SKU:
MSP-600-24
Model
Please for Pricing
|

Description

Features

Universal AC input / Full range
Built-in active PFC function, PF>0.94
High efficiency up to 89%
Withstand 300VAC surge input for 5 seconds
Protections: Short circuit / Overload / Over voltage / Over temperature
Medical safety approved (MOOP level)
Built-in cooling Fan ON-OFF control
Built-in DC OK signal
Built-in remote ON-OFF control
No load power consumption<0.8W
Standby 5V@0.3A
Built-in remote sense function
Current sharing up to 2400W (3+1) (24V,36V,48V)
5 years warranty

General Specification

AC input voltage range 85~264VAC ; 120~370VDC
AC inrush current (max.) 35A/115VAC 80A/230VAC
Over current protection 105% ~135% rated output power;Protection type : Constant current limiting for Vo=50 ~ 100% of rated voltage, recovers automatically after fault condition is removed
Over voltage protection 110%~140% Protection type : Shut down o/p voltage, re-power on to recover
Withstand voltage I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
Working temperature -40~+70ºC (refer to output derating curve)
Safety standards ANSI/AAMI ES60601-1, IEC60601-1 approved
EMC standards Compliance to EN55011 (CISPR11) Class B, EN61000-3-2,-3
Dimension (LxWxH)(mm) 218x 105x 63.5 mm

Specifications
  • Brand
    Mean Well
  • Series
    MSP Series
  • Power Rating
    648 Watt
  • Output Voltage
    24 Volt
  • Rated Current
    27 Ampere
  • Input Voltage
    85V~264V
  • Standards Met
    CB,CE,EAC,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -40°C~70°C
  • Warranty
    5 Year
  • Length
    21.8 cm
  • Width
    10.5 cm
  • Height
    6.35 cm
  • Weight
    1.57 kg

File Downloads

::specification::

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the MSP-600-24 for a 24V industrial automation cabinet?

Yes, this is a constant-voltage 24V power supply rated for up to 648W and 27A. It is suitable for 24V industrial automation or control cabinets when the combined 24V load stays within those limits.

Is the MSP-600-24 suitable for 24V PLC and industrial control loads?

It can be used for 24V PLC-related and general industrial control loads that need a regulated 24V bus. The main sizing check is whether total current remains at or below 27A and total power remains at or below 648W.

Can this model be used for 24V embedded systems or machine electronics?

Yes, if the electronics are designed for constant 24V input. With a 27A output rating, it can support larger 24V embedded or machine-electronics assemblies than lower-wattage 24V supplies in the same series.

How much 24V load can the MSP-600-24 support?

The rated output is 648W at 24V, with a maximum output current of 27A. That means it should be selected only for 24V systems whose total demand stays within both 27A and 648W.

Can the MSP-600-24 be used in hot, cold, or outdoor locations?

The published operating range is -40°C to +70°C, so the temperature spec is broad. However, no IP rating is shown in the specs, so the product data does not identify it as an outdoor-rated or weather-resistant supply.

How does the MSP-600-24 compare with other 24V MSP models?

The 24V MSP siblings listed are MSP-100-24 at 108W and 4.5A, MSP-200-24 at 201.6W and 8.4A, MSP-300-24 at 336W and 14A, MSP-450-24 at 451.2W and 18.8A, MSP-600-24 at 648W and 27A, MSP-1000-24 at 1008W and 42A, and MSP-1600-24 at 1608W and 67A. The MSP-600-24 provides more headroom than the 100W to 450W models, but less than the 1000W and 1600W versions.
