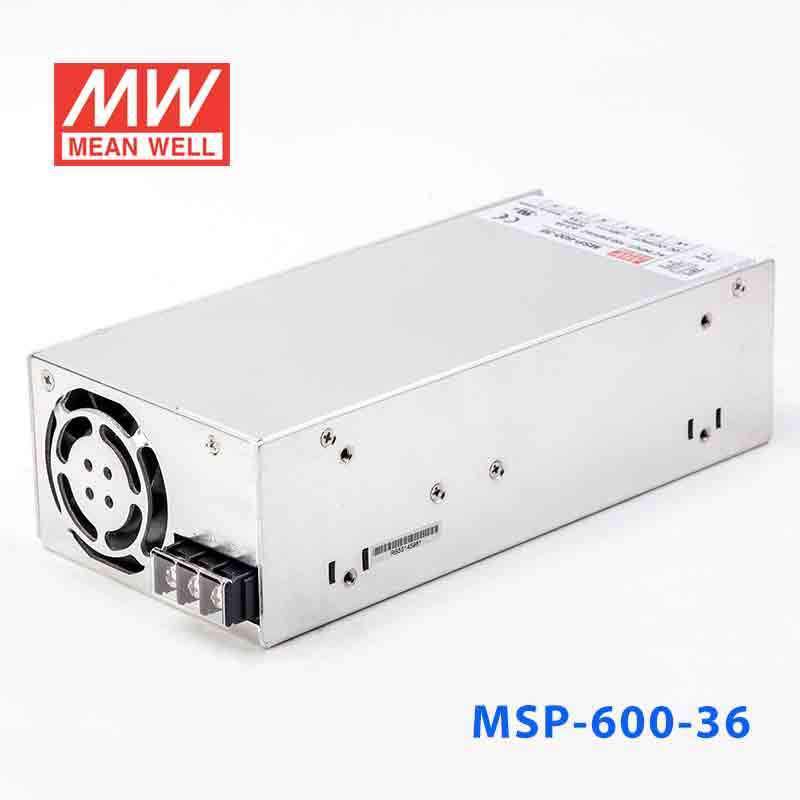

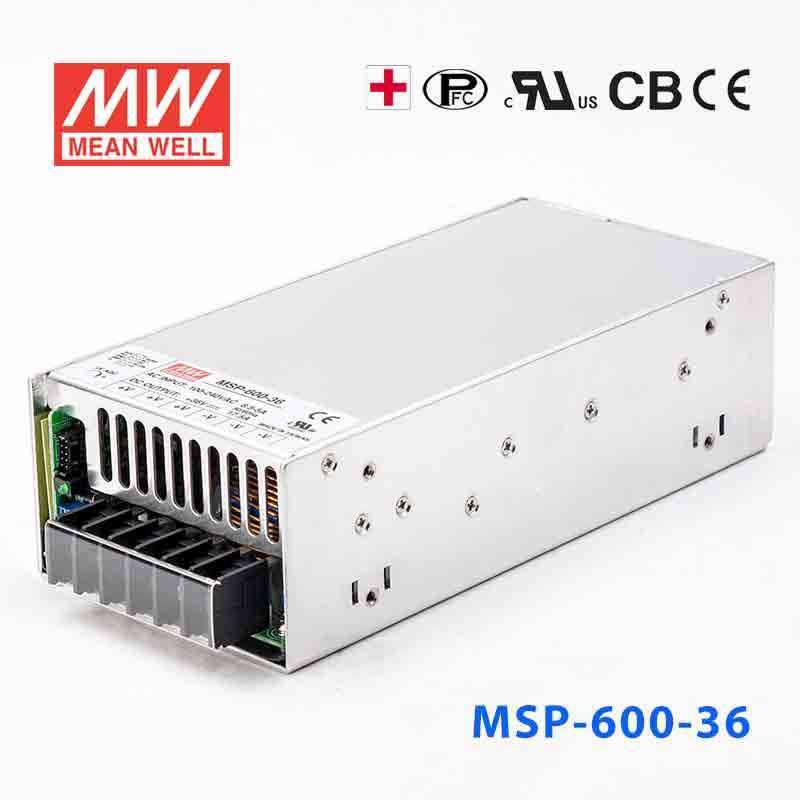

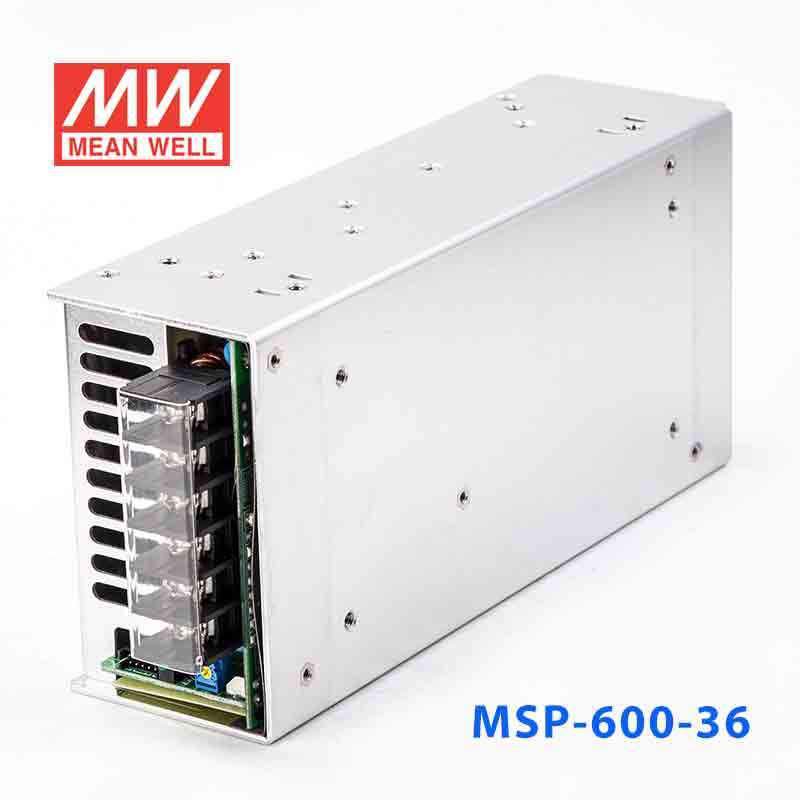

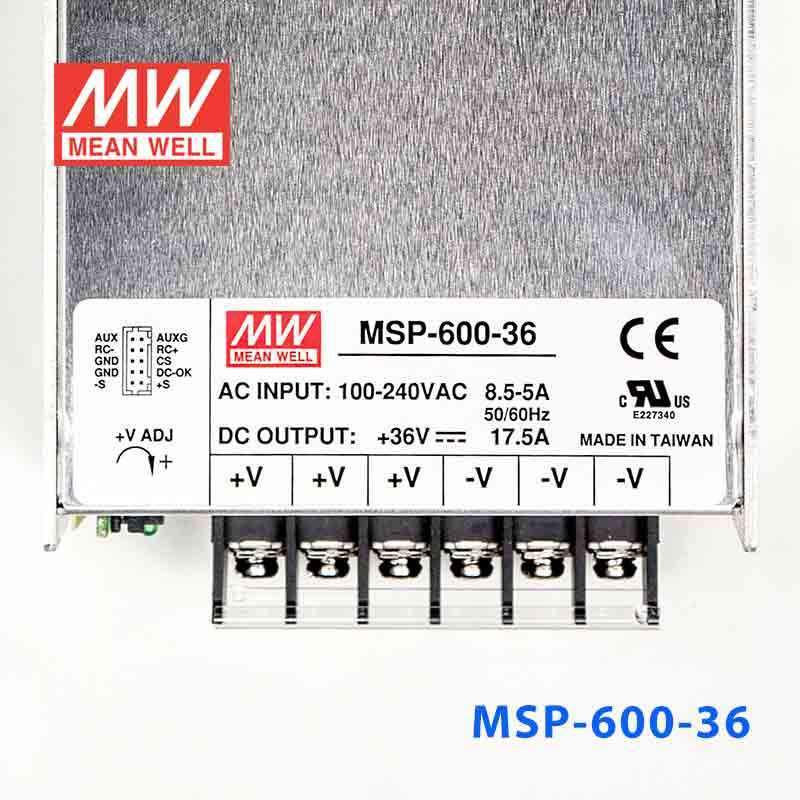

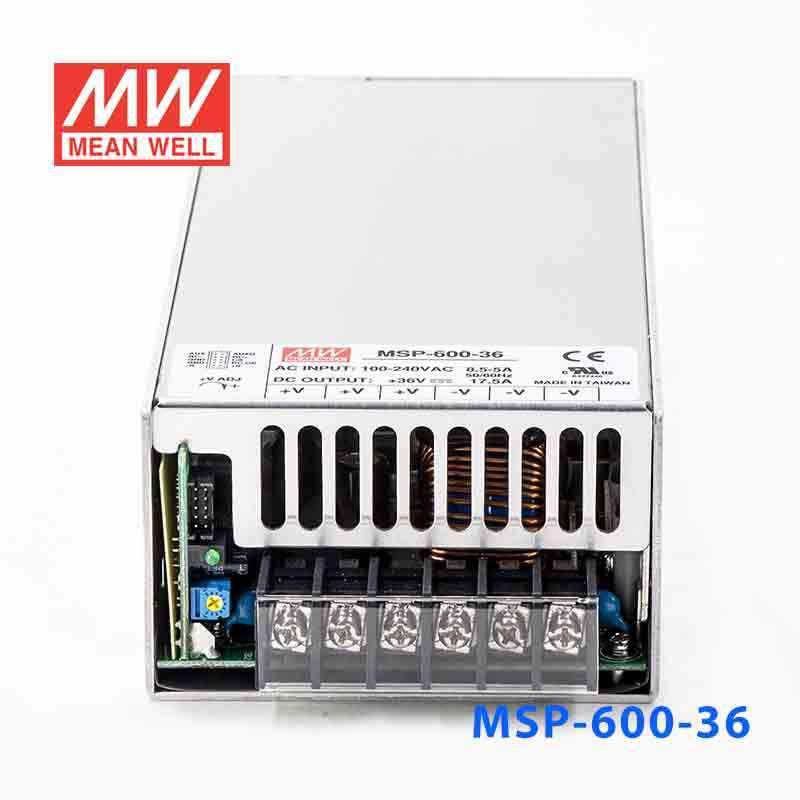

Mean Well MSP-600-36 Power Supply 630W 36V

Q: Can I use the MSP-600-36 for a 36V industrial control or automation system?

Yes, if the equipment requires constant 36V DC and total demand stays within 630W and 17.5A. That makes it a fit for 36V industrial control or automation systems that need more power than smaller 36V supplies.

Q: Is the MSP-600-36 suitable for 36V embedded equipment or machine subsystems?

It can be used for embedded or machine-level electronics built around a 36V constant-voltage bus. The available output is 17.5A at 36V, so it supports higher-load 36V assemblies within that published limit.

Q: Can this model be used in medical or laboratory equipment that runs on 36V DC?

This series is medical safety approved, so it can be considered where a medical or lab device requires a constant 36V input. The equipment still needs to match the 36V output and stay within the 630W and 17.5A ratings.

Q: How much 36V capacity does the MSP-600-36 provide?

The output rating is 630W total, with 17.5A available at 36V. For sizing, both numbers matter: the connected 36V load must stay within 17.5A and within 630W.

Q: Can the MSP-600-36 be used outdoors or in wide-temperature environments?

The specified operating temperature range is -40°C to +70°C, so it is rated across a wide ambient-temperature span. However, no IP rating is listed in the specs, so the published data does not present it as an outdoor-exposed power supply.

Q: How does the MSP-600-36 compare with other 36V models in the MSP series?

The listed 36V models are MSP-100-36 at 104.4W and 2.9A, MSP-200-36 at 205.2W and 5.7A, MSP-300-36 at 324W and 9A, MSP-450-36 at 450W and 12.5A, MSP-600-36 at 630W and 17.5A, and MSP-1600-36 at 1602W and 44.5A. The MSP-600-36 sits above the 100W to 450W units and below the 1600W model in 36V output capacity.

built-in active PFC, medical safety approved, high efficiency, no load power consumption < 0.5~0.8W

SKU:

MSP-600-36

Mpdel

100W 36V 200W 36V 300W 36V 450W 36V 600W 36V

Product variants

Please for Pricing

Notify me when it's back in stock

Description

Features

Universal AC input / Full range

Built-in active PFC function, PF>0.94

High efficiency up to 89%

Withstand 300VAC surge input for 5 seconds

Protections: Short circuit / Overload / Over voltage / Over temperature

Medical safety approved (MOOP level)

Built-in cooling Fan ON-OFF control

Built-in DC OK signal

Built-in remote ON-OFF control

No load power consumption<0.8W

Standby 5V@0.3A

Built-in remote sense function

Current sharing up to 2400W (3+1) (24V,36V,48V)

5 years warranty

General Specification

AC input voltage range	85~264VAC ; 120~370VDC
AC inrush current (max.)	35A/115VAC 80A/230VAC
Over current protection	105% ~135% rated output power;Protection type : Constant current limiting for Vo=50 ~ 100% of rated voltage, recovers automatically after fault condition is removed
Over voltage protection	110%~140% Protection type : Shut down o/p voltage, re-power on to recover
Withstand voltage	I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
Working temperature	-40~+70ºC (refer to output derating curve)
Safety standards	ANSI/AAMI ES60601-1, IEC60601-1 approved
EMC standards	Compliance to EN55011 (CISPR11) Class B, EN61000-3-2,-3
Dimension (LxWxH)(mm)	218x 105x 63.5 mm

Specifications

Brand

Mean Well
Series

MSP Series
Power Rating

630 Watt
Output Voltage

36 Volt
Rated Current

17.5 Ampere
Input Voltage

85V~264V
Standards Met

CB,CE,EAC,UL
Operation Mode

Constant Voltage
Operating Temperature

-40°C~70°C
Warranty

5 Year
Length

21.8 cm
Width

10.5 cm
Height

6.35 cm
Weight

1.57 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the MSP-600-36 for a 36V industrial control or automation system?

Yes, if the equipment requires constant 36V DC and total demand stays within 630W and 17.5A. That makes it a fit for 36V industrial control or automation systems that need more power than smaller 36V supplies.

Is the MSP-600-36 suitable for 36V embedded equipment or machine subsystems?

It can be used for embedded or machine-level electronics built around a 36V constant-voltage bus. The available output is 17.5A at 36V, so it supports higher-load 36V assemblies within that published limit.

Can this model be used in medical or laboratory equipment that runs on 36V DC?

This series is medical safety approved, so it can be considered where a medical or lab device requires a constant 36V input. The equipment still needs to match the 36V output and stay within the 630W and 17.5A ratings.

How much 36V capacity does the MSP-600-36 provide?

The output rating is 630W total, with 17.5A available at 36V. For sizing, both numbers matter: the connected 36V load must stay within 17.5A and within 630W.

Can the MSP-600-36 be used outdoors or in wide-temperature environments?

The specified operating temperature range is -40°C to +70°C, so it is rated across a wide ambient-temperature span. However, no IP rating is listed in the specs, so the published data does not present it as an outdoor-exposed power supply.

How does the MSP-600-36 compare with other 36V models in the MSP series?

The listed 36V models are MSP-100-36 at 104.4W and 2.9A, MSP-200-36 at 205.2W and 5.7A, MSP-300-36 at 324W and 9A, MSP-450-36 at 450W and 12.5A, MSP-600-36 at 630W and 17.5A, and MSP-1600-36 at 1602W and 44.5A. The MSP-600-36 sits above the 100W to 450W units and below the 1600W model in 36V output capacity.

Model	Power	Voltage	Current
Mean Well MSP-600-7.5 Power Supply 600W 7.5V	600W	7.5V	80A	View
Mean Well MSP-600-5 Power Supply 600W 5V	600W	5V	120A	View
Mean Well MSP-600-48 Power Supply 624W 48V	624W	48V	13A	View
Mean Well MSP-600-3.3 Power Supply 396W 3.3V	396W	3.3V	120A	View
Mean Well MSP-600-24 Power Supply 648W 24V	648W	24V	27A	View
Mean Well MSP-600-15 Power Supply 645W 15V	645W	15V	43A	View
Mean Well MSP-600-12 Power Supply 636W 12V	636W	12V	53A	View
