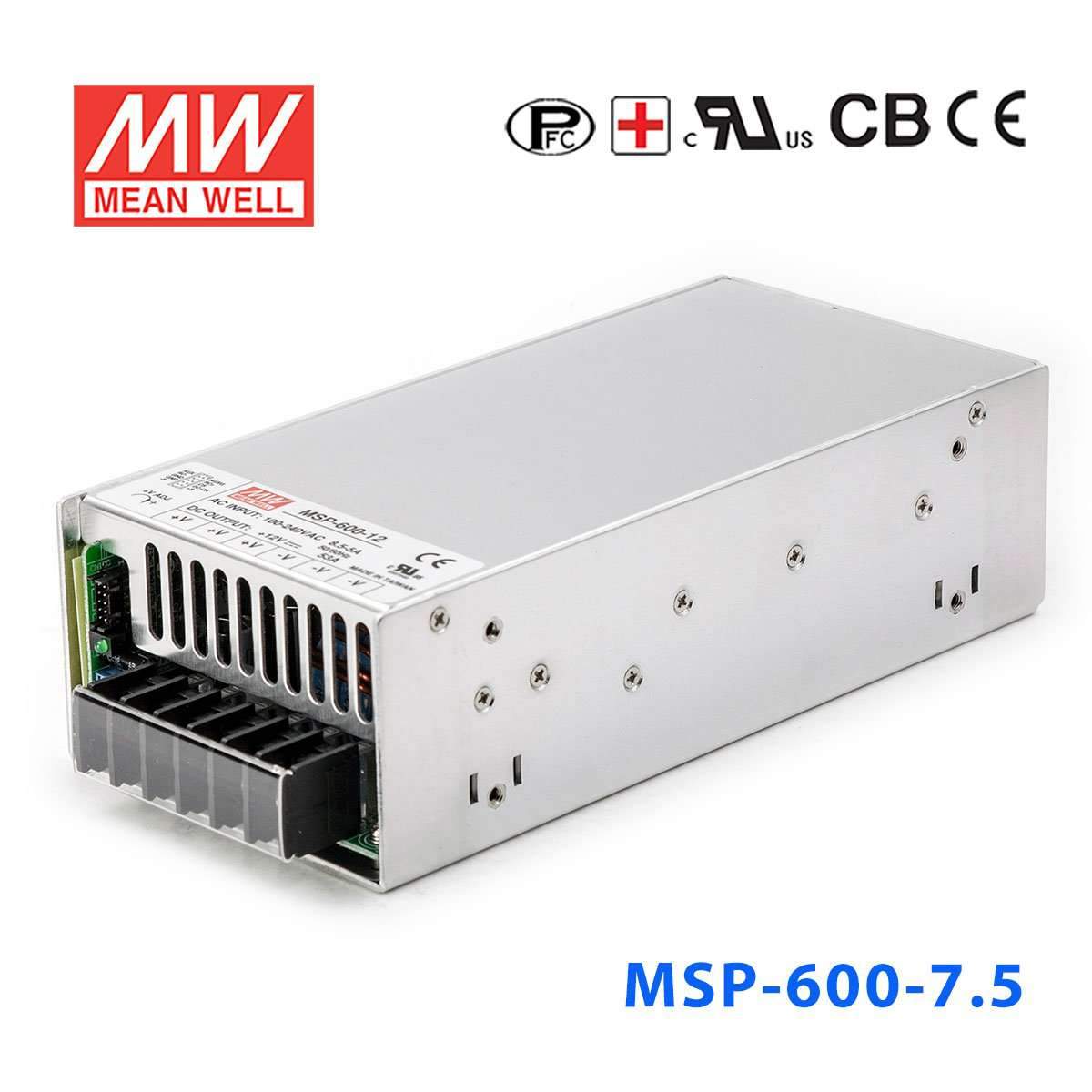

Mean Well MSP-600-7.5 Power Supply 600W 7.5V

Q: Can I use the MSP-600-7.5 for a 7.5V industrial or embedded DC load?

Yes, if the load requires constant 7.5V DC and stays within 80A and 600W. That makes it suitable for industrial, embedded, or OEM equipment designed around a 7.5V constant-voltage power rail.

Q: Is the MSP-600-7.5 a good fit for high-current 7.5V electronics or control assemblies?

This model is intended for higher-current 7.5V applications because it can provide up to 80A at 600W. It is a practical option when a 7.5V assembly needs more capacity than smaller supplies in the same voltage class.

Q: Can the MSP-600-7.5 be used for a 7.5V production fixture or validation bench?

It can, as long as the fixture or bench load is a constant-voltage 7.5V application within the 600W and 80A rating. The 85-264VAC input range is also useful in lab and factory settings where available AC input may vary.

Q: When should I choose the MSP-600-7.5 over another 7.5V MSP model?

The series offers 7.5V options at 101.3W and 13.5A, 200.3W and 26.7A, 300W and 40A, 450W and 60A, and this 600W and 80A version. The MSP-600-7.5 is the better fit when a 7.5V system needs the highest current capacity available in the listed MSP 7.5V family.

Q: How does the MSP-600-7.5 compare with the rest of the MSP-600 family?

The MSP-600 models are MSP-600-3.3 at 396W and 120A, MSP-600-5 at 600W and 120A, MSP-600-7.5 at 600W and 80A, MSP-600-12 at 636W and 53A, MSP-600-15 at 645W and 43A, MSP-600-24 at 648W and 27A, MSP-600-36 at 630W and 17.5A, and MSP-600-48 at 624W and 13A. The main selection difference is the output voltage and the matching current rating.

Q: Can the MSP-600-7.5 be used in cold, hot, or outdoor environments?

The published operating temperature range is -40°C to +70°C, so it is specified for wide temperature conditions. No IP rating appears in the provided specs, so exposed outdoor use should not be assumed without an enclosure or additional environmental protection.

built-in active PFC, medical safety approved, high efficiency, no load power consumption < 0.5~0.8W

SKU:

MSP-600-7.5

Model

100W 7.5V

SKU: MSP-100-7.5

200W 7.5V

SKU: MSP-200-7.5

300W 7.5V

SKU: MSP-300-7.5

450W 7.5V

SKU: MSP-450-7.5

600W 7.5V

SKU: MSP-600-7.5

Product variants

Please for Pricing

Notify me when it's back in stock

Description

Features

Universal AC input / Full range

Built-in active PFC function, PF>0.94

High efficiency up to 89%

Withstand 300VAC surge input for 5 seconds

Protections: Short circuit / Overload / Over voltage / Over temperature

Medical safety approved (MOOP level)

Built-in cooling Fan ON-OFF control

Built-in DC OK signal

Built-in remote ON-OFF control

No load power consumption<0.8W

Standby 5V@0.3A

Built-in remote sense function

Current sharing up to 2400W (3+1) (24V,36V,48V)

5 years warranty

General Specification

AC input voltage range	85~264VAC ; 120~370VDC
AC inrush current (max.)	35A/115VAC 80A/230VAC
Over current protection	105% ~135% rated output power;Protection type : Constant current limiting for Vo=50 ~ 100% of rated voltage, recovers automatically after fault condition is removed
Over voltage protection	110%~140% Protection type : Shut down o/p voltage, re-power on to recover
Withstand voltage	I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
Working temperature	-40~+70ºC (refer to output derating curve)
Safety standards	ANSI/AAMI ES60601-1, IEC60601-1 approved
EMC standards	Compliance to EN55011 (CISPR11) Class B, EN61000-3-2,-3
Dimension (LxWxH)(mm)	218x 105x 63.5 mm

Specifications

Brand

Mean Well
Series

MSP Series
Power Rating

600 Watt
Output Voltage

7.5 Volt
Rated Current

80 Ampere
Input Voltage

85V~264V
Standards Met

CB,CE,EAC,UL
Operation Mode

Constant Voltage
Operating Temperature

-40°C~70°C
Warranty

5 Year
Length

21.8 cm
Width

10.5 cm
Height

6.35 cm
Weight

1.57 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the MSP-600-7.5 for a 7.5V industrial or embedded DC load?

Yes, if the load requires constant 7.5V DC and stays within 80A and 600W. That makes it suitable for industrial, embedded, or OEM equipment designed around a 7.5V constant-voltage power rail.

Is the MSP-600-7.5 a good fit for high-current 7.5V electronics or control assemblies?

This model is intended for higher-current 7.5V applications because it can provide up to 80A at 600W. It is a practical option when a 7.5V assembly needs more capacity than smaller supplies in the same voltage class.

Can the MSP-600-7.5 be used for a 7.5V production fixture or validation bench?

It can, as long as the fixture or bench load is a constant-voltage 7.5V application within the 600W and 80A rating. The 85-264VAC input range is also useful in lab and factory settings where available AC input may vary.

When should I choose the MSP-600-7.5 over another 7.5V MSP model?

The series offers 7.5V options at 101.3W and 13.5A, 200.3W and 26.7A, 300W and 40A, 450W and 60A, and this 600W and 80A version. The MSP-600-7.5 is the better fit when a 7.5V system needs the highest current capacity available in the listed MSP 7.5V family.

How does the MSP-600-7.5 compare with the rest of the MSP-600 family?

The MSP-600 models are MSP-600-3.3 at 396W and 120A, MSP-600-5 at 600W and 120A, MSP-600-7.5 at 600W and 80A, MSP-600-12 at 636W and 53A, MSP-600-15 at 645W and 43A, MSP-600-24 at 648W and 27A, MSP-600-36 at 630W and 17.5A, and MSP-600-48 at 624W and 13A. The main selection difference is the output voltage and the matching current rating.

Can the MSP-600-7.5 be used in cold, hot, or outdoor environments?

The published operating temperature range is -40°C to +70°C, so it is specified for wide temperature conditions. No IP rating appears in the provided specs, so exposed outdoor use should not be assumed without an enclosure or additional environmental protection.

Model	Power	Voltage	Current
Mean Well MSP-600-5 Power Supply 600W 5V	600W	5V	120A	View
Mean Well MSP-600-48 Power Supply 624W 48V	624W	48V	13A	View
Mean Well MSP-600-36 Power Supply 630W 36V	630W	36V	17.5A	View
Mean Well MSP-600-3.3 Power Supply 396W 3.3V	396W	3.3V	120A	View
Mean Well MSP-600-24 Power Supply 648W 24V	648W	24V	27A	View
Mean Well MSP-600-15 Power Supply 645W 15V	645W	15V	43A	View
Mean Well MSP-600-12 Power Supply 636W 12V	636W	12V	53A	View
