Mean Well

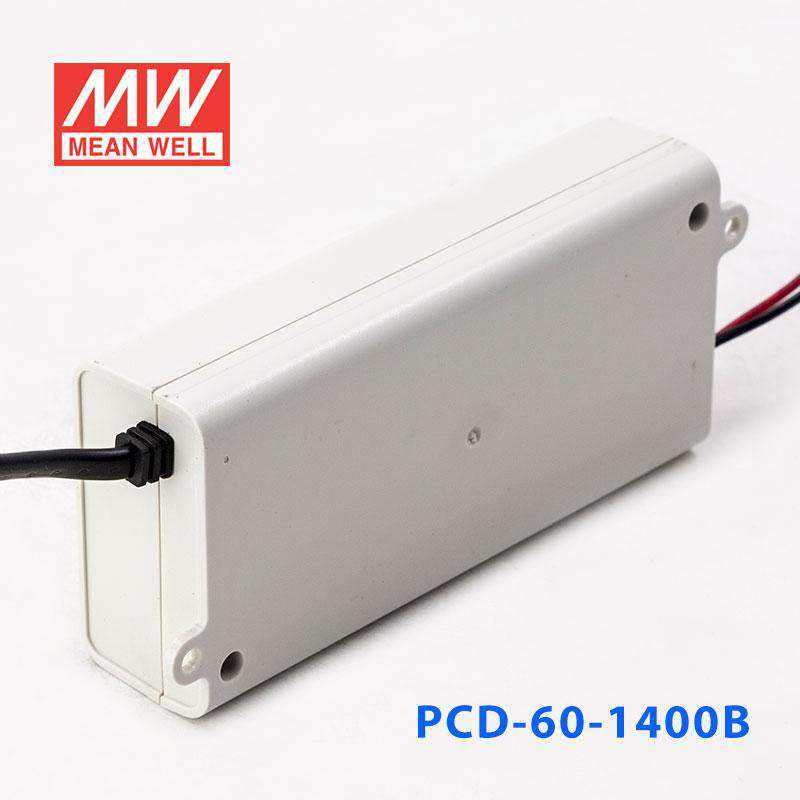

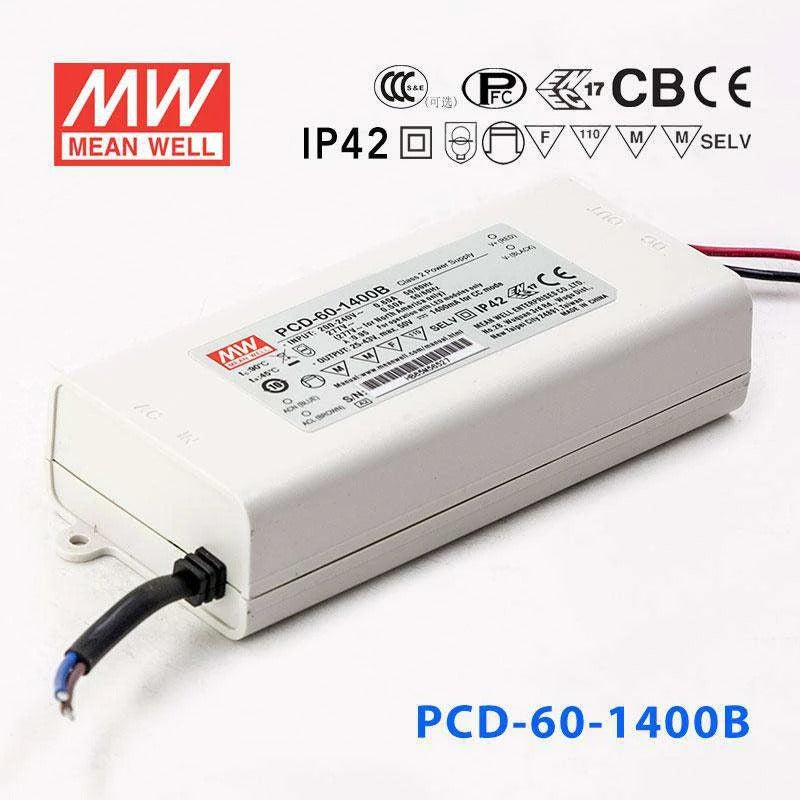

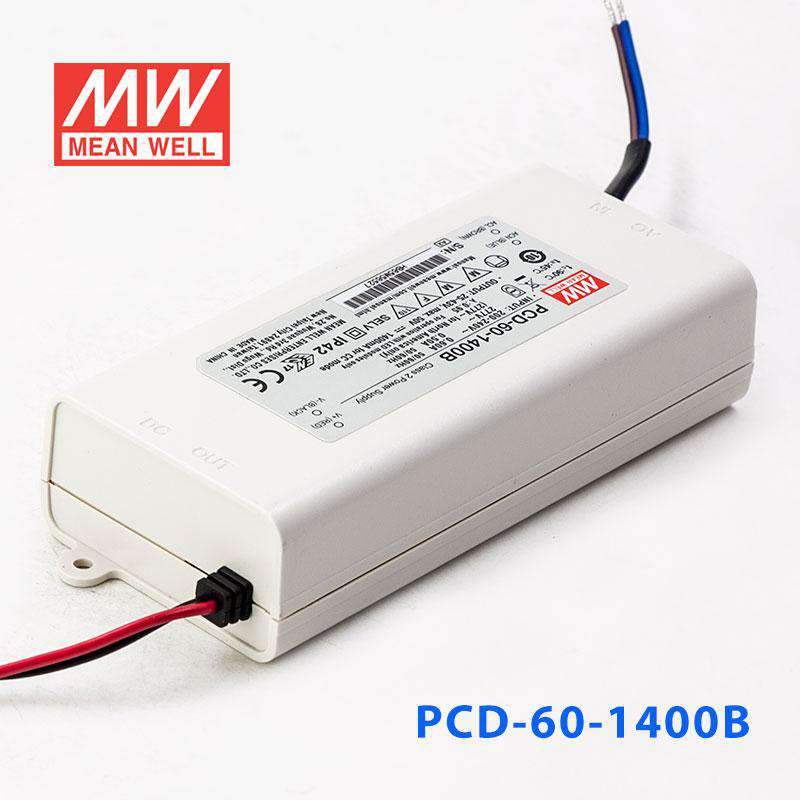

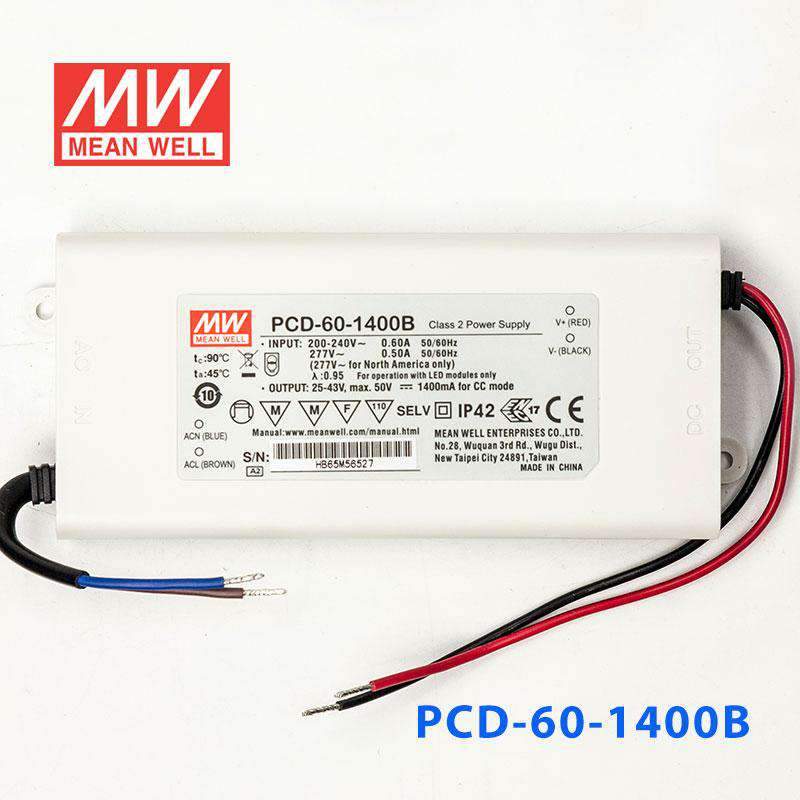

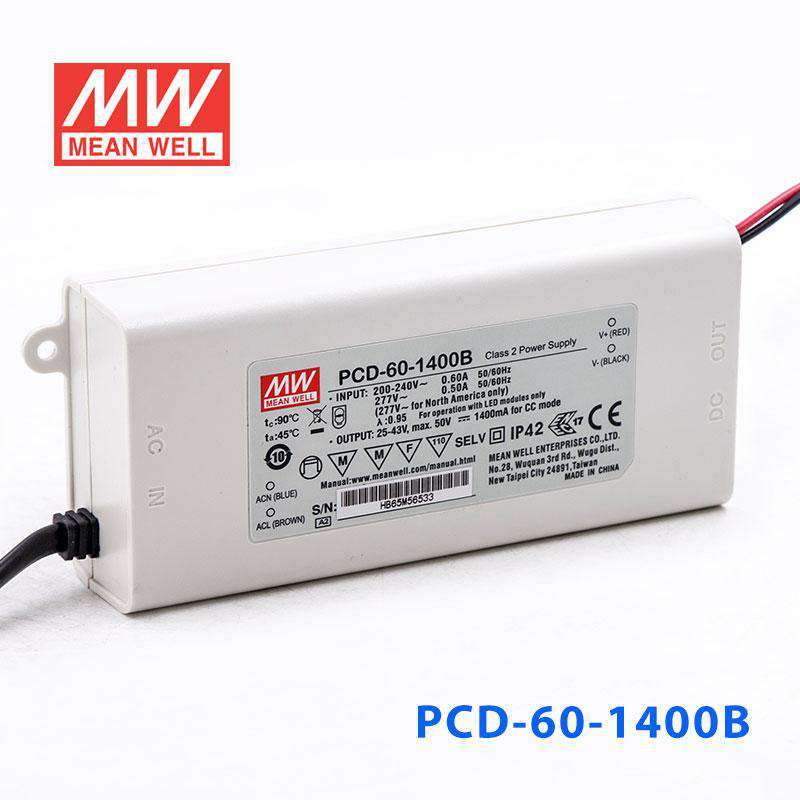

Mean Well PCD-60-1400B Power Supply 60W 1400mA

TRIAC dimmableplastic casing IP42Class II design without FGconstant current
SKU PCD-60-1400B
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

PCD-60-1400B is the model of this series: rated current 1400mA, rated power 60.2W, typical efficiency 87%.

Features

  • AC phase-cut dimming
  • Work with leading edge and trailing edge TRIAC dimmers
  • Built-in active PFC function
  • Constant current design
  • Protections: Short circuit / Over temperature
  • Cooling by free air convection
  • Fully isolated plastic case
  • IP42 design
  • Class Ⅱ power unit, no FG
  • Suitable for LED related fixture or appliance (such as LED Decoration or Advertisement devices)
  • 100% full load burn-in test
  • Low cost
  • High reliability
  • 3 years warranty

Specifications

PCD-60-1400BSpecifications from the official datasheet (2024-09-25 edition)

OUTPUT

RATED CURRENT
1400mA
OPERATING VOLTAGE RANGE
25 ~ 43V
CURRENT ACCURACY
±5.0%
RATED POWER
60.2W
RIPPLE & NOISE (max.)Note.1
3.4Vp-p
NO LOAD OUTPUT VOLTAGE (max.)
50V
SETUP TIME
500ms / 230VAC at full load

INPUT

VOLTAGE RANGE
180~295VAC
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF>0.9/230VAC, PF>0.9/277VAC at full load (Please refer to "Power Factor Characteristic" curve)
TOTAL HARMONIC DISTORTION
THD< 20% when output loading≧60%(PCD-60-500B loading≧65%)at 230VAC input and output loading≧75% at 277VAC input
EFFICIENCY (Typ.)
87%
AC CURRENT (Typ.)
0.6A/230VAC 0.5A/277VAC
INRUSH CURRENT(Typ.)
COLD START 13A (twidth=50μs measured at 50% Ipeak) at 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER
32 units (circuit breaker of type B) / 32 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT
<0.5mA / 240VAC

PROTECTION

SHORT CIRCUIT
Hiccup mode, recovers automatically after fault condition is removed.
OVER TEMPERATURE
Shut down o/p voltage, auto-recovery

ENVIRONMENT

WORKING TEMP.
-30 ~ +45℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384, EAC TP TC 004,IP42 approved
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC
ISOLATION RESISTANCE
I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C ; BS EN/EN61000-3-3,EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level(Surge 2KV), criteria B,EAC TP TC 020

OTHERS

MTBF
3910.3K hrs min. Telcordia SR-332 (Bellcore) 358.0Khrs min. MIL-HDBK-217F (25℃)
DIMENSION
128*60*31.5mm (L*W*H)
PACKING
0.35Kg;30pcs/11.5Kg/0.58CUFT
Test conditions and notes5
  1. 1. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  2. 2. Direct connecting to LEDs is suggested, but is not suitable for using additional drivers.
  3. 3. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
  4. 4. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  5. 5. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

Technical drawings

PCD-60-1400B Mechanical Specification
Mechanical Specification
PCD-60-1400B Block Diagram
Block Diagram
PCD-60-1400B Power Factor Characteristic
Power Factor Characteristic
PCD-60-1400B P C D - 6 0 series
P C D - 6 0 series

Downloads

FAQ

Can the PCD-60-1400B power 1400mA LED downlights?

Yes, when the downlight is built for constant current operation at 1400mA. The connected LED load must stay within the 25-43V constant current range, and the driver is rated up to 60.2W. It is not intended for constant voltage downlights.

Is this driver suitable for compact LED arrays with higher current demand?

This model is intended for constant current LED arrays that require 1400mA. The array's total forward voltage needs to be within 25-43V, and total load must remain within the 60.2W rating. The exact number of LEDs depends on the forward voltage of each LED.

Can I use the PCD-60-1400B for signage modules that run on constant current?

Yes, if the signage assembly is specified for constant current 1400mA input. The driver regulates current across a 25-43V constant current range, so the module voltage must fit within that window. It is not the right choice for constant voltage signage products.

How do I size an LED load for the PCD-60-1400B?

Match the load to a constant current requirement of 1400mA and keep the total forward voltage within 25-43V. The number of LEDs cannot be fixed from the driver alone because it depends on the forward voltage of each LED. Power also needs to remain within the 60.2W rating.

Is the PCD-60-1400B intended for protected indoor use or exposed locations?

With an IP42 enclosure rating, this driver is better suited to protected indoor areas. Its operating temperature range is -30°C to +45°C, but IP42 is not the same as a weatherproof outdoor enclosure. Use conditions should reflect both the temperature rating and the enclosure rating.
