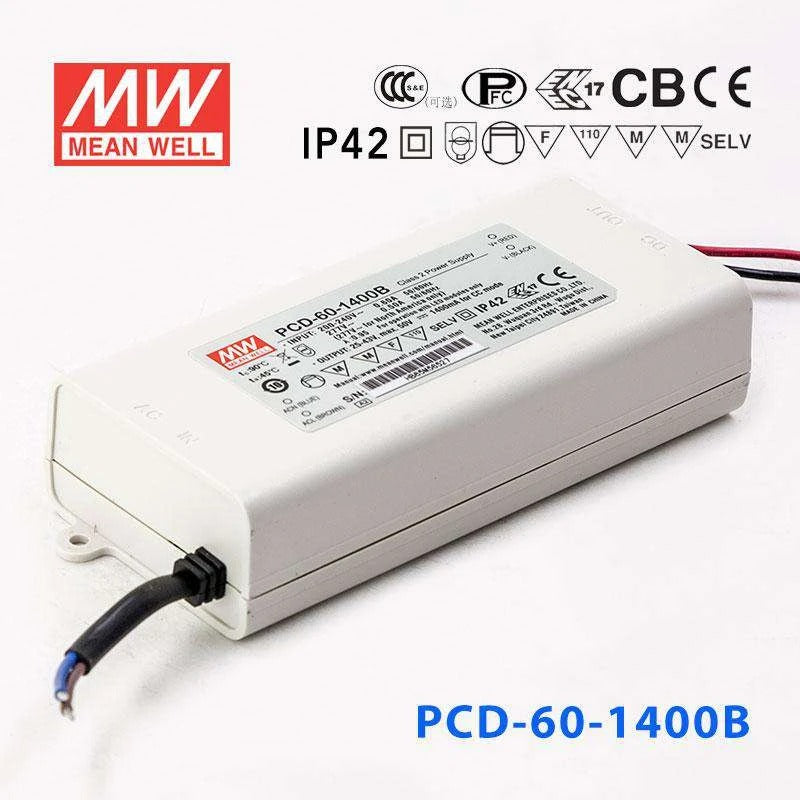

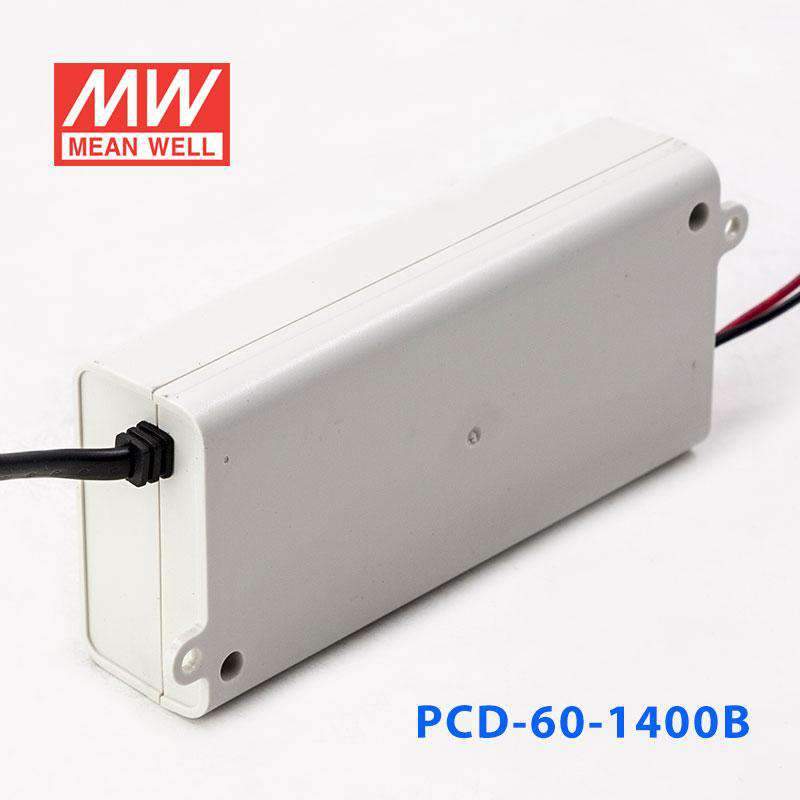

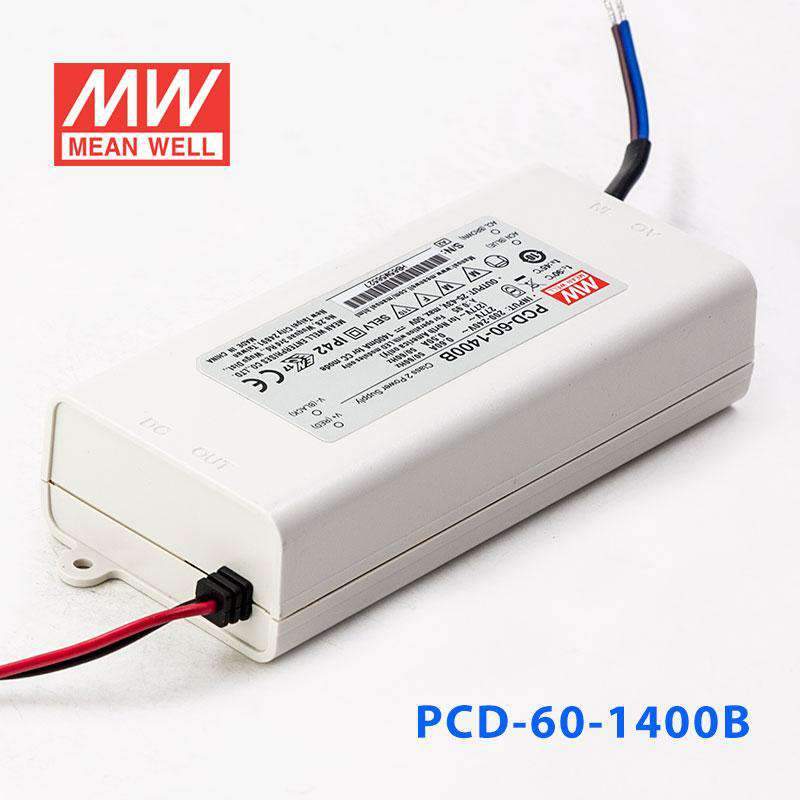

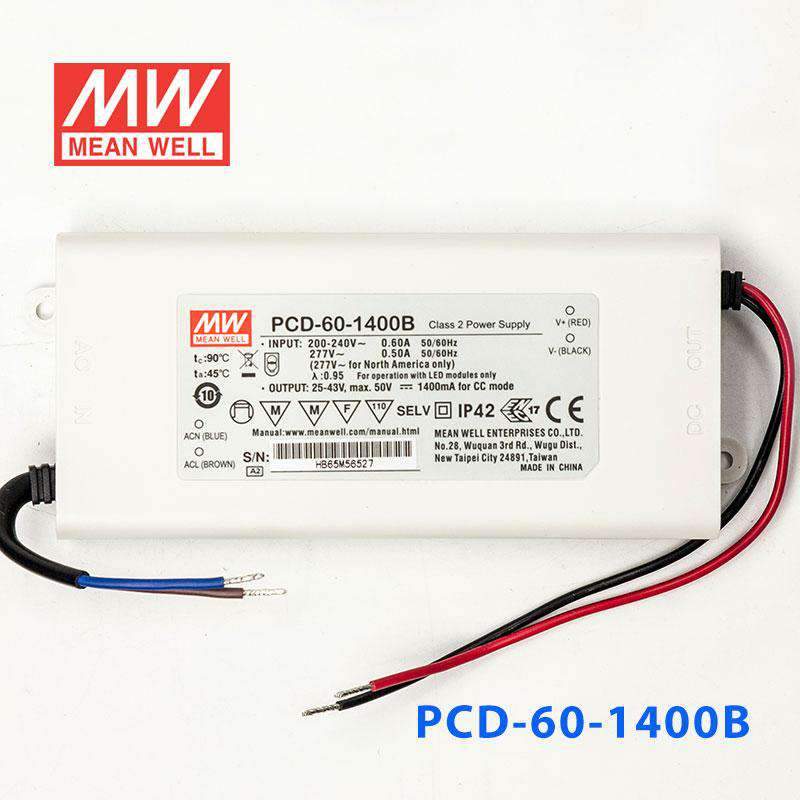

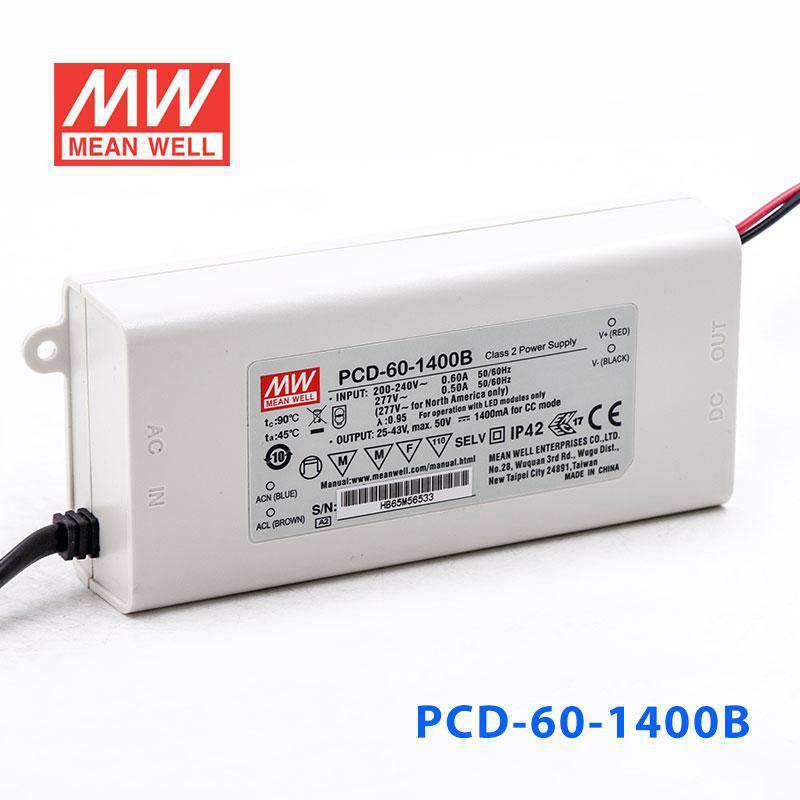

Mean Well PCD-60-1400B Power Supply 60W 1400mA

TRIAC dimmable, plastic casing IP42, Class II design without FG, constant current

SKU:

PCD-60-1400B

Please for Pricing

Notify me when it's back in stock

Description

The PCD-60 is a 60W Mean Well power converter (input range: 70~108V, operating temperature: -30~+45℃).

Key Features

✓ Input voltage range: 70~108V
✓ 3.75KVAC reinforced I/O isolation
✓ Wide operating temperature: -30~+45℃
✓ Protections: Short circuit / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: ENEC EN61347-1, EN61347-2-13 independent, EN62384, IP42
✓ 3 years warranty

Specifications

Brand

Mean Well
Series

PCD Series
Power Rating

60.2 Watt
Output Voltage

43 Volt
Rated Current

1.4 Ampere
Input Voltage

180V~295V
Standards Met

CB,CE,EAC,ENEC
Operation Mode

Constant Current
Operating Temperature

-30°C~45°C
Warranty

3 Year
Length

12.8 cm
Width

6 cm
Height

3.15 cm
Weight

0.35 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can the PCD-60-1400B power 1400mA LED downlights?

Yes, when the downlight is built for constant current operation at 1400mA. The connected LED load must stay within the 25-43V constant current range, and the driver is rated up to 60.2W. It is not intended for constant voltage downlights.

Is this driver suitable for compact LED arrays with higher current demand?

This model is intended for constant current LED arrays that require 1400mA. The array's total forward voltage needs to be within 25-43V, and total load must remain within the 60.2W rating. The exact number of LEDs depends on the forward voltage of each LED.

Can I use the PCD-60-1400B for signage modules that run on constant current?

Yes, if the signage assembly is specified for constant current 1400mA input. The driver regulates current across a 25-43V constant current range, so the module voltage must fit within that window. It is not the right choice for constant voltage signage products.

How do I size an LED load for the PCD-60-1400B?

Match the load to a constant current requirement of 1400mA and keep the total forward voltage within 25-43V. The number of LEDs cannot be fixed from the driver alone because it depends on the forward voltage of each LED. Power also needs to remain within the 60.2W rating.

Is the PCD-60-1400B intended for protected indoor use or exposed locations?

With an IP42 plastic enclosure, this driver is better suited to protected indoor areas. Its operating temperature range is -30°C to +45°C, but IP42 is not the same as a weatherproof outdoor enclosure. Use conditions should reflect both the temperature rating and the enclosure rating.

Model	Power	Voltage	Current	IP Rating
Mean Well PCD-60-700B Power Supply 60W 700mA	60.2W	86V	0.7A	Indoor	View
Mean Well PCD-60-1050B Power Supply 60W 1050mA	59.85W	57V	1.05A	Indoor	View
Mean Well PCD-60-500B Power Supply 60W 500mA	54W	108V	0.5A	Indoor	View
Mean Well PCD-60-2400B Power Supply 60W 2400mA	60W	25V	2.4A	Indoor	View
Mean Well PCD-60-2000B Power Supply 60W 2000mA	60W	30V	2A	Indoor	View
Mean Well PCD-60-1750B Power Supply 60W 1750mA	59.5W	34V	1.75A	Indoor	View
