Mean Well

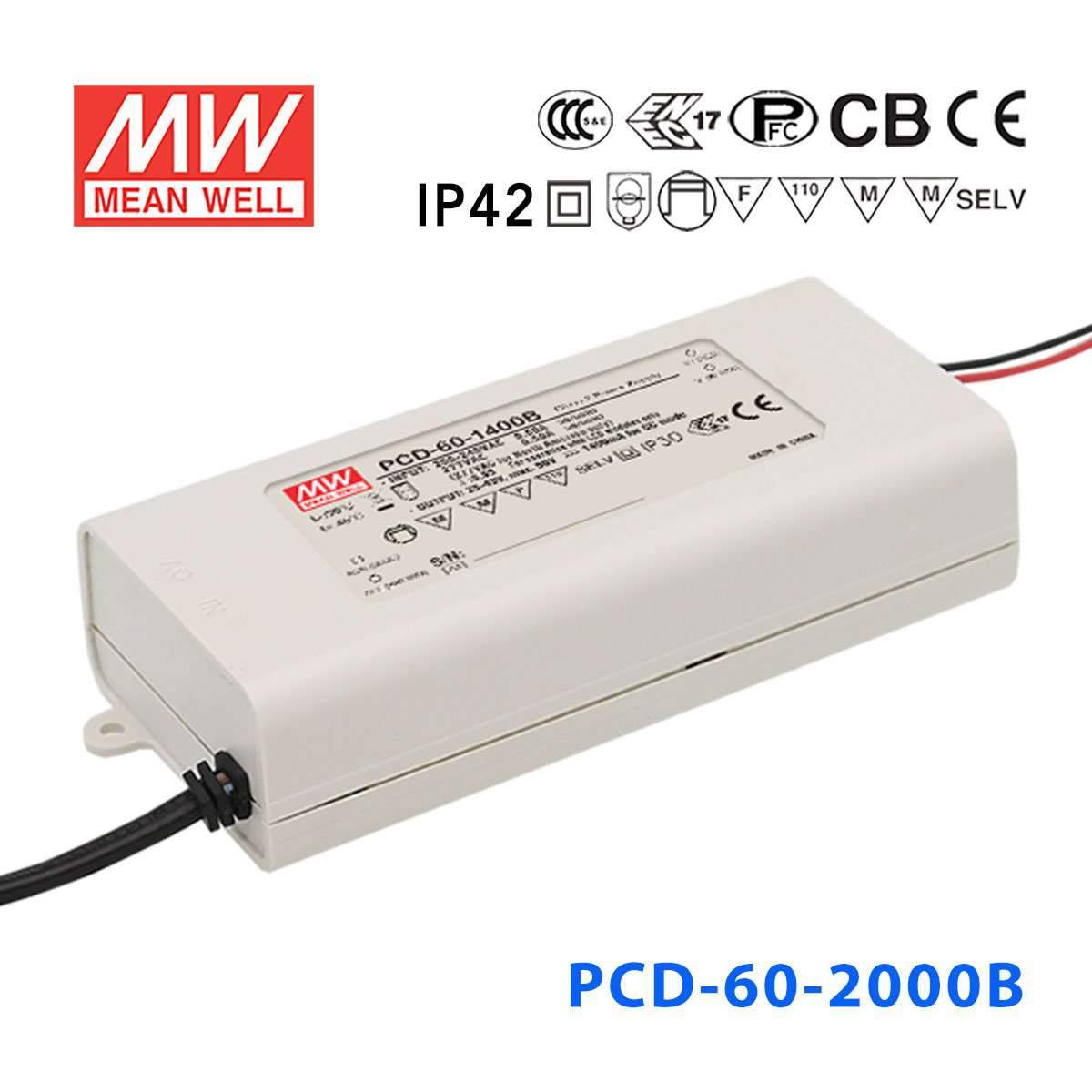

Mean Well PCD-60-2000B Power Supply 60W 2000mA

TRIAC dimmableplastic casing IP42Class II design without FGconstant current
SKU PCD-60-2000B
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

PCD-60-2000B is the model of this series: rated current 2000mA, rated power 60W, typical efficiency 87%.

Features

  • AC phase-cut dimming
  • Work with leading edge and trailing edge TRIAC dimmers
  • Built-in active PFC function
  • Constant current design
  • Protections: Short circuit / Over temperature
  • Cooling by free air convection
  • Fully isolated plastic case
  • IP42 design
  • Class Ⅱ power unit, no FG
  • Suitable for LED related fixture or appliance (such as LED Decoration or Advertisement devices)
  • 100% full load burn-in test
  • Low cost
  • High reliability
  • 3 years warranty

Specifications

PCD-60-2000BSpecifications from the official datasheet (2024-09-25 edition)

OUTPUT

RATED CURRENT
2000mA
OPERATING VOLTAGE RANGE
18 ~ 30V
CURRENT ACCURACY
±5.0%
RATED POWER
60W
RIPPLE & NOISE (max.)Note.1
2.4Vp-p
NO LOAD OUTPUT VOLTAGE (max.)
35V
SETUP TIME
500ms / 230VAC at full load

INPUT

VOLTAGE RANGE
180~295VAC
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF>0.9/230VAC, PF>0.9/277VAC at full load (Please refer to "Power Factor Characteristic" curve)
TOTAL HARMONIC DISTORTION
THD< 20% when output loading≧60%(PCD-60-500B loading≧65%)at 230VAC input and output loading≧75% at 277VAC input
EFFICIENCY (Typ.)
87%
AC CURRENT (Typ.)
0.6A/230VAC 0.5A/277VAC
INRUSH CURRENT(Typ.)
COLD START 13A (twidth=50μs measured at 50% Ipeak) at 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER
32 units (circuit breaker of type B) / 32 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT
<0.5mA / 240VAC

PROTECTION

SHORT CIRCUIT
Hiccup mode, recovers automatically after fault condition is removed.
OVER TEMPERATURE
Shut down o/p voltage, auto-recovery

ENVIRONMENT

WORKING TEMP.
-30 ~ +45℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384, EAC TP TC 004,IP42 approved
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC
ISOLATION RESISTANCE
I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C ; BS EN/EN61000-3-3,EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level(Surge 2KV), criteria B,EAC TP TC 020

OTHERS

MTBF
3910.3K hrs min. Telcordia SR-332 (Bellcore) 358.0Khrs min. MIL-HDBK-217F (25℃)
DIMENSION
128*60*31.5mm (L*W*H)
PACKING
0.35Kg;30pcs/11.5Kg/0.58CUFT
Test conditions and notes5
  1. 1. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  2. 2. Direct connecting to LEDs is suggested, but is not suitable for using additional drivers.
  3. 3. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
  4. 4. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  5. 5. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

Technical drawings

PCD-60-2000B Mechanical Specification
Mechanical Specification
PCD-60-2000B Block Diagram
Block Diagram
PCD-60-2000B Power Factor Characteristic
Power Factor Characteristic
PCD-60-2000B P C D - 6 0 series
P C D - 6 0 series

Downloads

FAQ

Can the PCD-60-2000B run 2000mA LED downlights?

Yes, for LED downlights designed for constant current operation at 2000mA. The LED load must stay within the 18-30V constant current range, and the driver is rated for 60W. It is not intended for fixtures that expect constant voltage input.

Is this driver appropriate for dense small LED arrays that need high current?

It is suitable for constant current LED arrays rated at 2000mA when their total forward voltage falls between 18V and 30V. The maximum rated output power is 60W. The number of LEDs depends on the forward voltage of each LED, not on the driver alone.

Can I use the PCD-60-2000B for high-current signage modules?

Yes, if the signage module or assembly is designed for constant current 2000mA operation. The driver works across an 18-30V constant current range and should only be paired with loads inside that voltage window. Constant voltage signage systems are not the same category of load.

How do I verify LED compatibility with the PCD-60-2000B?

Start by confirming that the LED load requires a constant current driver at 2000mA. Then confirm the total forward voltage is within the 18-30V constant current range; the number of LEDs depends on each LED's forward voltage. The overall load also needs to remain within the 60W rating.

Is the PCD-60-2000B suitable for exposed outdoor use?

This model has an IP42 enclosure, so it is intended for protected environments rather than exposed outdoor conditions. Its operating temperature range is -30°C to +45°C, but the ingress rating remains IP42. Environmental fit should be based on both factors.
