Mean Well

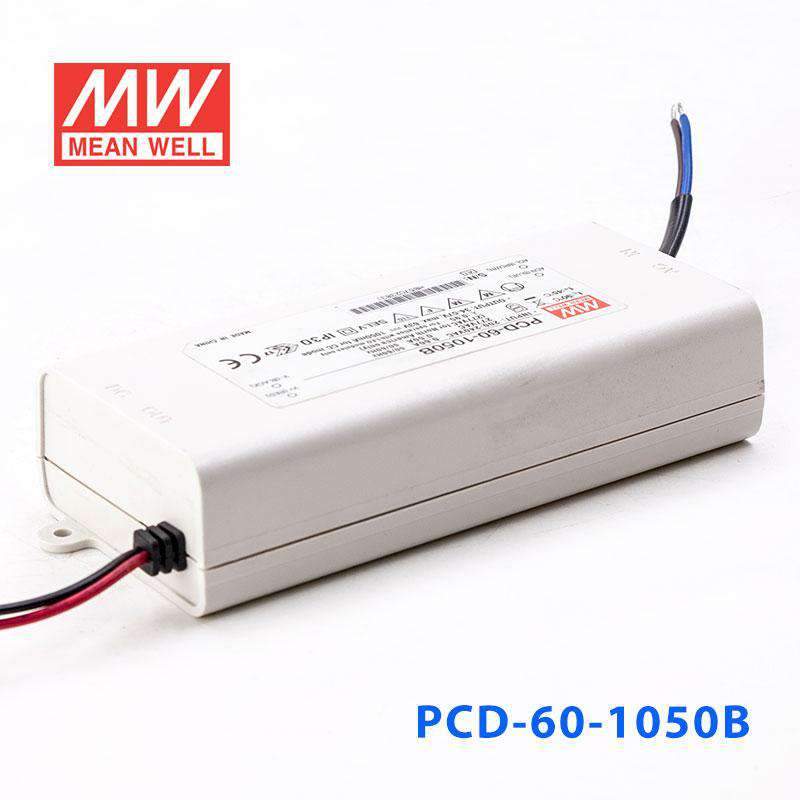

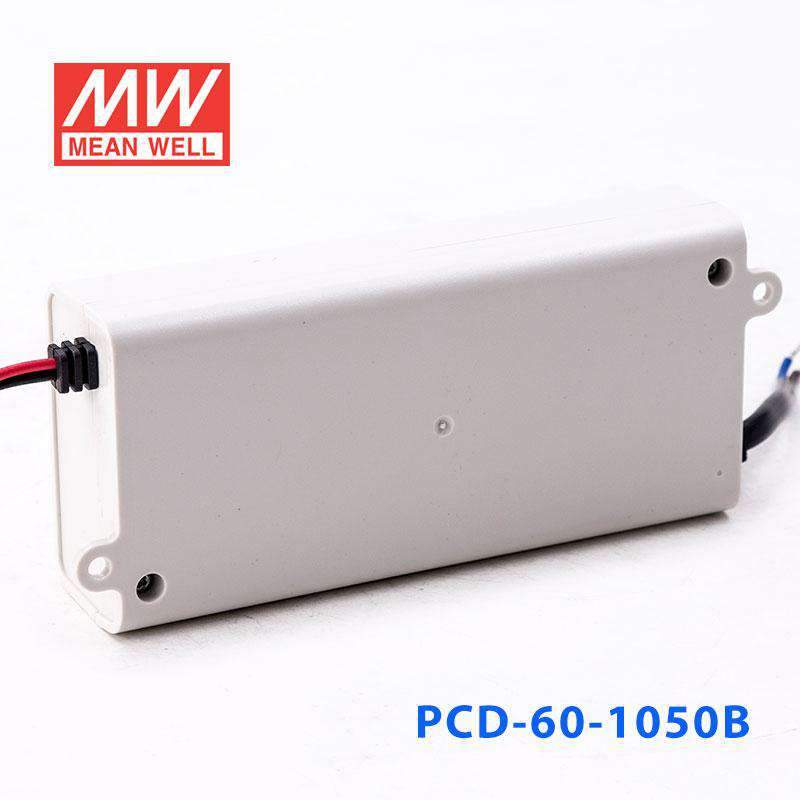

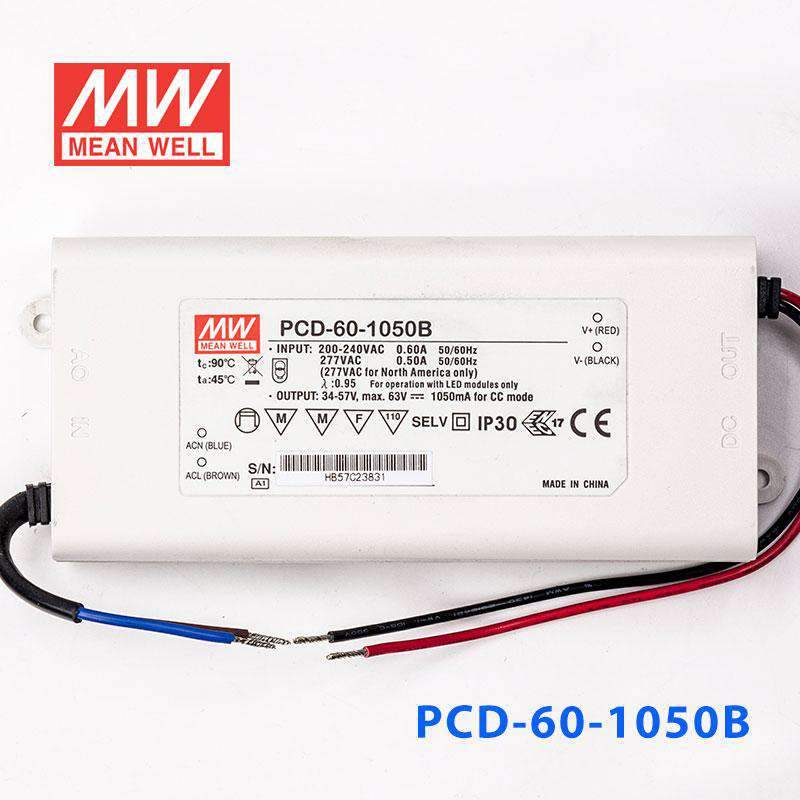

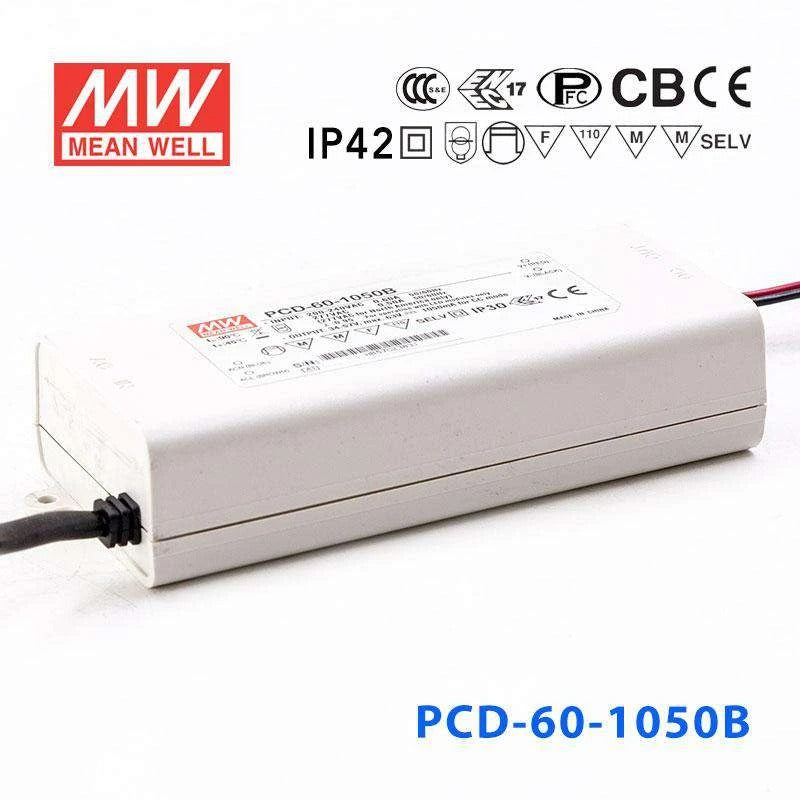

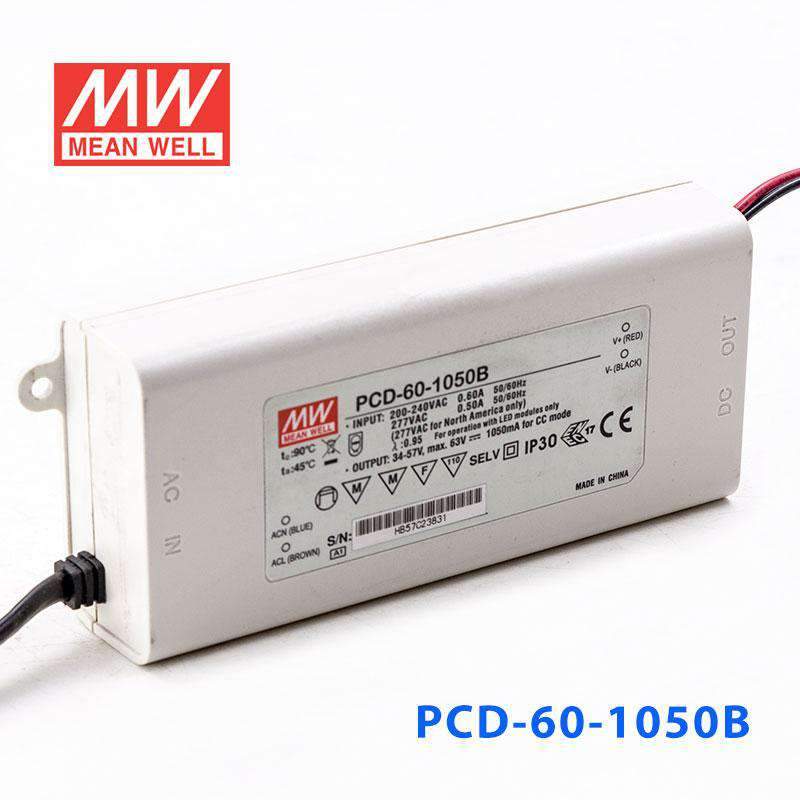

Mean Well PCD-60-1050B Power Supply 60W 1050mA

TRIAC dimmableplastic casing IP42Class II design without FGconstant current
SKU PCD-60-1050B
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

PCD-60-1050B is the model of this series: rated current 1050mA, rated power 59.85W, typical efficiency 86%.

Features

  • AC phase-cut dimming
  • Work with leading edge and trailing edge TRIAC dimmers
  • Built-in active PFC function
  • Constant current design
  • Protections: Short circuit / Over temperature
  • Cooling by free air convection
  • Fully isolated plastic case
  • IP42 design
  • Class Ⅱ power unit, no FG
  • Suitable for LED related fixture or appliance (such as LED Decoration or Advertisement devices)
  • 100% full load burn-in test
  • Low cost
  • High reliability
  • 3 years warranty

Specifications

PCD-60-1050BSpecifications from the official datasheet (2024-09-25 edition)

OUTPUT

RATED CURRENT
1050mA
OPERATING VOLTAGE RANGE
34 ~ 57V
CURRENT ACCURACY
±5.0%
RATED POWER
59.85W
RIPPLE & NOISE (max.)Note.1
3.8Vp-p
NO LOAD OUTPUT VOLTAGE (max.)
63V
SETUP TIME
500ms / 230VAC at full load

INPUT

VOLTAGE RANGE
180~295VAC
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF>0.9/230VAC, PF>0.9/277VAC at full load (Please refer to "Power Factor Characteristic" curve)
TOTAL HARMONIC DISTORTION
THD< 20% when output loading≧60%(PCD-60-500B loading≧65%)at 230VAC input and output loading≧75% at 277VAC input
EFFICIENCY (Typ.)
86%
AC CURRENT (Typ.)
0.6A/230VAC 0.5A/277VAC
INRUSH CURRENT(Typ.)
COLD START 13A (twidth=50μs measured at 50% Ipeak) at 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER
32 units (circuit breaker of type B) / 32 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT
<0.5mA / 240VAC

PROTECTION

SHORT CIRCUIT
Hiccup mode, recovers automatically after fault condition is removed.
OVER TEMPERATURE
Shut down o/p voltage, auto-recovery

ENVIRONMENT

WORKING TEMP.
-30 ~ +45℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384, EAC TP TC 004,IP42 approved
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC
ISOLATION RESISTANCE
I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C ; BS EN/EN61000-3-3,EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level(Surge 2KV), criteria B,EAC TP TC 020

OTHERS

MTBF
3910.3K hrs min. Telcordia SR-332 (Bellcore) 358.0Khrs min. MIL-HDBK-217F (25℃)
DIMENSION
128*60*31.5mm (L*W*H)
PACKING
0.35Kg;30pcs/11.5Kg/0.58CUFT
Test conditions and notes5
  1. 1. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  2. 2. Direct connecting to LEDs is suggested, but is not suitable for using additional drivers.
  3. 3. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
  4. 4. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  5. 5. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

Technical drawings

PCD-60-1050B Mechanical Specification
Mechanical Specification
PCD-60-1050B Block Diagram
Block Diagram
PCD-60-1050B Power Factor Characteristic
Power Factor Characteristic
PCD-60-1050B P C D - 6 0 series
P C D - 6 0 series

Downloads

FAQ

Can I use the PCD-60-1050B with 1050mA LED downlights?

Yes, if the downlight is designed for constant current operation at 1050mA. The LED load must operate within the 34-57V constant current range, and the driver is rated for up to 59.85W. It should not be used where the fixture requires constant voltage input.

Will this driver work for a higher-power small LED array?

It can, provided the array is a constant current load rated for 1050mA. The full LED string or array must stay within 34-57V during constant current operation and within the 59.85W power rating. The final LED count depends on the forward voltage of each LED.

Is the PCD-60-1050B a good choice for constant current signage lighting modules?

It is appropriate only for signage lighting modules or assemblies that are specified for constant current 1050mA operation. The output operates across 34-57V in constant current mode, so the module voltage needs to fall inside that range. Constant voltage signage systems need a different type of power supply.

What should I check before pairing LEDs with the PCD-60-1050B?

The key checks are output type and voltage window. This is a constant current 1050mA driver, and the LED load must fall within the 34-57V constant current range; the number of LEDs depends on each LED's forward voltage. It is not interchangeable with a constant voltage driver.

Can the PCD-60-1050B be used in cooler or warmer indoor environments?

Its specified operating temperature range is -30°C to +45°C. The housing is IP42, so it is intended for protected environments rather than direct exposure to weather or heavy moisture. Temperature capability and enclosure rating both need to fit the site conditions.
