Over 15 years experience of providing support of MEAN WELL Power Supplies

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

×
High Resolution Image

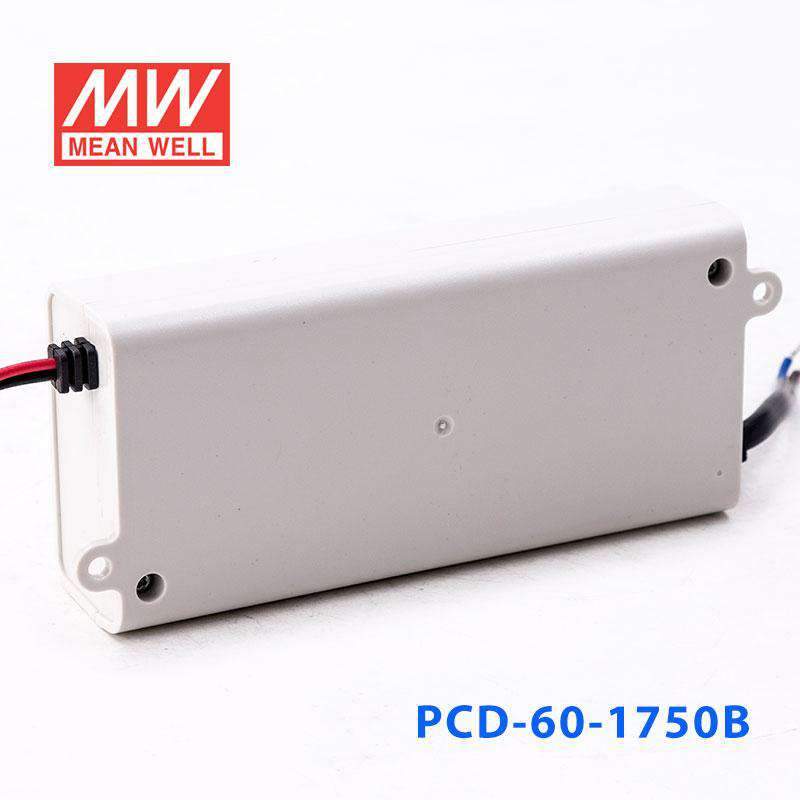

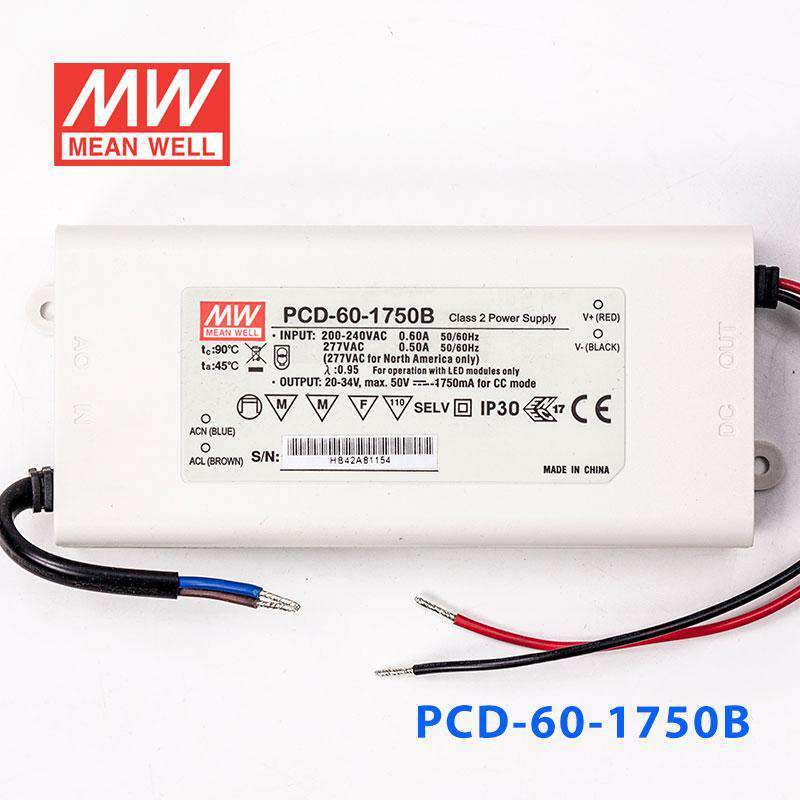

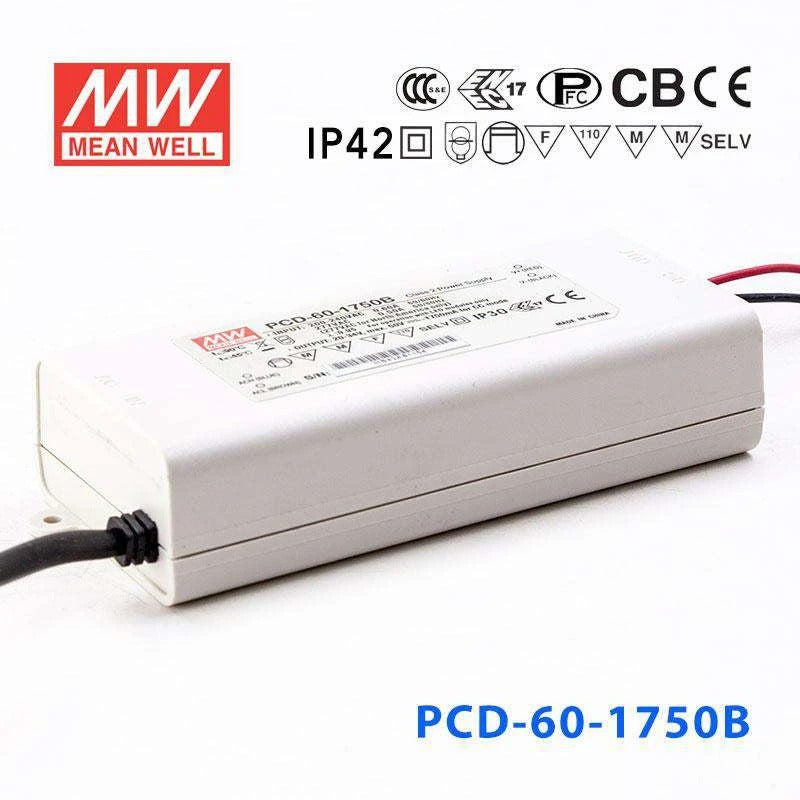

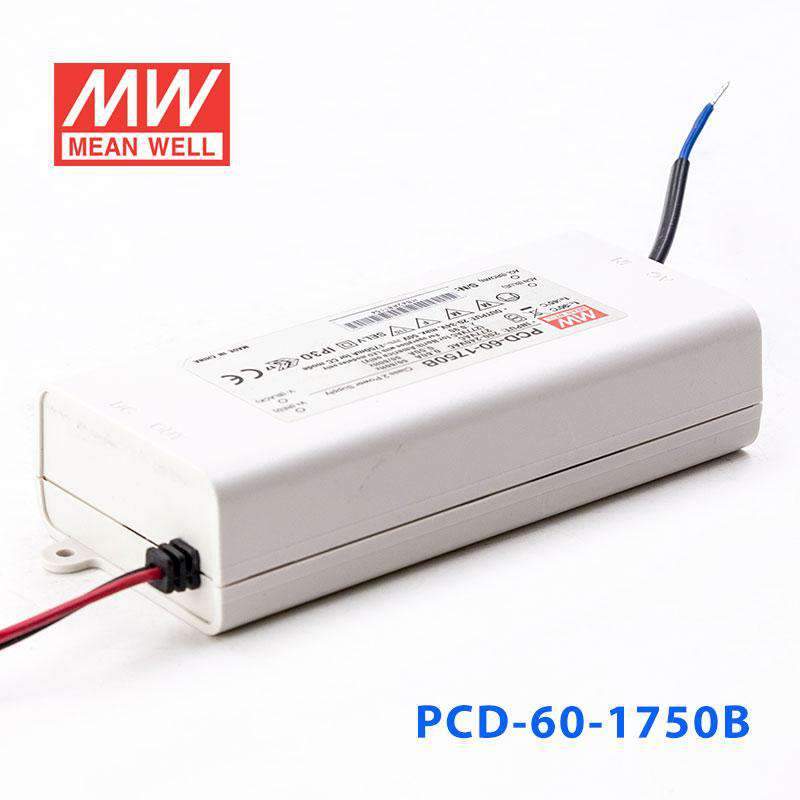

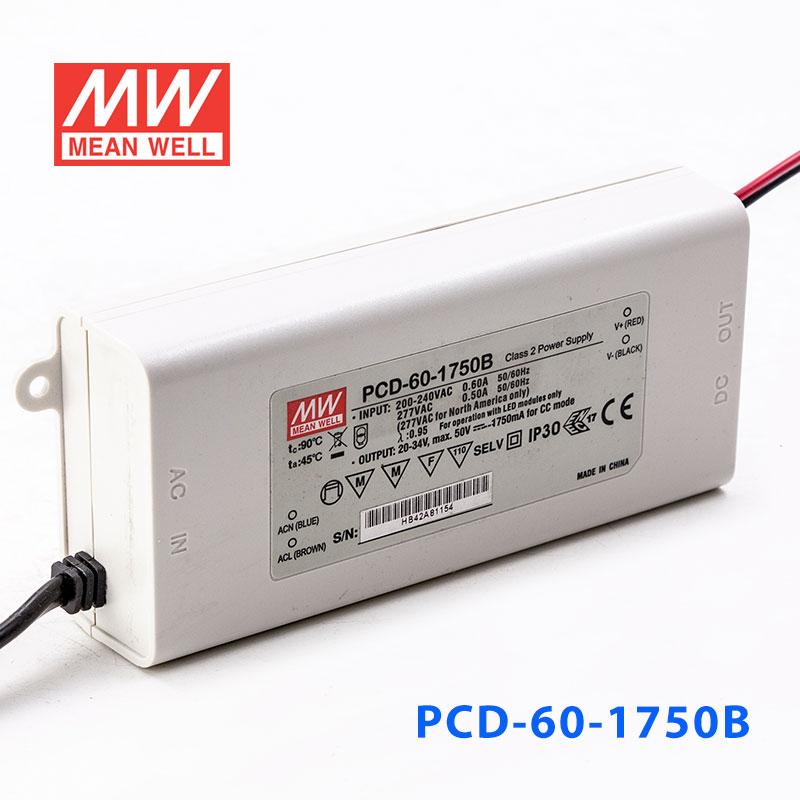

Mean Well PCD-60-1750B Power Supply 60W 1750mA

TRIAC dimmable, plastic casing IP42, Class II design without FG, constant current
SKU:
PCD-60-1750B

|

Description

Features

AC phase-cut dimming, work with leading edge and trailing edge TRIAC dimmers
115VAC or 230VAC input
Protections: Short circuit / Over temperature
Constant current design
Class 2 power unit / Pass LPS
Isolation class II, no FG
Fully isolated plastic case
Cooling by free air convection
Built-in active PFC function
IP42 design
3 years warranty

General Specification

AC input voltage range 115VAC (90 ~ 135VAC) or 230VAC (180 ~ 295VAC)
AC inrush current (max.) Cold start, 10A at 230VAC
Withstand voltage I / P - O / P: 3.75 k VAC
Working temperature -30 ~ + 60ºC (refer to output derating curve)
Safety standards ENEC EN61347-1, EN61347-2-13 independent, EN62384approved
EMC standards EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547
Connection Input H03VVH2-F 0.75mm²x2C (7.5cm)
Connection Output UL1430 18AWGx2C (15cm)
Dimension (LxWxH) (mm) 128x 60x 31.5

Specifications

  • Brand
    Mean Well
  • Series
    PCD Series
  • Power Rating
    59.5 Watt
  • Output Voltage
    34 Volt
  • Rated Current
    1.75 Ampere
  • Input Voltage
    180V~295V
  • Standards Met
    CB,CE,EAC,ENEC
  • Operation Mode
    Constant Current
  • Operating Temperature
    -30°C~45°C
  • Warranty
    3 Year
  • Length
    12.8 cm
  • Width
    6 cm
  • Height
    3.15 cm
  • Weight
    0.35 kg

File Downloads

::specification::
