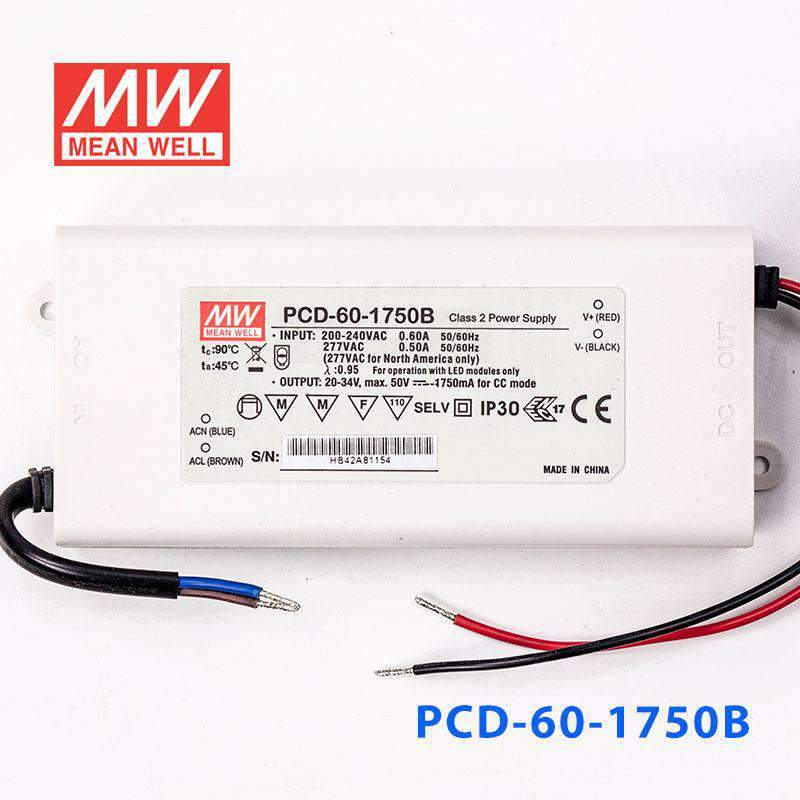

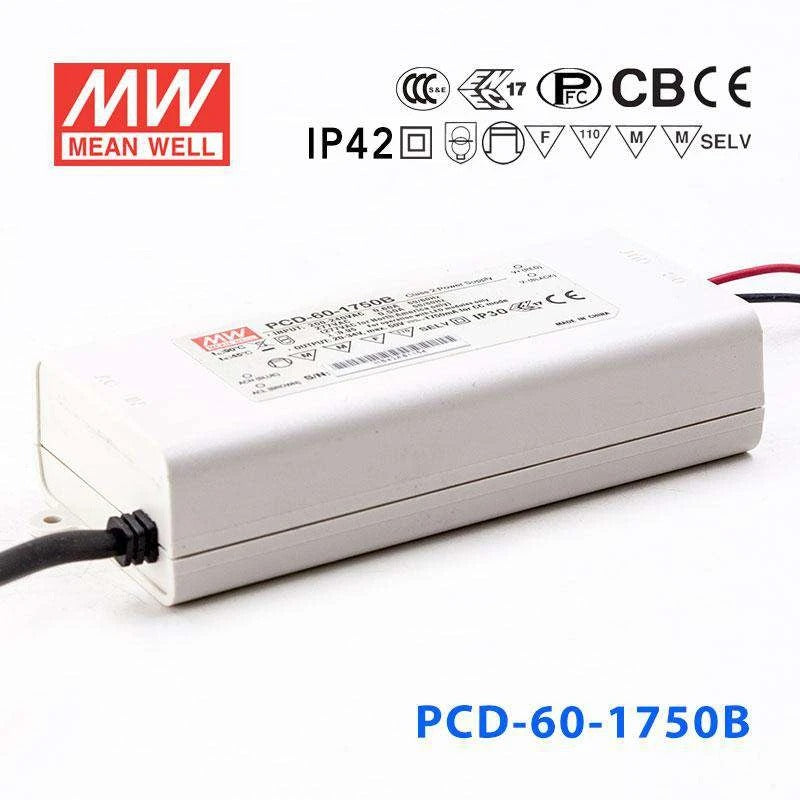

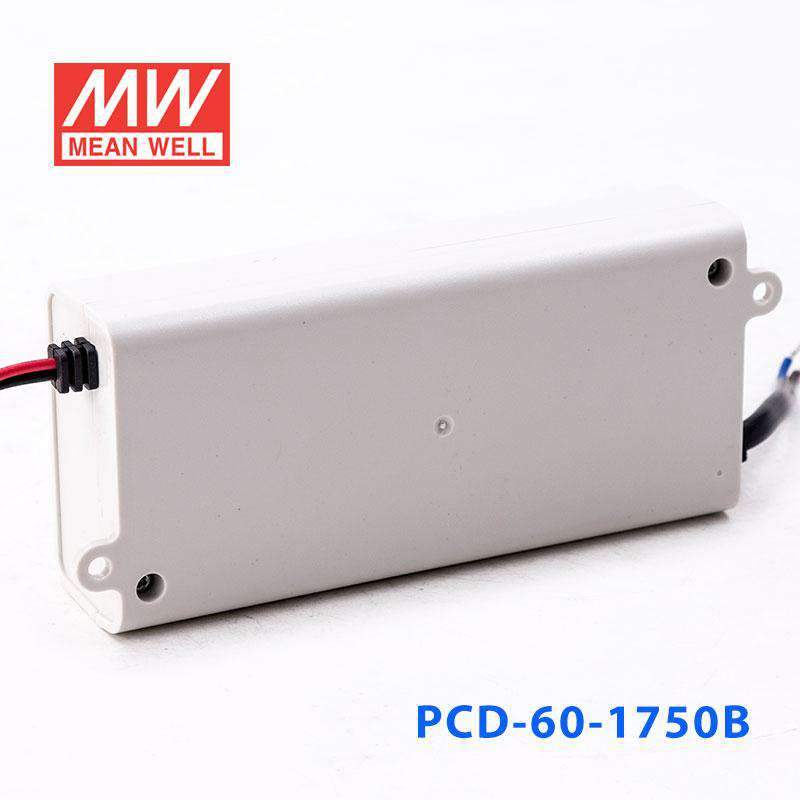

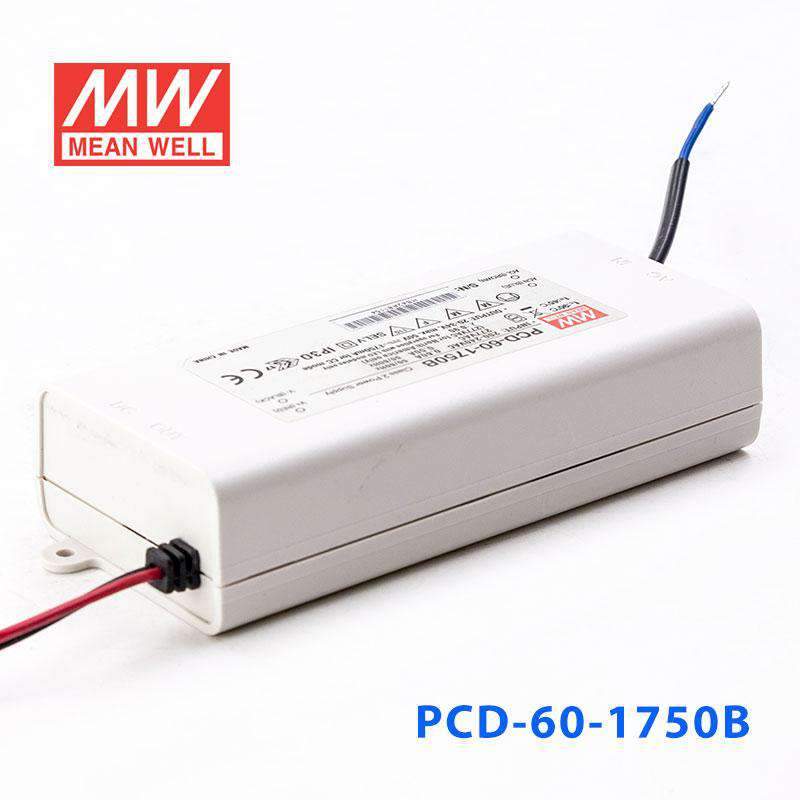

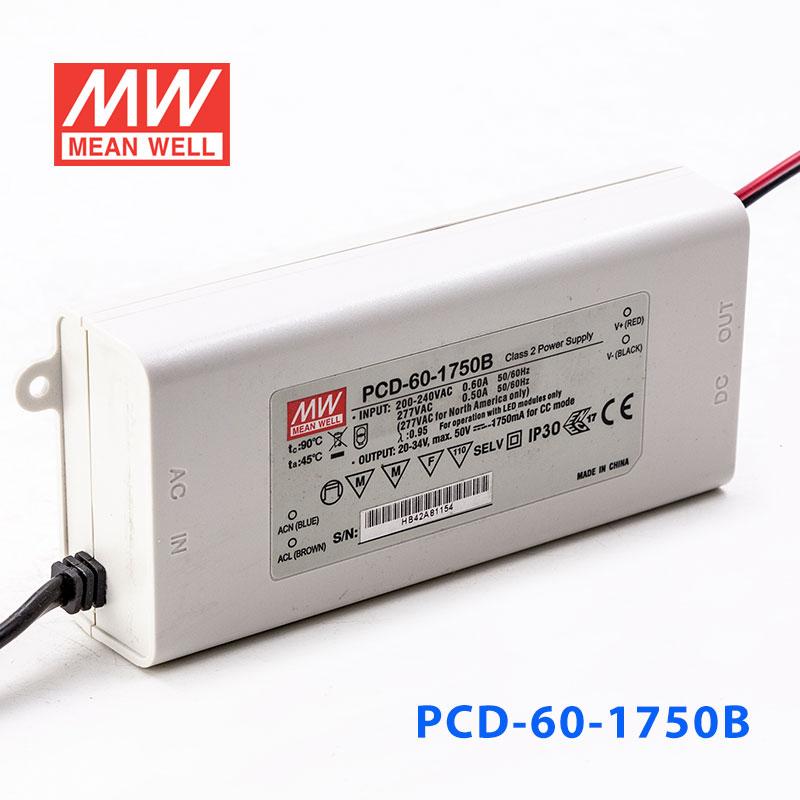

Mean Well PCD-60-1750B Power Supply 60W 1750mA

TRIAC dimmableplastic casing IP42Class II design without FGconstant current
SKU PCD-60-1750B
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

PCD-60-1750B is the model of this series: rated current 1750mA, rated power 59.5W, typical efficiency 87%.

Features

  • AC phase-cut dimming
  • Work with leading edge and trailing edge TRIAC dimmers
  • Built-in active PFC function
  • Constant current design
  • Protections: Short circuit / Over temperature
  • Cooling by free air convection
  • Fully isolated plastic case
  • IP42 design
  • Class Ⅱ power unit, no FG
  • Suitable for LED related fixture or appliance (such as LED Decoration or Advertisement devices)
  • 100% full load burn-in test
  • Low cost
  • High reliability
  • 3 years warranty

Specifications

PCD-60-1750BSpecifications from the official datasheet (2024-09-25 edition)

OUTPUT

RATED CURRENT
1750mA
OPERATING VOLTAGE RANGE
20 ~ 34V
CURRENT ACCURACY
±5.0%
RATED POWER
59.5W
RIPPLE & NOISE (max.)Note.1
3.3Vp-p
NO LOAD OUTPUT VOLTAGE (max.)
50V
SETUP TIME
500ms / 230VAC at full load

INPUT

VOLTAGE RANGE
180~295VAC
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF>0.9/230VAC, PF>0.9/277VAC at full load (Please refer to "Power Factor Characteristic" curve)
TOTAL HARMONIC DISTORTION
THD< 20% when output loading≧60%(PCD-60-500B loading≧65%)at 230VAC input and output loading≧75% at 277VAC input
EFFICIENCY (Typ.)
87%
AC CURRENT (Typ.)
0.6A/230VAC 0.5A/277VAC
INRUSH CURRENT(Typ.)
COLD START 13A (twidth=50μs measured at 50% Ipeak) at 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER
32 units (circuit breaker of type B) / 32 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT
<0.5mA / 240VAC

PROTECTION

SHORT CIRCUIT
Hiccup mode, recovers automatically after fault condition is removed.
OVER TEMPERATURE
Shut down o/p voltage, auto-recovery

ENVIRONMENT

WORKING TEMP.
-30 ~ +45℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384, EAC TP TC 004,IP42 approved
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC
ISOLATION RESISTANCE
I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C ; BS EN/EN61000-3-3,EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level(Surge 2KV), criteria B,EAC TP TC 020

OTHERS

MTBF
3910.3K hrs min. Telcordia SR-332 (Bellcore) 358.0Khrs min. MIL-HDBK-217F (25℃)
DIMENSION
128*60*31.5mm (L*W*H)
PACKING
0.35Kg;30pcs/11.5Kg/0.58CUFT
Test conditions and notes5
  1. 1. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  2. 2. Direct connecting to LEDs is suggested, but is not suitable for using additional drivers.
  3. 3. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
  4. 4. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  5. 5. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

Technical drawings

PCD-60-1750B Mechanical Specification
Mechanical Specification
PCD-60-1750B Block Diagram
Block Diagram
PCD-60-1750B Power Factor Characteristic
Power Factor Characteristic
PCD-60-1750B P C D - 6 0 series
P C D - 6 0 series

Downloads

FAQ

Can I use the PCD-60-1750B for 1750mA LED downlights?

Yes, if the fixture is specified for constant current 1750mA operation. The driver supports a 20-34V constant current range and up to 59.5W output. It should not be used in place of a constant voltage supply.

Will this driver work for a short, high-current LED array?

It can be a fit for a small LED array that requires constant current at 1750mA. The total LED forward voltage must fall within 20-34V, and the load must stay within the 59.5W power rating. The actual LED quantity depends on the forward voltage of each LED.

Is the PCD-60-1750B suitable for constant current signage assemblies?

Yes, but only where the signage assembly is designed for constant current 1750mA operation. The driver's usable constant current voltage window is 20-34V, so the LED assembly must operate inside that range. Constant voltage signage modules require a different power source.

What kind of LED load is compatible with the PCD-60-1750B?

This driver is for constant current LED loads at 1750mA, not constant voltage products. The total LED forward voltage must stay within 20-34V, and the allowable number of LEDs depends on the forward voltage of each LED. Total power should remain within 59.5W.

Can this driver be used where temperature swings are a concern?

Its operating temperature range is -30°C to +45°C, which covers a wide span for protected installations. The housing is IP42, so environmental suitability still depends on keeping it in an appropriately sheltered location. Temperature range and ingress rating should both be considered together.
