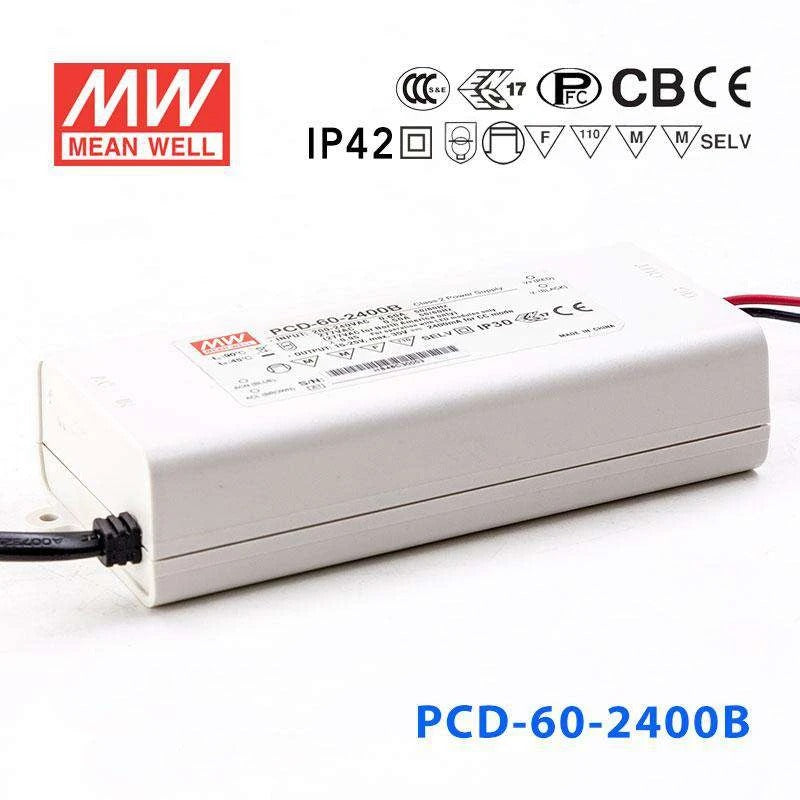

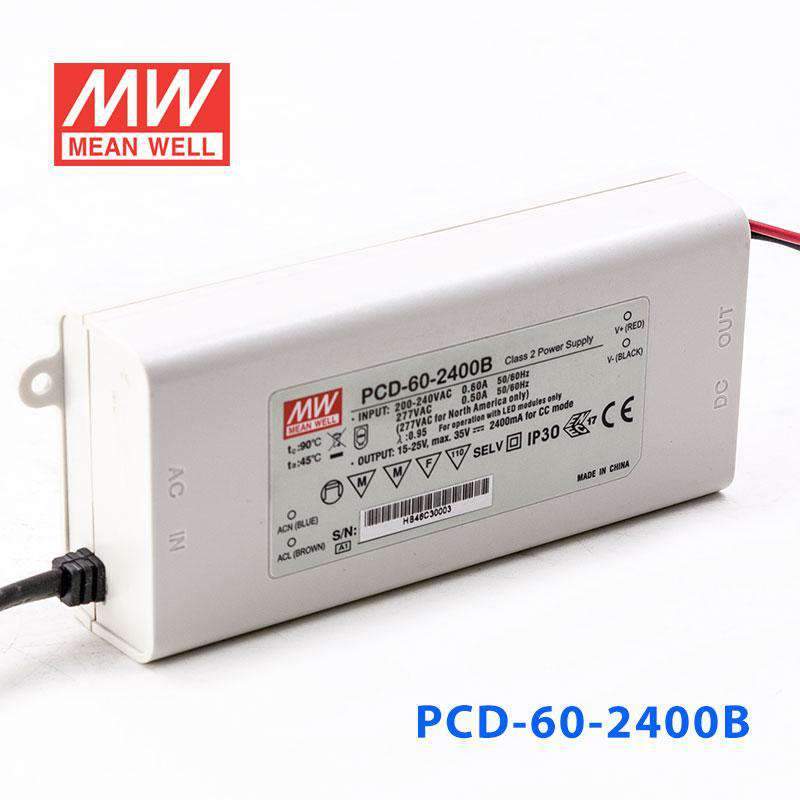

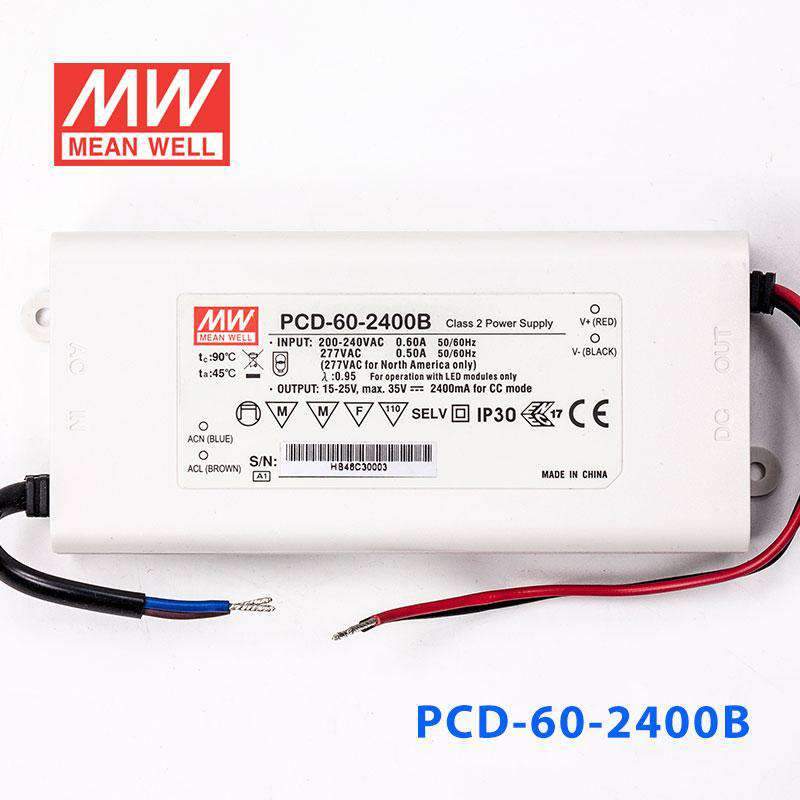

Mean Well PCD-60-2400B Power Supply 60W 2400mA

TRIAC dimmableplastic casing IP42Class II design without FGconstant current
SKU PCD-60-2400B
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

PCD-60-2400B is the model of this series: rated current 2400mA, rated power 60W, typical efficiency 86%.

Features

  • AC phase-cut dimming
  • Work with leading edge and trailing edge TRIAC dimmers
  • Built-in active PFC function
  • Constant current design
  • Protections: Short circuit / Over temperature
  • Cooling by free air convection
  • Fully isolated plastic case
  • IP42 design
  • Class Ⅱ power unit, no FG
  • Suitable for LED related fixture or appliance (such as LED Decoration or Advertisement devices)
  • 100% full load burn-in test
  • Low cost
  • High reliability
  • 3 years warranty

Specifications

PCD-60-2400BSpecifications from the official datasheet (2024-09-25 edition)

OUTPUT

RATED CURRENT
2400mA
OPERATING VOLTAGE RANGE
15 ~ 25V
CURRENT ACCURACY
±5.0%
RATED POWER
60W
RIPPLE & NOISE (max.)Note.1
2.4Vp-p
NO LOAD OUTPUT VOLTAGE (max.)
35V
SETUP TIME
500ms / 230VAC at full load

INPUT

VOLTAGE RANGE
180~295VAC
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF>0.9/230VAC, PF>0.9/277VAC at full load (Please refer to "Power Factor Characteristic" curve)
TOTAL HARMONIC DISTORTION
THD< 20% when output loading≧60%(PCD-60-500B loading≧65%)at 230VAC input and output loading≧75% at 277VAC input
EFFICIENCY (Typ.)
86%
AC CURRENT (Typ.)
0.6A/230VAC 0.5A/277VAC
INRUSH CURRENT(Typ.)
COLD START 13A (twidth=50μs measured at 50% Ipeak) at 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER
32 units (circuit breaker of type B) / 32 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT
<0.5mA / 240VAC

PROTECTION

SHORT CIRCUIT
Hiccup mode, recovers automatically after fault condition is removed.
OVER TEMPERATURE
Shut down o/p voltage, auto-recovery

ENVIRONMENT

WORKING TEMP.
-30 ~ +45℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384, EAC TP TC 004,IP42 approved
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC
ISOLATION RESISTANCE
I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C ; BS EN/EN61000-3-3,EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level(Surge 2KV), criteria B,EAC TP TC 020

OTHERS

MTBF
3910.3K hrs min. Telcordia SR-332 (Bellcore) 358.0Khrs min. MIL-HDBK-217F (25℃)
DIMENSION
128*60*31.5mm (L*W*H)
PACKING
0.35Kg;30pcs/11.5Kg/0.58CUFT
Test conditions and notes5
  1. 1. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  2. 2. Direct connecting to LEDs is suggested, but is not suitable for using additional drivers.
  3. 3. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
  4. 4. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  5. 5. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

Technical drawings

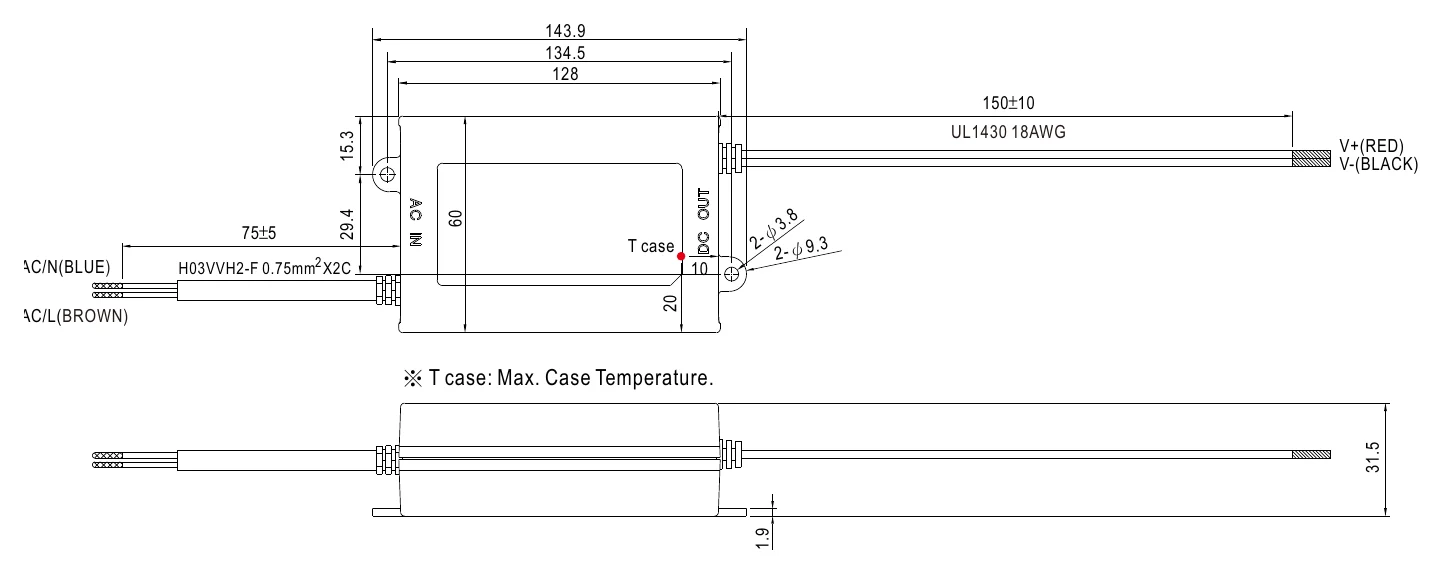

PCD-60-2400B Mechanical Specification
Mechanical Specification

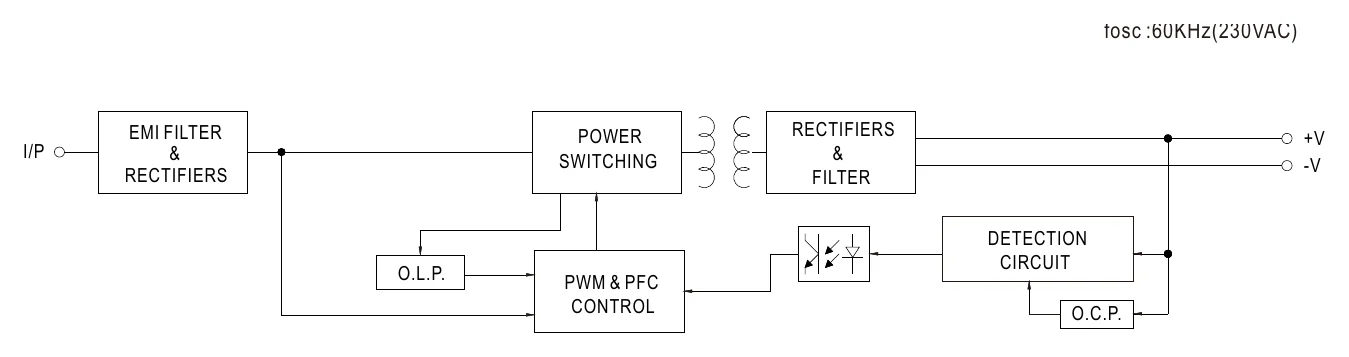

PCD-60-2400B Block Diagram
Block Diagram

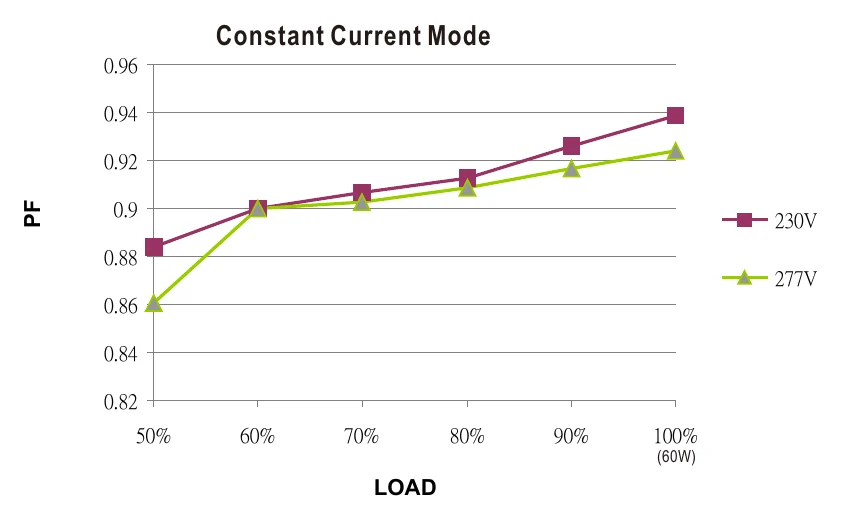

PCD-60-2400B Power Factor Characteristic
Power Factor Characteristic

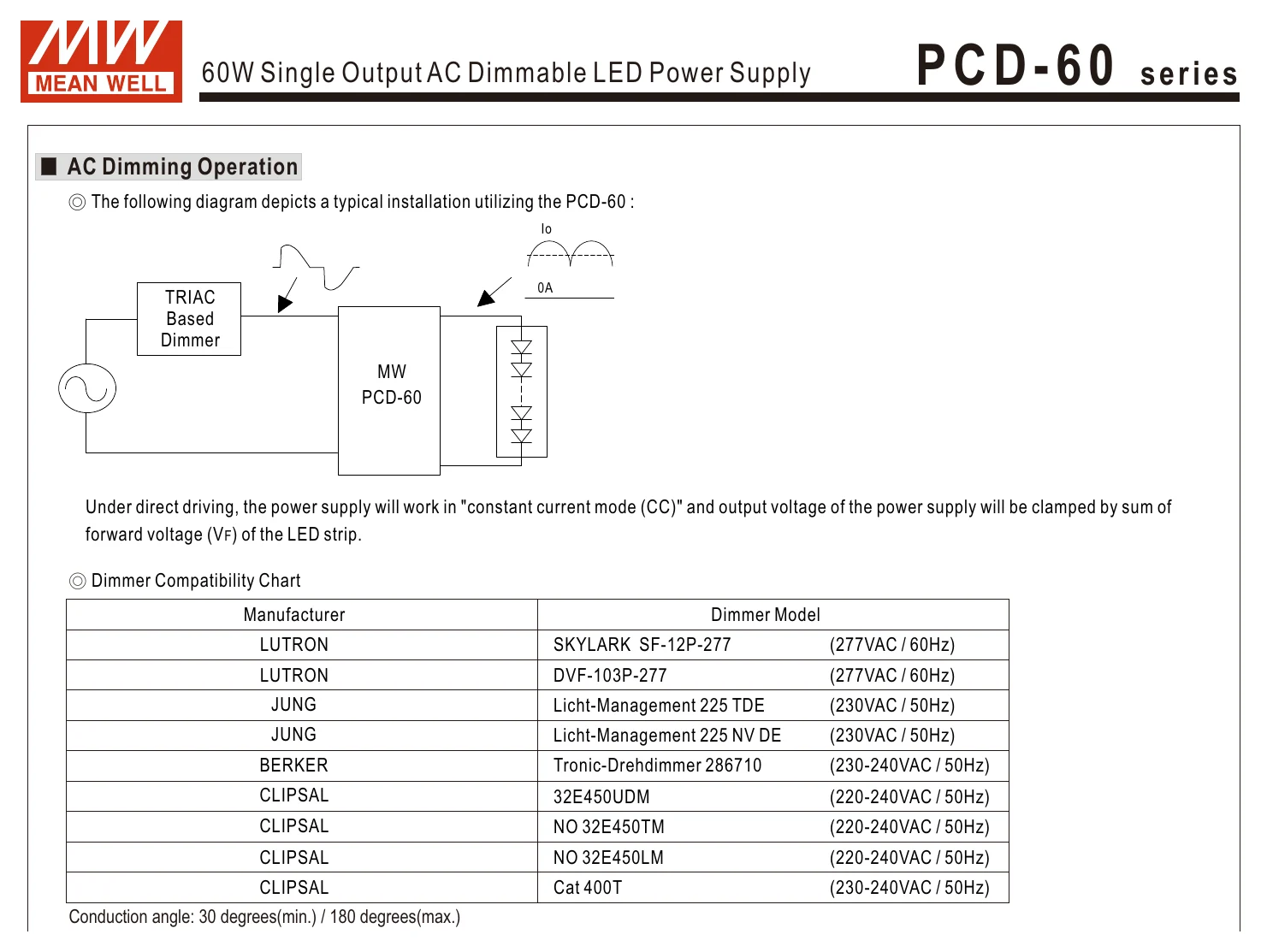

PCD-60-2400B P C D - 6 0 series
P C D - 6 0 series

Downloads

FAQ

Can I use the PCD-60-2400B for high-current LED downlights?

Yes, this driver is suited to LED downlights that are designed for a constant current source at 2400mA. Its constant current operating mode and 15-25V CC output range fit fixtures built around higher-current LED engines within that voltage window. It is not a constant voltage driver, so it should be matched to a downlight that specifically calls for constant current operation.

Is the PCD-60-2400B a good fit for compact signage modules or small LED arrays?

It can be a fit for compact signage modules or small LED arrays when the load is specified for 2400mA constant current and falls within the 15-25V CC range. The 60W rating makes it more appropriate for higher-power assemblies than for low-power indicator-style modules. Because it is a constant current model, it should be used with LED loads rather than constant voltage signage products.

Can this driver power a COB LED light engine?

Yes, the PCD-60-2400B is a plausible choice for a COB LED light engine if that engine requires 2400mA constant current and operates within 15-25V. The driver is TRIAC dimmable, which can be relevant in dimmable architectural or commercial LED light fixtures using a matching dimming approach. Load matching still depends on the LED module's forward voltage, not just wattage alone.

How do I know if an LED load is compatible with the PCD-60-2400B?

The key check is whether the LED load is designed for constant current at 2400mA and whether its total forward voltage stays within the 15-25V CC output range. The number of LEDs that can be driven depends on the forward voltage of each LED, so there is no fixed LED count for this model. It should not be used as a constant voltage supply for LED tape or other constant voltage products.

What are the differences between the PCD-60 models?

Within the PCD-60 range, the sibling options are PCD-60-500B at 500mA with a 70-108V CC range and 54W, PCD-60-700B at 700mA with a 50-86V CC range and 60.2W, PCD-60-1050B at 1050mA with a 34-57V CC range and 59.85W, PCD-60-1400B at 1400mA with a 25-43V CC range and 60.2W, PCD-60-1750B at 1750mA with a 20-34V CC range and 59.5W, PCD-60-2000B at 2000mA with an 18-30V CC range and 60W, and this PCD-60-2400B at 2400mA with a 15-25V CC range and 60W. The main differences are output current and the matching constant current voltage window. All are constant current drivers in the same series, so selection depends on the LED load's required drive current and forward-voltage range.

Is the PCD-60-2400B suitable for damp or exposed outdoor locations?

This model is rated IP42, so it is better aligned with indoor LED applications where basic enclosure protection is acceptable. It also has an operating temperature range of -30°C to +45°C, which defines the stated ambient range for use. For locations with heavier dust or water exposure, the IP42 rating is the limiting factor to review.
