What equipment uses a 3.3V, high-current rail that the RSP-500-3.3 can supply?

The RSP-500-3.3 provides 3.3V at 90A (297W), suitable for powering DRAM subsystems, FPGA I/O logic rails, and logic-level loads in industrial computing boards that require a high-current 3.3V source.

What temperature range does the RSP-500-3.3 operate in?

The RSP-500-3.3 is rated for -30°C to +70°C ambient operation. It carries BSMI, CB, CCC, CE, EAC, c_rcm, TÜV, and UL certifications and is designed for indoor enclosed use.

How does the RSP-500-3.3 compare to the RSP-500-4 and RSP-500-5?

All three share the 230.0 × 127.0 × 40.5 mm chassis and 85-264VAC input. The RSP-500-3.3 provides 297W at 90A, the RSP-500-4 provides 360W at 90A, and the RSP-500-5 provides 450W at 90A. All three run at 90A; total power increases as output voltage rises.

What is the actual rated output power of the RSP-500-3.3?

The RSP-500-3.3 is rated at 297W (3.3V × 90A). The low output voltage limits total power below the RSP-500 series nameplate. It weighs 1.3 kg and includes a 3-year warranty.

1 5

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

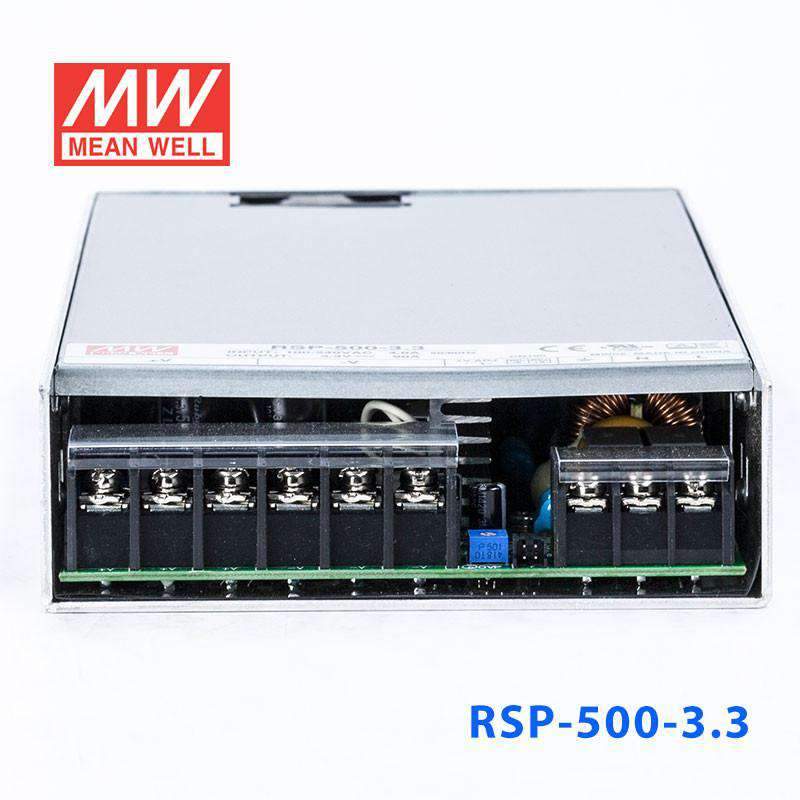

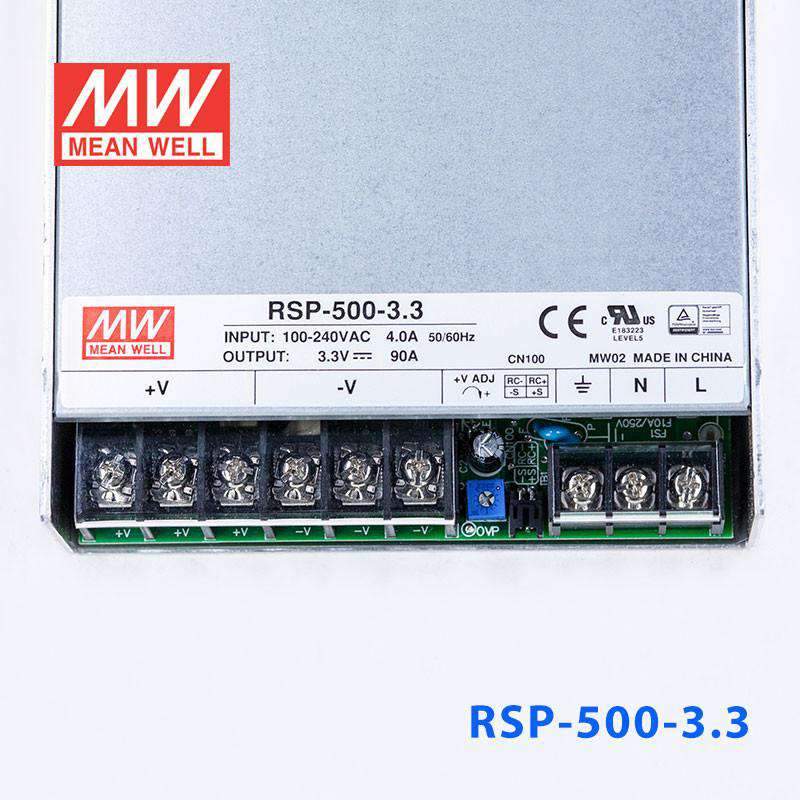

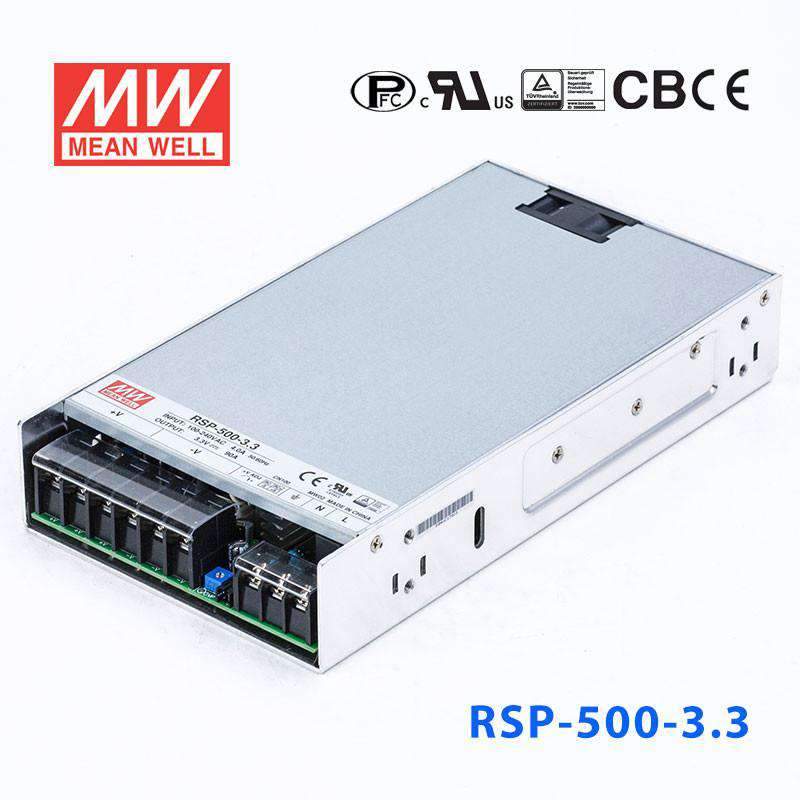

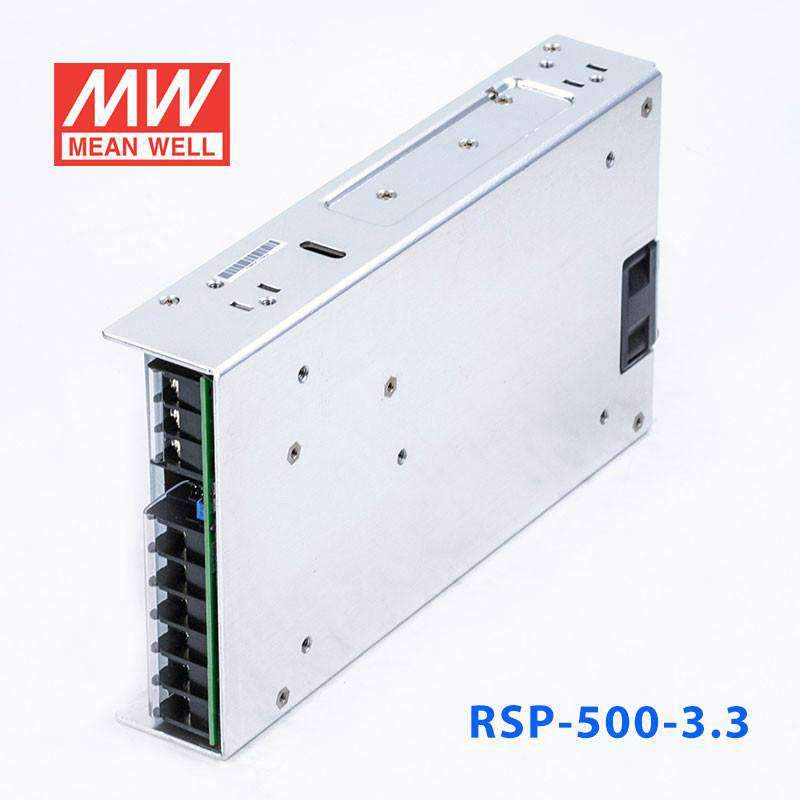

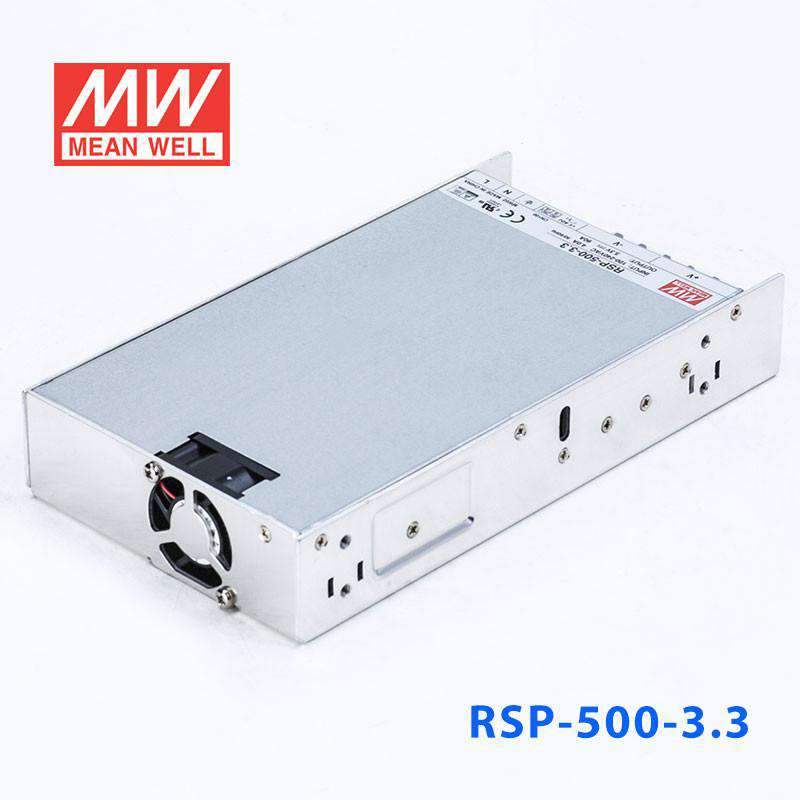

Mean Well RSP-500-3.3 Power Supply 297W 3.3V 90A

1U low profile with active PFChigh efficiency

SKU RSP-500-3.3

Log in to see price Trade pricing & online ordering for account holders

Select model — 6 in this family

RSP-500-3.3

RSP-75-3.3 75W 3.3V Backorder

RSP-100-3.3 100W 3.3V Backorder

RSP-150-3.3 150W 3.3V Backorder

RSP-200-3.3 200W 3.3V Backorder

RSP-320-3.3 320W 3.3V Backorder

RSP-500-3.3 500W 3.3V Backorder

Product variants

Notify me when it's back in stock

The RSP-500 is a 500W Mean Well power converter (input range: 85~264VAC, operating temperature: -30~+70℃).

Key Features

✓ Input voltage range: 85~264VAC
✓ DC output voltage adjustable ±10%
✓ 3KVAC reinforced I/O isolation
✓ Wide operating temperature: -30~+70℃
✓ Protections: Overload / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ 3 years warranty

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current
Mean Well RSP-500-24 Power Supply 500W 24V 21A	504W	24V	21A	View
Mean Well RSP-500-5 Power Supply 450W 5V 90A	450W	5V	90A	View
Mean Well RSP-500-48 Power Supply 500W 48V 10.5A	504W	48V	10.5A	View
Mean Well RSP-500-4 Power Supply 360W 4V 90A	360W	4V	90A	View
Mean Well RSP-500-27 Power Supply 500W 27V 18.6A	502.2W	27V	18.6A	View
Mean Well RSP-500-15 Power Supply 500W 15V 33.4A	501W	15V	33.4A	View
Mean Well RSP-500-12 Power Supply 500W 12V 41.7A	500.4W	12V	41.7A	View

Please log in to write a review.

{ "id":8343945445675, "variants" :[{ "context":"default", "variant_id": 45321554100523, "sku":"RSP-500-3.3", "inventory_qty" : 0, "customer" :false, "custom_html" :"\u003ca class=\"text-current logged-out-price logged-out\" href=\"https:\/\/wellforces.co.nz\/customer_authentication\/redirect?locale=en\u0026region_country=NZ\"\u003e\n \u003cspan \u003ePlease \u003c\/span\u003e \u003cspan class=\"login-text\"\u003eLogin\u003c\/span\u003e \u003cspan\u003e for Pricing\u003c\/span\u003e\n \u003c\/a\u003e", "volume_html" :"\u003cvolume-pricing class=\"parent-display inside_product_form\" id=\"volume-pricing-main\" \u003e\u003c\/volume-pricing\u003e" } ] }

Key Features

✓ Input voltage range: 85~264VAC

✓ DC output voltage adjustable ±10%

✓ 3KVAC reinforced I/O isolation

✓ Wide operating temperature: -30~+70℃

✓ Protections: Overload / Over voltage / Over temperature

✓ Active PFC — meets international energy efficiency regulations

✓ 3 years warranty
