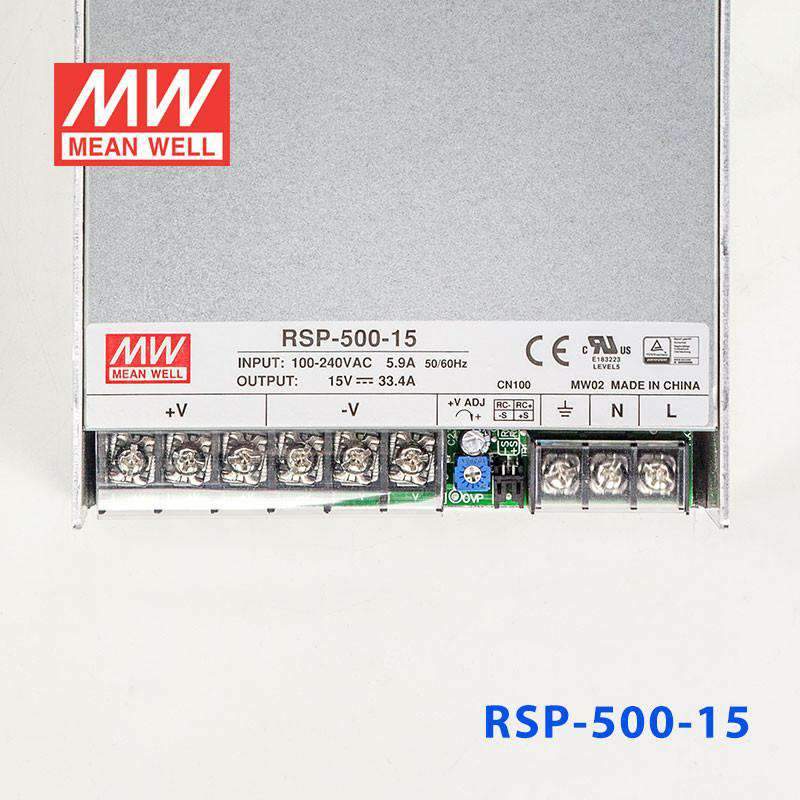

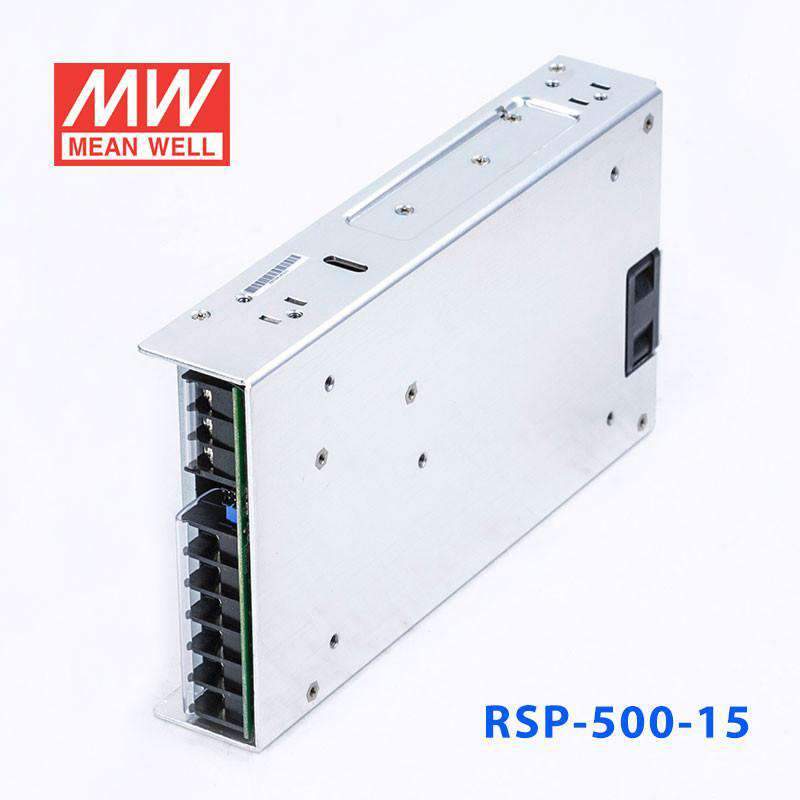

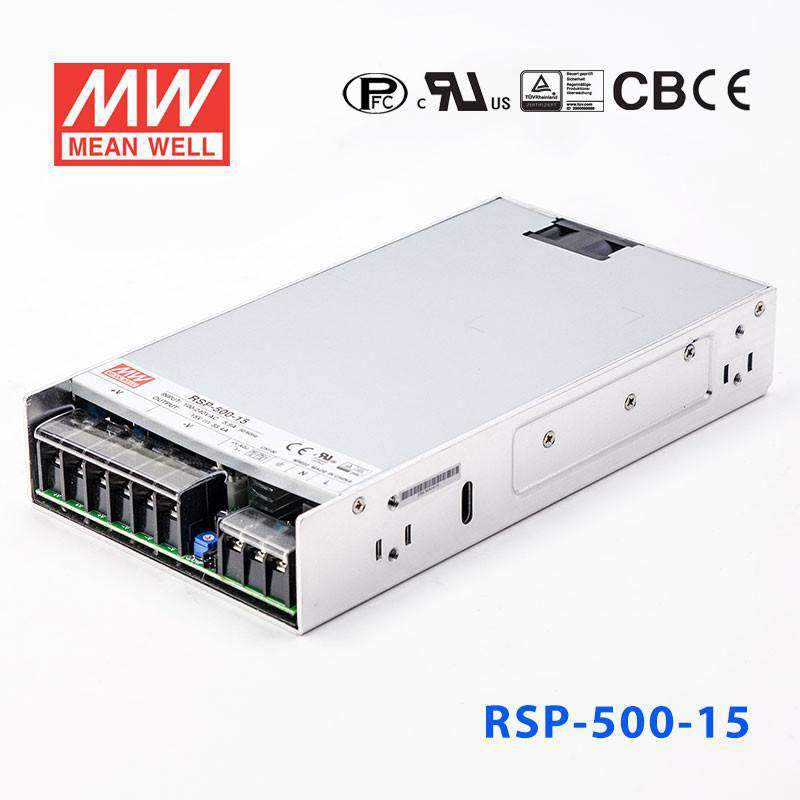

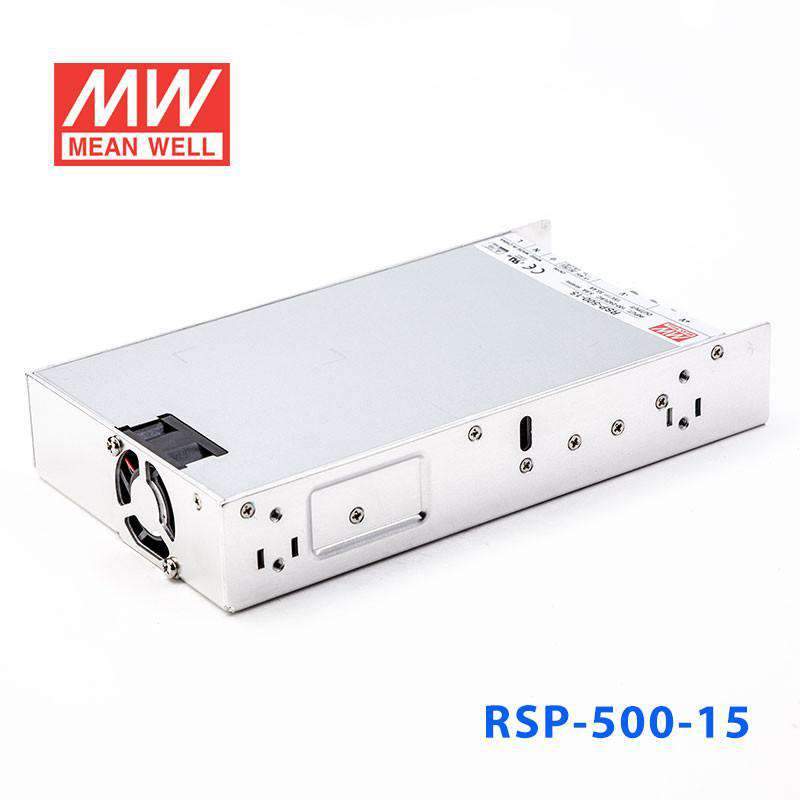

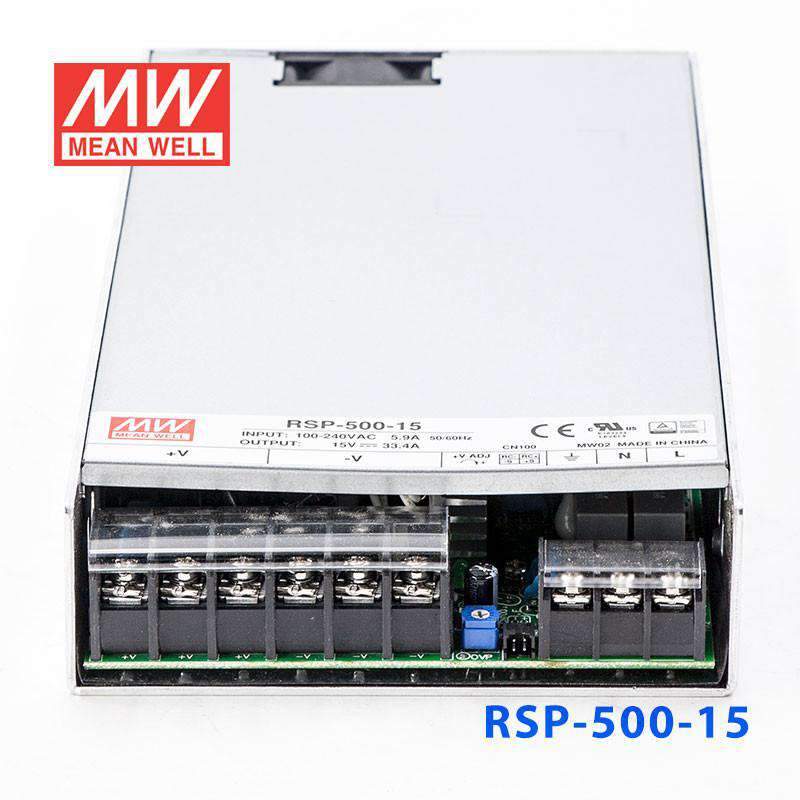

Mean Well RSP-500-15 Power Supply 500W 15V
Please Login for Pricing
Description
Description
The RSP-500 is a 500W Mean Well power converter (input range: 85~264VAC, operating temperature: -30~+70℃).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesRSP Series
-
Power Rating501 Watt
-
Output Voltage15 Volt
-
Rated Current33.4 Ampere
-
Input Voltage85V~264V
-
Standards MetBSMI,CB,CCC,CE,EAC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length23 cm
-
Width12.7 cm
-
Height4.05 cm
-
Weight1.3 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What equipment runs on 15V that the RSP-500-15 can support?
The RSP-500-15 delivers 501W at 15V and 33.4A, suitable for industrial transducer power supplies, certain servo amplifier auxiliary rails, and embedded systems using a 15V nominal bus. Its 1U form factor (230.0 × 127.0 × 40.5 mm) fits standard rack enclosures.
Is the RSP-500-15 rated for cold-climate indoor use?
Yes. The RSP-500-15 operates from -30°C to +70°C. It is designed for indoor enclosed installations and holds BSMI, CB, CCC, CE, EAC, c_rcm, TÜV, and UL certifications.
How does the RSP-500-15 compare to the RSP-500-12 and RSP-500-24?
All three RSP-500 variants share the 230.0 × 127.0 × 40.5 mm chassis and 85-264VAC input. The RSP-500-12 provides 500.4W at 41.7A, the RSP-500-15 provides 501W at 33.4A, and the RSP-500-24 provides 504W at 21A. Power output is consistent across the three; current rating decreases as voltage increases.
What active power conditioning does the RSP-500-15 include?
The RSP-500-15 includes built-in active PFC to improve input power quality. It weighs 1.3 kg and includes a 3-year warranty.
Other RSP-500 Models
7 other models| Model | Power | Voltage | Current | |
|---|---|---|---|---|
| Mean Well RSP-500-24 Power Supply 500W 24V | 504W | 24V | 21A | View |
| Mean Well RSP-500-5 Power Supply 450W 5V | 450W | 5V | 90A | View |
| Mean Well RSP-500-48 Power Supply 500W 48V | 504W | 48V | 10.5A | View |
| Mean Well RSP-500-4 Power Supply 360W 4V | 360W | 4V | 90A | View |
| Mean Well RSP-500-3.3 Power Supply 297W 3.3V | 297W | 3.3V | 90A | View |
| Mean Well RSP-500-27 Power Supply 500W 27V | 502.2W | 27V | 18.6A | View |
| Mean Well RSP-500-12 Power Supply 500W 12V | 500.4W | 12V | 41.7A | View |
