Over 15 years experience of providing support of MEAN WELL Power Supplies
Description
Description
Features
1U low profile |
Universal AC input / Full range |
Protections: Short circuit / Overload / Over voltage / Over temperature |

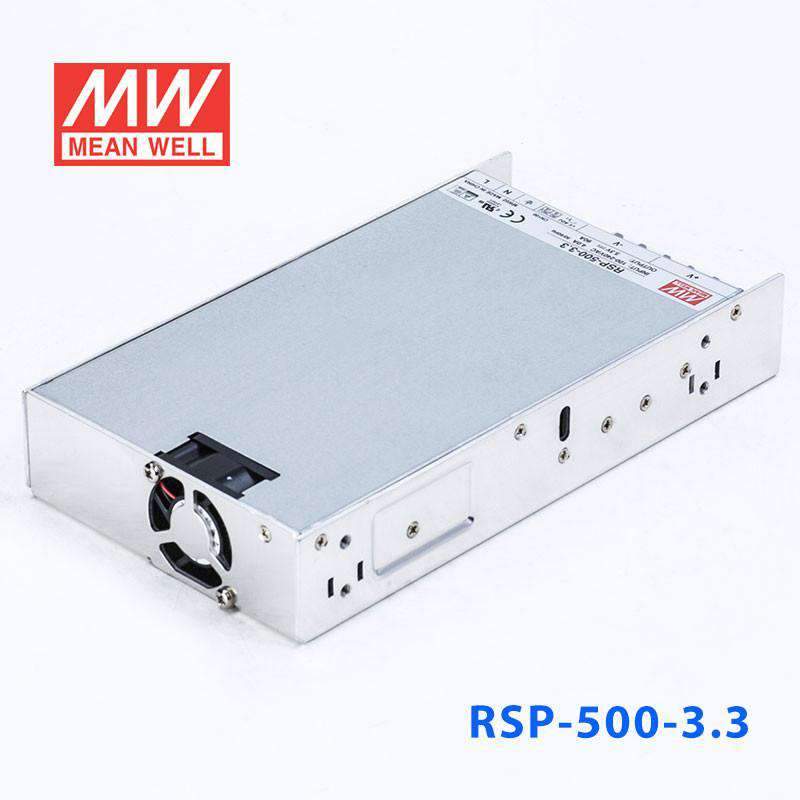

Forced air cooling by built-in DC fan |
LED indicator for power on |
Built-in remote sense and ON/OFF control |
3 years warranty |
General Specification
AC input voltage range | 85~264VAC; 120~370VDC |
AC inrush current (max.) | Cold start, 40A at 230VAC |
DC adjustment range | ±10% rated output voltage |
Overload protection Range | 105%~130% |
Overload protection Type | Constant current limiting, auto-recovery |
Over voltage protection Range | 115%~145% |
Over voltage protection Type | Shut down O/P voltage, re-power on to recover |
Withstand voltage | I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC |
Working temperature | -30~+70°C (refer to output derating curve) |
Safety standards | UL60950-1, TUV EN60950-1 (TUV / UL pending for RSP-500) |
EMC standards | EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 |

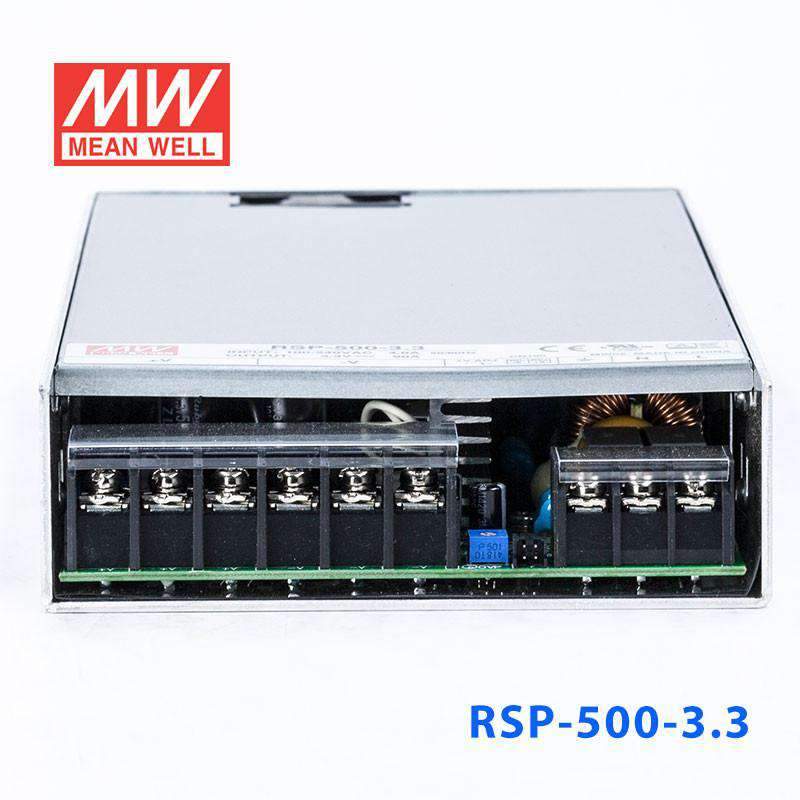

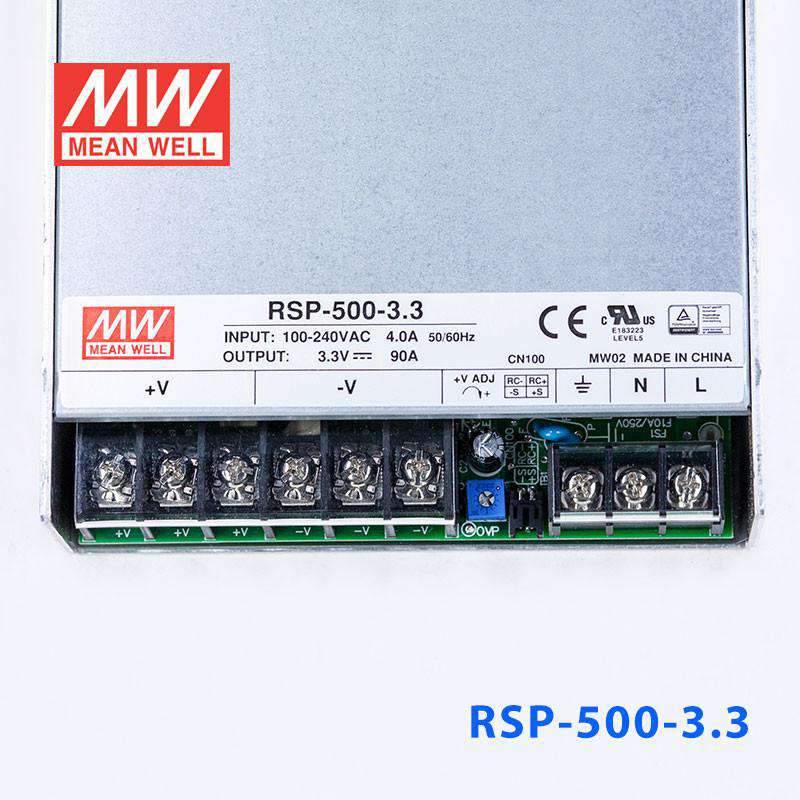

Connection Input | 3P / 9.5mm pitch terminal block |
Connection Output | 6P / 11mm pitch terminal block |
Dimension (LxWxH) | 230x127x40.5 |
Case No. | 226A |
Specifications
Specifications
-
BrandMean Well
-
SeriesRSP Series
-
Power Rating297 Watt
-
Output Voltage3.3 Volt
-
Rated Current90 Ampere
-
Input Voltage85V~264V
-
Standards MetBSMI,CB,CCC,CE,EAC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length23 cm
-
Width12.7 cm
-
Height4.05 cm
-
Weight1.3 kg
