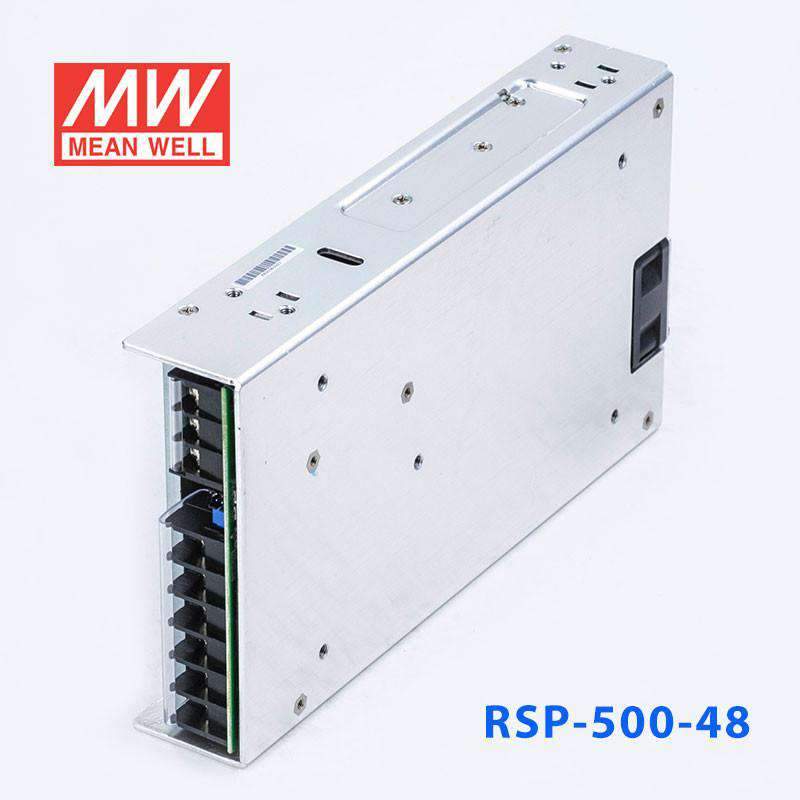

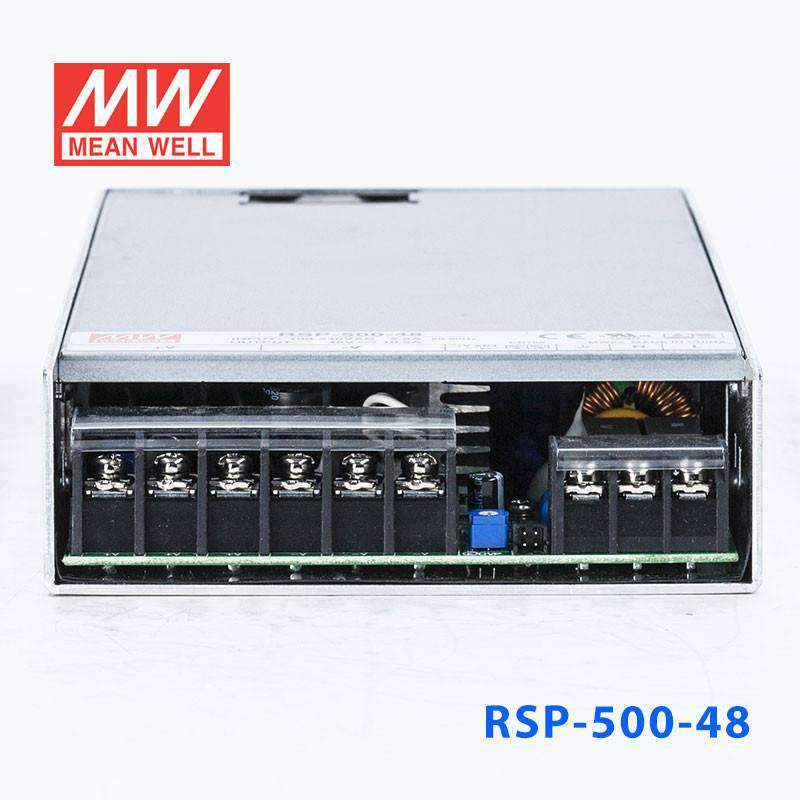

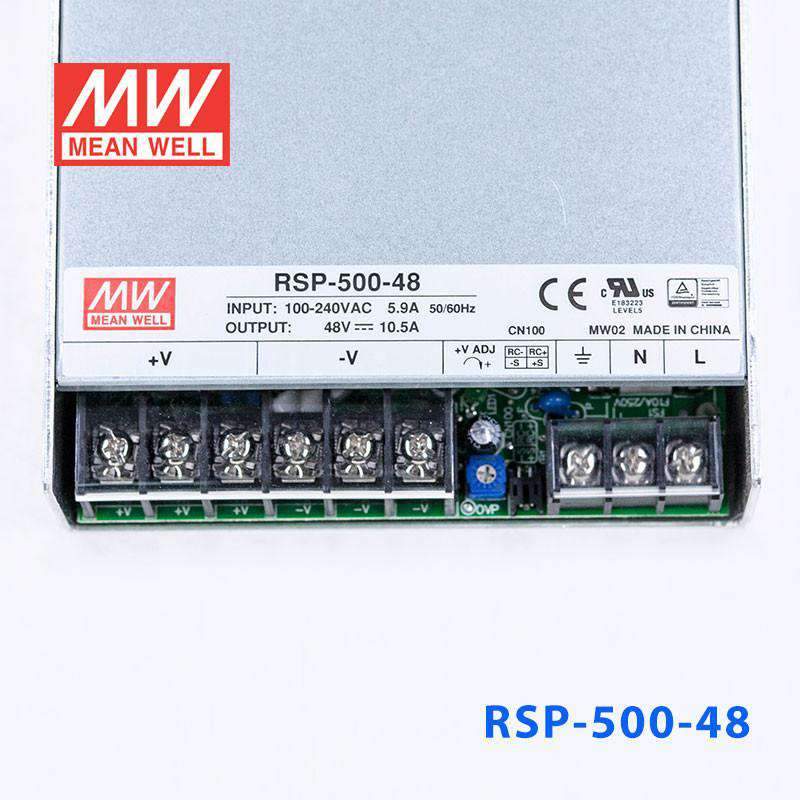

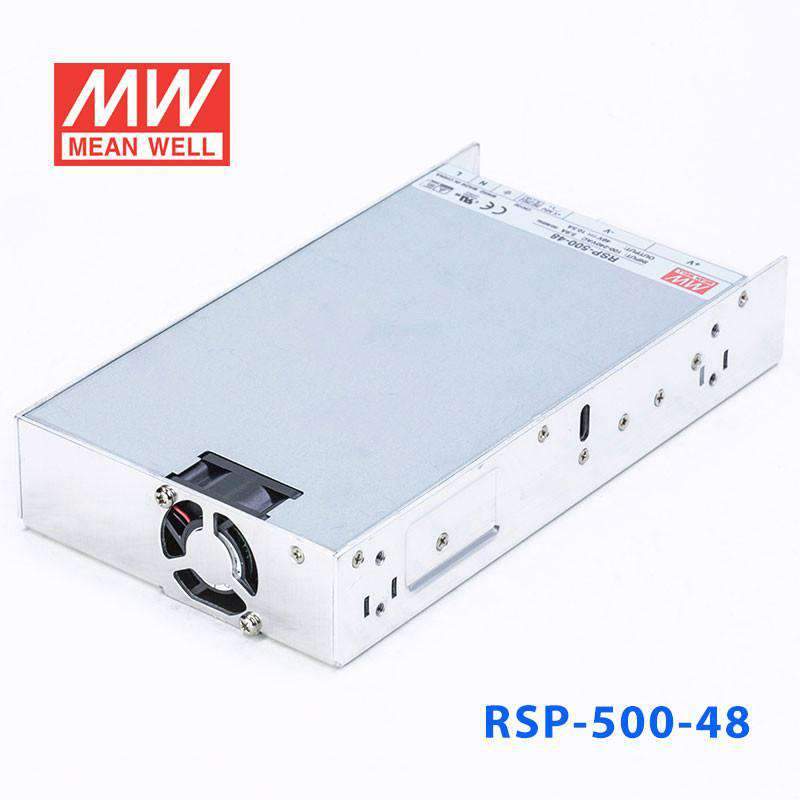

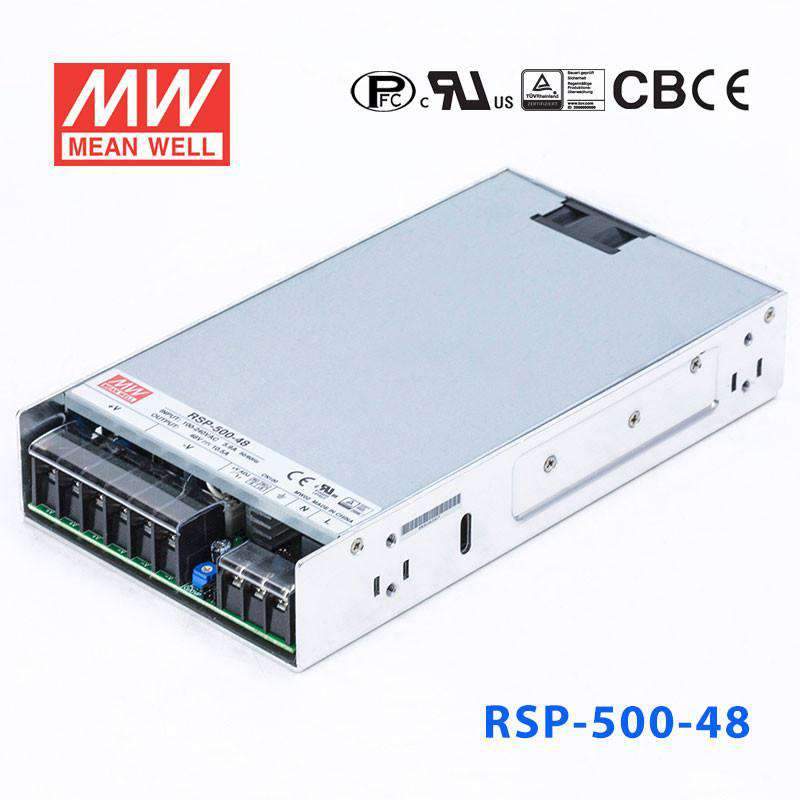

Mean Well RSP-500-48 Power Supply 500W 48V

Description

The RSP-500 is a 500W Mean Well power converter (input range: 85~264VAC, operating temperature: -30~+70℃).

Key Features

✓ Input voltage range: 85~264VAC
✓ DC output voltage adjustable ±10%
✓ 3KVAC reinforced I/O isolation
✓ Wide operating temperature: -30~+70℃
✓ Protections: Overload / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ 3 years warranty

Specifications

Brand

Mean Well
Series

RSP Series
Power Rating

504 Watt
Output Voltage

48 Volt
Rated Current

10.5 Ampere
Input Voltage

85V~264V
Standards Met

BSMI,CB,CCC,CE,EAC,RCM,TUV,UL
Operation Mode

Constant Voltage
Operating Temperature

-30°C~70°C
Warranty

3 Year
Length

23 cm
Width

12.7 cm
Height

4.05 cm
Weight

1.3 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What is the RSP-500-48 used for in 48V DC systems?

The RSP-500-48 delivers 48V at 10.5A (504W), appropriate for powering PoE-capable network equipment, small telecom rectifier applications, and 48V battery float-charge systems. Its 1U profile (230.0 × 127.0 × 40.5 mm) suits standard rack enclosures.

What is the ambient operating range of the RSP-500-48?

The RSP-500-48 operates from -30°C to +70°C. It carries BSMI, CB, CCC, CE, EAC, c_rcm, TÜV, and UL certifications and is designed for indoor enclosed use.

How does the RSP-500-48 compare to the RSP-320-48 and RSP-750-48 at 48V?

The RSP-320-48 provides 320W at 6.7A in a 215.0 × 115.0 × 30.0 mm chassis. The RSP-500-48 increases to 504W at 10.5A in a 230.0 × 127.0 × 40.5 mm chassis. The RSP-750-48 delivers 753.6W at 15.7A in a 250.0 × 127.0 × 41.0 mm chassis. All three accept universal AC input.

Does the RSP-500-48 include active PFC?

Yes. The RSP-500-48 includes built-in active PFC across its 85-264VAC input range. It weighs 1.3 kg and carries a 3-year warranty.

Model	Power	Voltage	Current
Mean Well RSP-500-24 Power Supply 500W 24V	504W	24V	21A	View
Mean Well RSP-500-5 Power Supply 450W 5V	450W	5V	90A	View
Mean Well RSP-500-4 Power Supply 360W 4V	360W	4V	90A	View
Mean Well RSP-500-3.3 Power Supply 297W 3.3V	297W	3.3V	90A	View
Mean Well RSP-500-27 Power Supply 500W 27V	502.2W	27V	18.6A	View
Mean Well RSP-500-15 Power Supply 500W 15V	501W	15V	33.4A	View
Mean Well RSP-500-12 Power Supply 500W 12V	500.4W	12V	41.7A	View
