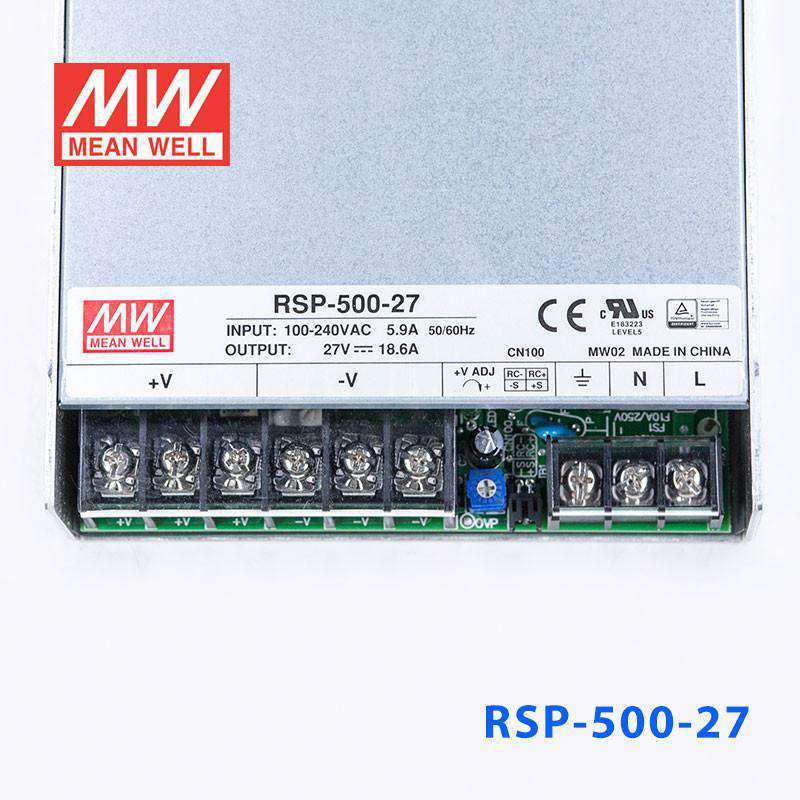

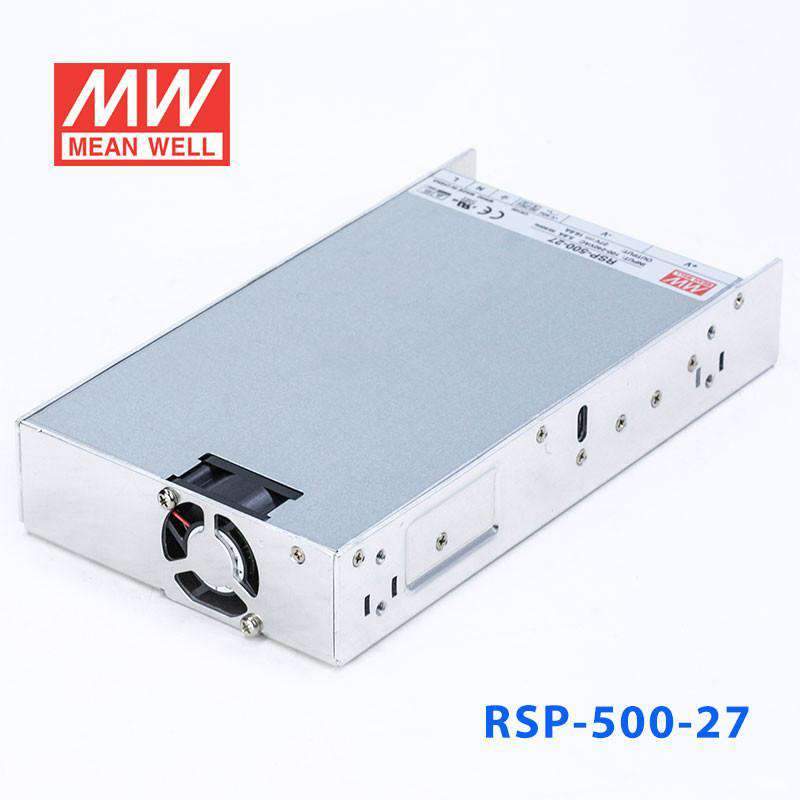

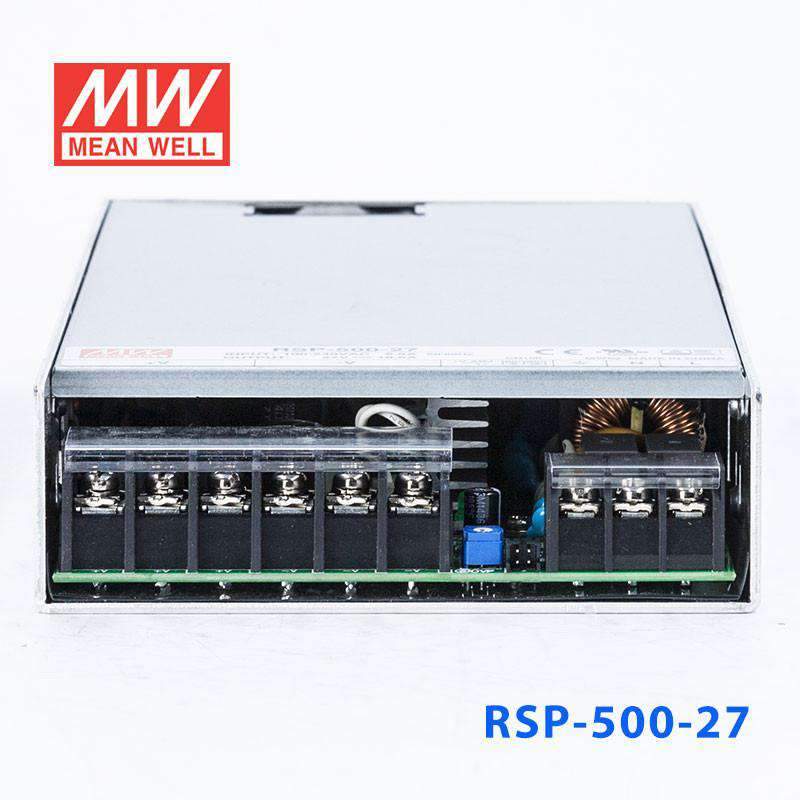

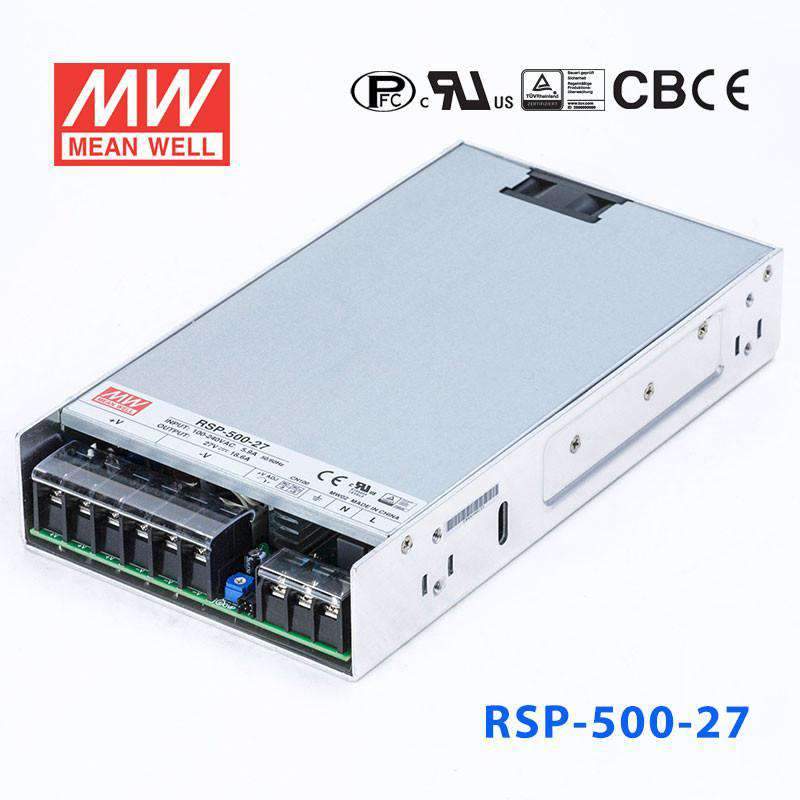

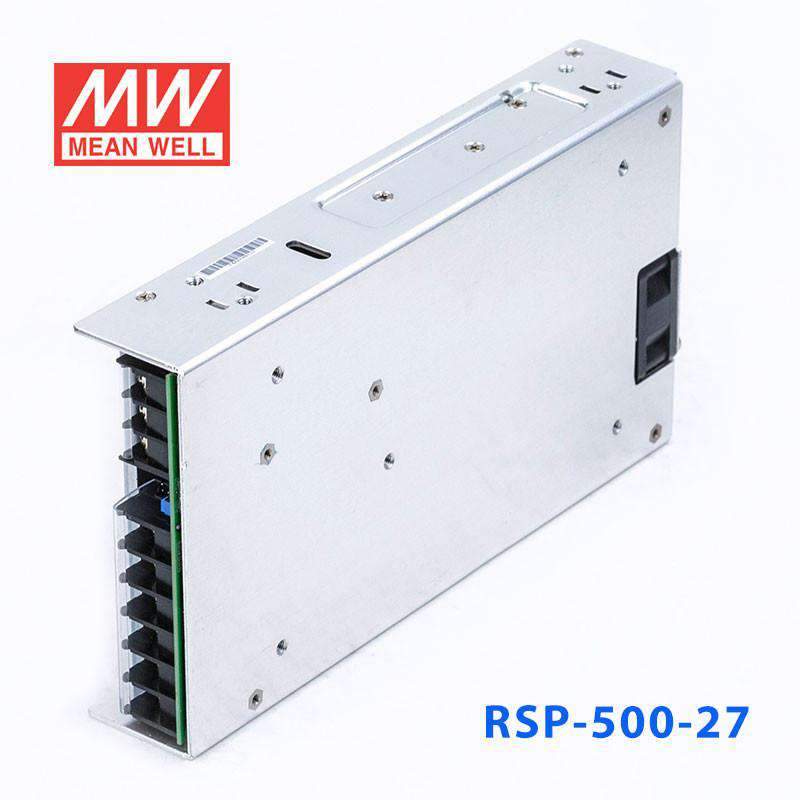

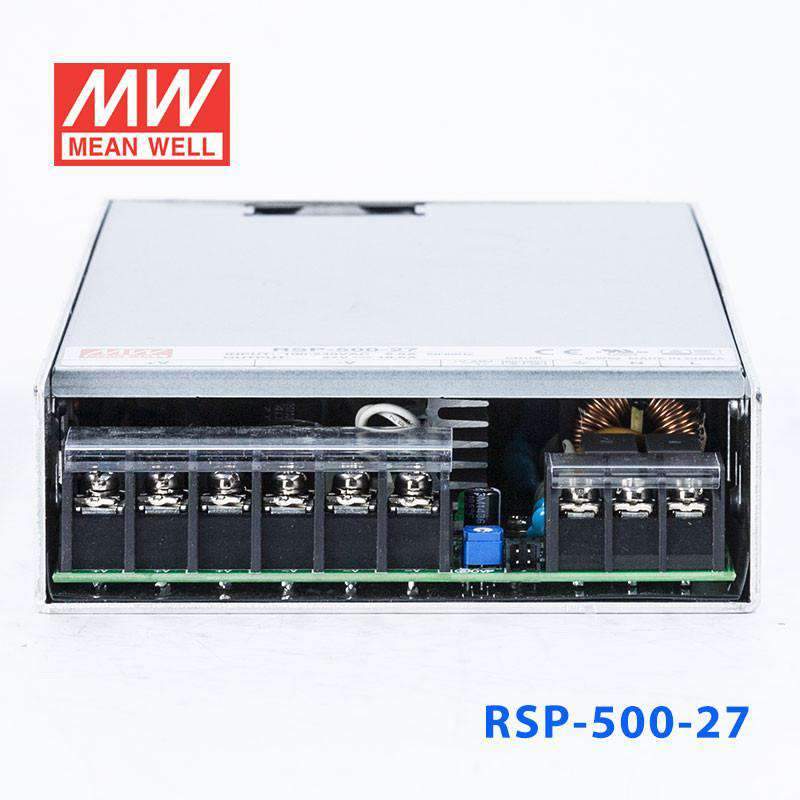

Mean Well RSP-500-27 Power Supply 500W 27V
Please Login for Pricing
Description
Description
The RSP-500 is a 500W Mean Well power converter (input range: 85~264VAC, operating temperature: -30~+70℃).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesRSP Series
-
Power Rating502.2 Watt
-
Output Voltage27 Volt
-
Rated Current18.6 Ampere
-
Input Voltage85V~264V
-
Standards MetBSMI,CB,CCC,CE,EAC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length23 cm
-
Width12.7 cm
-
Height4.05 cm
-
Weight1.3 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What applications require 27V DC that the RSP-500-27 can serve?
The RSP-500-27 provides 27V at 18.6A (502.2W), used to power certain motion control amplifiers, specialized 24-28V nominal equipment, and industrial bus systems. Its 1U form factor (230.0 × 127.0 × 40.5 mm) is compatible with standard rack enclosures.
What is the operating temperature range of the RSP-500-27?
The RSP-500-27 operates from -30°C to +70°C ambient. It is designed for indoor enclosed use and holds BSMI, CB, CCC, CE, EAC, c_rcm, TÜV, and UL certifications.
How does the RSP-500-27 compare to the RSP-500-24 and RSP-500-48?
All three use the same 230.0 × 127.0 × 40.5 mm chassis and 85-264VAC input. The RSP-500-24 provides 504W at 21A, the RSP-500-27 provides 502.2W at 18.6A, and the RSP-500-48 provides 504W at 10.5A. Power output is similar across the group; current decreases as voltage increases.
What does the RSP-500-27 weigh and what warranty is included?
The RSP-500-27 weighs 1.3 kg and includes a 3-year warranty. It incorporates built-in active PFC and accepts 85-264VAC universal input.
Other RSP-500 Models
7 other models| Model | Power | Voltage | Current | |
|---|---|---|---|---|
| Mean Well RSP-500-24 Power Supply 500W 24V | 504W | 24V | 21A | View |
| Mean Well RSP-500-5 Power Supply 450W 5V | 450W | 5V | 90A | View |
| Mean Well RSP-500-48 Power Supply 500W 48V | 504W | 48V | 10.5A | View |
| Mean Well RSP-500-4 Power Supply 360W 4V | 360W | 4V | 90A | View |
| Mean Well RSP-500-3.3 Power Supply 297W 3.3V | 297W | 3.3V | 90A | View |
| Mean Well RSP-500-15 Power Supply 500W 15V | 501W | 15V | 33.4A | View |
| Mean Well RSP-500-12 Power Supply 500W 12V | 500.4W | 12V | 41.7A | View |
