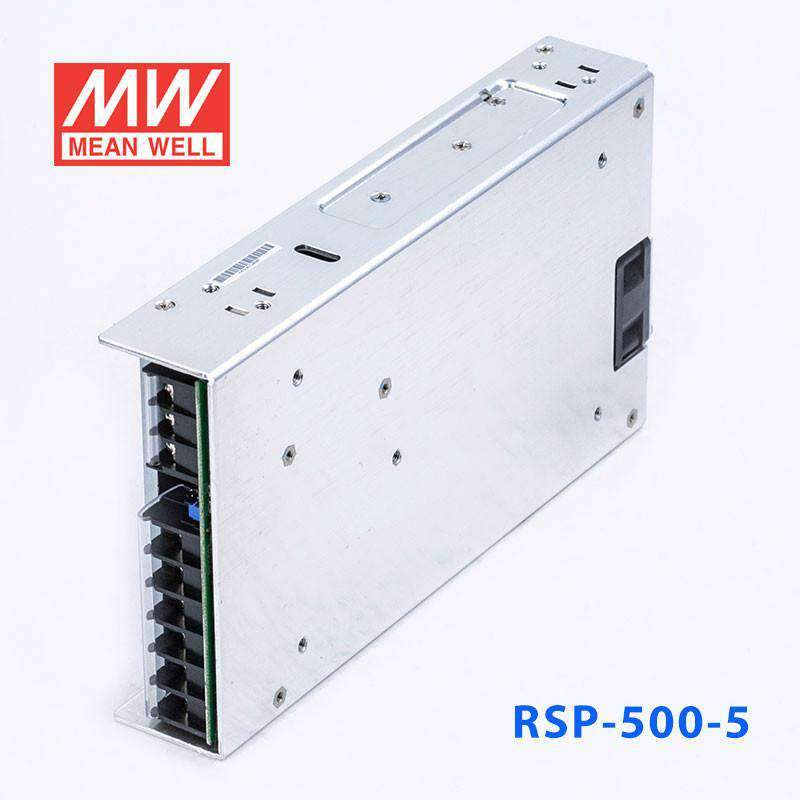

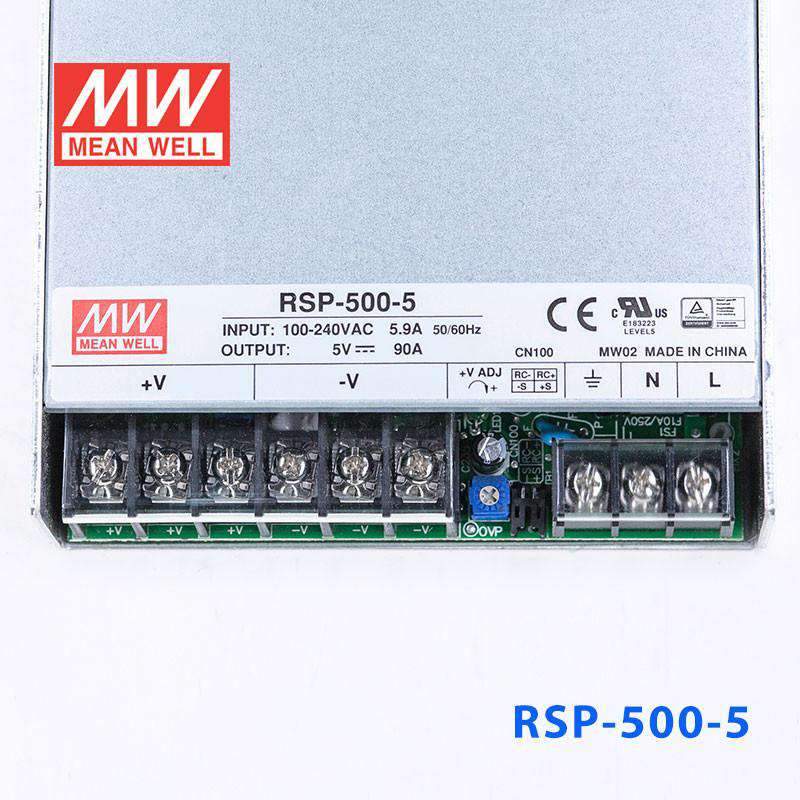

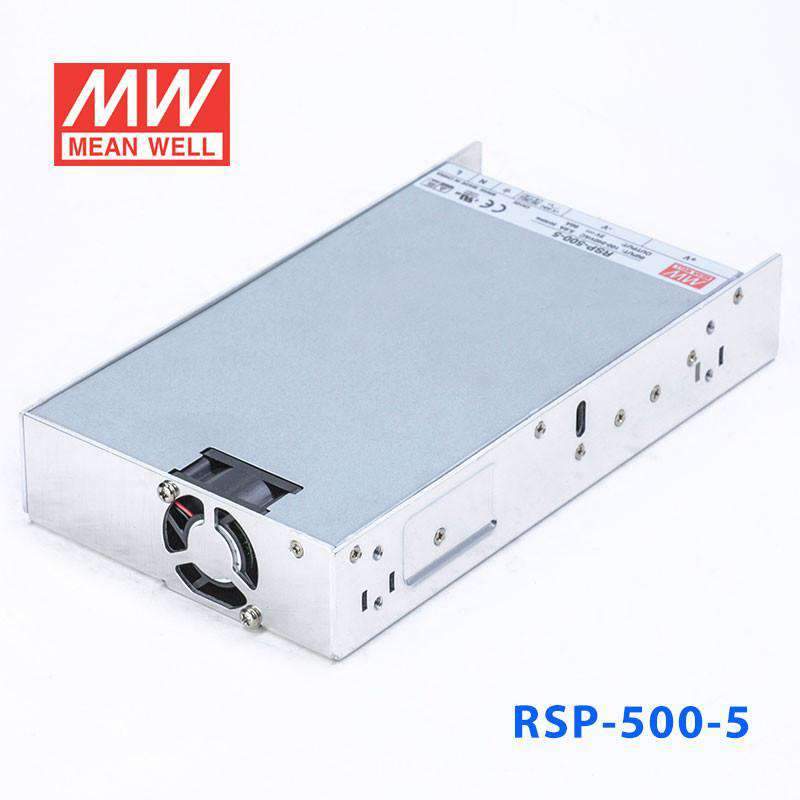

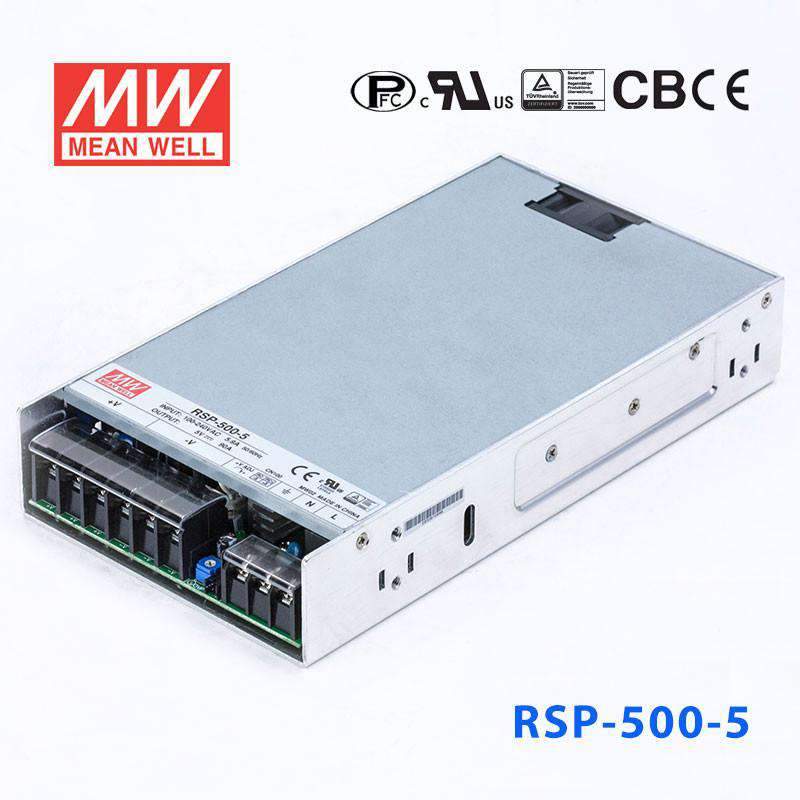

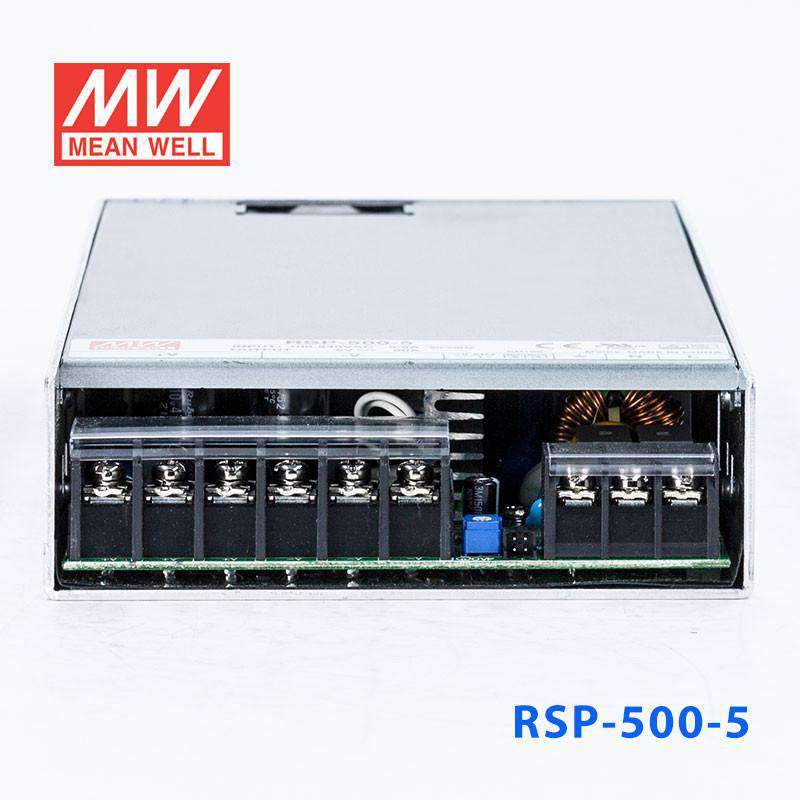

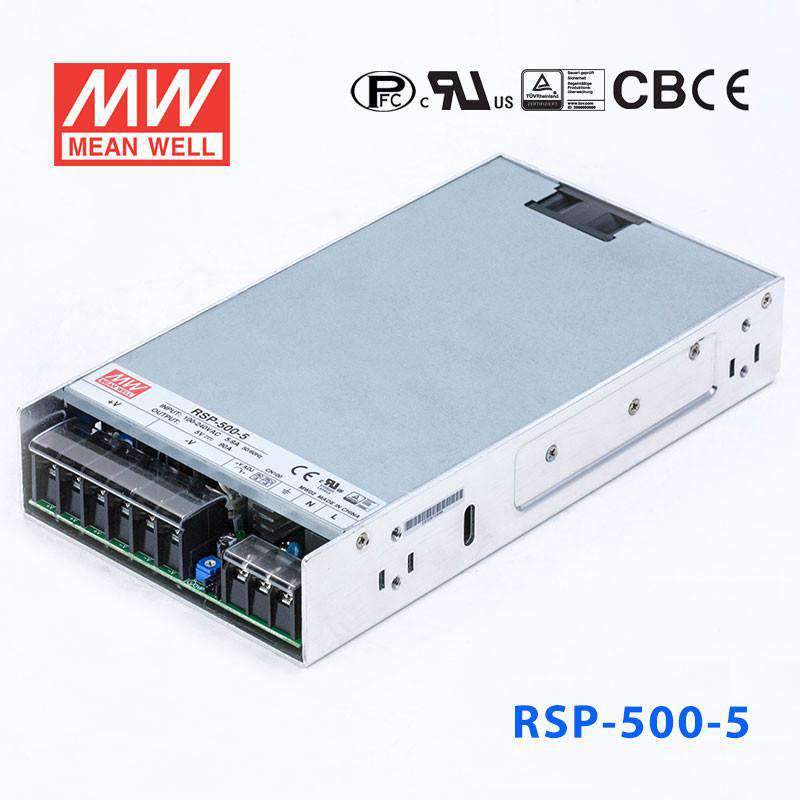

Mean Well RSP-500-5 Power Supply 450W 5V


|

Description

Features

1U low profile
Universal AC input / Full range
Protections: Short circuit / Overload / Over voltage / Over temperature
Forced air cooling by built-in DC fan
LED indicator for power on
Built-in remote sense and ON/OFF control
3 years warranty

General Specification

AC input voltage range 85~264VAC; 120~370VDC
AC inrush current (max.) Cold start, 40A at 230VAC
DC adjustment range ±10% rated output voltage
Overload protection Range 105%~130%
Overload protection Type Constant current limiting, auto-recovery
Over voltage protection Range 115%~145%
Over voltage protection Type Shut down O/P voltage, re-power on to recover
Withstand voltage I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC
Working temperature -30~+70°C (refer to output derating curve)
Safety standards UL60950-1, TUV EN60950-1 (TUV / UL pending for RSP-500)
EMC standards EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2
Connection Input 3P / 9.5mm pitch terminal block
Connection Output 6P / 11mm pitch terminal block
Dimension (LxWxH) 230x127x40.5
Case No. 226A

Specifications

  • Brand
    Mean Well
  • Series
    RSP Series
  • Power Rating
    450 Watt
  • Output Voltage
    5 Volt
  • Rated Current
    90 Ampere
  • Input Voltage
    85V~264V
  • Standards Met
    BSMI,CB,CCC,CE,EAC,RCM,TUV,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -30°C~70°C
  • Warranty
    3 Year
  • Length
    23 cm
  • Width
    12.7 cm
  • Height
    4.05 cm
  • Weight
    1.3 kg
