What is a typical application for a 4V, 90A power supply?

The RSP-500-4 delivers 4V at 90A (360W), used for powering low-voltage bus converters, telecom processing board power rails, and certain embedded computing subsystems that specify a regulated 4V source with high current capacity.

What is the cold-temperature limit of the RSP-500-4?

The RSP-500-4 operates down to -30°C ambient, with an upper limit of +70°C. It carries BSMI, CB, CCC, CE, EAC, c_rcm, TÜV, and UL certifications and is rated for indoor enclosed use.

How does the RSP-500-4 compare to the RSP-500-3.3 and RSP-500-5?

All three share the 230.0 × 127.0 × 40.5 mm chassis and 85-264VAC input. The RSP-500-3.3 provides 297W at 90A, the RSP-500-4 provides 360W at 90A, and the RSP-500-5 provides 450W at 90A. Current output is identical across the three; power scales with voltage.

What is the actual rated power of the RSP-500-4?

The RSP-500-4 is rated at 360W (4V × 90A). It includes built-in active PFC and weighs 1.3 kg. A 3-year warranty is included.

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

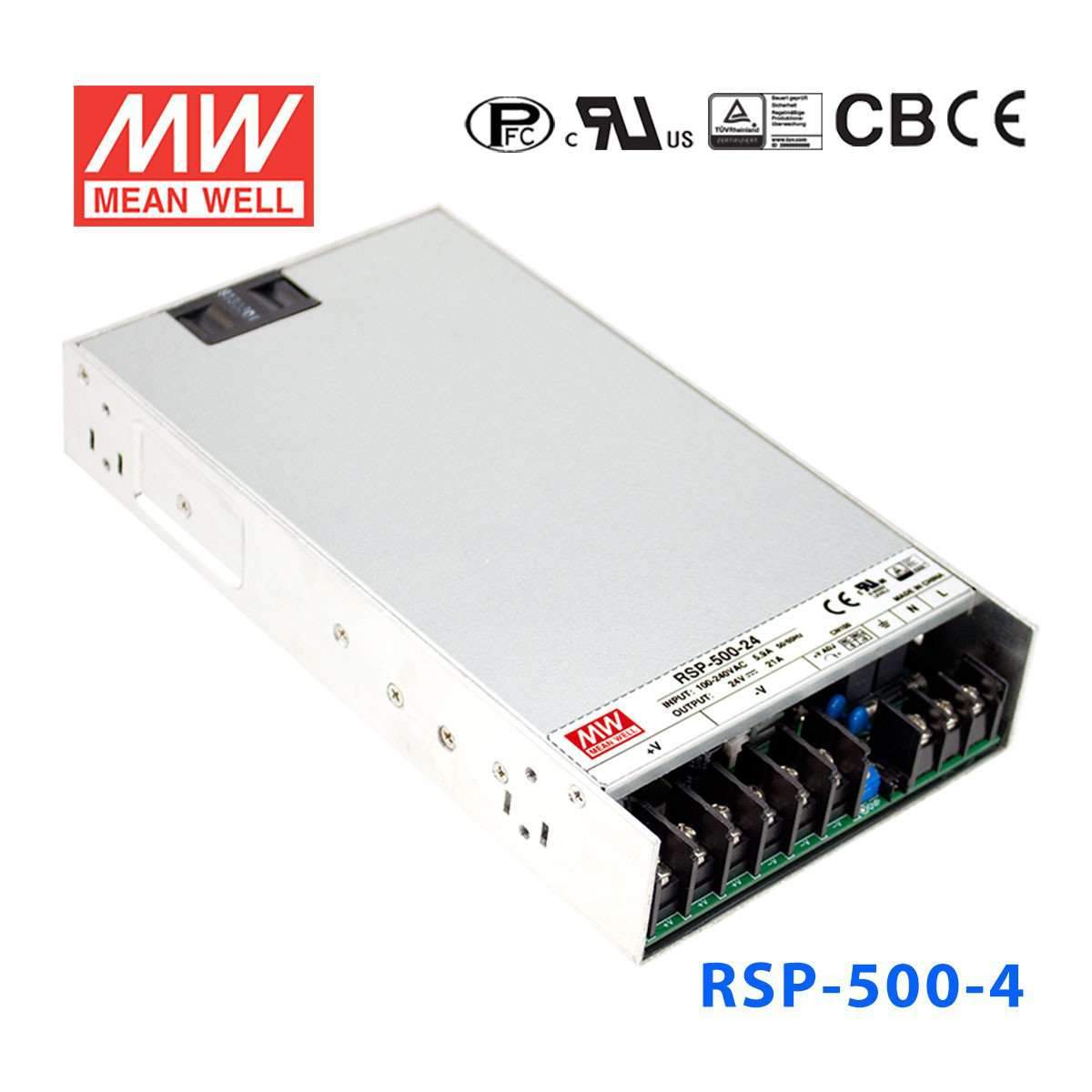

Mean Well RSP-500-4 Power Supply 360W 4V 90A

1U low profile with active PFChigh efficiency

SKU RSP-500-4

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The RSP-500 is a 500W Mean Well power converter (input range: 85~264VAC, operating temperature: -30~+70℃).

Key Features

✓ Input voltage range: 85~264VAC
✓ DC output voltage adjustable ±10%
✓ 3KVAC reinforced I/O isolation
✓ Wide operating temperature: -30~+70℃
✓ Protections: Overload / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ 3 years warranty

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current
Mean Well RSP-500-24 Power Supply 500W 24V 21A	504W	24V	21A	View
Mean Well RSP-500-5 Power Supply 450W 5V 90A	450W	5V	90A	View
Mean Well RSP-500-48 Power Supply 500W 48V 10.5A	504W	48V	10.5A	View
Mean Well RSP-500-3.3 Power Supply 297W 3.3V 90A	297W	3.3V	90A	View
Mean Well RSP-500-27 Power Supply 500W 27V 18.6A	502.2W	27V	18.6A	View
Mean Well RSP-500-15 Power Supply 500W 15V 33.4A	501W	15V	33.4A	View
Mean Well RSP-500-12 Power Supply 500W 12V 41.7A	500.4W	12V	41.7A	View
