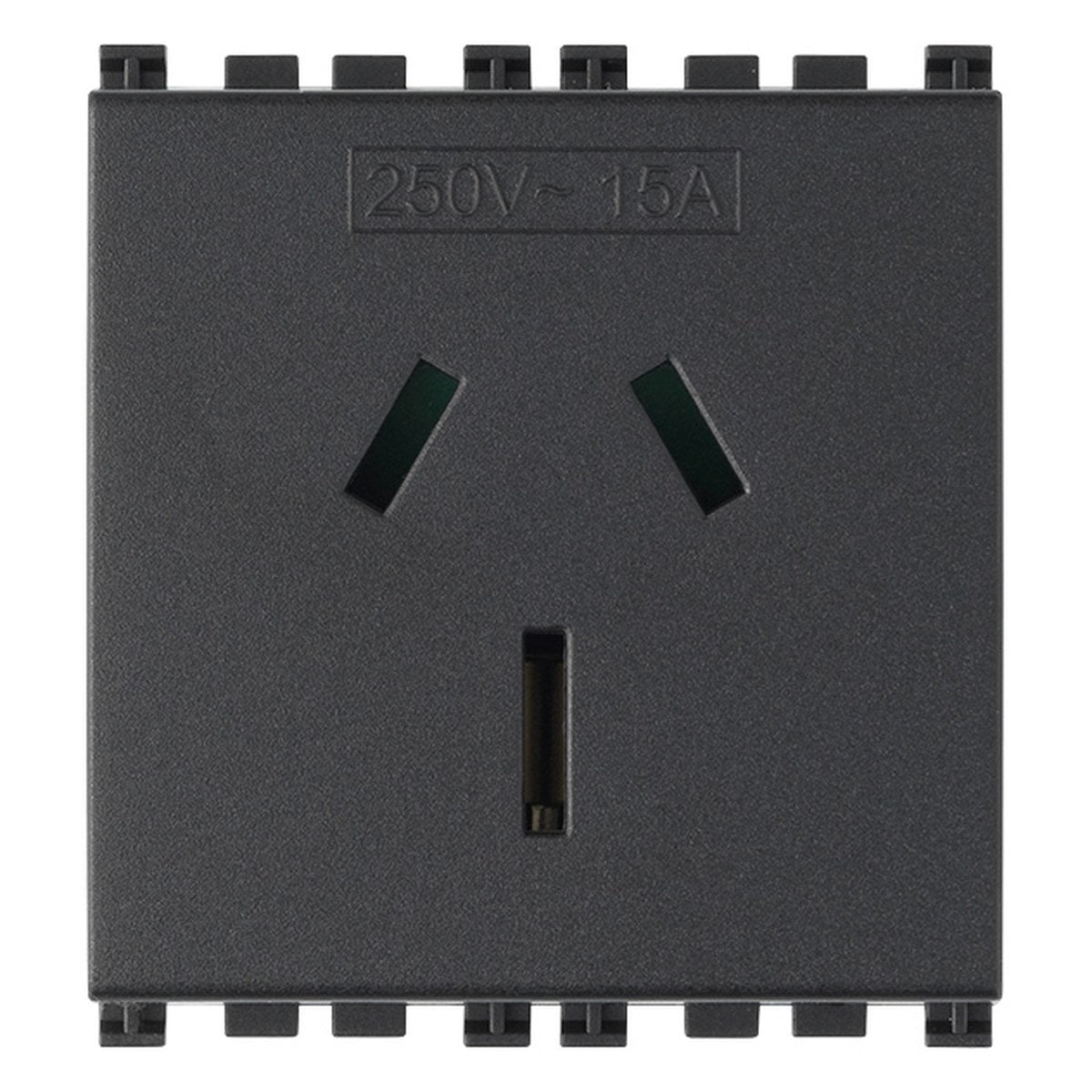

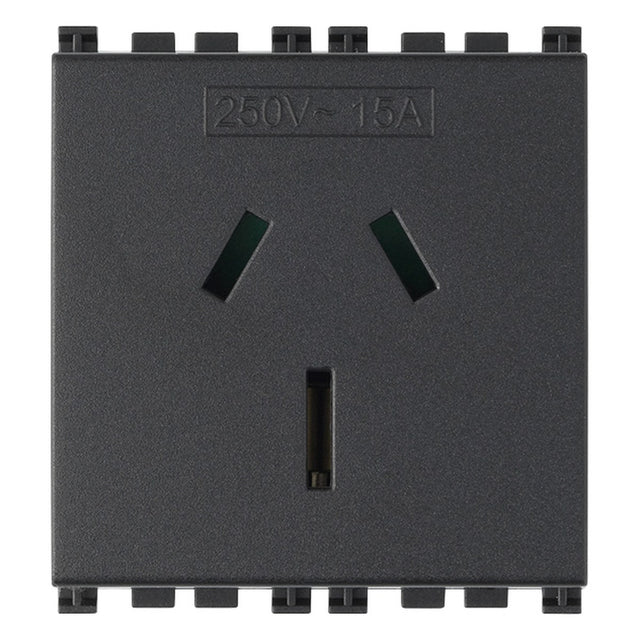

Vimar Arke 2P+E 15A Australian Sicury Outlet Grey
Log in to see priceOverview
VM-19262 is Vimar ARKÉ 19262, 2P+E 15A Australian SICURY outlet grey.
2P+E 15 A 250 V~ SICURY socket outlet, Australian standard, grey - 2 modules
Specifications
Technical data
- Product type
- Socket outlet
- Number of socket outlets
- 1
- Number of modules (module system)
- 2
- Connection type
- Screwed terminal
- With hinged lid
- No
- With enhanced contact protection
- Yes
- Label space/information surface
- Yes
- Colour
- Grey
- RAL-number (similar)
- 7015
- Metallic colour
- No
- Transparent
- No
- Lockable
- No
- Eject-mechanism
- No
- Insulated mounting
- No
- With function lighting
- No
- With orientation lighting
- No
- Overvoltage protection
- No
- Fault current protection
- No
- Mounting method
- Flush-mounted
- Material
- Plastic
- Material quality
- Thermoplastic
- Halogen free
- Yes
- Surface protection
- Untreated
- Surface finishing
- Matt
- With loop through function
- No
- With on/off switch
- No
- Rotated central insert
- No
- Nominal current
- 15 A
- Nominal voltage
- 250 V
- Frequency
- 50 - 60 HZ

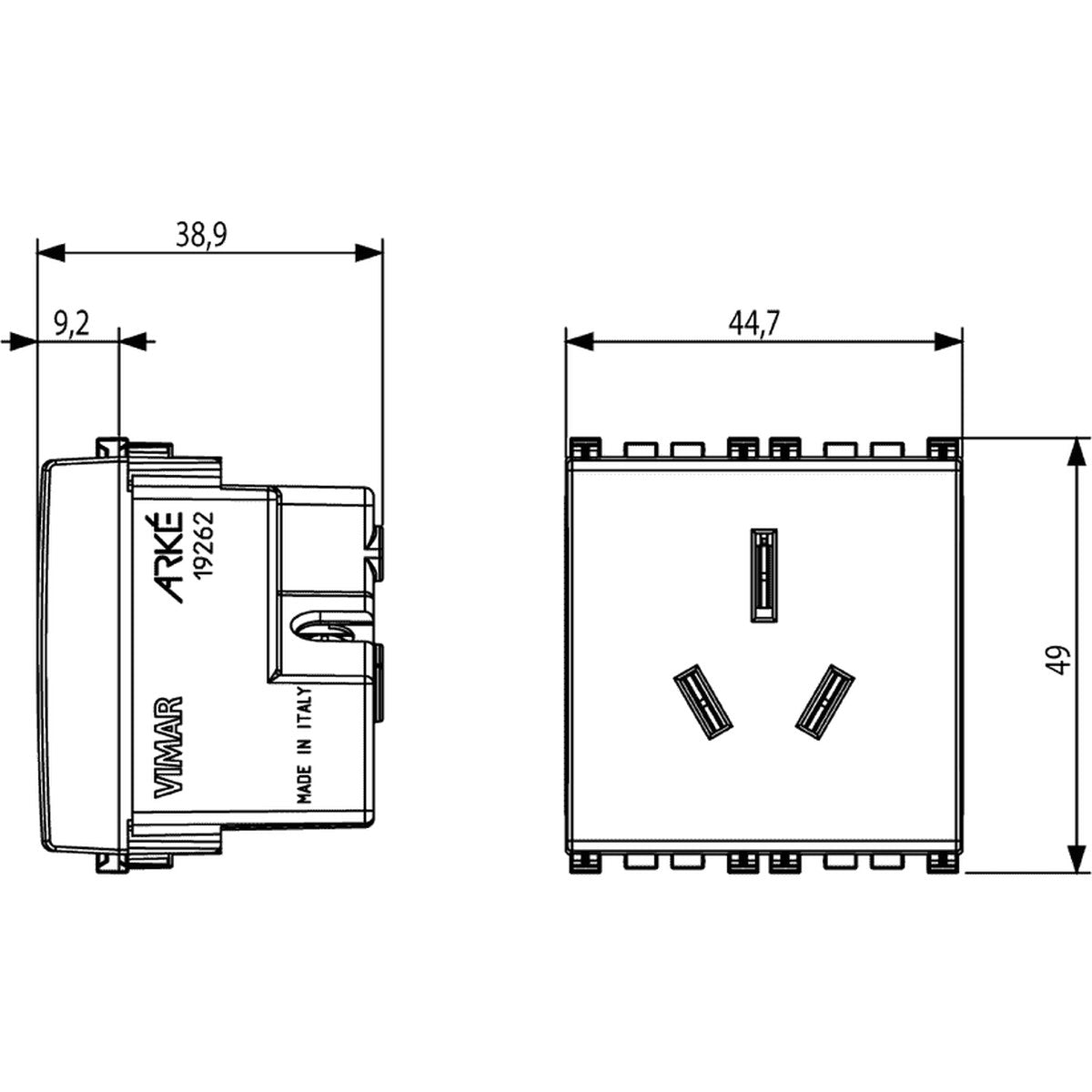

- Device width
- 44.7 mm
- Device height
- 49 mm
- Device depth
- 38.9 mm
Packaging
- EAN
- 8007352573215
- Packed size (cm)
- 5.1 × 4.3 × 5.3
- Packed weight
- 44.8 g
- Pieces per box
- 20
Certifications
- Certifications
- CE marking (EU), RCM (Australia), WEEE Directive

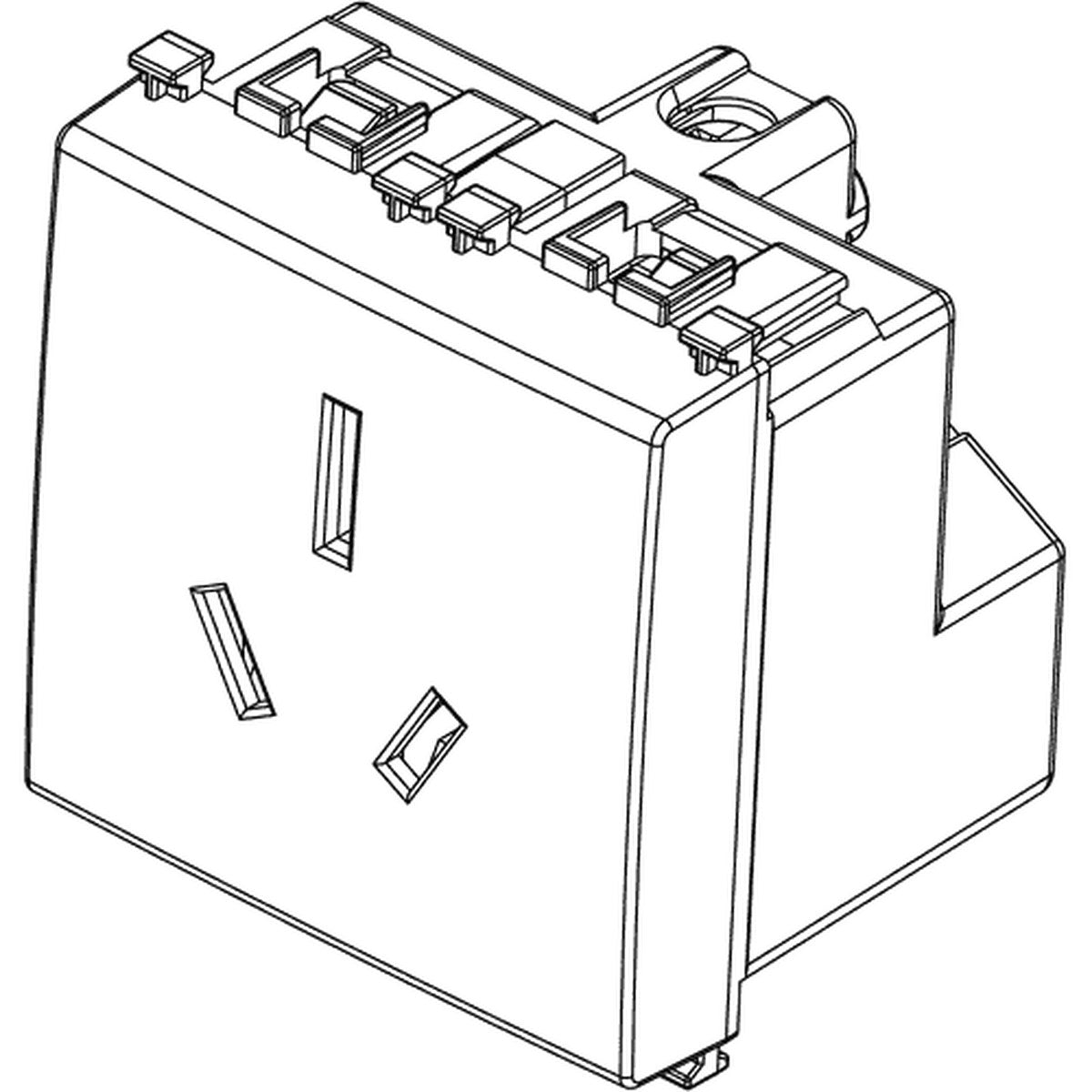

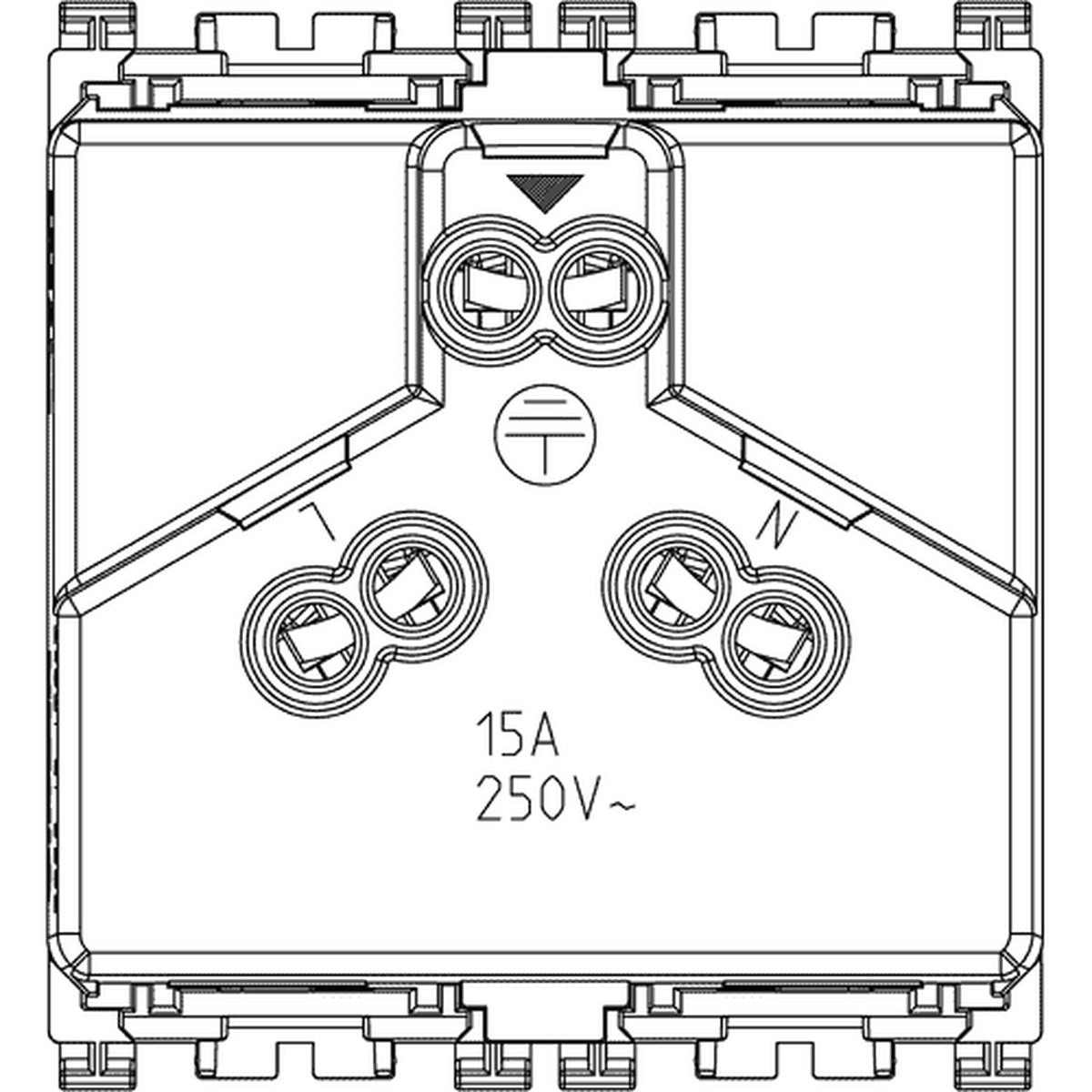

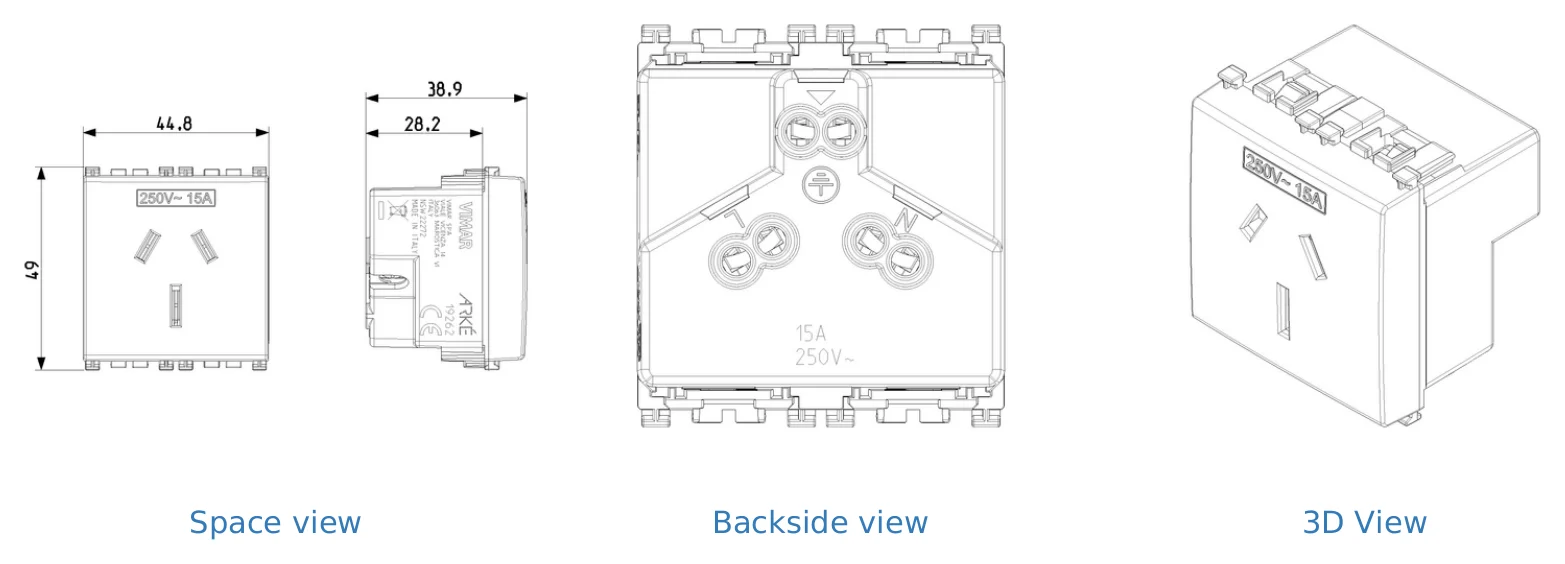

Technical drawings
Downloads
Certificates2
Catalogues15
FAQ
What type of application is this outlet designed for?
This model is a 2P+E 15A Australian Sicury outlet intended for projects using the Vimar Arke range. It is suited to commercial or residential spaces where an Australian-format power outlet is required. Its grey finish also makes it relevant for interiors where the outlet color needs to align with the surrounding design.
What are the key specifications of the Vimar Arke 2P+E 15A Australian Sicury Outlet Grey?
This outlet is rated at 15A and is supplied in a grey finish. The listed operating temperature range is from -20°C to 50°C, and the product weight is 0.0448 kg. It also comes with a 3-year warranty period.
Is this outlet part of the Vimar Arke series?
Yes, this model belongs to the Vimar Arke series. It is identified in the product name as an Arke outlet and is categorized within Arke switch and socket module groupings. That makes it relevant for buyers sourcing components within the same design family.
Where is the grey finish most suitable?
The grey finish is suitable for projects that need a more subdued or design-led appearance than a standard white outlet. It can work well in contemporary residential interiors as well as hospitality or commercial spaces. For this model, the finish is part of its visual differentiation within the Arke range.
Can this outlet be used in demanding temperature conditions?
This model is specified for ambient temperatures from -20°C up to 50°C. That gives it a broad operating range for typical indoor applications and some environments with wider seasonal variation. Buyers should still confirm that the intended site stays within that stated range.
