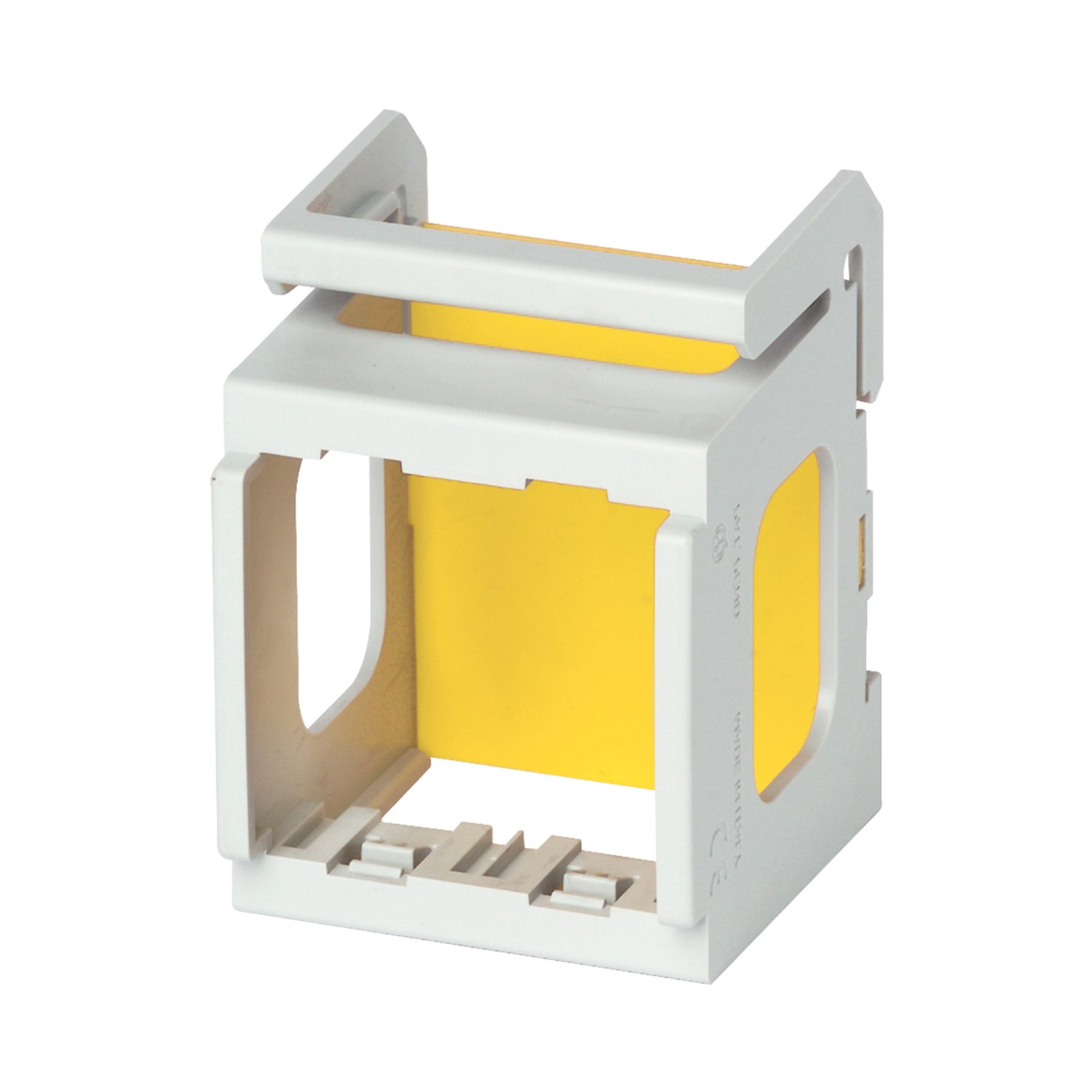

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Vimar Frame 2M Eikon/Arké/Plana for DIN rail

2M Frame for DIN Rail, Plastic, DIN-rail adapter

SKU:

VM-V51922

Notify me when it's back in stock

Description

Eikon 2-module support for DIN (60715 TH35) rail for installation of Eikon, Arké and Plana devices, occupies 3 17,5 mm modules, RAL 7035 grey. Provided with isolating lining

Specifications

Brand

Vimar
Series

Vimar By-me Plus
Standards Met

CCC,IMQ,QCERT
Warranty

3 Year
Length

5.3 cm
Width

7.55 cm
Height

5.8 cm
Weight

0.03 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Which Vimar device series is the VM-V51922 frame made for?

The VM-V51922 is a 2-module support for Vimar Eikon, Arké, and Plana devices. It is intended for buyers matching those Vimar series within switch frame and LED switch projects.

What is the VM-V51922 used for?

This model is a Vimar support frame for DIN 60715 TH35 rail applications. It provides a 2-module support format for compatible Eikon, Arké, and Plana devices.

How much DIN rail space does this frame occupy?

The VM-V51922 occupies 3 modules of 17.5 mm each. This is useful for checking available panel space when specifying compatible Vimar devices.

What color is the Vimar VM-V51922 frame?

The product description specifies RAL 7035 grey. The product data also includes a finish colour value of white, so buyers matching exact finishes should verify the required color against their purchasing records.

Does the VM-V51922 include isolating lining?

Yes. The product description states that this Vimar frame is provided with isolating lining.

What are the warranty period and weight for this model?

The VM-V51922 has a listed warranty period of 3 years. Its listed weight is 0.0254 kg.
