Vimar Arke 2P+E 15A Australian Sicury Outlet White
Log in to see priceOverview
VM-19262.B is Vimar ARKÉ 19262.B, 2P+E 15A Australian SICURY outlet white.
2P+E 15 A 250 V~ SICURY socket outlet, Australian standard, white - 2 modules
Specifications
Technical data
- Product type
- Socket outlet
- Model
- Australian standard AS/NZS 3112 (type I)
- Number of socket outlets
- 1
- Number of modules (module system)
- 2
- Connection type
- Screwed terminal
- With hinged lid
- No
- With enhanced contact protection
- Yes
- Label space/information surface
- Yes
- Colour
- White
- RAL-number (similar)
- 9016
- Metallic colour
- No
- Transparent
- No
- Lockable
- No
- Eject-mechanism
- No
- Insulated mounting
- No
- With function lighting
- No
- With orientation lighting
- No
- Overvoltage protection
- No
- Fault current protection
- No
- Mounting method
- Flush-mounted
- Material
- Plastic
- Material quality
- Thermoplastic
- Halogen free
- Yes
- Surface protection
- Untreated
- Surface finishing
- Matt
- With loop through function
- No
- With on/off switch
- No
- Rotated central insert
- No
- Nominal current
- 15 A
- Nominal voltage
- 250 V
- Frequency
- 50 - 60 HZ
- Suitable for degree of protection (IP)
- IP20
- Device width
- 44.7 mm
- Device height
- 49 mm
- Device depth
- 38.9 mm
Packaging
- EAN
- 8007352573239
- Packed size (cm)
- 5.1 × 4.3 × 5.3
- Packed weight
- 44.8 g
- Pieces per box
- 20
Certifications
- Certifications
- CE marking (EU), RCM (Australia), WEEE Directive

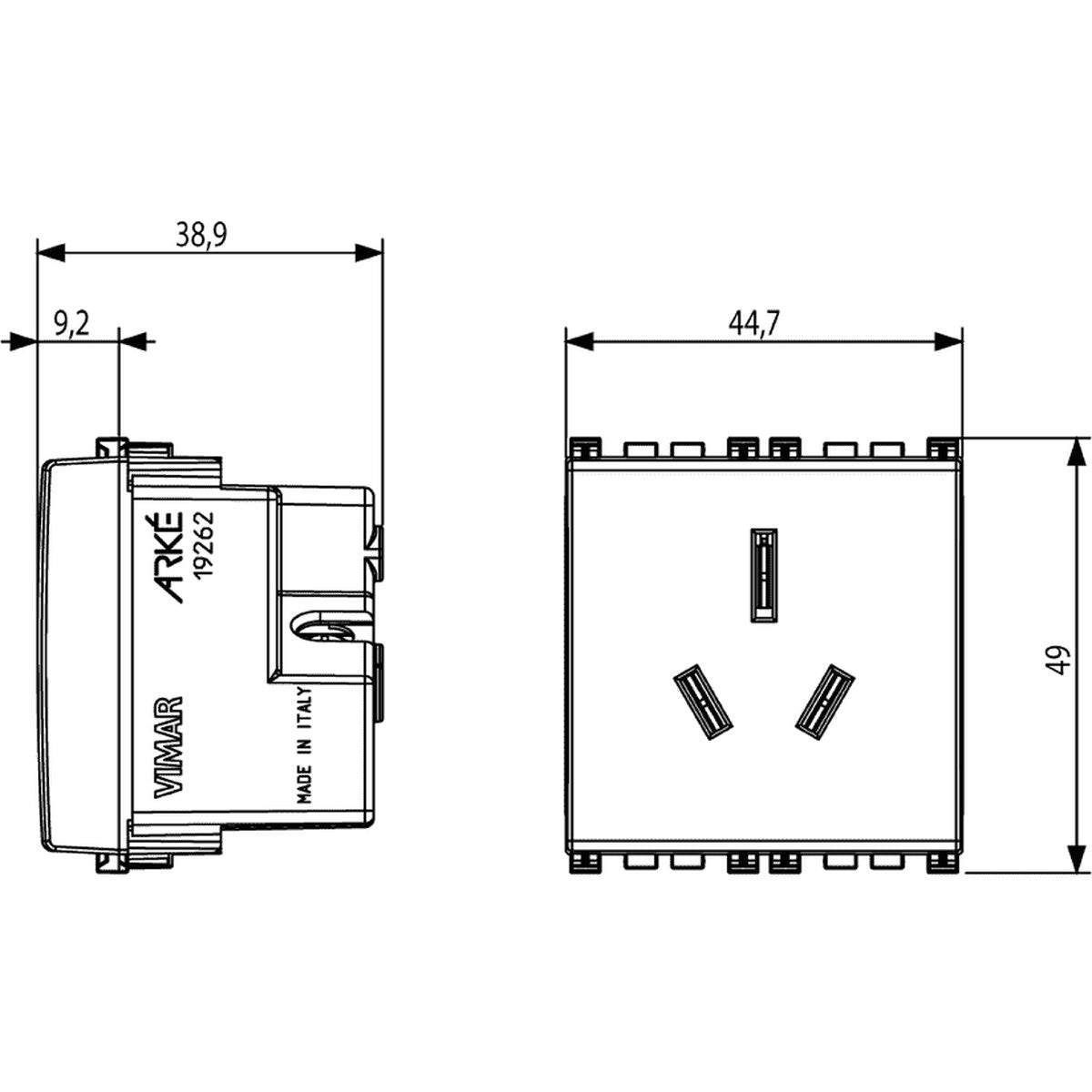

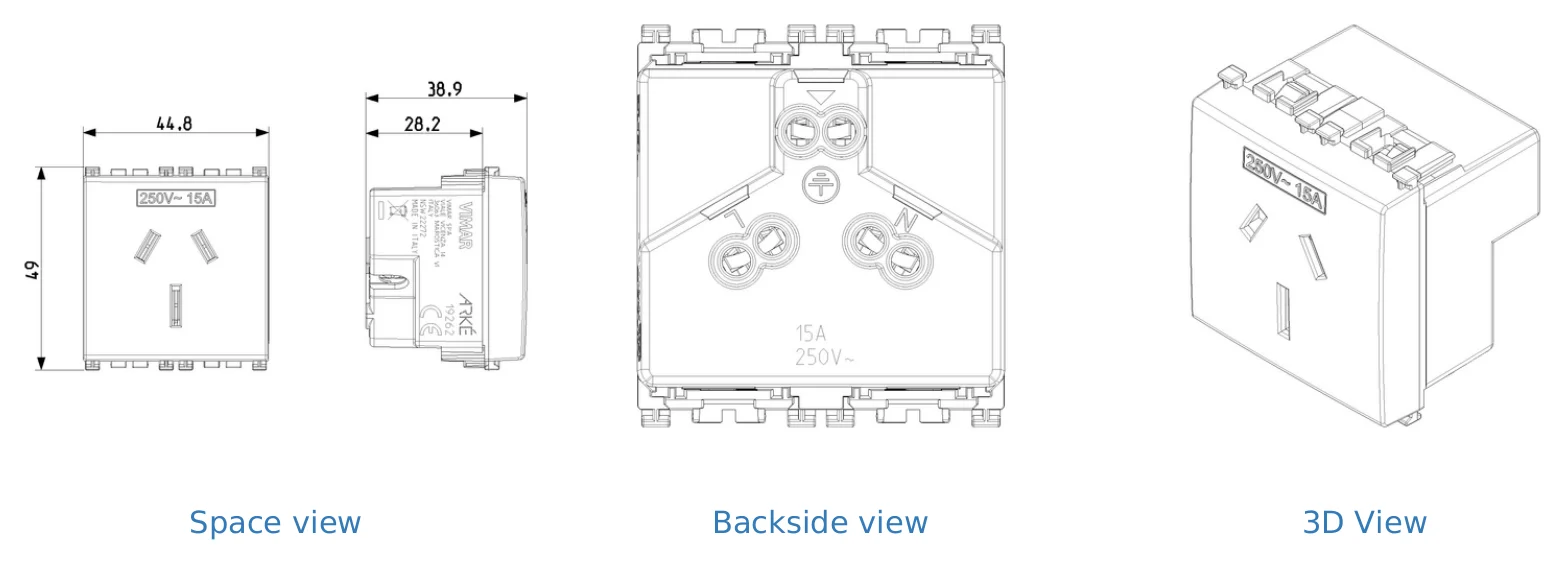

Technical drawings
Downloads
Certificates2
Catalogues15
FAQ
What is the Vimar VM-19262.B outlet used for?
The Vimar VM-19262.B is a 2P+E 15A Australian Sicury outlet from the Vimar Arké range. It is intended for projects that require a white outlet module with a clean, contemporary appearance for residential, commercial, or hospitality spaces.
What current rating does this Vimar Arké outlet have?
This model is rated at 15A. The product data lists the rated current specifically as 15.0000 A for SKU VM-19262.B.
Is this outlet part of the Vimar Arké series?
Yes. The VM-19262.B belongs to the Vimar Arké switch and socket module family, with categories including Vimar Arké module, Arké socket, and Arké series products.
What temperature range is specified for this outlet?
The specified operating temperature range is from -20 °C to 50 °C. This makes the product suitable for environments that remain within those listed temperature limits.
Why choose the white finish version of this Vimar Arké outlet?
The white finish is a classic, minimalist option designed to complement a wide range of interiors. It suits buyers who want the Arké series aesthetic in a neutral colour rather than a more visually prominent material-driven finish.
What warranty period is listed for the VM-19262.B?
The listed warranty period for this product is 3 years. This warranty detail applies specifically to the product data provided for SKU VM-19262.B.
