Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Archilight

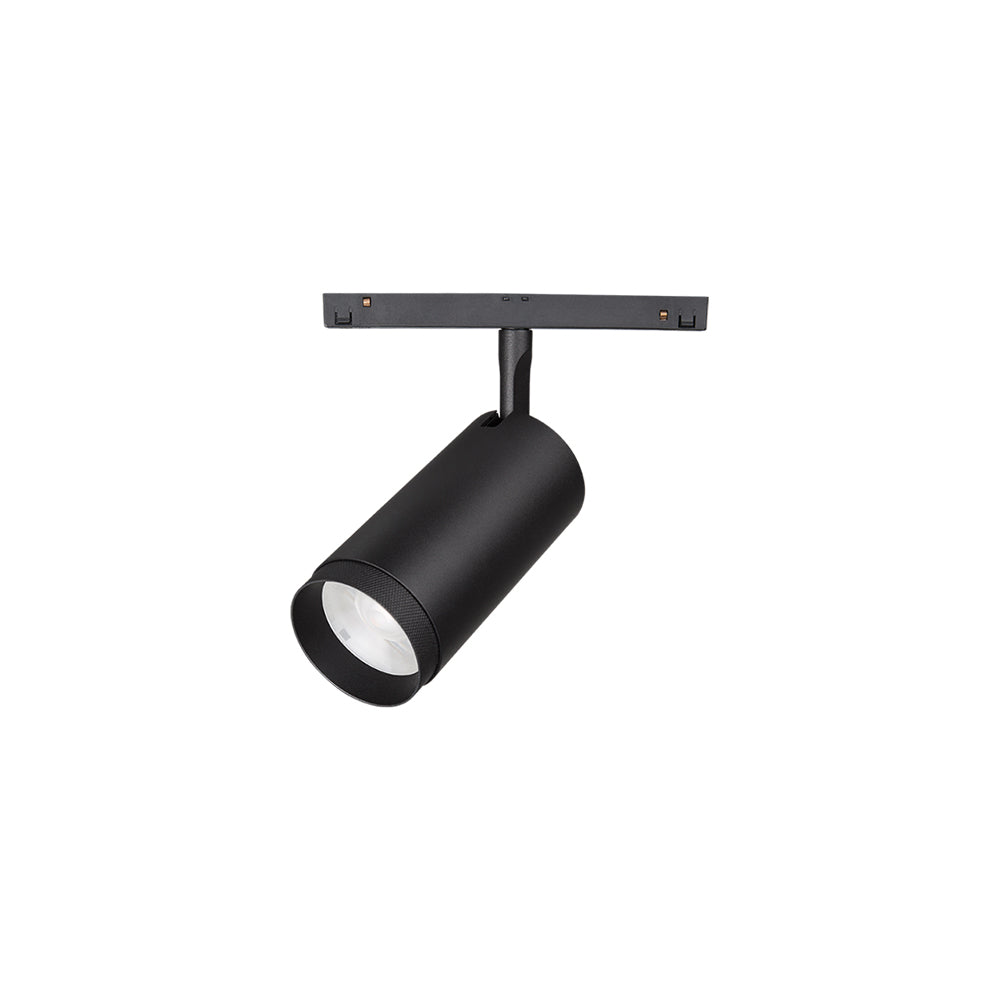

Archilight Dot 70 Black and Gold Tracklight Light 25W

SKU KC-017006B01-15-36D-2700K-BG
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Configure — 6 variants

KC-017006B01-15-36D-2700K-BG
LED Colour
Beam Angle
6 matching

Pick options to narrow the list, or tap a row to select. Dimmed chips have no matching combination.
Available to order
|

Specifications

Archilight Dot 70 Black and Gold Tracklight Light 25WSpecifications from the official datasheetDownload datasheet PDF

Variants

SKULED Colour
KC-017006B01-36-60D-3000K-BGWarm White 3000K
KC-017006B01-36-60D-4000K-BGNatural White 4000K

Specifications

Input
48 V
Power rating
25 W
Beam angle
15° - 36° / 36° - 60°
Brightness
2,150 lm
Efficacy
≥86 lm/W
Colour render index(CRI)
≥90
UGR
<19
IP level
IP20
Temperature range
-25°C~50°C
Dimming control
Bluetooth APP Control (Default) or DALI (Optional)

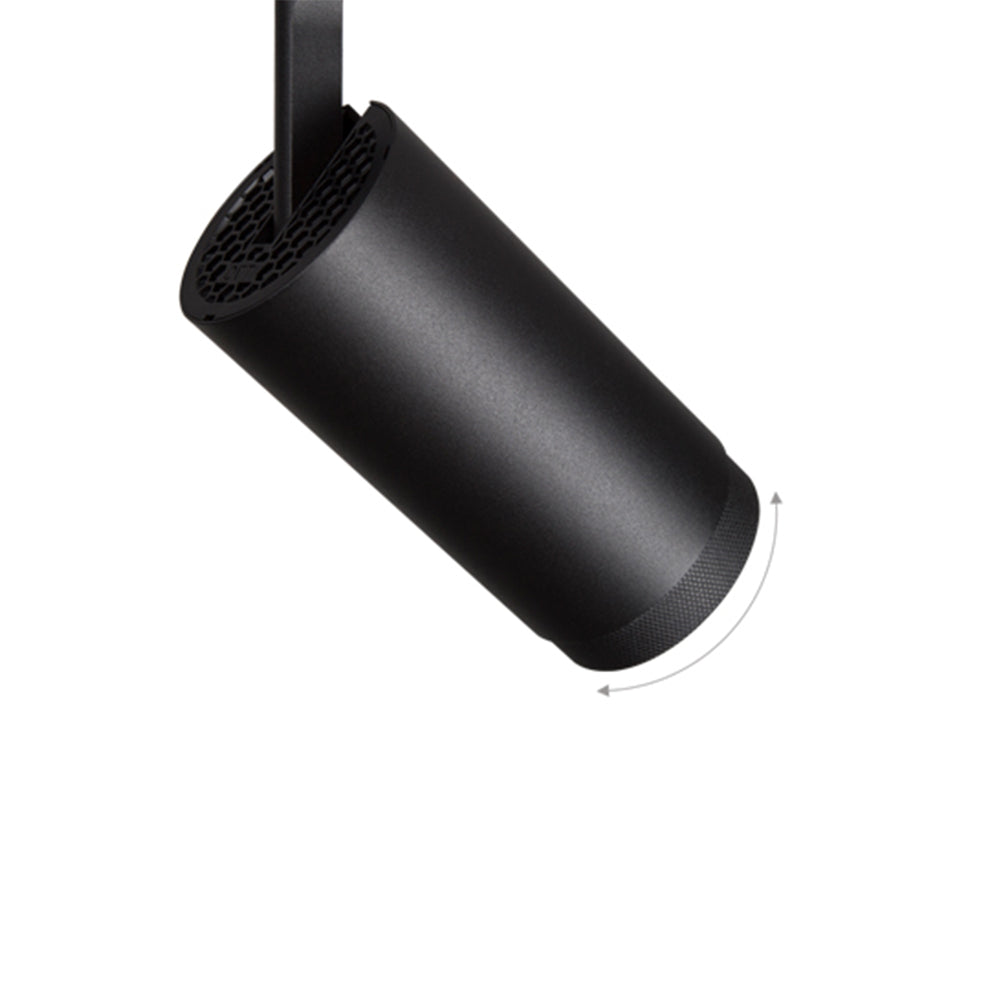

Tiltable
Adjustable
Mounting
Motion Magnetic Track Series
Driver
48V Driver Not Included
Warranty
5 years
Lifetime
50,000hrs
Material
Aluminum

Certifications & ratings

Certification marks
CE, CB, TÜV, CCC, SAA, Class II, IP20

Technical drawings

Archilight Dot 70 Black and Gold Tracklight Light 25W Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What is the Archilight Dot 70 Black and Gold Tracklight Light 25W designed for?

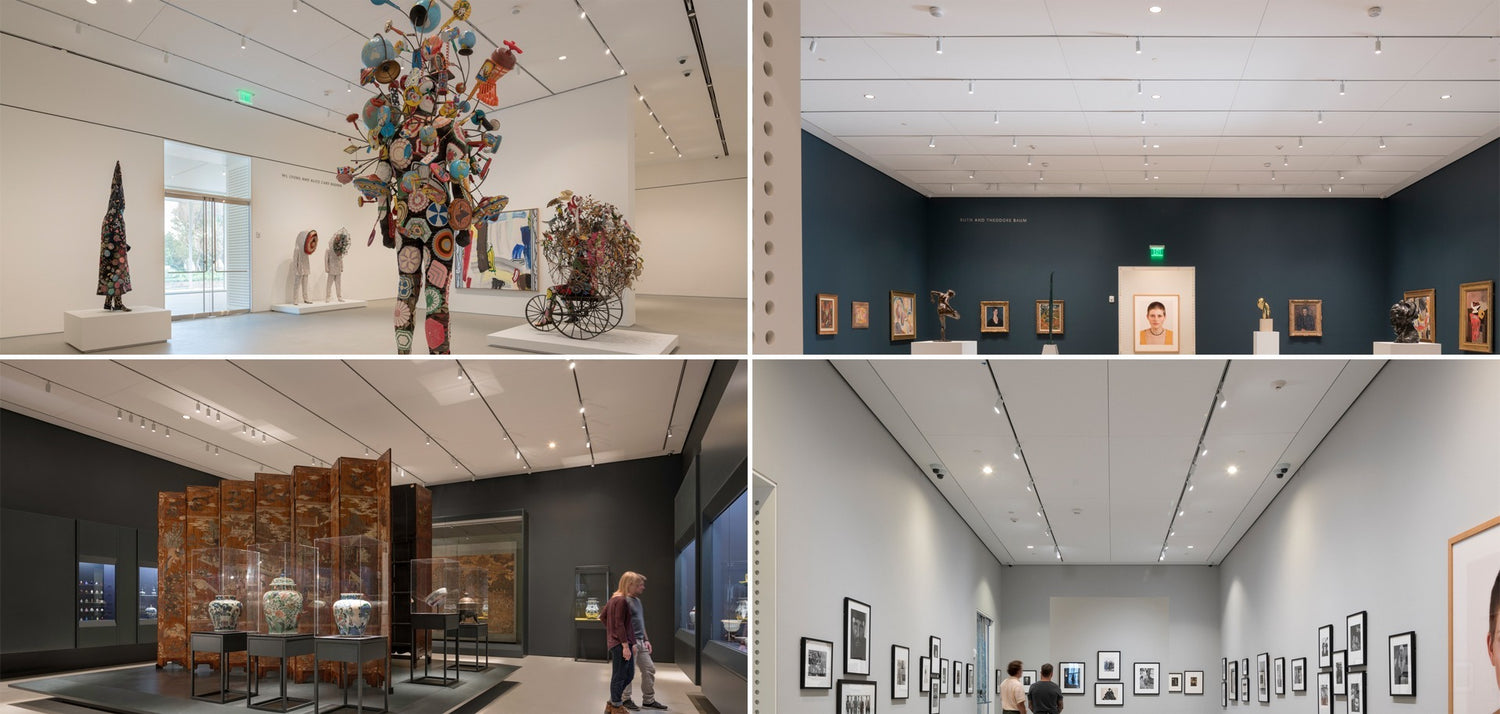

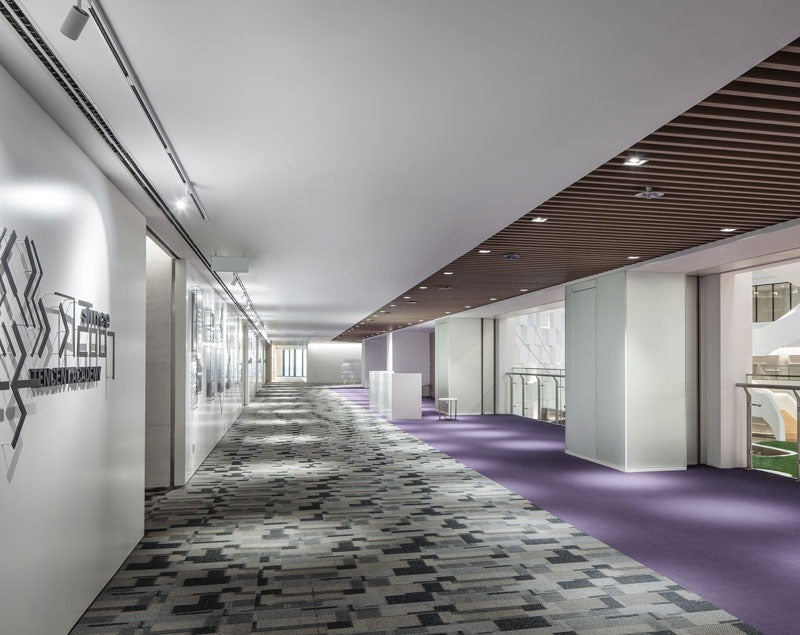

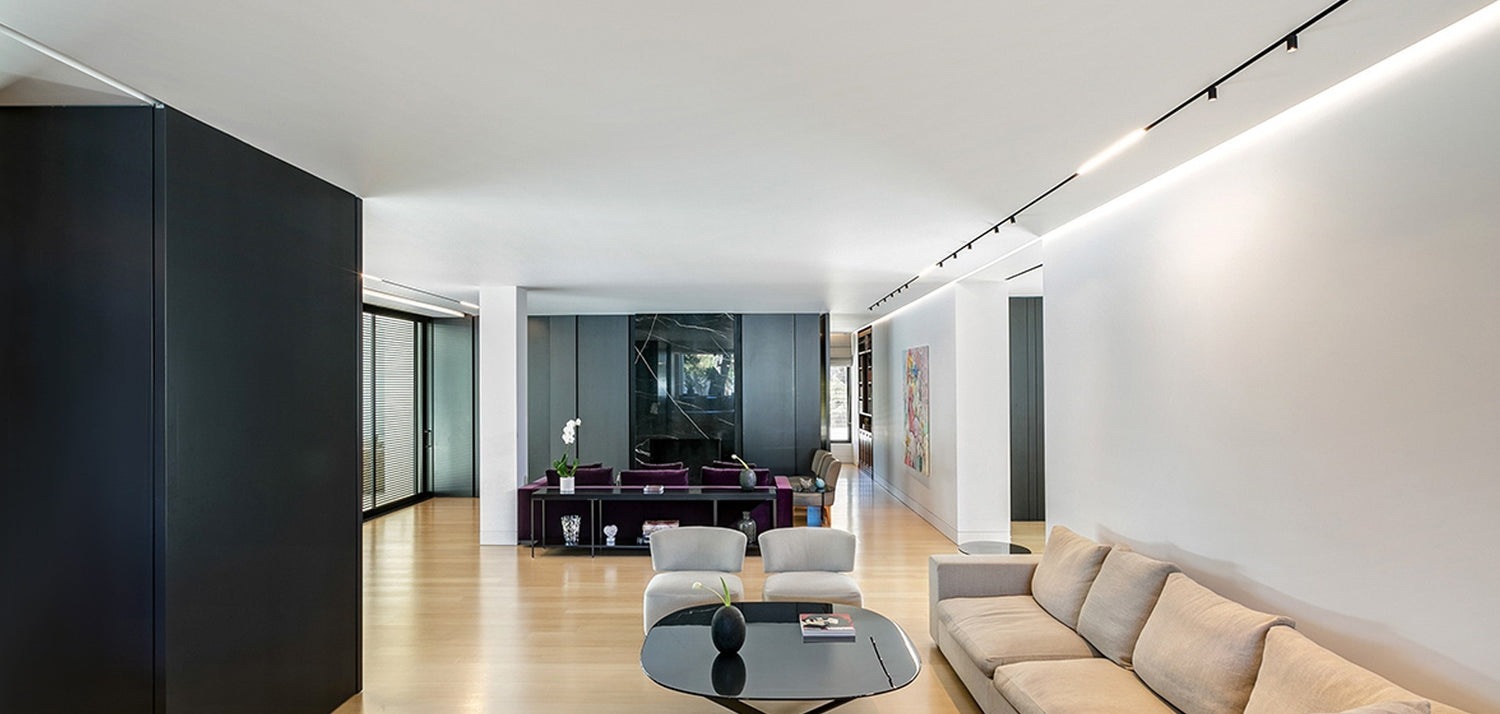

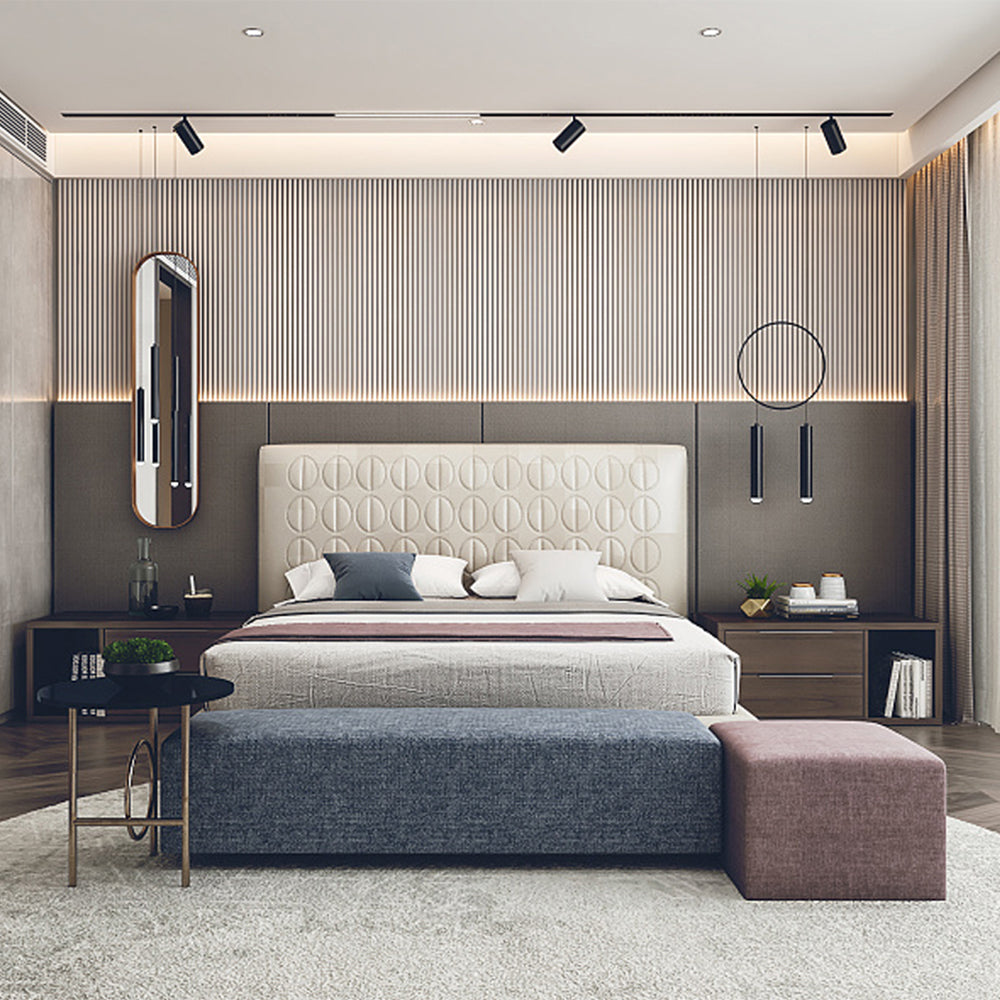

This magnetic track spotlight is designed for interior lighting in residential, hospitality, office, and retail applications. It is part of the Dot series and is intended for use where a flexible, focused track lighting solution is needed. The black and gold finish also makes it suitable for projects where decorative appearance matters alongside performance.

What track system is this light compatible with?

This product is intended to pair with Motion series track systems. It belongs to the magnetic track light family, so it should be selected for projects using that compatible track platform. The product data does not indicate compatibility with other track systems.

What variant options are available in this parent product family?

Across this parent family, the main variant differences are colour temperature and beam angle. Available colour temperatures are 2700K, 3000K, 4000K, and 5000K, and beam angle options are 15/36 and 36/60. The finish, power rating, CRI, brightness, warranty, and driver status remain consistent across the listed variants.

What are the key performance specifications for this track light family?

This family uses 25W of power and delivers 2125 lumens in the listed child variants. It has a CRI of 90, a rated lifetime of 50,000 hours, and a 5-year warranty. The parent product is also described as having a low glare rating of UGR under 19.

Is a driver included with the Archilight Dot 70 Black and Gold Tracklight Light 25W?

No, the product data shows that a driver is not included. Buyers should account for that when specifying the complete track lighting system. The light uses a 48V power input within the product family data provided.

Is this track light dimmable?

The supplied product data lists the dimming control as none for the parent model and all listed child variants. That means no dimming control is specified for this family as provided. If dimming is required, it should be confirmed against an alternative product or family with explicit dimming support.
