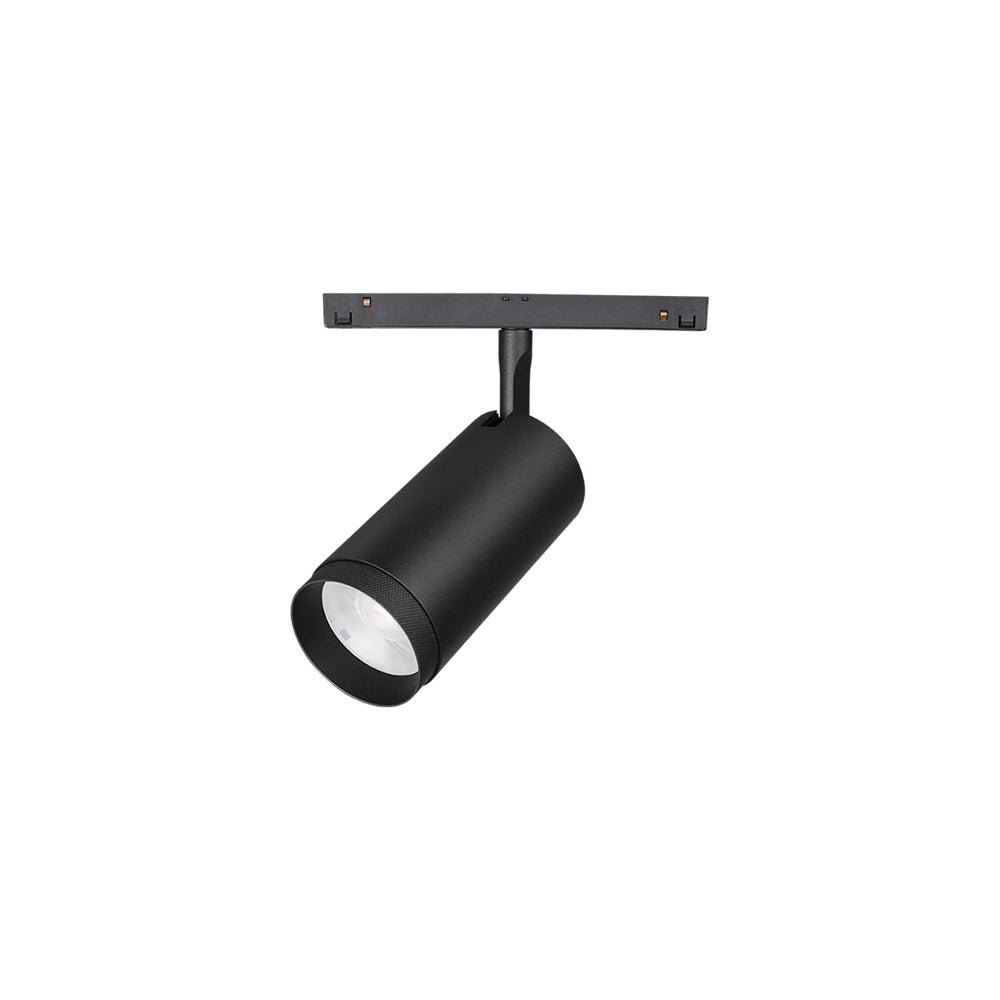

Archilight Dot 70 Black Track Light BLE 25W
Log in to see priceSpecifications
Archilight Dot 70 Black Track Light BLE 25WSpecifications from the official datasheetDownload datasheet PDF
Variants
| SKU |
|---|
| KC-017006B01-36-60D-3000K-B-BLE |
Specifications
- Input
- 48 V
- Power rating
- 25 W
- Beam angle
- 15° - 36° / 36° - 60°
- Brightness
- 2,150 lm
- Efficacy
- ≥86 lm/W
- Colour render index(CRI)
- ≥90
- Colour temperature
- 2700K / 3000K / 4000K / 2700K - 6000K
- UGR
- <19
- IP level
- IP20
- Temperature range
- -25°C~50°C
- Dimming control
- Bluetooth APP Control (Default) or DALI (Optional)
- Tiltable
- Adjustable
- Mounting
- Motion Magnetic Track Series
- Driver
- 48V Driver Not Included
- Warranty
- 5 years
- Lifetime
- 50,000hrs
- Material
- Aluminum
- Finish
- White, Black, Black+Gold, White+Gold
Certifications & ratings
- Certification marks
- CE, CB, TÜV, CCC, SAA, Class II, IP20
Technical drawings
Downloads
Datasheet1
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other Archilight Dot 70 Series Models
5 other models| Model | Power | CRI | Dimming | UGR | |
|---|---|---|---|---|---|
| Archilight Dot 70 Black Tracklight Light 25W - 36-60 Degree - Black - Natural White 4000K - DALI2 dimmable | 25W | 90 | Non Dimmable | 19 | View |
| Archilight Dot 70 White and Gold Tracklight Light 25W | 25W | 90 | Non Dimmable | 19 | View |
| Archilight Dot 70 White Tracklight Light 25W | 25W | 90 | Non Dimmable | 19 | View |
| Archilight Dot 70 Black and Gold Tracklight Light 25W | 25W | 90 | Non Dimmable | 19 | View |
| Archilight Dot 70 Black Tracklight Light 25W | 25W | 90 | Non Dimmable | 19 | View |
